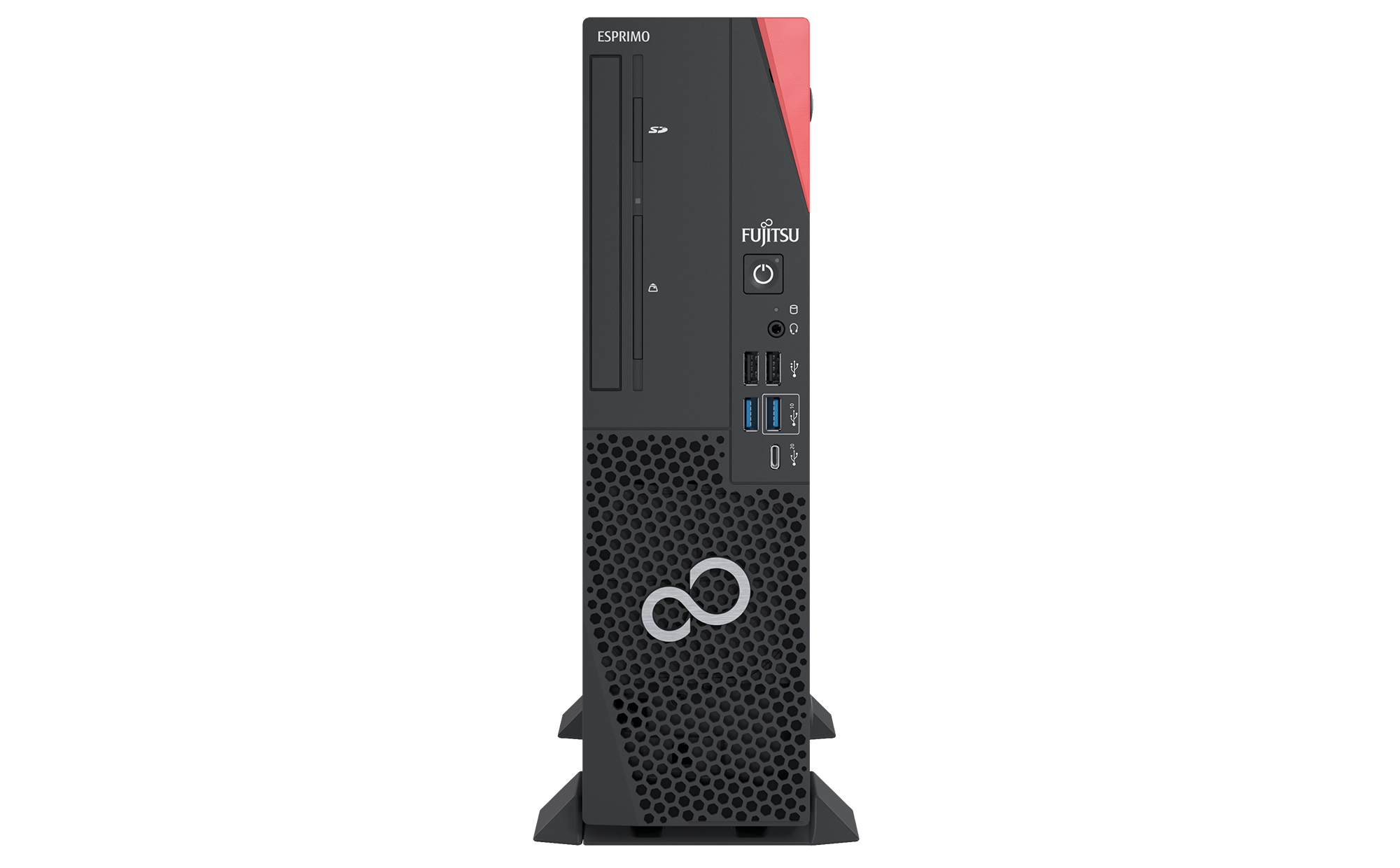

FUJITSU Desktop ESPRIMO D7011
The FUJITSU ESPRIMO D7011 desktop is a high performance, secure small form factor PC with ultimate expandability, along with best-in-class connectivity. Faster operations and a new housing help in space saving to create the perfect working desk. The USB Type-C™, flexible graphics options, offers great connectivity. The 80Plus GOLD and 80Plus PLATINUM power supply helps to reduce environmental impact and energy bills.
Features and Benefits
Intel® chipset technology and higher memory speed
High performance ensures faster operations and lower system response time
- Intel® B560 chipset with higher memory frequency of up to 3,200 MT/s
New housing and ultimate expandability
Space saving design for your future computing needs
- 2x low profile (LP) or 1x LP/ 1x full height (Riser) via BTO
- Space saving in width and depth with new 8.3 litres volume
Best-in-class connectivity
Be flexible and stay productive in a hyper-connected world
- Support of new USB Type-C™ in front
- Flexible graphics options (VGA, DVI-D, HDMI®, USB Type-C™, DisplayPort™)
- USB Type-C™ support of 60 W (optional to power a display)
- Legacy Serial port connectors as option
High security with integrated options
Designed to protect data and hardware components against manipulation and theft
- Smartcard reader, Erasedisk software
- Hole for pad lock and Kensington as standard for security
Low power consumption, easy serviceability and usability
Reduced environmental impact and reduced energy bills and features designed for easy access, control and use of the system
- 80Plus GOLD and 80Plus PLATINUM power supply efficiency with monitor outlet
- Tool-less access to components, easy change and screw-less add on cards
Technical Details
| Product | FUJITSU ESPRIMO D7011 |
|---|---|
| Operating System | Windows 10 Pro
Fujitsu recommends Windows 11 Pro for business. |
| Mainboard | D3923-A2 |
| Chipset | Intel® B560 |
| Processor | Intel® Core™ i7-10700 processor, 16 MB, 2.90 GHz
Intel® Core™ i5-10600 processor, 12 MB, 3.30 GHz Intel® Core™ i5-10505 processor, 12 MB, 3.20 GHz Intel® Core™ i5-10400 processor, 12 MB, 2.90 GHz Intel® Core™ i3-10105 processor, 6 MB, 3.70 GHz |
| Supported capacity RAM (max.) | 128 GB, 4 Memory slot(s) DIMM (DDR4), Dual channel support, For dual channel performance, 2 memory modules have to be ordered. Capacity per channel has to be the same. 3200 MHz may be clocked down to 2400MHz depending on processor and memory configuration |
| Serial ATA total | 4 |
| thereof SATA III | Serial ATA III (6 Gbit), NCQ, AHCI |
| Drives (optional) | DVD Super Multi ultra slim (tray), SATA
SD Card reader, USB 3.0 |
| Drive bay | 1 x 2.5-inch internal bay; 1 x 5.25-inch external bay ; 1 x internal 3.5-inch bay via adapter |
| Slots | 1 x PCI-Express 3.0 x4 (mech. x16)
1 x PCI-Express 4.0 x16 |
| Interfaces | 1 x Audio: line-in
1 x Audio: line-out 4 x USB 3.2 Gen 1 (5 Gbps) total 1 and 1 optional USB 3.2 Gen 2 (10 Gbps) total 7 x USB 2.0 total Front: 3x USB 2.0; 1x USB 3.2 Gen 1; 1x USB 3.2 Gen 2; Rear: 4x USB 2.0; 2x USB 3.2 Gen 1; optional: additional 1x USB 3.2 Gen 2x1 Type-C (supports DisplayPort 1.4 and power delivery (PD) up to 15W or 60W (occupies PCIe x16 slot) Internal: 1x USB 2.0 or 1x USB 3.2 Gen 1 Type A x USB optional VGA 1 (optional serial port (9 pin, 16 byte FIFO, 16550 compatible)) 1 x Ethernet (RJ-45) 1 x Kensington Lock support optional (DVI-D) 2 x DisplayPort 2 (optional) x Mouse / Keyboard |
| Graphics | Intel® UHD Graphics 630 |
| Audio codec | Realtek ALC897 |
| Communication | 10/100/1,000 MBit/s Realtek RTL8111H |
| Weight | approx. 8 kg
approx. 17.64 lbs |
| Dimensions (W x D x H) | 314 x 296 x 89 mm
12.36 x 11.65 x 3.51 inch |
| Power efficiency note | Power supply efficiency in % at 10% / 20% / 50% / 100% load 80Plus GOLD:
80Plus PLATINUM:
|
