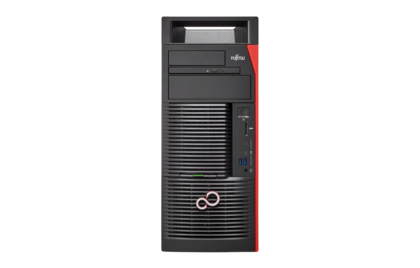

FUJITSU Workstation CELSIUS M7010
Features and Benefits
Performance you can count on
Spectrum of performance due to a wide range of professional grade features
- Powerful Intel® Xeon® Processor W Family
- Support of Windows 10 Pro for Workstations
- Support of up to 512 GB DDR4 2,933 memory
- Fujitsu SSD PCIe card (up to 2 x 2 TB)
Smart security
Human centric innovation meets security
- Optional security lock (side door and front access)
- Intrusion detector sensor integrated into the power supply
- USB keyboard with integrated PalmSecure™: Easy log-on with the help of your palm
veins
Ultimate usability and easy access
Engineering excellence
- Cable-free design and green touchpoints
- Cold-plug technology: Storage accessible via a front disk tray
Dual GPU, VR-ready workstation
Enjoy a fully immersive and real-time virtual reality experience with low latency at high frame rates
- Intel® vPro processors with up to 4.60 GHz frequency
- Professional graphics cards from NVIDIA (up to NVIDIA® Quadro RTX™ 8000)
Made in Japan
Quality you can trust
- Comprehensive testing in certified in-house laboratories for 24/7 operation
- Intelligent tri-channel thermal management
Technical Details
Product | CELSIUS M7010
|
Operating system | Windows 10 Pro for Workstations
|
Chipset | Intel® C422
|
Processor | Intel® Xeon® processor W-2223, 3.60 GHz, up to 3.9 GHz
Intel® Xeon® processor W-2225, 4.10 GHz, up to 4.6 GHz Intel® Xeon® processor W-2235, 3.80 GHz, up to 4.6 GHz Intel® Xeon® processor W-2245, 3.90 GHz, up to 4.5 GHz Intel® Xeon® processor W-2255, 3.70 GHz, up to 4.5 GHz Intel® Xeon® processor W-2265, 3.50 GHz, up to 4.6 GHz Intel® Xeon® processor W-2275, 3.30 GHz, up to 4.6 GHz Intel® Xeon® processor W-2295, 3.00 GHz, up to 4.6 GHz |
Supported capacity RAM (max.) | 512GB, 8 Memory slot(s) DIMM (DDR4) ECC. For quad channel, a minimum of 4 memory modules have to be ordered and the capacity per channel has to be the same.
DDR4 2,933MHz may be clocked down to 2,666 or 2,400 or 2,133 depending on the processor. |
Interfaces | 1 x Audio: in (rear)
1 x Audio: out (rear) 1 x Audio: in 1 x Audio: out 1 x Internal speakers 2 optional via front panel x USB 2.0 total 2x USB 2.0; 2x USB 3.1 (Gen1); optional: 2x USB 3.1 Type-C (Gen2) instead of 2x USB 2.0 x USB front 3, thereof 1 type A x USB internal 6 x USB rear 1 x Ethernet (RJ-45) 1 (optional) x eSATA |
Graphics features | Ultra-high-end 3D: NVIDIA® Quadro® RTX 8000, 48 GB, PCIe x16, 4 x DisplayPort, 1 x Virtual Link
Ultra-high-end 3D: NVIDIA® Quadro® RTX 6000, 24 GB, PCIe x16, 4 x DisplayPort, 1 x Virtual Link Ultra-high-end 3D: NVIDIA® Quadro® RTX 5000, 16 GB, PCIe x16, 4 x DisplayPort, 1 x Virtual Link High-end 3D: NVIDIA® Quadro® RTX 4000, 8 GB, PCIe x16, 3 x DisplayPort, 1 x Virtual Link Midrange 3D: NVIDIA® Quadro® P2200, 5 GB, PCIe x16, 4 x DisplayPort Entry 3D: NVIDIA® Quadro® P1000, 4 GB, PCIe x16, 4 x miniDP Entry 3D: NVIDIA® Quadro® P620, 2 GB, PCIe x16, 4 x miniDP Entry 3D: NVIDIA® Quadro® P400 , 2 GB, PCIe x16, 3 x miniDP Others: DP to DVI-D (single link) Adapter Cable Others: MiniDP to DP Adapter Cable |
Audio codec | Realtek ALC671
|
Weight | approx. 18 kg
approx. 39.67 lbs |
*Offerings vary by country
