FUJITSU Server PRIMERGY RX1330 M2

The FUJITSU Server PRIMERGY RX1330 M2 is a mono-socket rack server designed to meet small budgets by delivering highest energy efficiency and a rich set of optional expansions to meet individual demands. Optimized for infrastructure and communication applications as well as administration and small file server, this 1U systems features up to 64 GB RAM, up to 3 PCIe slots and up to 10 hard disk drives.
  • Intel®/sup Xeonsup® processor

Features & Benefits

Features Benefits
Low in costs
  • High energy efficient
  • Fujitsu ServerView™ suite and onboard remote management features (iRMC S4) enables centralized management
  • Cool-safe® Advanced Thermal Design enables operation in a higher ambient temperature

  • Clear reduction in energy costs saving OPEX
  • Comprehensive and simplified management reduce time for standard administration tasks
  • Each additional degree means approximately 5-6 percent less energy costs for air-conditioning
Flexible foundation for infrastructure tasks
  • Intel Xeon processor E3-1200 v5 and up to 64 GB DDR4 memory, up to 3 PCIe slots and up to 10 storage drives
  • Free choice: Up to 4x 3.5-inch or up to 10x 2.5-inch storage drives
  • Broad selection of operating systems

  • Cost-optimized foundation for file, infrastructure and communication applications
  • Flexible to meet the individual demand, the huge storage capacity fulfills requirements of storage demanding application or services
  • Red Hat Linux, Suse Linux, Microsoft Windows Server - it's up to you
Rich set of optional features
  • Choice of Intel Xeon E3 v5, Core i3, Celeron and Pentium processors
  • Modular RAID controllers
  • Redundant fans
  • Hot-plug and redundant power supply (PSU) with 80 PLUS platinum energy efficiency (94 %)
  • Full-height PCIe slot

  • Perfectly meet the performance requirements with available budget
  • Match redundancy requirements with available budget
Integrated UPS - Easy & reliable
  • The Fujitsu FJBU internal battery backup is an alternative for classical UPS devices
  • Compact battery unit that fits into modular PSU slot
  • Ni-MH battery allows for a very long life time (5 years)
  • Full integration into server management environment

  • Keeps the server running during short blackouts or voltage fluctuations and enables a graceful shutdown
  • Same life time as the server – no maintenance necessary
  • Easy and clean setup: no cabling, no separate device

Technical details

ChipsetIntel® C236
Mainboard typeD3375
Product TypeMono Socket Rack Server
ProcessorIntel® Xeon® processor E3-1200 v5 product family, Intel® Core™ i3 processor, Intel® Pentium® processor, Intel® Celeron® processor
Memory4 GB - 64 GB, DIMM (DDR4)
Memory protectionECC
Drives (optional)DVD supermulti, ultraslim, SATA I
PCI-Express 3.0 x41 x Low profile
PCI-Express 3.0 x82 x Low profile Length 175mm; PCIe slot
1 = dedicated Modular RAID slot
Slot NotesOptional support of 1x full height PCIe Gen3 x8 card, instead of 1x PCIe Gen2 x4 and 1x PCIe Gen3 x8
Accessible drive bays1 x 5.25/0.4-inch for CD-RW/DVD
Optional accessible drivesFollowing limitations applies to 10x 2.5-inch HDD base unit: No CD-RW/DVD, 1x USB 2.0 at the front, no front VGA
Storage drive bays4/8 x 2.5-inch hot-plug SAS/SATA or 4x 3.5-inch hot-plug SAS/SATA or 10 x 2.5-inch hot-plug SAS/SATA
Max. 4x 3.5-inch
Max. 8x 2.5-inch
Max. 10x 2.5-inch
Storage drive typeHDD SATA, 6 Gb/s, 1 TB, 7,200 rpm, 512n, hot-plug, 2.5-inch, business critical
HDD SATA, 6 Gb/s, 1 TB, 7,200 rpm, 512e, hot-plug, 2.5-inch, business critical
HDD SATA, 6 Gb/s, 2 TB, 7,200 rpm, 512e, hot-plug, 2.5-inch, business critical
HDD SATA, 6 Gb/s, 2 TB, 7,200 rpm, 512n, hot-plug, 2.5-inch, business critical
HDD SAS, 12 Gb/s, 300 GB, 15,000 rpm, 512n, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 450 GB, 15,000 rpm, 512n, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 600 GB, 15,000 rpm, 512n, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 1.2 TB, 10,000 rpm, 512e, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 1.8 TB, 10,000 rpm, 512e, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 600 GB, 10,000 rpm, 512e, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 900 GB, 10,000 rpm, 512e, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 1.2 TB, 10,000 rpm, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 300 GB, 10,000 rpm, 512n, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 600 GB, 10,000 rpm, 512n, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 900 GB, 10,000 rpm, 512n, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 1 TB, 7,200 rpm, 512e, hot-plug, 2.5-inch, business critical
HDD SAS, 12 Gb/s, 2 TB , 7,200 rpm, 512e, hot-plug, 2.5-inch, business critical
HDD SAS, 12 Gb/s, 1.2 TB , 10,000 rpm, 512n, hot-plug, 2.5-inch, enterprise, SED
HDD SAS, 12 Gb/s, 300 GB, 10,000 rpm, 512n, hot-plug, 2.5-inch, enterprise, SED
HDD SAS, 12 Gb/s, 600 GB , 10,000 rpm, 512n, hot-plug, 2.5-inch, enterprise, SED
HDD SAS, 12 Gb/s, 1.8 TB, 10,000 rpm, 512e, hot-plug, 2.5-inch, enterprise, SED
HDD SAS, 12 Gb/s, 300 GB, 15,000 rpm, 512n, hot-plug, 2.5-inch, enterprise, SED
SSD SATA, 6 Gb/s, 120 GB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3 DWPD (drive writes per day for 5 years)
SSD SATA, 6 Gb/s, 1.92 TB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3 DWPD (drive writes per day for 5 years)
SSD SATA, 6 Gb/s, 960 GB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3 DWPD (drive writes per day for 5 years)
DOM SATA, 6 Gb/s, 128 GB, non hot plug, enterprise, 0.13 DWPD (Drive Writes Per Day for 5 years)
DOM SATA, 6 Gb/s, 64 GB, non hot plug, enterprise, 0.14 DWPD (Drive Writes Per Day for 5 years)
SSD SATA, 6 Gb/s, 1.2 TB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5 years)
SSD SATA, 6 Gb/s, 1.6 TB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5 years)
SSD SATA, 6 Gb/s, 240 GB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5 years)
SSD SATA, 6 Gb/s, 480 GB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5 years)
SSD SATA, 6 Gb/s, 800 GB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5 years)
SSD SATA, 6 Gb/s, 960 GB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5 years)
I/O controller onboardIntel® C236, 1 port used for accessible drive or SATA DOM
4 port for internal SATA HDDs with RAID 0, 1, 10 for Windows and Linux;
4-port SATA 6Gb with RAID 0, 1, 10
4-port SATA 3GB with RAID 0, 1, 10
Integrated RAID 0/1 or RAID 5/6 controller (option), All hardware storage controller options are described under Components
4 port SATA with RAID 0/1/10 for HDDs
Intel® i210 onboard
2 x 10/100/1000 Mbit/s Ethernet (TCP/IP acceleration)
Integrated Remote Management Controller (iRMC S4, 256 MB attached memory incl. graphics controller), IPMI 2.0 compatible
Trusted Platform Module (TPM)Infineon / TPM 1.2 or TPM 2.0 module; TCG compliant (option)
Power supply configuration1x standard power supply or1x hot-plug power supply or 2x hot plug power supplies for redundancy depending on model
Active power (max. configuration)152 W
Weightup to 13 kg
Rack (W x D x H)482.6 mm (Bezel) / 435.4 mm (Body) x 572 x 42.8 mm
Server ManagementServer Management
StandardServerView Suite - Deploy
Installation Manager
Scripting Toolkit, ServerView Suite - Control
Operations Manager incl. PDA and ASR & R
Agents and CIM Providers / Agentless Service
System Monitor
RAID Manager
Capacity Management
Power Management
Storage Support, ServerView Suite - Maintain
Remote Management (iRMC)
Update Management (BIOS, Firmware, Windows Drives and SV Agents)
Performance Measurement
Asset Management
Online Diagnostics, ServerView Suite - Integrate
Integration packs for Microsoft System Center, VMware vCenter, VMware vRealize, Nagios, and HP SIM, Deployment tools and others
OptionServerView embedded Lifecycle Management (eLCM)
Lifecycle management, ServerView Suite - Maintain
iRMC Advanced Pack incl. Advanced Video Redirection (AVR), video capturing and Virtual Media, ServerView Suite - Dynamize
Virtual-IO Manager (VIOM)
Special featuresHigh density housing, RemoteView/ iRMC advanced pack optional; PDA; ASR&R as standard; dedicated or shared service LAN at buyer’s choice; ServerView Power Management standard; hard disks hot-plug.
Warranty period1 year
Warranty typeOnsite warranty
Service Lifecycle5 years after end of product life
Service Weblinkhttp://www.fujitsu.com/fts/products/product-support-services/

Components

QLE2560 Fibre Channel Host Bus Adapter
PRIMERGY Controller FC 2x8Gbit QLogic QLE2560The QLE2560 is a PCI Express, single port, Fibre Channel Host Bus Adapter. The HBA offers the next generation 8Gb Fibre Channel technology, meeting the business requirements of the enterprise data center. A wide range of supported Operating Systems and certifications for storage devices ensure a broad set of application scenarios.
QLE2562 Fibre Channel Host Bus Adapter
PRIMERGY Controller FC 2x8Gbit QLogic QLE2562The QLE2562 is a PCI Express, dual port, Fibre Channel Host Bus Adapter. The HBA offers the next generation 8Gb Fibre Channel technology, meeting the business requirements of the enterprise data center. A wide range of supported Operating Systems and certifications for storage devices ensure a broad set of application scenarios.
LPe1250 Fibre Channel card
Streamlined installation and management, unrivaled scalability, and industry-leading virtualization support make the single-channel LPe1250 Fibre Channel host bus adapter (HBA) an ideal solution for mixed-OS SAN environments. With powerful management capabilities and broad platform support, it delivers maximum performance in the broadest range of applications and environments.
LPe12002 Fibre Channel card
Streamlined installation and management, unrivaled scalability, and industry-leading virtualization support make the single-channel Emulex LightPulse LPe12000 and dual-channel LPe12002 Fibre Channel host bus adapters (HBA) ideal solutions for enterprise, mixed-OS and virtual server environments.
PRAID CP400i - 8 port 12Gb/s SAS, 6Gb/s SATA
The Fujitsu PRAID CP400i SAS/SATA controller card based on the LSI SAS3008 allows latest RAID technology at affordable prices with low power consumption. The PRAID CP400i MegaRAID entry controller card offer users a straight-forward solution that includes essential RAID levels and uncomplicated configuration options.
PRAID EP400i / EP420i
The 8 port Fujitsu PRAID EP400i sets new standards in the fields of speed and data security for internal server memories. With a data transfer of up to 12Gbit/s per port the PRIMEGY Modular RAID Controller family is extended to included the latest technology.
PSAS CP400i
The PSAS CP400i, eight port SAS/SATA host bus adapter provides increased connectivity and maximum performance for high-end servers and applications within internal and external storage. Performance is based on the LSI SAS3008 IO controller, integrating the latest enhancements in SAS and PCI Express 3.0 technology.

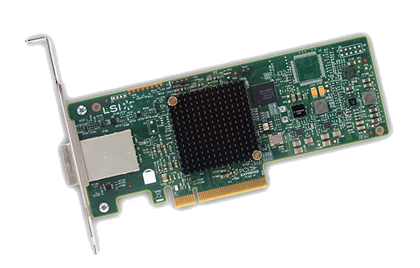

PSAS CP400e
The PSAS CP400e, eight port SAS/SATA host bus adapter provides increased connectivity and maximum performance for high-end servers and applications within internal and external storage. Performance is based on the LSI SAS9300 IO controller, integrating the latest enhancements in SAS and PCI Express 3.0 technology.
PRIMERGY 10Gb Network Controller
PRIMERGY Ethernet Controller D2755 2 port 10Gbit 1The new Fujitsu Ethernet D2755 Server Adapter is the most flexible and scalable Ethernet adapter for today’s demanding data center environments. The Fujitsu Ethernet D2755 Server Adapter addresses the demanding needs of the next-generation data center by providing unmatched features for virtualization, flexibility for LAN and SAN networking, and proven, reliable performance.
PLAN EP Intel® X710-DA2 2x10GbE SFP+
The Fujitsu PLAN EP Intel X710-DA2 SFP+ Server Adapter is the most flexible and scalable Ethernet adapter for the current demanding data center environments.
The X710 adapter family addresses the demanding needs of the next-generation agile data center by providing unmatched features for both server and network virtualization, flexibility for LAN and SAN networks and proven, reliable performance.
X540-T2 2x 10GBase-T LAN Adapter
The X540-T2 adapter hosts Intel’s latest Ethernet silicon, which uses a single chip solution for "LAN on Motherboard" (LOM) to deliver 10 Gigabit Ethernet (10 GbE) on the latest server platforms. 10GBase-T simplifies the transition to 10 GbE and it can be deployed anywhere in your data center.
PLAN 1Gbit PCI 2.1 Intel® I210 T1
The Intel Ethernet Server adapter Intel® I210 T1 includes a Gigabit Ethernet port for entry-level servers and audio-video applications with a innovative power management. IEEE 802.1Qav Audio-Video-Bridging (AVB) for tightly controlled media stream synchronization, buffering, and reservation.
PLAN CP 2x1Gbit Cu Intel® I350-T2
PLAN CP 2x1Gbit Cu Intel I350-T2Trust the network communication of the new Ethernet LAN adapter. The new Intel® I350-T2 Ethernet LAN Adapter, based on the latest Intel® 1GbE chip technology, offers two Gigabit Ethernet ports for 10/100/1000BaseT.
PLAN CP 4x1Gbit Cu Intel® I350-T4
PLAN-CP4x1Gbit-Cu-Intel-I350-T4Trust the network communication of the new Ethernet LAN adapter. The new Intel I350-T4 Ethernet LAN Adapter, based on the latest Intel® 1GbE chip technology, offers four Gigabit Ethernet ports for 10/100/1000BaseT.
Network Adapter Emulex OCe14102
The Fujitsu Network Adapter "Emulex OCe14102" is from the fourth generation of the Emulex OneConnect® product line OCe14000. The OCe14000 family of Ethernet network adapters provides high performance 10Gb Ethernet (10GbE) connectivity delivering multiple benefits for the enterprise cloud, including increasing data center IT agility and scalability through the deployment of a secure multi-tenant cloud. This optimizes server hardware utilization by scaling high density virtualization as well as delivering user-controlled bandwidth partitioning across workloads and management services.
PRIMERGY PGRA CP NVIDIA® NVS™ 315 1GB VGA PCIe x16
The NVIDIA® NVS™ 315 graphic card delivers exceptional flexibility and compatibility that lets you get the most from your existing display infrastructure. Drive all your DisplayPort, DVI, and VGA displays, regardless of display connectivity or chassis size. Gather insights faster from an expanded workspace of multiple high-resolution displays and get three times more graphics cores than previous-generation NVS solutions for significantly improved visualization. Plus, take advantage of 1 GB of on-board frame buffer memory to interact with more visually compelling content on larger, high-resolution displays.
