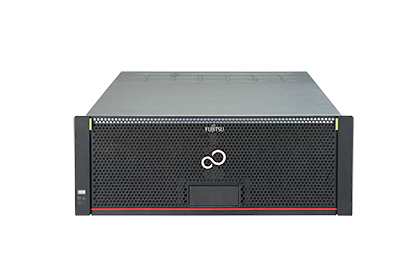

FUJITSU JX60 S2 DAS Subsystem

FUJITSU JX60 S2 DAS Subsystem provides high storage device capacity in a 4U Enclosure. It can support up to 60 x 3.5 inch disk drives, delivering a capacity of up to 720 Terabytes (2.5 inch devices can be installed in the same slot as the 3.5 inch devices using 3.5 inch mounting frames that are provided). A total capacity of 1,440 Terabytes can be delivered by attaching up to 2 enclosures directly to a server. It is integrated with FUJITSU Software ServerView Suite for easy management and control. It is ideal for enterprises looking for high capacity storage solution including virtualization, Microsoft Exchange server or HPC workloads etc.

Features & Benefits

Features Benefits
Performance and flexibility
  • Direct Attached Storage (DAS) for PRIMERGY and other x86 industry-standard servers with 12 Gbit/s SAS connection
  • Up to 120 large capacity Nearline SAS storage devices, expand storage capacity by up to 1,440 Terabyte

  • Reliable storage capacity for biggest data volume
  • Flexible configuration options: capacity optimized or speed-optimized
Quality and reliability
  • Components like hot-plug disk drives and power supply modules can be replaced while the server is running
  • The redundant hot-plug power supply units can be connected with phase redundancy via separate power lines
  • Optimum and secure cooling of the drives is ensured by two independent fans

  • Hot-swap devices and hot-swap/redundant power supplies provide maximum uptime
  • Continuous operation during flexible disk drive replacements
Ease of use
  • Flexible and modular components for easy deployment and management
  • Status of the component is signalized by LC displays and LEDs
  • Disk drive extension is completely managed by the server (connected to HBA/RAID card installed into servers) and can be used in all usage scenarios with certified PRIMERGY servers
  • Integrated with standard FUJITSU Software ServerView Suite

  • Seamless Integration with PRIMERGY Servers
  • Easy installation and control of the subsystem

Technical details

TypePassive direct server attached drive extension
Host InterfacesSAS 3.0 I/O-module (expander)
Maximum Storage Capacity1,440 (Cascading) TB
Supported RAID levels0, 1, 1+0, 5, 5+0, 6, 6+0
Drive interfaceSerial Attached SCSI (12 Gbit/s)

Support Packs

Support Pack OptionsAvailable in major business areas:
9x5, Next Business Day Onsite Response Time
9x5, 4h Onsite Response Time (depending on country)
24x7, 4h Onsite Response Time (depending on country)
Recommended Service24x7, Onsite Response Time: 4h
