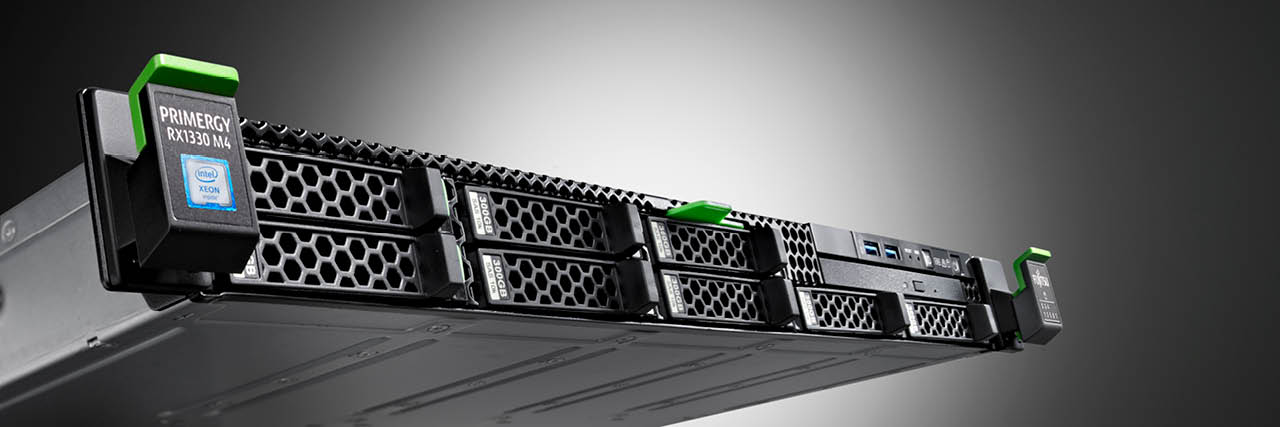

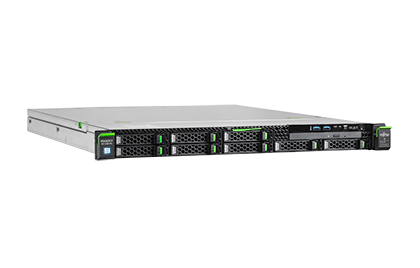

FUJITSU Server PRIMERGY RX1330 M4

Highly reliable, energy-efficient single-socket entry-level rack server
Cost-efficient foundation for powering small, digital businesses
Ideal for file, web hosting, communication, collaboration and virtualization workloads
Enterprise-class reliability and operational efficiency in compact form factor
Easy serviceability and simplified server management

More Details


Advanced features for enhanced performance	Improved Scalability for future growth	Enterprise-class reliability and operational efficiency	Simplified Infrastructure and Server Management
Significant performance gains with latest generation processors, a higher number of cores and larger memory. Accelerated performance for virtualization workloads and wide range of SMB workloads including media streaming, caching and web hosting.	Scalable storage, plus a broad range of networking choices and PCIe slots provide flexible expansion options for future scalability.	Maximize uptime and savings in energy and cooling costs with highly energy-efficient, redundant components. Battery backup keeps the server running during short blackouts or voltage fluctuations and enables a graceful shutdown.	Fujitsu iRMC S5 enhances server administrator productivity with a variety of user-friendly features for remote management. Fujitsu ISM improves data center efficiency and overall IT productivity, paving the path for a software-defined data center.

Advanced features for enhanced performance
Significant performance gains with latest generation processors, a higher number of cores and larger memory. Accelerated performance for virtualization workloads and wide range of SMB workloads including media streaming, caching and web hosting.
Improved Scalability for future growth
Scalable storage, plus a broad range of networking choices and PCIe slots provide flexible expansion options for future scalability.
Enterprise-class reliability and operational efficiency
Maximize uptime and savings in energy and cooling costs with highly energy-efficient, redundant components. Battery backup keeps the server running during short blackouts or voltage fluctuations and enables a graceful shutdown.
Simplified Infrastructure and Server Management
Fujitsu iRMC S5 enhances server administrator productivity with a variety of user-friendly features for remote management. Fujitsu ISM improves data center efficiency and overall IT productivity, paving the path for a software-defined data center.

Product Video

Tech Specs

Chipset	Intel^® C246
Mainboard type	D3675
Product Type	Mono Socket Rack Server
Processor	Intel^® Xeon^® E-2200 processor family, Intel^® Xeon^® E-2100 processor family, Intel^® Celeron^® processor, Intel^® Core™ i3 processor, Intel^® Pentium^® processor
Memory	4 GB - 128 GB, DIMM (DDR4)
Memory slots	4 (2 banks with 2 DIMMs each)
Memory protection	ECC
Drives (optional)	DVD supermulti, ultraslim, SATA I
PCI-Express 3.0 x4	1 x Low profile
PCI-Express 3.0 x8	2 x Low profile Length 175mm; PCIe slot 1 supports Modular RAID functions
Accessible drive bays	1 x 5.25/0.4-inch for CD-RW/DVD Accessible drive bays are not available in case of max. storage drive configuration
Optional accessible drives	Following limitations applies to 10x 2.5-inch HDD base unit: No CD-RW/DVD, 1x USB 2.0 at the front, no front VGA
Storage drive bays	4/8 x 2.5-inch hot-plug SATA/SAS (Up to 4x NVMe PCIe SSD supported) or 4x 3.5-inch hot-plug or 10 x 2.5-inch hot-plug SATA/SAS Max. 4x 3.5-inch Max. 8x 2.5-inch Max. 10x 2.5-inch
LAN Controller	Intel^® i210 onboard 2 x 10/100/1000 Mbit/s Ethernet (TCP/IP acceleration)
Remote Management	Integrated Remote Management Controller (iRMC S5, 512 MB attached memory incl. graphics controller)
USB ports	4 Rear: 2x 3.1 Gen2 for all base units, Front (except 10x 2.5" HDD): 2x USB 3.1 Gen1
Graphics	1 x VGA (15-pin) / optional 1 x front VGA (not for 10x 2.5" HDD base unit)
Management LAN (RJ45)	Management LAN traffic can be switched to shared onboard Gbit LAN port, 1 x dedicated management LAN port for iRMC S5 (10/100/1000 Mbit/s)
Trusted Platform Module (TPM)	Infineon / TPM 1.2 or TPM 2.0 module; TCG compliant (option)
Power supply configuration	1x standard power supply or1x hot-plug power supply or 2x hot plug power supplies for redundancy depending on model
Active power (max. configuration)	264 W
Weight	up to 13 kg
Rack (W x D x H)	482.6 mm (Bezel) / 435.4 mm (Body) x 572 x 42.8 mm
DC Infrastructure Management	Infrastructure Manager (ISM) Essential Advanced
Server Management	Infrastructure Manager (ISM) Essential Advanced, ServerView Suite
Operating system	http://docs.ts.fujitsu.com/dl.aspx?id=d4ebd846-aa0c-478b-8f58-4cfbf3230473
Warranty period	1 year
Warranty type	Onsite warranty
Service Lifecycle	5 years after end of product life
Service Weblink	http://www.fujitsu.com/emeia/products/product-support-services/

Support Pack Options

Globally available in major business areas:
9x5, Next Business Day Onsite Response Time
9x5, 4h Onsite Response Time (depending on country)
24x7, 4h Onsite Response Time (depending on country)

Recommended Service

24x7 Onsite Service with 4h Onsite Response Time

Support Pack Options	Globally available in major business areas: 9x5, Next Business Day Onsite Response Time 9x5, 4h Onsite Response Time (depending on country) 24x7, 4h Onsite Response Time (depending on country)
Recommended Service	24x7 Onsite Service with 4h Onsite Response Time

Read full specs

Resources

Datasheets

Technical Details

Brochures & Flyers

Videos

Whitepaper

Support Packs

Press

FUJITSU Server PRIMERGY Now Certified for Windows Server 2022 – IT Leaders Can Implement Migration Plans With Confidence
Fujitsu PRIMERGY servers are now certified and available for Windows Server 2022 – the latest version of one of the most popular server operating systems (OS) and the heartbeat of data centres around the world.

Components

	FUJITSU PRAID CP400i - 8 port 12Gb/s SAS, 6Gb/s SATA The Fujitsu PRAID CP400i SAS/SATA controller card based on the LSI SAS3008 allows latest RAID technology at affordable prices with low power consumption. The PRAID CP400i MegaRAID entry controller card offer users a straight-forward solution that includes essential RAID levels and uncomplicated configuration options.
	FUJITSU PRAID EP540i The Fujitsu RAID Controller PRAID EP540i with 4GB cache and16x12Gbit/s SAS ports improves performance for storage intensive workloads such as databases and sets new speed and data security standards for internal storage drives. The new PRAID EP540i supports up to 16 SAS/SATA drives, up to 4 NVMe PCIe drives or a mixture of SAS/SATA and NVMe drives. NVMe is an interface with lower overhead, lower latency and drastically increased bandwidth and IOP's. The RAID stack is based on the Broadcom MegaRAID^® and offers high data throughput, a comprehensive fault tolerance function and user-friendly management options. Moreover, the Controller management is integrated seamlessly into the Fujitsu server management concept. All controller functions are supported by the Fujitsu ServerView RAID Manager. The PRAID EP540i is designed for 3, 6 and 12Gbit/s SAS as well as for 3 and 6Gbit/s SATA drives. Regardless of the drive speed, it delivers significant performance improvements in both read and write applications.
	FUJITSU PRAID EP400i / EP420i The 8 port Fujitsu PRAID EP400i sets new standards in the fields of speed and data security for internal server memories. With a data transfer of up to 12Gbit/s per port the PRIMEGY Modular RAID Controller family is extended to included the latest technology.
	Fujitsu PSAS CP400i The PSAS CP400i, eight port SAS/SATA host bus adapter provides increased connectivity and maximum performance for high-end servers and applications within internal and external storage. Performance is based on the LSI SAS3008 IO controller, integrating the latest enhancements in SAS and PCI Express 3.0 technology.
	Fujitsu PSAS CP400e The PSAS CP400e, eight port SAS/SATA host bus adapter provides increased connectivity and maximum performance for high-end servers and applications within internal and external storage. Performance is based on the LSI SAS9300 IO controller, integrating the latest enhancements in SAS and PCI Express 3.0 technology.
	Intel^® X550-T2 2x 10GBase-T LAN Adapter 10 GbE for the Broad Market. The Intel Ethernet Network Adapter X550-T2 is the newest innovation in Intel's leadership to drive 10 GbE into the broad server market. This adapter hosts Intel's latest silicon, the Intel Ethernet X550 controller, a low-cost single chip 10GBASE-T solution for today's server platforms.
	FUJITSU PACC EP QAT8970 The Fujitsu PLAN EP Intel X710-DA2 SFP+ Server Adapter is the most flexible and scalable Ethernet adapter for the current demanding data center environments. The X710 adapter family addresses the demanding needs of the next-generation agile data center by providing unmatched features for both server and network virtualization, flexibility for LAN and SAN networks and proven, reliable performance.
	FUJITSU PLAN EP MCX4-LX 25GbE SFP28 The FUJITSU PLAN EP MCX4-LX 25GbE is based on Mellanox’s ConnectX^®-4 Lx EN (Dual port) Network Interface Card. ConnectX-4 Lx EN Network Controller with 10/25Gb/s Ethernet connectivity addresses virtualized infrastructure challenges, delivering best-in-class and highest performance to various demanding markets and applications. Providing true hardware-based I/O isolation with unmatched scalability and efficiency, achieving the most cost-effective and flexible solution for Web 2.0, Cloud, data analytics, database, and storage platforms. 25Gb Ethernet (25GbE) enables network bandwidth to be cost-effectively scaled in support of next-generation server and storage solutions residing in Cloud and Web-scale data center environments. The 25GbE results in a single switch lane connection similar to existing 10GbE technology—but it delivers 2.5 times greater bandwidth. Compared to 40GbE solutions, 25GbE technology provides superior switch port density by requiring just a single switch lane compared to the 40GbE with four lanes. FUJITSU PLAN EP MCX4-LX 25GbE Dual-Port 10/25GbE Network Interface Cards deliver advanced Ethernet solutions designed for FUJITSU Server PRIMERGY and PRIMEQUEST systems with Microsoft Windows Server 2016 and 2012 R2, Red Hat Enterprise Linux 7, SuSE Linux Enterprise Server 12, VMware ESXi 6.5. Designed for SUSE Linux Enterprise Server 12 SP2 operating system supporting use cases such as SAP HANA^®, and for Microsoft Windows Server 2016 operating system supporting use cases such as Storage Spaces Direct certified with Premium and Standard SDDC (Software Defined Data Center) qualifiers.
	FUJITSU PLAN EP QL41212 25/10GbE SFP28 The Fujitsu PLAN EP QL41212 is based on Cavium's QLogic^® FastLinQ™ QL41212HLCU Dual Port RDMA Network Interface Adapter. This intelligent Ethernet adapter uses QLogic’s eights generation technology to deliver true 10/25Gb per second (10/25Gbps) Ethernet performance per port. Integrated, advanced networking eliminates I/O bottlenecks and conserves CPU cycles. 25Gb Ethernet (25GbE) enables network bandwidth to be cost-effectively scaled in support of next-generation server and storage solutions residing in cloud and web-scale data center environments. The 25GbE results in a single-lane connection similar to existing 10GbE technology—but it delivers 2.5 times greater bandwidth.
	FUJITSU PLAN CP 2x1Gbit Cu Intel^® I350-T2 Trust the network communication of the new Ethernet LAN adapter. The new Intel^® I350-T2 Ethernet LAN Adapter, based on the latest Intel^® 1GbE chip technology, offers two Gigabit Ethernet ports for 10/100/1000BaseT.
