Go beyond with Fujitsu primary storage

Primary Storage Solutions

Going beyond the limits with next-generation data storage

Within business, there has been a data explosion. And, with exponential data growth comes the need for new storage systems and solutions with minimum latency, uninterrupted access to data, and smart efficiency functions capable of making the right data available at the right time. Data availability and manageability are today’s differentiators and staying ahead in highly competitive markets means a fundamental change in how data is stored and managed. Your business success depends on your ability to capture, store, manage, consolidate, and monetize your data, and to do this you need to make the right storage choice. For many businesses, this will mean a shift from ‘this is the way we’ve always done things’ to a ‘no one size fits all’ approach.

Making the right storage choice – Traditional Storage, Hyper-converged Infrastructure(HCI) or Software-defined Storage (SDS)?

The Fujitsu Primary Storage portfolio is based on award-winning performance architectures
that deliver the fastest response times regardless of the workload. With our portfolio of data
storage solutions, we provide a one-stop-shop for all data storage needs across Traditional
Storage, Hyper-converged Infrastructure (HCI) and Software-defined Storage (SDS).

Explore data storage solutions

30  Products

Filters

(0)

Product type

NVMe support

Raw capacity

296.96 GB - 686.23 PB

No. of drives

2 - 2304

System memory

16 GB - 2.93 TB

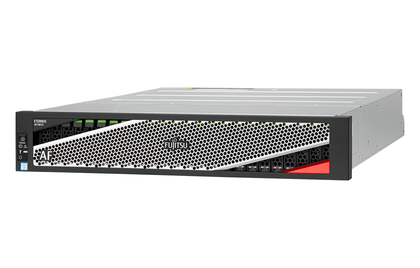

Fujitsu Storage ETERNUS AF150 S3

  • Affordable, entry-level all-flash storage for SMBs
  • Max No. of controllers: 2
  • Max No. of drives: 24
  • Maximum storage capacity of up to 92 TB
  • Random access performance of up to 390,000 IOPS

더보기

Fujitsu Storage ETERNUS AF250 S3

  • Entry-level all-flash storage for all Tier-1 applications in small and mid-sized companies
  • Max No. of controllers: 2
  • Max No. of drives: 264
  • Maximum storage capacity of up to 8,110 TB
  • Random access performance of up to 600,000 IOPS

더보기

Fujitsu Storage ETERNUS DX100 S5

  • Entry level hybrid storage that delivers enterprise-class functionality to small and medium-sized companies and subsidiaries with an excellent price/performance ratio
  • Max No. of controllers: 2
  • Max No. of drives: 144
  • Maximum storage capacity of up to 4,424 TB
  • Random access performance of up to 320,000 IOPS

더보기

Fujitsu Storage ETERNUS DX200 S5

  • Entry level hybrid storage that delivers enterprise-class functionality to small and medium-sized companies and subsidiaries with an excellent price/performance ratio
  • Max No. of controllers: 2
  • Max No. of drives: 264
  • Maximum storage capacity of up to 8.110 TB
  • Random access performance of up to 530,000 IOPS

더보기

Fujitsu Storage ETERNUS DX500 S5

  • Scalable and unified midrange hybrid storage that consolidates data in large-scale databases, business-critical applications and business analytics / big data – all into one system
  • Max No. of controllers: 2
  • Max No. of drives: 576
  • Maximum storage capacity of up to 17,695 TB
  • Random access performance of up to 580,000 IOPS

더보기

Fujitsu Storage ETERNUS DX60 S5

  • Economy hybrid storage for small and medium-sized IT environments.
  • Max No. of controllers: 2
  • Max No. of drives: 96
  • Maximum storage capacity of up to 672TB
  • Random access performance of up to 65,000 IOPS

더보기

Fujitsu Storage ETERNUS DX600 S5

  • Scalable and unified midrange hybrid storage that consolidates data in large-scale databases, business-critical applications and business analytics / big data – all into one system
  • Max No. of controllers: 2
  • Max No. of drives: 1,056
  • Maximum storage capacity of up to 32,440 TB
  • Random access performance of up to 700,000 IOPS

더보기

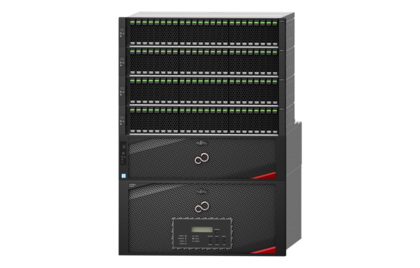

Fujitsu Storage ETERNUS DX900 S5

  • Enterprise-grade, midrange hybrid storage system that offers modular scalability, leading performance headroom and relentless business continuity capabilities
  • Max No. of controllers: 4
  • Max No. of drives: 2,304
  • Maximum storage capacity of up to 70,778 TB
  • Random access performance of up to 1.8 Million IOPS

더보기

Fujitsu Storage ETERNUS AB2100

  • Affordable. Ideal for performing media and data analyses for midsize businesses and remote offices.
  • Max No. of controllers: 2
  • Maximum storage capacity of up to 1468 TB
  • Maximum up to 300,000 IOPS
  • Max No. of drives: 96

더보기

Fujitsu Storage ETERNUS AB3100

  • Entry-level NVMe all-flash storage system optimized for midsized businesses and remote offices
  • Max No. of controllers: 2
  • Maximum storage capacity of up to 367 TB of NVMe capacity
  • Maximum up to 670K IOPS (random reads)
  • Max No. of drives: 264

더보기

Fujitsu Storage ETERNUS AB5100

  • Best for enterprise customers running data analyses and performance databases
  • Max No. of controllers: 2
  • Maximum storage capacity of up to 1836 TB
  • Maximum up to 1 million IOPS
  • Max No. of drives: 120

더보기

Fujitsu Storage ETERNUS AB6100

  • End to end NVMe. Best for enterprise customers running data analyses and performance databases
  • Max No. of controllers: 2
  • Maximum storage capacity of up to 367 TB of NVMe capacity
  • Maximum up to 2 million IOPS
  • Max No. of drives: 24

더보기

Fujitsu Storage ETERNUS HB1100

  • Compact style to ensure optimized footprint. Ideal for media streaming and data analyses in mid-sized companies and remote offices.
  • Max No. of controllers: 2
  • Maximum storage capacity of up to 288TB
  • Maximum up to 100,000 IOPS
  • Max No. of drives: 24

더보기

Fujitsu Storage ETERNUS HB1200

  • Compact style to ensure optimized footprint. Ideal for media streaming and data analyses in mid-sized companies and remote offices.
  • Max No. of controllers: 2
  • Maximum storage capacity of up to 194TB
  • Maximum up to 110,000 IOPS
  • Max No. of drives: 48

더보기

Fujitsu Storage ETERNUS HB2100

  • Compact style to ensure optimized footprint. Ideal for media streaming and data analyses in mid-sized companies and remote offices.
  • Max No. of controllers: 2
  • Maximum storage capacity of up to 2304TB
  • Maximum up to 300,000 IOPS
  • Max No. of drives: 192

더보기

Fujitsu Storage ETERNUS HB2200

  • Compact style to ensure optimized footprint. Ideal for media streaming and data analyses in mid-sized companies and remote offices.
  • Max No. of controllers: 2
  • Maximum storage capacity of up to 2174TB
  • Maximum up to 300,000 IOPS
  • Max No. of drives: 168

더보기

Fujitsu Storage ETERNUS HB2300

  • Compact style to ensure optimized footprint. Ideal for media streaming and data analyses in mid-sized companies and remote offices.
  • Max No. of controllers: 2
  • Maximum storage capacity of up to 2304TB
  • Maximum up to 300,000 IOPS
  • Max No. of drives: 192

더보기

Fujitsu Storage ETERNUS HB5100

  • Provides capacity, high performance with NVMe ready interfaces and reliability. Ideal for enterprises running data analyses and performance databases
  • Max No. of controllers: 2
  • Maximum storage capacity of up to 5407TB
  • Maximum up to 1 Million IOPS
  • Max No. of drives: 444

더보기

Fujitsu Storage ETERNUS HB5200

  • Provides capacity, high performance with NVMe ready interfaces and reliability. Ideal for enterprises running data analyses and performance databases
  • Max No. of controllers: 2
  • Maximum storage capacity of up to 7680 TB
  • Maximum up to 1 Million IOPS
  • Max No. of drives: 480

더보기

Fujitsu Storage ETERNUS AX1100

  • Affordable all-flash storage system with enterprise-grade features
  • Maximum number of controllers: 24 (NAS) and 12 (SAN)
  • Maximum storage capacity of up to 276 TB (NAS) and 138 TB (SAN)
  • Maximum system memory capacity: 768 GB (NAS) and 384 GB(SAN)
  • Max No. of drives: 288 (NAS) and 144 (SAN)

더보기

Fujitsu Storage ETERNUS AX2100

  • All-flash storage that offers simplicity and best value for small enterprises, midsize businesses
  • Maximum number of controllers: 24 (NAS) and 12 (SAN)
  • Maximum storage capacity of up to 26.4 PB (NAS) and 13.2 PB (SAN)
  • Maximum system memory capacity: 768 GB (NAS) and 384 GB(SAN)
  • Max No. of drives: 1728 (NAS) and 864 (SAN)

더보기

Fujitsu Storage ETERNUS AX2200

  • Entry-level end-to-end NVMe all-flash storage system for small enterprises and mid-size businesses, offering simplicity and best value
  • Maximum number of controllers: 24 (NAS) and 12 (SAN)
  • Maximum storage capacity of up to 8.8 PB (NAS) and 4.4 PB (SAN)
  • Maximum system memory capacity: 1536 GB (NAS) and 768 GB (SAN)
  • Max No. of drives: 576 (NAS) and 288 (SAN)

더보기

Fujitsu Storage ETERNUS AX4100

  • All-flash storage optimized for small enterprises, midsize businesses with high scalability and highspeed connectivity options
  • Maximum number of controllers: 24 (NAS) and 12 (SAN)
  • Maximum storage capacity of up to 176.2 PB (NAS) and 88.1 PB (SAN)
  • Maximum system memory capacity: 3072 GB and 1536 GB
  • Max No. of drives: 5760 (NAS) and 2880 (SAN)

더보기

Fujitsu Storage ETERNUS HX2100

  • Hybrid storage optimized for small enterprises, midsize businesses, remote offices, and local storage which require simple deployment and operations
  • Maximum number of controllers: 24 (NAS) and 12 (SAN)
  • Maximum storage capacity of up to 27.6 PB (NAS) and 13.8 PB (SAN)
  • Maximum system memory capacity: 768 GB (NAS) and 384 GB(SAN)
  • Max No. of drives: 1728 (NAS) and 864 (SAN)

더보기

Fujitsu Storage ETERNUS HX2200

  • Hybrid storage optimized for small enterprises, midsize businesses and distributed sites of larger organizations that require simple deployment and operations
  • Maximum number of controllers: 24 (NAS) and 12 (SAN)
  • Maximum storage capacity of up to 24.5 PB (NAS) and 12.2 PB (SAN)
  • Maximum system memory capacity: 768 GB (NAS) and 384 GB(SAN)
  • Max No. of drives: 1728 (NAS) and 864 (SAN)

더보기

Fujitsu Storage ETERNUS HX6100

  • Hybrid storage designed for a wide range of midrange deployments that need a balance of capacity, performance, and price
  • Maximum number of controllers: 24 (NAS) and 12 (SAN)
  • Maximum storage capacity of up to 138 PB (NAS) and 69 PB (SAN)
  • Maximum system memory capacity: 3072 GB (NAS) and 1536 GB (SAN)
  • Max No. of drives: 8640 (NAS) and 4320 (SAN)

더보기

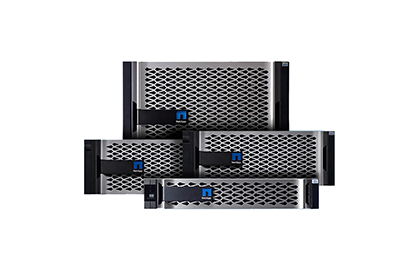

NetApp FAS Storage Arrays

  • Cloud-optimized​ unified storage platform that offers a balance of performance and capacity.
  • Maximum scale-out to 24 nodes (12 HA pairs)
  • Maximum storage capacity of up to 176PB (per cluster)
  • Best-in-class data management to simplify operations
  • Maximum Drives per HA Pair (2 nodes) of up to 1440

더보기

NetApp All-Flash FAS

  • Cloud-connected Flash storage powered by ONTAP
  • Maximum scale-out to 24 nodes
  • Maximum effective capacity of up to 700PB
  • Best-in-class data management to simplify operations
  • Maximum Solid State Drives up to 5760

더보기

NetApp StorageGRID Data Storage

  • Software-defined, object-based storage platform that provides intelligent policy-driven data management
  • Massively scalable and easy-to-use global data repository for unstructured data
  • Support of standard object storage protocols like AWS S3 and OpenStack Swift
  • Support of file system storage protocols like NFS and SMB
  • Hybrid cloud enabled

더보기

Qumulo Data Storage

  • Scales from hundreds of TB into PBs
  • Handles 10s of billions of files
  • 90% of read request below 1 ms
  • Available as “All-NVMe”, “Hybrid” and “Active Archive” series

더보기
×
Fujitsu Storage ETERNUS AF150 S3 Fujitsu Storage ETERNUS AF250 S3 Fujitsu Storage ETERNUS DX100 S5 Fujitsu Storage ETERNUS DX200 S5 Fujitsu Storage ETERNUS DX500 S5 Fujitsu Storage ETERNUS DX60 S5 Fujitsu Storage ETERNUS DX600 S5 Fujitsu Storage ETERNUS DX900 S5 Fujitsu Storage ETERNUS AB2100 Fujitsu Storage ETERNUS AB3100 Fujitsu Storage ETERNUS AB5100 Fujitsu Storage ETERNUS AB6100 Fujitsu Storage ETERNUS HB1100 Fujitsu Storage ETERNUS HB1200 Fujitsu Storage ETERNUS HB2100 Fujitsu Storage ETERNUS HB2200 Fujitsu Storage ETERNUS HB2300 Fujitsu Storage ETERNUS HB5100 Fujitsu Storage ETERNUS HB5200 Fujitsu Storage ETERNUS AX1100 Fujitsu Storage ETERNUS AX2100 Fujitsu Storage ETERNUS AX2200 Fujitsu Storage ETERNUS AX4100 Fujitsu Storage ETERNUS HX2100 Fujitsu Storage ETERNUS HX2200 Fujitsu Storage ETERNUS HX6100 NetApp FAS Storage Arrays NetApp All-Flash FAS NetApp StorageGRID Data Storage Qumulo Data Storage
Type All-Flash Array
 All-Flash Array
 Unified disk storage system for small and mid-range enterprises
 Unified disk storage system for small and mid-range enterprises
 Unified disk storage system for small and mid-range enterprises
 Unified disk storage system for small and mid-range enterprises
 Unified disk storage system for small and mid-range enterprises
 Unified disk storage system for small and mid-range enterprises
 - - - - - - - - - - - - - - - - - - - - - -
Latency 140µsec (Read), 60µsec (Write)
 140µsec (Read), 60µsec (Write)
 140µsec (Read), 60µsec (Write)
 140µsec (Read), 60µsec (Write)
 140µsec (Read), 60µsec (Write)
 - 140µsec (Read), 60µsec (Write)
 140µsec (Read), 60µsec (Write)
 - - - - - - - - - - - - - - - - - - - - - -
Sequential access performance 10,000 MB/s (128KB Read)
5,000 MB/s (128KB Write)
 11,000 MB/s (128KB Read)
5,300 MB/s (128KB Write)
 11,000 MB/s (128KB Read)
4,400 MB/s (128KB Write)
 11,000 MB/s (128KB Read)
4,400 MB/s (128KB Write)
 20,000 MB/s (128KB Read)
9,000 MB/s (128KB Write)
 3,300 MB/s (128KB Read)
940 MB/s (128KB Write)
 22,000 MB/s (128KB Read)
11,000 MB/s (128KB Write)
 44,000 MB/s (128KB Read)
22,000 MB/s (128KB Write)
 - - - - - - - - - - - - - - - - - - - - - -
Random access performance 390,000 IOPS (8KB Read)
270,000 IOPS (8KB Write)
 600,000 IOPS (8KB Read)
480,000 IOPS (8KB Write)
 320,000 IOPS (8KB Read)
170,000 IOPS (8KB Write)
 530,000 IOPS (8KB Read)
230,000 IOPS (8KB Write)
 580,000 IOPS (8KB Read)
290,000 IOPS (8KB Write)
 65,000 IOPS (8KB Read)
29,000 IOPS (8KB Write)
 700,000 IOPS (8KB Read)
340,000 IOPS (8KB Write)
 1,800,000 IOPS (8KB Read)
870,000 IOPS (8KB Write)
 - - - - - - - - - - - - - - - - - - - - - -
Host Interfaces Fibre Channel (16 Gbit/s, 32Gbit/s)
iSCSI (10Gbit/s [10GBASE-SR, 10GBASE-CR, 10GBASE-T])
 Fibre Channel (16 Gbit/s, 32Gbit/s)
iSCSI (10 Gbit/s [10GBase-SR, 10GBase-CR, 10GBase-T], 1 Gbit/s)
 Fibre Channel (16 Gbit/s, 32Gbit/s)
iSCSI (10 Gbit/s [10GBase-SR, 10GBase-CR, 10GBase-T], 1 Gbit/s)
SAS (12 Gbit/s)
Ethernet (10 Gbit/s, 1 Gbit/s)
 Fibre Channel (16 Gbit/s, 32Gbit/s)
iSCSI (10 Gbit/s [10GBase-SR, 10GBase-CR, 10GBase-T], 1 Gbit/s)
SAS (12 Gbit/s)
Ethernet (10 Gbit/s, 1 Gbit/s)
 Fibre Channel (16 Gbit/s, 32Gbit/s)
iSCSI (10Gbit/s [10GBASE-SR, 10GBASE-CR])
iSCSI (1 Gbit/s)
Ethernet (10 Gbit/s, 1 Gbit/s)
 Fibre Channel (16Gbit/s, 8Gbit/s)
iSCSI (10Gbit/s [10G BASE-T] / 1Gbit/s [1000 BASE-T])
SAS (12 Gbit/s)
 Fibre Channel (16 Gbit/s, 32Gbit/s)
iSCSI (10Gbit/s [10GBASE-SR, 10GBASE-CR])
iSCSI (1 Gbit/s)
Ethernet (10 Gbit/s, 1 Gbit/s)
 Fibre Channel (16 Gbit/s, 32Gbit/s)
iSCSI (10Gbit/s [10GBASE-SR, 10GBASE-CR])
iSCSI (1 Gbit/s)
 FC (4, 8,16,32Gbit/s)
iSCSI (10, 25Gbit/s, 10GBASE-T)
SAS (12 Gbit/s)
 FC (32Gbit/s)
NVMe over FC (32Gbit/s)
NVMe over InfiniBand (100Gbit/s)
NVMe over RoCE (100Gbit/s)
iSCSI (10, 25Gbit/s)
 FC (4, 8,16,32Gbit/s)
NVMe over FC (32Gbit/s)
iSCSI (10, 25Gbit/s)
IB (100Gbit/s)
NVMe over InfiniBand (100Gbit/s)
NVMe over RoCE (100Gbit/s)
SAS (12 Gbit/s)
 FC (8,16,32Gbit/s)
NVMe over FC (32Gbit/s)
NVMe over InfiniBand (100Gbit/s)
NVMe over RoCE (100Gbit/s)
iSCSI (10, 25Gbit/s)
 FC (4, 8, 16Gbit/s)
iSCSI (10 Gbit/s, 10 GBASE-T)
 FC (4, 8, 16Gbit/s)
iSCSI (10 Gbit/s, 10 GBASE-T)
 FC (4, 8,16,32Gbit/s)
iSCSI (10, 25Gbit/s, 10GBASE-T)
SAS (12 Gbit/s)
 FC (4, 8,16,32Gbit/s)
iSCSI (10, 25Gbit/s, 10GBASE-T)
SAS (12 Gbit/s)
 FC (4, 8,16,32Gbit/s)
iSCSI (10, 25Gbit/s, 10GBASE-T)
SAS (12 Gbit/s)
 FC (4, 8,16,32Gbit/s)
NVMe over FC (32Gbit/s)
iSCSI (10, 25Gbit/s)
IB (100Gbit/s)
NVMe over InfiniBand (100Gbit/s)
NVMe over RoCE (100Gbit/s)
SAS (12 Gbit/s)
 FC (4, 8,16,32Gbit/s)
NVMe over FC (32Gbit/s)
iSCSI (10, 25Gbit/s)
IB (100Gbit/s)
NVMe over InfiniBand (100Gbit/s)
NVMe over Ethernet(100Gbit/s)
SAS (12 Gbit/s)
 FC (8, 16Gbit/s)
FCoE (10Gbit/s)
iSCSI (1, 10Gbit/s, 10GBASE-T)
Ethernet (1, 10Gbit/s, 1, 10GBASE-T)
 FC (8, 16Gbit/s)
FCoE (10Gbit/s)
iSCSI (1, 10Gbit/s, 10GBASE-T)
Ethernet (1, 10Gbit/s, 1, 10GBASE-T)
 Fibre Channel (32Gbit/s, 16Gbit/s, 8Gbit/s)
NVMe over FC (32Gbit/s)
iSCSI (10, 25Gbit/s, 10GBASE-T)
Ether (10, 25Gbit/s), 10GBase-T)
 Fibre Channel (32Gbit/s, 16Gbit/s, 8Gbit/s)
iSCSI (100Gbit/s, 40Gbit/s, 25Gbit/s, 10Gbit/s)
Ethernet (100Gbit/s, 40Gbit/s, 25Gbit/s, 10Gbit/s)
 FC (8, 16Gbit/s)
FCoE (10Gbit/s)
iSCSI (1, 10Gbit/s, 10GBASE-T)
Ethernet (1, 10Gbit/s, 1, 10GBASE-T)
 FC (8, 16Gbit/s)
FCoE (10Gbit/s)
iSCSI (1, 10Gbit/s, 10GBASE-T)
Ethernet (1, 10Gbit/s, 1, 10GBASE-T)
 Fibre Channel (32Gbit/s, 16Gbit/s, 8Gbit/s)
iSCSI (100Gbit/s, 40Gbit/s, 25Gbit/s, 10Gbit/s)
Ethernet (100Gbit/s, 40Gbit/s, 25Gbit/s, 10Gbit/s)
 - - Ethernet (10 GbE / 25 GbE / 40 GbE / 100 GbE)
 Ethernet (10 GbE / 25 GbE / 40 GbE / 100 GbE)
Maximum Disk Drives 24
 264
 144
 264
 576
 96
48
 1,056
 2,304
 96
 264
 120
 24
 24
 48
 192
 168
 192
 444
120
 480
 - - - - - - - - - - -
Maximum Storage Capacity 92 TB
 8,110 TB
 - - - - - - 1,468 TB
 4,687.2 TB
 1,836 TB
 367 TB
 432 TB
 194.4 TB
 3,456 TB
 2,894.4 TB
 3,456 TB
 7,927.2 TB
 8,640 TB
 - - - - - - - - 702,700 TB
 960 TB
 -
No. of host interfaces 4/8 ports
 4-16 ports [FC16Gbit/s)], 4/8 ports [FC(32Gbit/s), iSCSI(10Gbit/s,1Gbit/s)]
 4/8 ports [FC(32Gbit/s,16Gbit/s), iSCSI(10Gbit/s,1Gbit/s), SAS(12Gbit/s), Ethernet(10Gbit/s)], 8/16 ports [Ethernet(1Gbit/s)]
 4-16 ports [FC(16Gbit/s)], 8/16 ports [Ethernet(1Gbit/s)], 4/8 ports [FC(32Gbit/s), iSCSI(10Gbit/s, 1Gbit/s), SAS (12Gbit/s), Ethernet(10Gbit/s)]
 4-16 ports [FC(32Gbit/s,16Gbit/s), Ethernet(1Gbit/s)], 4/8 ports [iSCSI(10Gbit/s,1Gbit/s), Ethernet(10Gbit/s)]
 4
 4-32 ports [FC(32Gbit/s,16Gbit/s), iSCSI(10Gbit/s,1Gbit/s), Ethernet(1Gbit/s)], 4-16 ports [Ethernet(10Gbit/s)]
 4-64 ports [FC(32Gbit/s,16Gbit/s)], 4-32 ports [iSCSI(10Gbit/s,1Gbit/s)]
 12 Port [FC (4, 8, 16Gbit/s)]
8 Port [FC (32Gbit/s)]
12 Port [iSCSI (10Gbit/s)]
8 Port [iSCSI (10GBase-T)]
8 Port [iSCSI (25Gbit/s)]
8 Port [SAS (12Gbit/s)]
 - 4 Port [FC (4Gbit/s)]
4 Port [FC (4, 8, 16Gbit/s)]
8 Port [FC (32Gbit/s)]
8 Port [NVMe over FC (32Gbit/s)]
12 Port [iSCSI (10Gbit/s)]
8 Port [iSCSI (25Gbit/s)]
4 Port [IB (100Gbit/s)]
4 Port [NVMe over InfiniBand (100Gbit/s)]
4 Port [NVMe over RoCE(100Gbit/s)]
8 Port [SAS (12Gbit/s)]
 16 Port [FC (8,16,32Gbit/s)]
16 Port [NVMe over FC (32Gbit/s)]
8 Port [NVMe over InfiniBand (100Gbit/s)]
8 Port [NVMe over RoCE (100Gbit/s)]
16 Port [iSCSI (10, 25Gbit/s)]
 8 Port [FC (16Gbit/s)]
8 Port [iSCSI (10Gbit/s)]
4 Port [iSCSI (10GBase-T)]
 8 Port [FC (16Gbit/s)]
8 Port [iSCSI (10Gbit/s)]
4 Port [iSCSI (10GBase-T)]
 12 Port [FC (4, 8, 16Gbit/s)]
8 Port [FC (32Gbit/s)]
12 Port [iSCSI (10Gbit/s)]
8 Port [iSCSI (10GBase-T)]
8 Port [iSCSI (25Gbit/s)]
8 Port [SAS (12Gbit/s)]
 12 Port [FC (4, 8, 16Gbit/s)]
8 Port [FC (32Gbit/s)]
12 Port [iSCSI (10Gbit/s)]
8 Port [iSCSI (10GBase-T)]
8 Port [iSCSI (25Gbit/s)]
8 Port [SAS (12Gbit/s)]
 12 Port [FC (4, 8, 16Gbit/s)]
8 Port [FC (32Gbit/s)]
12 Port [iSCSI (10Gbit/s)]
8 Port [iSCSI (10GBase-T)]
8 Port [iSCSI (25Gbit/s)]
8 Port [SAS (12Gbit/s)]
 4 Port [FC (4Gbit/s)]
4 Port [FC (4, 8, 16Gbit/s)]
8 Port [FC (32Gbit/s)]
8 Port [NVMe over FC (32Gbit/s)]
12 Port [iSCSI (10Gbit/s)]
8 Port [iSCSI (25Gbit/s)]
4 Port [IB (100Gbit/s)]
4 Port [NVMe over InfiniBand (100Gbit/s)]
4 Port [NVMe over RoCE(100Gbit/s)]
8 Port [SAS (12Gbit/s)]
 4 Port [FC (4Gbit/s)]
4 Port [FC (4, 8, 16Gbit/s)]
8 Port [FC (32Gbit/s)]
8 Port [NVMe over FC (32Gbit/s)]
12 Port [iSCSI (10Gbit/s)]
8 Port [iSCSI (25Gbit/s)]
4 Port [IB (100Gbit/s)]
4 Port [NVMe over InfiniBand (100Gbit/s)]
4 Port [NVMe over RoCE(100Gbit/s)]
8 Port [SAS (12Gbit/s)]
 8 Port [FC (8, 16Gbit/s)]
8 Port [FCoE (10Gbit/s)]
8 Port [iSCSI (1, 10Gbit/s)]
8 Port [iSCSI (10GBase-T)]
8 Port [Ether (1, 10Gbit/s)]
8 Port [Ether (1, 10GBase-T)]
 8 Port [FC (8, 16Gbit/s)]
8 Port [FCoE (10Gbit/s)]
8 Port [iSCSI (1, 10Gbit/s)]
8 Port [iSCSI (10GBase-T)]
8 Port [Ether (1, 10Gbit/s)]
8 Port [Ether (1, 10GBase-T)]
 - - 8 Port [FC (8, 16Gbit/s)]
8 Port [FCoE (10Gbit/s)]
8 Port [iSCSI (1, 10Gbit/s)]
8 Port [iSCSI (10GBase-T)]
8 Port [Ether (1, 10Gbit/s)]
8 Port [Ether (1, 10GBase-T)]
 8 Port [FC (8, 16Gbit/s)]
8 Port [FCoE (10Gbit/s)]
8 Port [iSCSI (1, 10Gbit/s)]
8 Port [iSCSI (10GBase-T)]
8 Port [Ether (1, 10Gbit/s)]
8 Port [Ether (1, 10GBase-T)]
 - - - - -
Max. no. of hosts 1,024
 1,024
 1,024
 1,024
 4,096
 128
 4,096
 8,192
 128
 512
 512
 512
 128
 128
 128
 128
 128
 512
 512
 2048
 2048
 2048
 4,096
 2048
 2048
 4,096
 - - - -
Supported RAID levels 0, 1, 1+0, 5, 5+0, 6
 0, 1, 1+0, 5, 5+0, 6
 0, 1, 1+0, 5, 5+0, 6
 0, 1, 1+0, 5, 5+0, 6
 0, 1, 1+0, 5, 5+0, 6
 0, 1, 1+0, 5, 5+0, 6
 0, 1, 1+0, 5, 5+0, 6
 0, 1, 1+0, 5, 5+0, 6
 0, 1, 1+0, 3, 5, 6, DDP
 0, 1, 1+0, 3, 5, 6, DDP
 0, 1, 1+0, 3, 5, 6, DDP
 0, 1, 1+0, 3, 5, 6, DDP
 0, 1, 1+0, 3, 5, 6, DDP
 0, 1, 1+0, 3, 5, 6, DDP
 0, 1, 1+0, 3, 5, 6, DDP
 0, 1, 1+0, 3, 5, 6, DDP
 0, 1, 1+0, 3, 5, 6, DDP
 0, 1, 1+0, 3, 5, 6, DDP
 0, 1, 1+0, 3, 5, 6, DDP
 4, 6, TEC
 4, 6, TEC
 4, 6, TEC
 4, 6, TEC
 4, 6, TEC
 4, 6, TEC
 4, 6, TEC
 - - - -
Drive interface Serial Attached SCSI (12 Gbit/s)
 Serial Attached SCSI (12 Gbit/s)
 Serial Attached SCSI (12 Gbit/s)
 Serial Attached SCSI (12 Gbit/s)
 Serial Attached SCSI (12 Gbit/s)
 Serial Attached SCSI (12 Gbit/s)
 Serial Attached SCSI (12 Gbit/s)
 Serial Attached SCSI (12 Gbit/s)
 12G SAS(MiniSAS HD)
 NVMe, SAS
 12G SAS(MiniSAS HD)
 100G NVMe
 12G SAS(MiniSAS HD)
 12G SAS(MiniSAS HD)
 12G SAS(MiniSAS HD)
 12G SAS(MiniSAS HD)
 12G SAS(MiniSAS HD)
 12G SAS(MiniSAS HD)
 12G SAS(MiniSAS HD)
 12G SAS(MiniSAS HD)
 12G SAS(MiniSAS HD)
 100G NVMe
 12G SAS(MiniSAS HD), 100GbE (QSFP)
 12G SAS(MiniSAS HD)
 12G SAS(MiniSAS HD)
 12G SAS(MiniSAS HD)
 - - - -
Automated Storage Tiering Yes
 Yes
 Yes
 Yes
 Yes
 - Yes
 Yes
 - - - - - - - - - - - - - - - - - - - - - -
Remote Copy functionality Synchronous and asynchronous
 Synchronous and asynchronous
 Synchronous and asynchronous
 Synchronous and asynchronous
 Synchronous and asynchronous
 - Synchronous and asynchronous
 Synchronous and asynchronous
 Synchronous and asynchronous
 - Synchronous and asynchronous
 - Asynchronous(Optional)
 Asynchronous(Optional)
 Synchronous and asynchronous
 Synchronous and asynchronous
 Synchronous and asynchronous
 Synchronous and asynchronous
 Synchronous and asynchronous
 Synchronous and asynchronous
 Synchronous and asynchronous
 - Synchronous and asynchronous
 Synchronous and asynchronous
 Synchronous and asynchronous
 Synchronous and asynchronous
 - - - -
Thin Provisioning - Yes
 Yes
 Yes
 Yes
 Yes
 Yes
 Yes
 Yes
 Yes
 Yes
 - Yes
 Yes
 Yes
 Yes
 Yes
 Yes
 Yes
 Yes
 Yes
 Yes
 Yes
 Yes
 Yes
 Yes
 - - - -
Max. no. of SSDs - - unlimited
 unlimited
 unlimited
 8
 unlimited
 unlimited
 - - - - 8
 8
 120
 120
 120
 120
 120
 - - - - - - - - 5760
 - -
Maximum Storage Capacity HDD - - 2,592 TB
 4,752 TB
 9,994 TB
 864 TB
 18,634 TB
 40,723 TB
 - - - - 432 TB
 86.4 TB
 3,456 TB
 2,894.4 TB
 3,456 TB
 7,927.2 TB
 8,640 TB
 - - - - - - - - - - -
Maximum Storage Capacity SSD - - 4,424 TB
 8,110 TB
 17,695 TB
 31 TB
 32,440 TB
 70,778 TB
 - - - - 12.8 TB
 122.4 TB
 1,120.8 TB
 1,468.8 TB
 1,133.6 TB
 1,836 TB
 1,836 TB
 - - - - - - - - - - -
Max. Disk Drives NAS (HA pairx12) - - - - - - - - - - - - - - - - - - - 288
 1,728
 - 5,760
 1,728
 1,728
 8,640
 - - - -
Maximum Storage Capacity(NAS) - - - - - - - - - - - - - - - - - - - 276 TB
 26.4 PB
 8.8 PB
 176.2 PB
 27.6 PB
 24.5 PB
 138 PB
 - - - -
Maximum Storage Capacity (HA Pair) - - - - - - - - - - - - - - - - - - - 23 TB
 2,203.2 TB
 734.4 TB
 14.6 PB
 2,304 TB
 2,040 TB
 11.5 PB
 14,700 TB
 - - -
Max. drives per HA pair - - - - - - - - - - - - - - - - - - - - - - - - - - 1,440
 - - -
Max . raw capacity in cluster - - - - - - - - - - - - - - - - - - - - - - - - - - 176000 TB
 - - -
Max. scale-out nodes - - - - - - - - - - - - - - - - - - - - - - - - - - - 24
- -
Max Files in Directory - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4.25 Billion
Max File system size - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 9 Exabyte
Max Number of Files - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 18 Quintillion
×

Case Studies

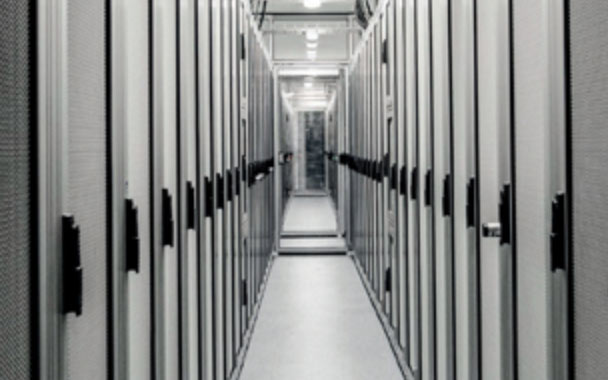

City of Calhoun, USA

“Digital services are important not just for our 150 users but also for all our citizens, so ensuring maximum availability is our responsibility. Fujitsu and Pinnacle NetworX have helped us achieve this.” Brad Carrick, Director of Telecommunications, City of Calhoun

Read more

Insights

Brochure

The world is data-driven and our way of working is completely changing. As a result, every company is in an ongoing process during which all data is changing all the time. In fact, today, and much more in the future, data is a key element that drives businesses.

Find out more

Customer Stories

Our case studies reveal how we help your businesses sector wide.

Find out more

Storage Blogs

Discuss latest IT trends and technologies

Find out more

Server, Storage & Integrated Systems Product Family Guide

Your fast lane to PRIMERGY, PRIMEQUEST servers, ETERNUS storage and PRIMEFlEX Intergrated systems

Find out more
