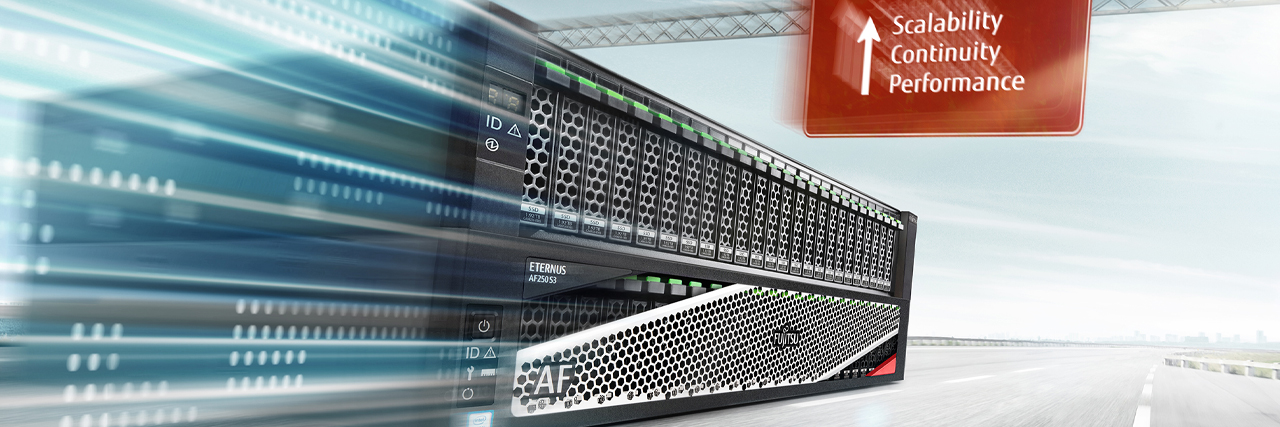

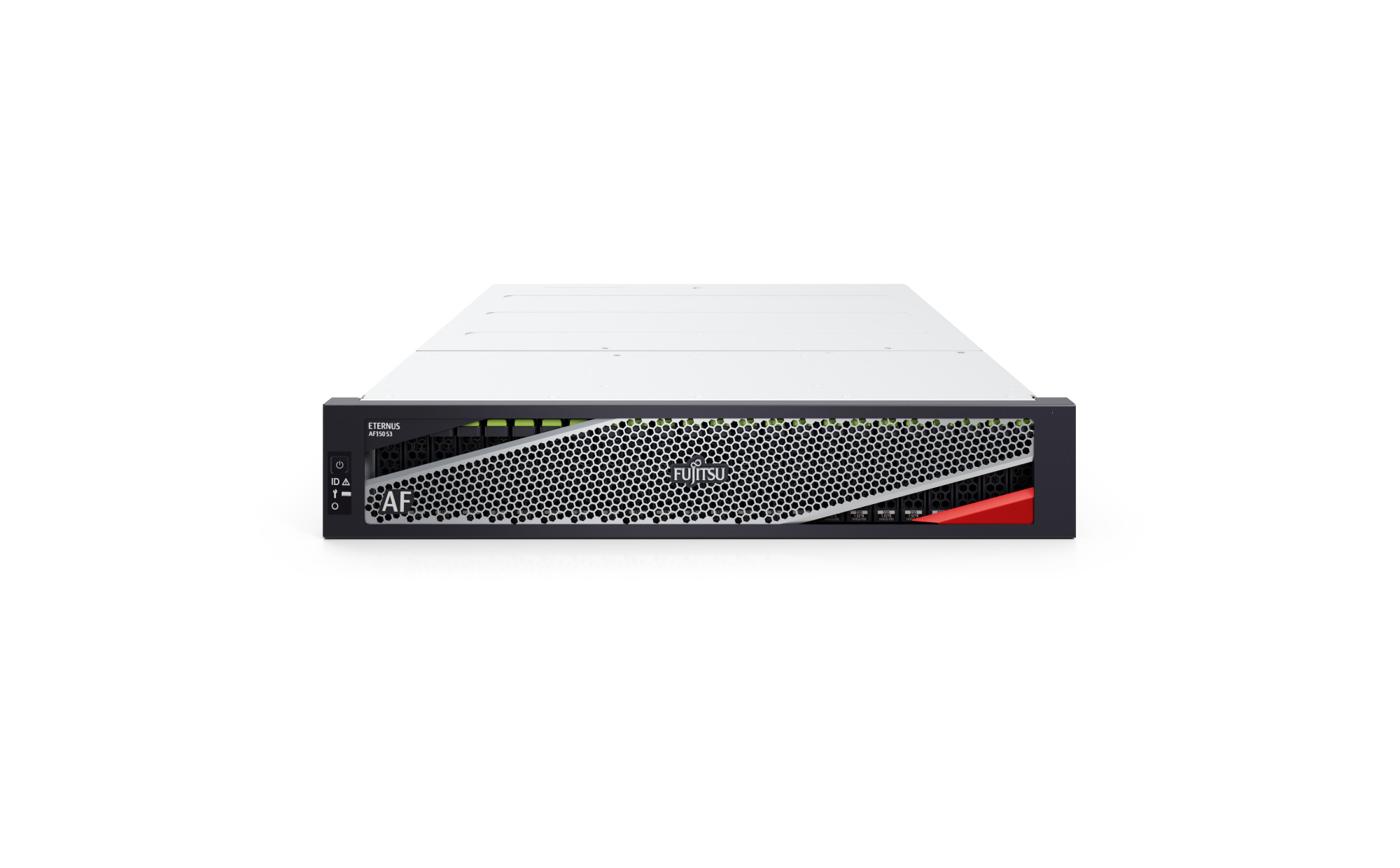

Fujitsu Storage ETERNUS AF150 S3

Fujitsu Storage ETERNUS AF150 S3

  • Affordable, entry-level all-flash storage for SMBs
  • Max No. of controllers: 2
  • Max No. of drives: 24
  • Maximum storage capacity of up to 92 TB
  • Random access performance of up to 390,000 IOPS

자세히 보기
ImgPlaceholder ImgPlaceholder ImgPlaceholder
Flexible and flash optimized storage
Automated Quality-of-Service
Transparent failover and Storage Cluster

Ultra-low response times for all applications and a massive increase of IOPS without complicated tuning measures as well as scalable capacity and connectivity.

Control applications priorities according to business needs, minimize admin efforts, automate monitoring and adjustment to guarantee service levels

Avoid planned or unplanned downtimes, enjoy 100% data insurance and non-stop business operations
  • ImgPlaceholder
    Flexible and flash optimized storage
    Ultra-low response times for all applications and a massive increase of IOPS without complicated tuning measures as well as scalable capacity and connectivity.
  • ImgPlaceholder
    Automated Quality-of-Service
    Control applications priorities according to business needs, minimize admin efforts, automate monitoring and adjustment to guarantee service levels
  • ImgPlaceholder
    Transparent failover and Storage Cluster
    Avoid planned or unplanned downtimes, enjoy 100% data insurance and non-stop business operations

Tech Specs

Type All-Flash Array
Latency 140µsec (Read), 60µsec (Write)
Sequential access performance 10,000 MB/s (128KB Read)
5,000 MB/s (128KB Write)
Random access performance 390,000 IOPS (8KB Read)
270,000 IOPS (8KB Write)
Host Interfaces Fibre Channel (16 Gbit/s, 32Gbit/s)
iSCSI (10Gbit/s [10GBASE-SR, 10GBASE-CR, 10GBASE-T])
Maximum Disk Drives 24
Maximum Storage Capacity 92 TB
No. of host interfaces 4/8 ports
Max. no. of hosts 1,024
Supported RAID levels 0, 1, 1+0, 5, 5+0, 6
Drive interface Serial Attached SCSI (12 Gbit/s)
Automated Storage Tiering Yes
Remote Copy functionality Synchronous and asynchronous
Support Pack Options Available in major metropolitan areas:
9x5, Next Business Day Onsite Response Time
9x5, 4h Onsite Response Time (depending on country)
24x7, 4h Onsite Response Time (depending on country)
 Recommended Service 24x7, Onsite Response Time: 4h
Support Pack Options Available in major metropolitan areas:
9x5, Next Business Day Onsite Response Time
9x5, 4h Onsite Response Time (depending on country)
24x7, 4h Onsite Response Time (depending on country)
Recommended Service 24x7, Onsite Response Time: 4h

Read full specs

Software

FUJITSU ETERNUS SF V16.9
Storage Management Software

ETERNUS SF storage management software supports overall daily operations within the entire ETERNUS AF and ETERNUS DX storage infrastructure by offering an easy-to-use graphical user interface for all management tasks,like health monitoring, capacity management, provisioning, local and remote replication and disaster recovery as well as the management of unified storage. At the same time it reduces significantly administrator’s training efforts with regards to cost and time.

Fujitsu Storage ETERNUS Multipath Driver
(only available for APAC region)

ETERNUS Multipath Driver software achieves high-reliability and performance systems due to multipath connection between storages and servers. In case of path failure ETERNUS Mutpath Driver switches the access path to improves system reliability. In addition, further improved system performance is ensured by the load balancing function between multiple paths.

Show all in the data sheet
