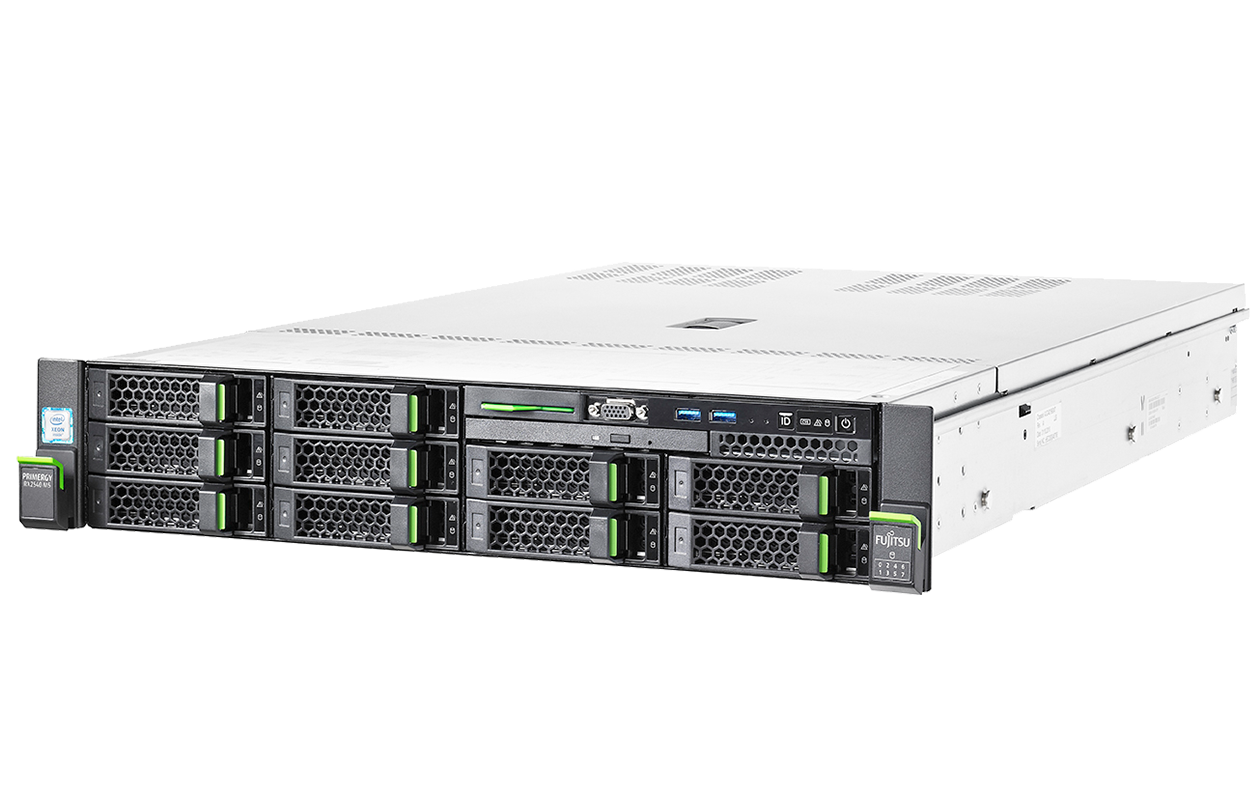

Fujitsu Server PRIMERGY RX2540 M5
Fujitsu Server PRIMERGY RX2540 M5
- 2U dual-socket rack server for high usability, scalability and cost-efficiency
- Ideal for running enterprise applications, collaboration workloads as well as traditional databases
- Modular design offers excellent expandability of up to 28 disk drives
- Up to 7.5TB memory for highest performance demands
- GPGPU support for VDI and graphic-intensive computing
![]() |
![]() |
![]() |
![]() |
INNOVATION MEETS PERFORMANCE |
ENHANCED FEATURES FOR ENHANCED COMPUTING |
INFRASTRUCTURE MANAGEMENT |
REVOLUTIONIZING MEMORY AND STORAGE |
Ready for data growth scenarios with the performance of the 2nd generation Intel® Xeon® Scalable processors deliver additional customer value and industry leading frequency (up to 3.9 GHz base and up to 44% more processor cache) for the most demanding workloads. |
The right Ethernet connection for all: Basic via onboard LAN, extended with DynamicLoM via OCP guarantees the highest flexibility to integrate the server into existing infrastructures now and in future without overhauling the existing infrastructure. Flexible expandability and diverse options for storage devices permits for the integration of existing and new SSD and HDD as needed. |
Converged data center management that provides organizations centralized control over the entire infrastructure that includes servers, storage, networking, cloud management software as well as power and cooling using a single user interface. |
Optimize, store, and move larger, more complicated data sets with Intel® Optane technology. This revolutionary innovation bridges critical gaps in the storage and memory hierarchy delivering persistent memory, large memory pools, fast caching and fast storage. |
-
INNOVATION MEETS PERFORMANCE
Ready for data growth scenarios with the performance of the 2nd generation Intel® Xeon® Scalable processors deliver additional customer value and industry leading frequency (up to 3.9 GHz base and up to 44% more processor cache) for the most demanding workloads. -
ENHANCED FEATURES FOR ENHANCED COMPUTING
The right Ethernet connection for all: Basic via onboard LAN, extended with DynamicLoM via OCP guarantees the highest flexibility to integrate the server into existing infrastructures now and in future without overhauling the existing infrastructure. Flexible expandability and diverse options for storage devices permits for the integration of existing and new SSD and HDD as needed. -
INFRASTRUCTURE MANAGEMENT
Converged data center management that provides organizations centralized control over the entire infrastructure that includes servers, storage, networking, cloud management software as well as power and cooling using a single user interface. -
REVOLUTIONIZING MEMORY AND STORAGE
Optimize, store, and move larger, more complicated data sets with Intel® Optane technology. This revolutionary innovation bridges critical gaps in the storage and memory hierarchy delivering persistent memory, large memory pools, fast caching and fast storage.
Product Video
Tech Specs
Chipset |
Intel® C624 |
Mainboard type |
D3384-B |
Product Type |
Dual Socket Rack Server |
Processor |
Intel® Xeon® Bronze 3xxx processor, Intel® Xeon® Silver 4xxx processor, Intel® Xeon® Gold 5xxx processor, Intel® Xeon® Gold 6xxx processor, Intel® Xeon® Platinum 8xxx processor 1 - 2 |
Memory |
8 GB - 7.5 TB, DIMM (DDR4 / DDR-T for non-volatile memory modules) |
Memory slots |
24 (12 DIMMs per CPU, 6 channels with 2 slots per channel) |
Memory protection |
Advanced ECC, Memory Scrubbing, SDDC, Rank sparing memory support, Memory Mirroring support |
Drives (optional) |
DVD supermulti, ultraslim, SATA I RDX Drive, 100 MB/s, 320 GB, 500 GB, 1 TB, 2 TB, USB 3.0 LTO7HH Ultrium, 300 MB/s, 2,500 GB, SAS 6Gb/s LTO7HH Ultrium, 300 MB/s, SAS 6Gb/s |
PCI-Express 3.0 x8 |
3 x Low profile (2nd processor required for slot 4) |
PCI-Express 3.0 x16 |
3 x Low profile (2nd processor required for slot 5 and 6) |
Accessible drive bays |
1 x 5.25/0.4-inch for CD-RW/DVD |
Optional accessible drives |
ODD 5.25" possible ODD 5.25" NOT possible All possible options described in relevant system configurator. |
Storage drive bays |
3.5-inch or 2.5-inch hot-plug SAS/SATA 4 x 3.5-inch hot-plug SAS/SATA 12 x 3.5-inch hot-plug SAS/SATA 16 x 2.5-inch hot-plug SAS/SATA 8 x 2.5-inch hot-plug SAS/SATA 24 x 2.5-inch hot-plug SAS/SATA |
LAN Controller |
2 x 1 Gbit/s onboard, Optional DynamicLoM OCP adaptors:, 4 x 1 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s SFP+, 4 x 10 Gbit/s SFP+ |
Remote Management |
Integrated Remote Management Controller (iRMC S5, 512 MB attached memory incl. graphics controller), IPMI 2.0 compatible |
USB ports |
5 x USB 3.0 (2x front, 2x rear, 1x internal) - for base units with max. drives count: 1x USB 2.0 front only |
Graphics |
2 x VGA (thereof 1x front optional) |
Management LAN (RJ45) |
1 x dedicated management LAN port for iRMC S5 (10/100/1000 Mbit/s), Management LAN traffic can be switched to shared onboard LAN controller port, speed and connector is related to installed interface card. |
Trusted Platform Module (TPM) |
Infineon / TPM 1.2 or TPM 2.0 module; TCG compliant (option) |
Power supply configuration |
1 x hot-plug power supply or 2x hot-plug power supply for redundancy |
Active power (max. configuration) |
715 W |
Weight |
up to 25 kg |
Rack (W x D x H) |
482.4 mm (Bezel) / 445 mm (Body) x 770 x 86.6 mm |
Mounting Depth Rack |
740 mm |
DC Infrastructure Management |
Infrastructure Manager (ISM) |
Server Management |
Infrastructure Manager (ISM) |
Operating system |
http://docs.ts.fujitsu.com/dl.aspx?id=d4ebd846-aa0c-478b-8f58-4cfbf3230473 |
Warranty period |
3 years |
Warranty type |
Onsite warranty |
Service Lifecycle |
at least 5 years after shipment, for details see https://support.ts.fujitsu.com/ |
Service Weblink |
http://www.fujitsu.com/emeia/products/product-support-services/ |
Service Weblink |
http://www.fujitsu.com/emeia/products/product-support-services/ |
Support Pack Options |
Globally available in major metropolitan areas: 9x5, Next Business Day Onsite Response Time 9x5, 4h Onsite Response Time (depending on country) 24x7, 4h Onsite Response Time (depending on country) |
Recommended Service | 24x7, Onsite Response Time: 4h - For locations outside of EMEA please contact your local Fujitsu partner. |
Support Pack Options |
Globally available in major metropolitan areas: 9x5, Next Business Day Onsite Response Time 9x5, 4h Onsite Response Time (depending on country) 24x7, 4h Onsite Response Time (depending on country) |
Recommended Service | 24x7, Onsite Response Time: 4h - For locations outside of EMEA please contact your local Fujitsu partner. |
