IP-920D

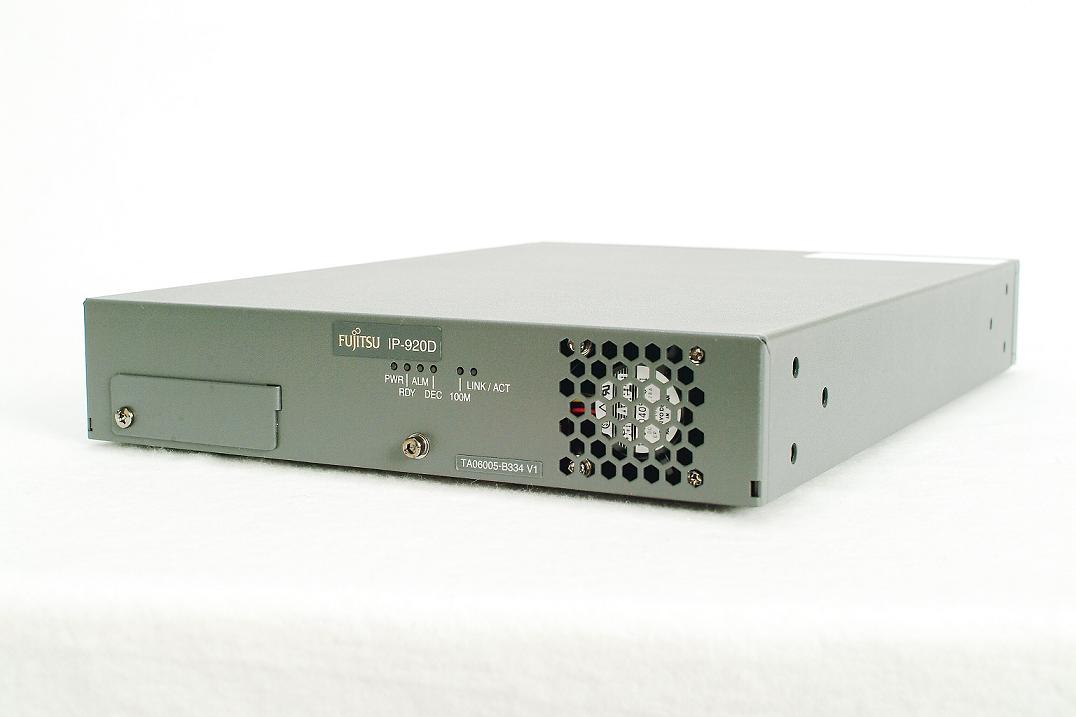

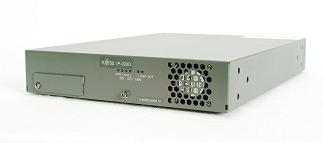

Larger View (45 KB)

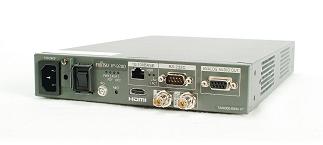

Larger View (57 KB)


Overview

The main functions of IP-920 Decoder are:

  • Best-in-class Video Fidelity MPEG-4 AVC (H.264) Decoder
  • Compact, Light and Half Width
  • Upgrade from SDTV to HDTV *Optional
  • Ultra Low Latency Mode *Optional
  • Robust Error Correction (FEC/ARQ)
  • Multiple Interfaces
  • Archiving and File Transfer
  • Ancillary Features

Features

Enhanced IP-920 can stream video more smoothly by supporting Ultra low latency of approx. 99ms. These new feature is especially useful for decoding video from remote site. (e.g. Video transmission among different countries, broadcasters and global companies) The new feature enables to decode video seamlessly and simultaneously and the operator in decoding site would not have to feel any stresses for waiting the process.

Fujitsu IP-920 is an audio/video codec that utilizes advanced MPEG-4 AVC (H.264) encoding to perform real-time transmission of SDTV and HDTV at low bit rates over IP network. By utilizing sophisticated MPEG-4 AVC (H.264) compression algorithms, the streaming bit rates are reduced more than half compared to MPEG-2 encoding while achieving the same video fidelity. HDTV contents can be transmitted over existing enterprise IP networks. Robust error correction ensures high fidelity service over IP networks by preventing the distortion of decoded video, even when network packet losses occur. IP-920 reduces the transmission cost for communication among remote locations that demand SDTV and HDTV video fidelity with the compact size and rugged construction.

IP-920 has an analog video (NTSC/PAL) interface. The existing CCTV camera can reduce your beginning investment for your system. When the camera is replaced to HD camera, you can easily add the HD option software to the IP-920 encoder. Utilizing the optional 16GB internal storage function, the IP-920 can also be used for file transmissions across IP networks. Encoded video can be recorded in the encoder and remotely downloaded. Therefore, the video data can be transferred even when network bandwidth is too narrow to support real-time transmission.

Specifications

IP-920 Specifications
Model IP-920D (Decoder)
Video Output 1 x HD-SDI (SMPTE 292M) /SD-SDI (SMPTE 259M),
1 x HDMI, 1 x NTSC/PAL
Coding ITU-T H.264/MPEG-4 AVC (ISO/IEC 14496-10) HP@L4 ,
MP@L4
ITU-T H.264/MPEG-4 AVC (ISO/IEC 14496-10) HP@L3, MP@L3
Resolution, Frequency,
Bit Rate
1080i x 1920/1440/960 (50/59.94Hz) : 100Kbps - 27Mbps,
720p x 1280/960/640 (50/59.94Hz) : 500Kbps - 27Mbps,
480i x 720/352 (59.94Hz),
576i x 720/352 (50Hz) : 100Kbps - 10Mbps,
240p x 352 (~15Hz), 288p x 352 (~12.5Hz) : 25Kbps - 1Mbps
Reference 1 x Reference Input (D-Sub 9pin, BB) *1
Audio Output 1 x SDI embedded
(SMPTE 299M / 272M),
1 x HDMI, 1 x Balanced Analog pair (D-Sub 9 pin *1)
Coding MPEG-1 Layer2 (ISO/IEC 11172-3) : 2ch (2 x Stereo) 128,256,384kbps/Stereo
MPEG-2 AAC (ISO/IEC 13818-7) : 2ch (2 x Stereo)
56, 64, 128, 256, 384kbps/Stereo
Multiplexing Method MPEG-2 TTS, MPEG-2 TS
Ancillary Data NIT (Carrier ID), SDT
Transport RTP/UDP/IP, UDP/IP
Error Correction Fujitsu FEC & ARQ, SMPTE2022-1
Network IPv4 PPPoE, DHCP, SNTP, SNMP v2c, IGMPv3
IPv6 SNTP, SNMP v2c, MLDv2
Control Web GUI, SNMP
Network interface 1 x 10BASE-T / 100BASE-TX
Data (outside MUX.) RS-232C (Pass-thru)
External Dimensions
(W x D x H)
210 x 300 x 42mm (w/o protrusions)
Weight Approx. 2kg
Power 100 - 240 V (AC) / +12 - 24V (DC)
Power Consumption 35VA
Temperature -10 - 55 degrees C (No low temperature startup: -10 to -1 ℃)
Humidity 20 - 90RH (No condensations)
Compliance UL, CE, FCC, RoHS (AC, DC) KC (AC) /
Class III device of IEC60950-1, UL60950-1, EN60950-1 (DC)

*1:Connector conversion cable is attached.

Note) HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
***Information in this page is subject to change without notice.
