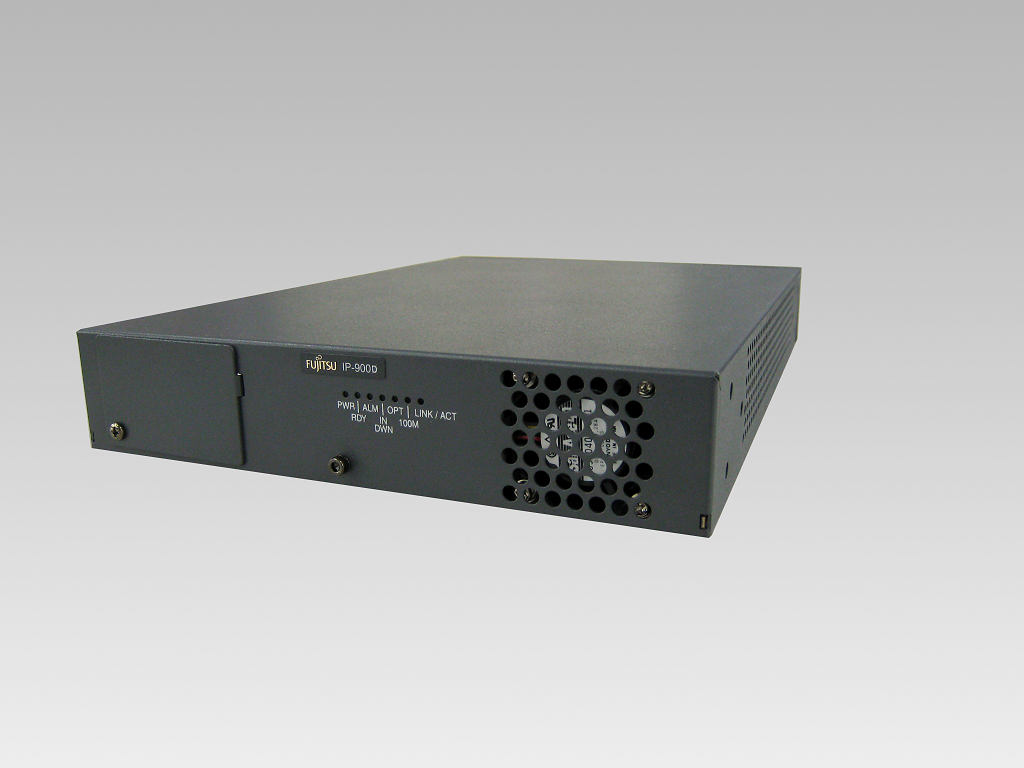

Larger View (664 KB)The main functions of IP-900 Decoder are:
Enhanced IP-900 can stream video more smoothly by supporting Ultra low latency of approx. 99ms. These new feature is especially useful for decoding video from remote site. (e.g. Video transmission among different countries, broadcasters and global companies) The new feature enables to decode video seamlessly and simultaneously and the operator in decoding site would not have to feel any stresses for waiting the process.
Fujitsu IP-900 is an audio/video codec that utilizes advanced MPEG-4 AVC (H.264) encoding to perform real-time transmission of SDTV and HDTV at low bit rates over IP network. Powerful error correction ensures high fidelity of service over IP networks by preventing the distortion of decoded video, even when network packet losses occur. Using its compact size and rugged construction, IP-900 reduces the transmission costs among remote locations that demand SDTV and HDTV image fidelity.
IP-900 has an analog video (NTSC/PAL) interface. The existing CCTV camera can cut the beginning cost less than usual. When the camera is replaced to HD camera, you can easily add the HD optionnal software to IP-900 Encoder. Utilizing the optional 16GB internal storage function, IP-900 can also be used for file transfers over the IP networks. Encoded data can be stored in Encoder and remotely downloaded. Therefore, encoded data can be transferred even when network bandwidth is too narrow to support real-time transmissions.
| IP-900 Specifications | |||||||||||
| Model | IP-900IID (Decoder) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Video | Output | 1 x HD-SDI (SMPTE 292M)/SD-SDI (SMPTE 259M), 1 x HDMI,
1 x NTSC/PAL |
|||||||||
| Coding | ITU-T H.264/MPEG-4 AVC (ISO/IEC 14496-10) HP@L4, MP@L4
ITU-T H.264/MPEG-4 AVC (ISO/IEC 144966-10) HP@L3, MP@L3 |
||||||||||
| Resolution, Frequency,
Bit Rate |
1080i x 1920/1440/960 (50/59.94Hz) : 100Kbps - 27 Mbps,
720p x 1280/960/640 (50/59.94Hz) : 500Kbps - 27 Mbps 480i x 720/352 (59.94Hz), 576i x 720/352 (50Hz) : 100Kbps - 10Mbps 240p x 352 (~15Hz), 288p x 352 (~12.5Hz) : 25Kbps - 1Mbps |
||||||||||
| Audio | Output | 1 x SDI embedded (SMPTE 299M / 272M),
1 x HDMI, 1 x Unbalanced Analog Pair (RCA) |
|||||||||
| Coding | MPEG-1 Layer2 (ISO/IEC 11172-3) : 2ch (2 x Stereo) 128,256,384 Kbps/Stereo
MPEG-2 AAC (ISO/IEC 13818-7) : 2ch (2 x Stereo) 56,64,128,256,384 Kbps/Stereo |
||||||||||
| Multiplexing Method | MPEG-2 TTS, MPEG-2 TS | ||||||||||
| Ancillary Data | NIT (Carrier ID), SDT | ||||||||||
| Transport | RTP/UDP/IP, UDP/IP | ||||||||||
| Error Correction | Fujitsu FEC & ARQ, SMPTE2022-1 | ||||||||||
| Network | IPv4 | PPPoE, DHCP, SNTP, SNMP v2c, IGMP v2, IGMPv3 | |||||||||
| IPv6 | SNTP, SNMP v2c, MLDv2 | ||||||||||
| Control | Web GUI, SNMP | ||||||||||
| Network Interface | 1 x 10BASE-T/100BASE-TX | ||||||||||
| Data (outside MUX.) | RS-232C (Pass-thru) | ||||||||||
| External Dimensions
(W x D x H) |
210 x 300 x 42mm (w/o protrusions) | ||||||||||
| Weight | Approx. 2kg | ||||||||||
| Power | AC100 - 240V | ||||||||||
| Power Consumption | 35VA | ||||||||||
| Temperature | -10 - 55 degrees C (No low temperature startup: -10 to -1 ℃) | ||||||||||
| Humidity | 20 - 90 RH (No condensations) | ||||||||||
| Compliance | UL, CE, FCC, RoHS, KC | ||||||||||
*HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
***Information in this page is subject to change without notice.
