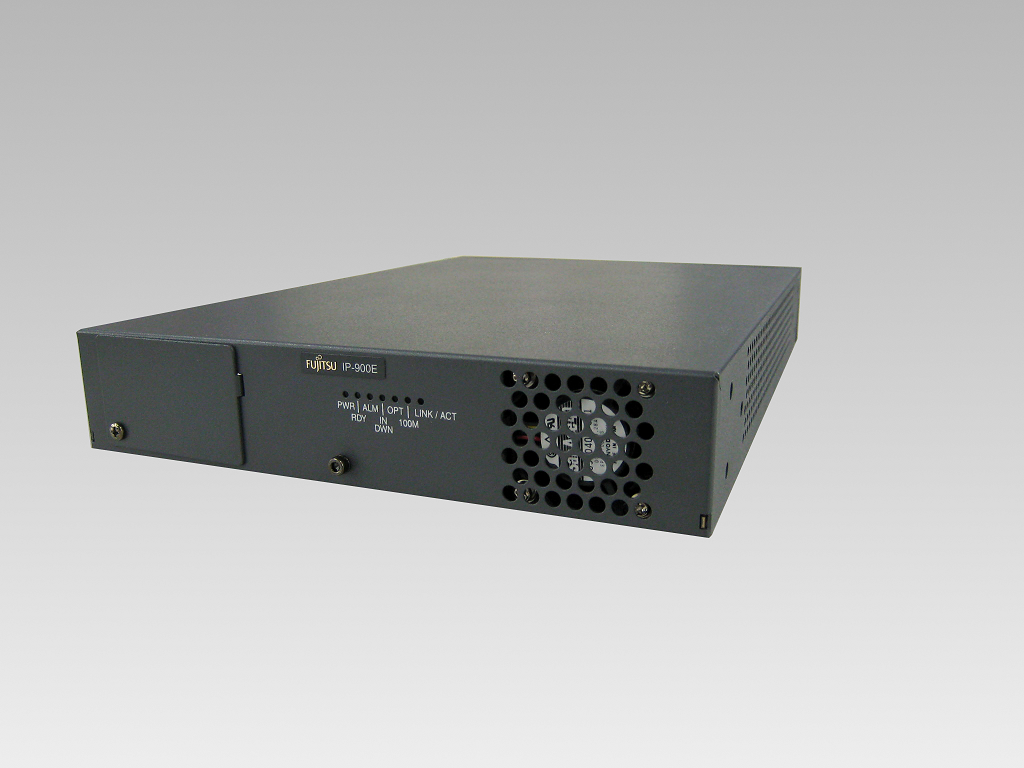

IP-900E

Larger View (664 KB)

Overview

The main functions of IP-900 Encoder are:

  • Best-in-class Video Fildelity MPEG-4 AVC (H.264) Video Encoder
  • Compact, Light and Half Width
  • Upgrade from SDTV to HDTV *Optional
  • Ultra Low Latency Mode *Optional
  • NIT (Carrier ID) support for Satellite Video Transmission
  • Robust Error Correction (FEC/ARQ)
  • Multiple Interfaces
  • Archiving and File Transfer
  • Ancillary features

Features

Enhanced IP-900 can stream video more smoothly by supporting NIT (Carrier ID) and Ultra low latency of approx. 99ms. These new features are especially useful for streaming among remote sites such as plural countries, broadcasters and global companies. These new features enable to stream video seamlessly and simultaneously and you would not have to feel the distances through the video from your site.

Fujitsu IP-900 is an audio/video codec that utilizes advanced MPEG-4 AVC (H.264) encoding to perform real-time transmission of SDTV and HDTV at low bit rates over IP network. Powerful error correction functions ensures high fidelity of service over IP networks by preventing to distort decoding images even when network packet losses occur. With its compact size and rugged construction, IP-900 reduces transmission costs among remote locations that demand SDTV and HDTV video fidelity. By utilizing sophisticated MPEG-4 AVC (H.264) compression algorithms, the streaming bit rates are reduced more than half compared to MPEG-2 encoding and maintaining to be implemented the same video fidelity. HDTV contents can be transmitted over existing enterprise IP networks.

IP-900 has an analog video (NTSC/PAL) interface. The existing CCTV camera can reduce the beginning cost for your system. When the camera is replaced to HD camera, you can easily add the HD optional software to IP-900 encoder. Utilizing the optional 16GB internal storage, IP-900 can also be used for file transmissions over IP networks. Encoded data can be stored in Encoder and remotely downloaded. Therefore, the video data can be transferred even when network bandwidth is too narrow to support real-time transmissions.

Specifications

IP-900 Specifications
Model IP-900E (Encoder)
Video Input 1 x HD-SDI (SMPTE 292M) *1/SD-SDI (SMPTE 259M),
1 x HDMI, 1 x NTSC/PAL
Coding ITU-T H.264/MPEG-4 AVC (ISO/IEC 14496-10) HP@L4 *1MP@L4 *1
ITU-T H.264/MEPG-4 AVC (ISO/IEC 14496-10) HP@L3, MP@L3
Resolution, Frequency,
Bit Rate
1080i x 1920/1440/960 (50/59.94Hz) : 100Kbps - 27Mbps,
720p x 1280/960/640 (50/59.94Hz) : 500Kbps - 27Mbps
480i x 720/352 (59.94Hz), 576i x 720/352 (50Hz) : 100Kbps - 10Mbps
240p x 352 (~15Hz), 288p x 352 (~12.5Hz) : 25Kbps - 1Mbps
Audio Input 2 x SDI embedded *3(SMPTE 299M *1/272M),
1 x HDMI,
1 x Unbalanced Analog Pair (RCA)
Coding MPEG-1 Layer2 (ISO/IEC 11172-3) : 2ch (2 x Stereo) 128,256,384Kbps/Stereo
MPEG-2 AAC (ISO/IEC 13818-7) : 2ch (2 x Stereo) 56,64,128,256,384Kbps/Stereo
Multiplexing Method MPEG-2 TTS, MPEG-2 TS
Ancillary Data NIT (Carrier ID), SDT
Transport RTP/ UDP / IP, UDP/IP
Error Correction Fujitsu FEC & ARQ, SMPTE2022-1
Network IPv4 PPPoE, DHCP, SNTP, SNMP v2c, IGMPv3
IPv6 SNTP, SNMP v2x, MLDv2
Control Web GUI, SNMP
Additional Functions Recording *2, Dual encoder, Superimpose
Network Interface 1 x 10BASE-T/100BASE-TX
Data (outside MUX.) RS-232C (Pass-thru)
External Dimensions
(W x D x H)
210 x 300 x 42 mm (w/o protrusions)
Weight Approx. 2kg
Power AC100 - 240V
Power Consumption 38VA
Temperature -10 - 55 deg. C (No low temperature startup: -10 to -1 ℃)
Humidity 20 - 90 RH (No condensations)
Compliance UL, CE, FCC, RoHS, KC

*1: IP-900E with HD option software

*2: Need Optional CF card

*3: Selectable 2ch mode or dual encoder mode

*HDMI, the HDMI Logo and High-Definition Multimedia Interfaces are trademarks or registered trademarks of HDMI Licensing LLC.

***Information in this page is subject to change without notice.
