Overview
The main functions of IP-90 are:
- Encoder/ Decoder Switchable by GUI
- Best-in-class broadcast-fidelity MPEG-4 AVC (H.264) video Encoder/Decoder
- Bidirectional Voice Communication
- Superimpose
- Robust Error Correction (Fujitsu FEC/ARQ)
Archived content
NOTE: this is an archived page and the content is likely to be out of date.

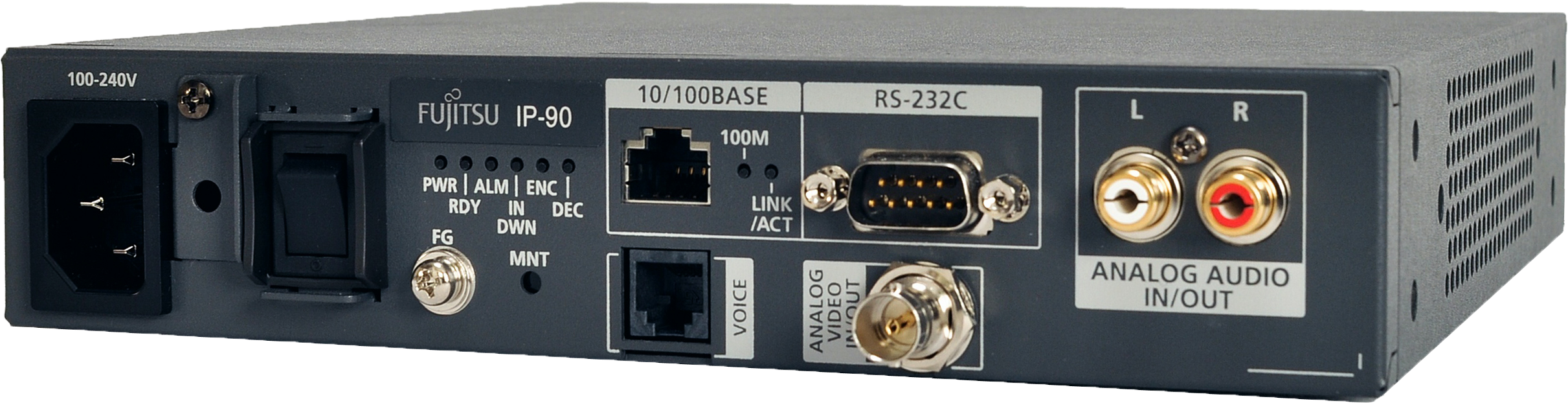

IP-90 Encoder/Decoder
Larger View (1.66 MB )
Features
Fujitsu new equipment IP-90 can transmit Analog video via IP network. We adopt "H.264" encoding format like other Fujitsu IP products. Multiple number of channels are enabled to use. You can reduce communication cost by distributing video efficiently. IP-90 is mainly used for Analog Camera Monitoring such as traffic monitoring via IP network. Operator can send his voice to each monitoring branches or sites from the Central control center and operators in each branch or site can transmit their voices back to the center. Fujitsu has an application for traffic monitoring using parallel serial converter with this IP-90.
In addition to the features above, IP-90 can be switchable among Encoder/Decoder on WEB GUI. This function enables you to change your system structure easily and flexibly without extra spaces or additional deployment costs. Superimpose is enabled to overlap arbitrary characters on video on encoder mode.
IP-90 supports robust error correction by Fujitsu proprietary FEC/ARQ and Pro-MPEG FEC as existing other Fujitsu IP products. Also, IP-90 supports multiple interfaces such as RS-232C, 10BASE-T,/100BASE-TX, Analog Audio and NTSC/PAL (Video Input/Output).
Specifications
| IP-90 Specifications | |||||||||||
| Operation Mode | IP-90 (Encoder Mode) | IP-90 (Decoder Mode) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Video | Input/Output | 1 x NTSC/PAL (BNC) *1
|
1 x NTSC/PAL (BNC) *1
|
||||||||
| Coding | ITU-T H.264/MPEG-4 AVC (ISO/IEC 14496-10) HP@L3, MP@L3, MP@L1.3
|
||||||||||
| Resolution, Frequency,
Bit Rate |
480i x 720 (59.94Hz), 576i x 720 (50Hz) : 1Mbps - 10Mbps,
480i x 352 (59.94Hz), 576i x 352 (50Hz) : 150Kbps - 10Mbps 240p x 352, 288p x 352 : 50Kbps - 512Kbps, |
||||||||||
| Audio | Input/ Output | 1 x Unbalanced Analog
Pair (RCA) *1 |
1 x Unbalanced Analog
Pair (RCA) *1 |
||||||||
| Coding | MPEG-1 Layer2 (ISO/IEC 11172-3) : 2ch (1 x Stereo) 128, 256, 384kbps/Stereo
MPEG-2 AAC (ISO/IEC 13818-7) : 2ch (1 x Stereo) 56, 64kbps/Stereo |
||||||||||
| Intercom | 1 x Input/ Output : G.711 | ||||||||||
| Multiplexing Method | MPEG-2 TTS, MPEG-2 TS
|
||||||||||
| Transport | RTP, UDP
|
||||||||||
| Network function | IPv4 : PPPoE, DHCP, SNTP client, SNMP v2c, IGMP v2
IPv6 : SNTP client, SNMP v2c, MLDv2 |
||||||||||
| Error Correction | Fujitsu FEC & ARQ, SMPTE2022-1
|
||||||||||
| Additional functions | Superimpose
|
----
|
|||||||||
| Network | LAN | 1 x 10BASE-T/100BASE-TX
|
|||||||||
| Data Port | RS-232C (Pass-thru)
|
||||||||||
| External Dimensions
(W x D x H) |
210 x 220 x 42 [mm] (w/o protrusions)
|
||||||||||
| Weight | Approx. 1.5kg | ||||||||||
| Power | AC100 - 240V
|
||||||||||
| Power Consumption | Max 35VA @ AC100V, 53VA @ AC240V
|
||||||||||
| Temperature | -10 - 55 degrees C (No low temperature startup: -10 to -1 ℃)
|
||||||||||
| Humidity | 20 - 90RH (No condensations)
|
||||||||||
| Compliance | UL, CE, FCC, RoHS, KC | ||||||||||
Note*1: Input / Output terminal can be used at both Encoder and Decoder Mode.
Information in this page is subject to change without notice.
