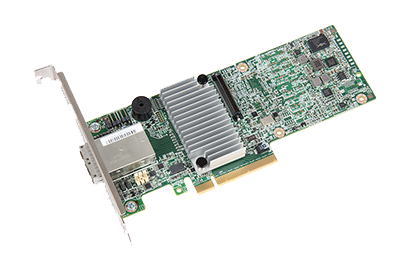

FUJITSU PRAID EP420e
FUJITSU PRAID EP420e
- Designed for configuring external storage enclosures with high-performance SAS hard disk drives (HDDs), high-capacity SATA HDDs or application-accelerating solid state drives (SSDs)
- Offers up to double the data transfer rate of 6 Gb/s SAS solutions
- Regardless of the drive speed, it delivers significant performance improvements in both read and write applications
Number of supported drives |
RAID levels |
Scalable performance |
Simplified management |
Supports up to 4 ETERNUS JX40 (up to 96 hard disks) |
RAID spans 10, 50 and 60 for more data security |
2GB 1333MHz DDRIII cache memory |
Seamless merging of the RAID management into system management |
-
Number of supported drives
Supports up to 4 ETERNUS JX40 (up to 96 hard disks) -
RAID levels
RAID spans 10, 50 and 60 for more data security -
Scalable performance
2GB 1333MHz DDRIII cache memory -
Simplified management
Seamless merging of the RAID management into system management
Tech Specs
Controller Silicon |
RoC (RAID on Chip) LSI SAS3108 |
Connector type |
SSF-8644 |
Key RAID Data Protection Feature |
- RAID levels 0, 1, 5 and 6 - RAID spans 10, 50 and 60 - Online Capacity Expansion (OCE) - Online RAID level Migration (RLM) - Auto resume after loss of system power during array rebuild or reconstruction (RLM) - Single controller multipathing (failover) - Load Balancing - Configurable stripe size up to 1MB - Fast initialisation for quick array setup - Check consistency for background data integrity - SSD support with SSD Guard technology - Patrol read for media scanning and repairing - Up to 64 logical drive support - DDF-compliant configuration on disk (COD) - S.M.A.R.T support - Global and dedicated Hot Spare with Revertible Hot Spare support - Automatic rebuild - Enclosure affinity - Enclosure management - SES (inband) - SGPIO (outband) - Shielded state drive diagnostic technology |
RAID Management |
ServerView RAID Manager StoreCLI (command-line interface) Crtl + R |
Service Weblink |
https://www.fujitsu.com/emeia/support/ |
Support Pack Options |
Globally available in major business areas: 9x5, Next Business Day Onsite Response Time 9x5, 4h Onsite Response Time (depending on country) 24x7, 4h Onsite Response Time (depending on country) |
Recommended Service | 24x7, Onsite Response Time: 4h - For locations outside of EMEA please contact your local Fujitsu partner. |
Support Pack Options |
Globally available in major business areas: 9x5, Next Business Day Onsite Response Time 9x5, 4h Onsite Response Time (depending on country) 24x7, 4h Onsite Response Time (depending on country) |
Recommended Service | 24x7, Onsite Response Time: 4h - For locations outside of EMEA please contact your local Fujitsu partner. |
