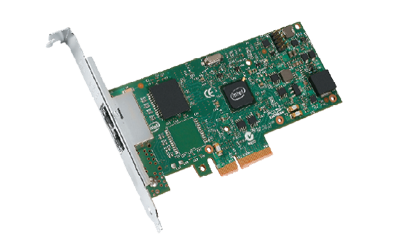

FUJITSU PLAN CP 2x1Gbit Cu Intel® I350-T2
FUJITSU PLAN CP 2x1Gbit Cu Intel® I350-T2
- Offers a Gigabit Ethernet port for entry-level servers and audio-video applications with a innovative power management
- IEEE 802.1Qav Audio-Video-Bridging (AVB) for tightly controlled media stream synchronization, buffering, and reservation
- Offers a combination of power management and space saving design ideal for compact workstations and entry level servers
|
|
|
|
Scalable performance |
Flexible power management |
Efficient networking |
Connectivity |
|
Energy-efficient design for next-generation 1 Gigabit performance and multi-core processors |
Increased efficiency and reduced power consumption |
Multi-port cards provide the platform with the port density required for virtualized environments |
Automatically compatible with Ethernet, Fast Ethernet, and Gigabit Ethernet networks |
-
Scalable performance
Energy-efficient design for next-generation 1 Gigabit performance and multi-core processors -
Flexible power management
Increased efficiency and reduced power consumption -
Efficient networking
Multi-port cards provide the platform with the port density required for virtualized environments -
Connectivity
Automatically compatible with Ethernet, Fast Ethernet, and Gigabit Ethernet networks
Tech Specs
| Controller Silicon |
Intel® I350-AM2 Gigabit Ethernet Controller |
| Connector type |
RJ45 |
| Auto Negotiation support |
Yes |
| Bus transfer rate |
5GT/s |
| Network protocol and standards compatibility |
IEEE 802.1as Timing and Synchronization, IEEE 802.1q VLAN, IEEE 802.3ab 1000BASE-T, IEEE 802.3ad LACP, IEEE 802.3az Energy Efficient Ethernet (EEE), IEEE 802.3i 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3x Flow Control, IEEE 1588 Precision Time Protocol |
| Power consumption |
typ. 4.4 W; max. 4.8 W |
| LAN controller notes |
DMA Coalescing: Reduces platform power consumption by coalescing, aligning, and synchronizing DMA |
| Remote boot support |
PXE 2.1 |
| HW Virtualization |
PCI-SIG SR-IOV specification, up to 8 Virtual Functions per Port (16 VF) |
| Offloading |
• TCP/UDP, IPv4 checksum offloads (Rx/ Tx/Large-send); Extended Tx descriptors for more offload capabilities • IPv6 support for IP/TCP and IP/UDP receive checksum offload • Tx TCP segmentation offload (IPv4, IPv6) • Transmit Segmentation Offloading (TSO) • Receive Side Scaling (RSS) for Windows environment • DMA Coalescing (DMAC) |
| Additional features |
Jumbo Frames (up to 9.5k) |
| Service Weblink |
https://www.fujitsu.com/emeia/support/ |
| Support Pack Options |
Globally available in major business areas: 9x5, Next Business Day Onsite Response Time 9x5, 4h Onsite Response Time (depending on country) 24x7, 4h Onsite Response Time (depending on country) |
Recommended Service | 24x7, Onsite Response Time: 4h - For locations outside of EMEA please contact your local Fujitsu partner. |
| Support Pack Options |
Globally available in major business areas: 9x5, Next Business Day Onsite Response Time 9x5, 4h Onsite Response Time (depending on country) 24x7, 4h Onsite Response Time (depending on country) |
| Recommended Service | 24x7, Onsite Response Time: 4h - For locations outside of EMEA please contact your local Fujitsu partner. |
