UHF RFID Tag
Softight W5R/W5RL

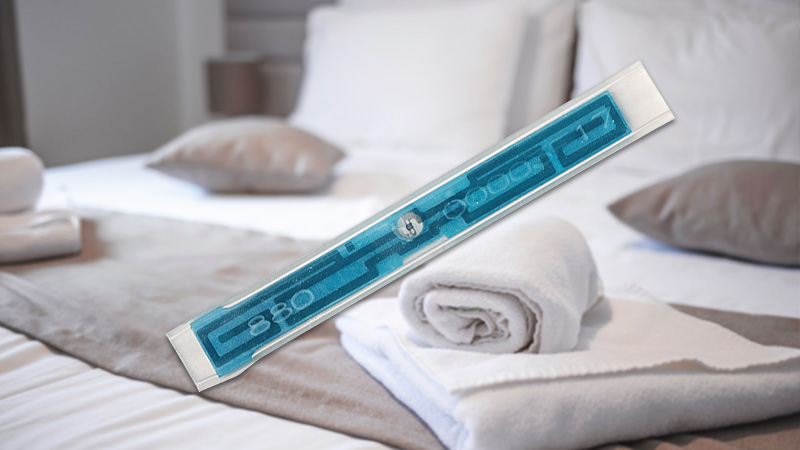

Fujitsu Frontech's ultra-rugged UHF RFID tag Softight W5R/W5RL is designed for superior performance and durability for flat linen applications. The industrial-strength RFID Tags were specifically created to withstand high-pressure extractors without sacrificing quality or performance.
At just 52.5 or 59.5mm wide and 6.5mm depth, the ruggedized RFID Tag comes in a compact footprint that is smaller than competitor tags. The small form factor allows for insertion into virtually any type of flat linen, with the tag being virtually unnoticeable when installed.
Laundries will greatly improve linen processing with near 100 percent accurate reading by leveraging our RFID Tags' innovative technology. All this comes at a cost-effective price so that linen processing facilities can reduce their cost of entry and enhance their bottom line.
- Flexible materials ideal for flat linen applications
- Small form factor for simplified attachment
- Lower cost of entry enhances bottom line
- Exceptional durability for washing, pressing, drying
- Suitable for high-pressure extractors up to 60 bar
- Read hundreds of tagged items in a single pass
- Near 100% accuracy rate improves inventory management
| Specifications | |||
|---|---|---|---|
| Product Name | Softight W5R | Softight W5RL | |
| Model | WT-A546 | WT-A548 | |
| RFD Standard | ISO/IEC 18000-63 (EPC Gen2) | ||
| Regulations | RoHS | Conforms to RoHS regulations | |
| China RoHS | Conforms to Administrative Measure on the Control of Pollution Caused by Electronic Information Products | ||
| MRI Safety Information | MR Conditional (Static magnetic field of 1.5-T and 3-T) | ||
| Size & Weight | 52.5 (W) x 6.5 (D) x 2.4 (H) mm, 1.0g | 59.5 (W) x 6.5 (D) x 2.4 (H) mm, 1.0g | |
| Tag Type | Passive | ||
| EPC Number Area | 96 bit/ unlocked (pre-written by Fujitsu Frontech) | ||
| Reading Range (Textile*1) | 902-928 MHz | 4W eirp 250 cm (Typical) 2W erp 220 cm (Typical) |
4W eirp 400 cm (Typical) 2W erp 360 cm (Typical) |
| 865.6-867.6 MHz | 2W erp 250 cm (Typical) | 2W erp 340 cm (Typical) | |
| Reading Range (Rubber Mat) | 902-928 MHz | 4W eirp 230 cm (Typical) 2W erp 200 cm (Typical) |
4W eirp 310 cm (Typical) 2W erp 280 cm (Typical) |
| 865.6-867.6 MHz | 2W erp 380 cm (Typical) | 2W erp 410 cm (Typical) | |
| Tagging | Directly sewing in hem, seam of linen items; Sewing with patch/pouch | ||
| Estimated Lifetime | 200 washing cycles or 3 years from shipping date, whichever comes first*2 | ||
| Washing Method | Laundry cleaning | ||
| Water Extraction Pressure | 60 bar | ||
| Chemical Resistance | Standard Detergent, Softener, Bleach (Oxygen/ Chlorine*3), Alkali, Acetic/Peracetic Acid | ||
| Autoclave Sterilization | 121 ºC, 15-20 minutes, 80 cycles *4 | ||
| Heat Resistance | Drying: 85 ºC (Up to 60 min.) or 120 ºC (Up to 10 min.) Ironing: 200 ºC (Up to 10 sec. with press cloth) |
||
| Temperature/ Humidity | Operating: -20 to 50 ºC, 10 to 95% RH Storage: -40 to 55 ºC, 8 to 95% RH |
||
All data are results performed in our test condition according to Japan Industrial Standard JIS L 0217 - 102, 103, 301. Your test result may vary.
*1: Reading distance with the condition that textile and attached tag are dry
*2: When used according to the specification, unless otherwise noted
*3: The tag has been tested 10 times under the conditions in the JIS L 0856 Severe test
*4: This test was conducted under Fujitsu Frontech's laboratory
