Embedded type printer module

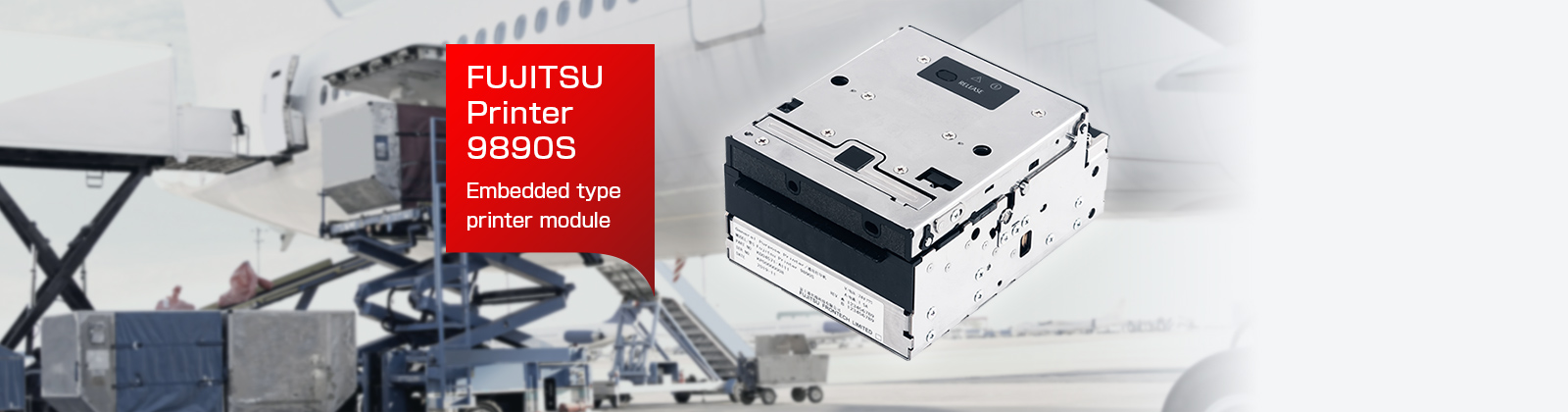

Fujitsu Printer 9890S
Boarding pass & baggage tag printer module
Airline Printer module
This printer module is mainly used by manufacturers of self-baggage drop machines (SBD) and self check-in machines (KIOSK). This new printer module supports various paper media used at airports and airlines around the world, such as liner-less baggage tags (*1) and RFID baggage tags, which are becoming mainstream now.
This can be done only by adding or replacing with optional parts without replacing the whole printer.
Features
World class performance, reliability
- Fujitsu’s mechanical components expertise and long history for airline printers has been impremented and it makes high quolity, performance.
- A printer with a new device that reflects the voice of customers in the aviation industry.
* With RFID Option
Compact design to be installed in a machine
- F9890S
: W 110 – D 140 – H 68 (mm) / 1.4kg [W 4.4 – D 5.6 – H 2.7 (inch) / 3.1 lb] - F9890S + RFID
: W 110 – D 170 – H 68 (mm) / 1.6kg [W 4.4 – D 6.7 – H 2.7 (inch) / 3.6 lb]
Expandability for various baggage tags
- It is possible to handle special baggage tags, for which demand is expected more in the future, simply by adding or replacing optional parts. (RFID, Liner-less) The total cost can be reduced when used for many years than other printers.
Fully equipped standard unit
- Cutter Unit and Cut & Clamp functions are standard equipment.
This enables to use variety of samples from the beginning.
Specifications
| Items | Specifications | |
|---|---|---|
| Physical Data | F9890S | W 110 – D 140 – H 68 (mm) / 1.4kg [W 4.4 – D 5.6 – H 2.7 (inch) / 3.1 lb] |
| F9890S + RFID | W 110 – D 170 – H 68 (mm) / 1.6kg [W 4.4 – D 6.7 – H 2.7 (inch) / 3.6 lb] | |
| MTBF
(Mean Time Between Failure) | 500,000 Hours (Electric Board) | |
| Power Supply | 24Vdc | |
| Environment Installed | 150VA maximum at operation, 5.0VA maximum at standby
At operation : 5 - 40℃ / 30 – 85%RH Alarm buzzer, 0 - 5,000m altitude At storage : -5 - 50℃ / 5 - 95%RH | |
| Connectivity | USB 2.0 (F9890S has the virtual com for RS232C.) | |
| Easy Maintenance | The computer tool for diagnostic and test function
Statistics data for transactions by log files Dot detection | |
| Printer modules | Direct Thermal Resolution : 203dpi
Printer Line width : 80mm Selectable Printer Speed : 5,6,7,8 inch/sec Selectable Print Density | |
| Barcode
Conform to the ITPS(*2) standard | 1D | Interleaved 2 of 5 / Industrial 2 of 5 / Code 39 & Code 128 / EAN 13 |
| 2D | PDF417 / Aztec / Data Matrix / QR | |
| Conformable Standards | Fully ITPS compatible
IATA Resolution 722e IATA Resolution 740 and 1740e | |
| Data Interface
ITPS standard | Certified by | ARINC vMUSE / ARINC iMUSE / ARINC cMUSE / SITA AirportConnect (CUTE)
/ SITA Liaison / ICM Airport Technics, an Amadeus company products / Microsoft Windows® driver for airline use / Navitaire GoNow&NewSkies are compatible |
| Will be certified by | Amadeus Air IT / Americas EASE / Travelsky NEW APP / Travelsky Angel NEW APP
/ Materna IPS GmbH ULTRA CUSE * To be updated sequentially | |
| RFID | Support Radio : UHF=Ultra High Frequency | |
| Options | - RFID Unit
- AC Adapter - USB Cable - Photosensor - Damper | |
(*1) liner-less baggage tags : Baggage tag without paper-liner.
(*2) ITPS : The IATA Technical Peripheral Specifications formerly known as AEA Technical specification.
* Product specifications are subject to change without notice. All data is based on internal testing, and results may vary with the conditions.
* All brand names and product names are trademarks or registered trademarks of their respective companies.
