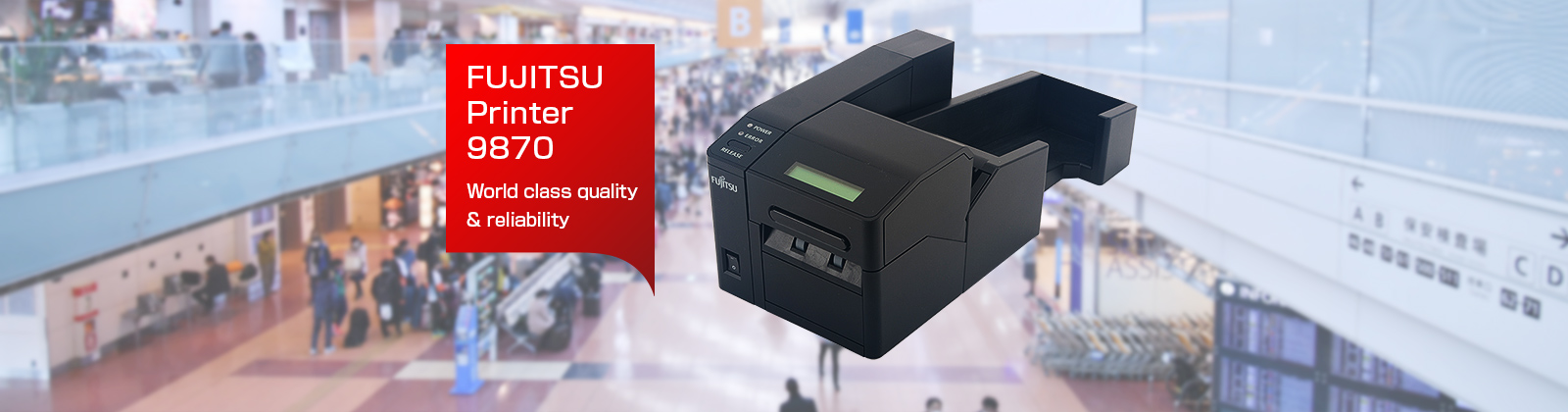

Fujitsu Printer 9870
General purpose printer for boarding pass & baggage tag
Features
World class Quality & Reliability
- Fujitsu's mechanical components expertise implemented
- AFR (Annualized Failure Rate) is less than 1%
Innovative Compact Design
- W 150 – D 260 – H 131.5 (mm) / W 5.9 – D 10.2 – H 5.2 (inch)
- 1.9Kg / 4.2lb
Versatile Interface
- Fully AEA compatible
- Microsoft Windows® driver for airline use
Certified to;
- SITA AirportConnect (CUTE)
- SITA Liaison
- ARINC vMUSE
- ARINC iMUSE
- ARINC cMUSE
- Navitaire GoNow & NewSkies are compatible
- Amadeus Airport IT Americas EASE
- Amadeus ACUS
- TravelSky NEW APP/ Angel NEW APP
- Embross Odyssey CUPPS
*Updated sequentially
Specifications
| Item | Specifications |
|---|---|
| Product Life | ATB / BTP (*M = Million, K = Thousand)
- Printer : 5 years or 550K tickets - Thermal Head : 150km or 150 million pulses (Recommended paper) - Cutter : 500K / 1M * Based on mechanical reference values for recommended media |
| Reliability | - MCBF (Mean Cycles Before Failure) : 70 millions lines
- MTBF (Mean Time Between Failures) : 440,000 Hours - AFR (Annualized Failure Rate) : Less than 1% |
| Jam Rate | 1/20,000 for Boarding Pass / 1/10,000 for Baggage Tag *Due to our test |
| Environment Installed | - 150 VA maximum at operation, 10 VA maximum at standby (Print duty 9%)
- at operation : 5 - 35ºC / 10 - 80% RH Alarm buzzer - at storage : -20 - 60ºC / 8 - 90% RH - at operation : 0 - 5,000m altitude |
| Easy Maintenance | - The PC tool for dianostic and test function
- Statistic data for transactions by log files - Dot detection - Error message on LCD (Limited to LCD specification) |
| Printer Modules | - Direct thermal Resolution : 203 dpi
- Print line width : 80 mm - Selectable Print Speed 5, 6, 7, 8, 9, 10 inch / sec - Selectable Print Density |
| Barcode | AEA compliant
- 1D : Interleaved 2 of 5 / Industrial 2 of 5 / Code 39 & Code 128 / EAN 13 - 2D : PDF 417 / Aztec / Data Matrix / QR |
| Conformable Standards | - Fully AEA compatible
- IATA resolution 722e - IATA resolution 740 and 1740e |
| Data Interface | - AEA standard
- Certified to : SITA AirportConnect (CUTE) / SITA Liaison / ARINC vMUSE / ARINC iMUSE ARINC cMUSE / Navitaire GoNow & NewSkies are compatible Amadeus Air IT Americas EASE / Amadeus ACUS / TravelSky NEW APP Angel NEW APP Embross Odyssey CUPPS - Microsoft's Windows ®driver for airline use *Update sequentially |
| Physical Data | F9870 : W 150 – D 260 – H 131.5 (mm) / 1.9Kg [W 5.9 – D 10.2 – H 5.2 (inch) / 4.2lb]
F9870 + Roll Stand : W 150 – D 387.4 – H 131.5 (mm) / 2.5Kg [W 5.9 – D 15.2 – H 5.2 (inch) / 5.5lb] F9870 + Tray + Stacker : W 150 – D 468.8 – H 155 (mm) / 2.4Kg [W 5.9 – D 18.4 – H 6.1 (inch) / 5.3lb] |
| Connectivity | USB 2.0 (F9870 GPP Virtual com enable to connect with Serial Data) / F9870 contains USB cable (2 meters) |
| Power Supply | 100 - 240V, 50/60 Hz |
| Agency approvals | UL·cUL / CE Marking / CCC / BIS / NOM Compliant / RCM *Updated sequentially |
| Option | Roll Stand, RFID Roll Stand (Baggage tag roll paper), Tray & Stacker (Boarding pass paper) |
| Control Panel | - LCD with back light (16 digits by 2lines)
- LED indicators (Red/Green) - Alam buzzer |
| Swithches | - Power switch
- Release switch - Power lamp - Error lamp |
| Paper Separation | - ATB1 / Baggage Tag : Cutter
- Thin-paper : Cutter (Remained one point) * Includes cutter as standard option |
Option
Fujitsu Printer 9870 GPP Roll Stand
The Fujitsu Printer 9870 GPP Roll Stand is an optional product exclusively for the Fujitsu Printer 9870. With the Fujitsu Printer 9870 GPP Roll Stand, it will be possible to support RFID operations that are expected increasing market demand in the future.
