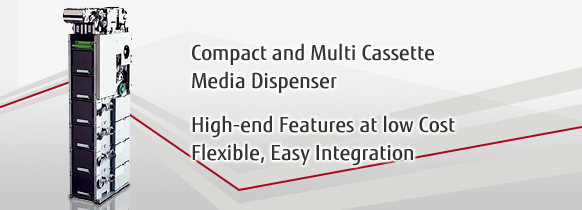

Compact and Multi Cassette Media Dispenser
F56 Bill Dispensing Unit
High-end Features at low Cost Flexible, Easy Integration
Product Outline
F56 is a compact and multi cassette media dispenser, designed for the OEM market, the Fujitsu F56 dispenser features 6 cassettes to hold up to a total of 3,000 notes or other media.
- Width 6.3in (160mm)
- Depth 15.4in (392mm)
- Height 14.8in (375mm) 2-Denominations
- Up to 500 notes / cassette
Main Features
- RS232C
- Bunch presenter
- Bill low sensor
- Denomination sensor
- Shutter (option)
- Predictive failure analysis
- Lockable cassette option
- Firmware download
- Single note reject
Specifications
| Items | Specifications | |
|---|---|---|
| Dimensions(W x D x H)
2-denominations |
160mm x 392mm x 375mm | |
| Cassette 116mm x 216mm x 98mm | ||
| Weight (W/O media) | 11kg | |
| 0.7kg / Cassette | ||
| Service Access | Front, Rear or Dual | |
| Number of Cassettes | Up to 6 Cassettes | |
| Bill Count Speed | 2 Notes / Second | |
| Media Spec.
Thickness |
Max. 82mm x 160mm
Min. 60mm x 120mm 0.09mm - 0.3mm |
|
| Bills Transaction | 20 Bills / Transaction | |
| Bill Retrieval | Option | |
| Shutter | Option | |
| Capacities / Denomination | Accommodation 60mm
New US Note 500 each cassette (Approx.) |
|
| Standard | UL, TUV certified | |
| Reject Bill Area Capacity | Max. 20 bills | |
| Bill Low Sensor | Fixed sensor
Approx. 40 bills each cassette |
|
| Interface | RS232C | |
| Electrical Power Requirements | DC +24V +-10%
Max. 7A Ave. 5A |
|
| Temperature | Operation | 0ºC - 40ºC |
| Stop State | -5ºC - 50ºC | |
| Relative Humidity | Operation | 10% - 85% |
| Stop State | 8% - 90% | |
