TeamPoS8000
Model A300
Stylish all-in-one POS design with an integrated body and LCD
- Large display with thin and slim bezel
- Tilt mechanism adjustable to free angle
- Safe and secure operation
- High-performance processors and rich peripherals
TeamPoS8000 Model A300 POS configuration
Model C300 and Cs300
All-in-one POS combining sophistication and flexibility with a stylish design
- Large display with thin and slim bezel
- Accommodate a variety of checkout styles and installation layouts
- Safe and secure operation
- High-performance processors and rich peripherals

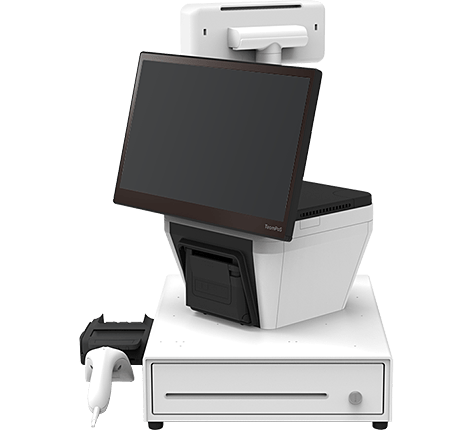

TeamPoS8000 Model C300 POS configuration
Specifications
| TeamPoS8000 | Model A300 | Model C300 and Cs300 | ||
|---|---|---|---|---|
| Main Unit | CPU | Intel® CoreTM i3-12100 series | ||
| Supported OS | Windows® 10 IoT Enterprise 2021 LTSC (64 bit) | |||
| Memory | 8GB (standard) | |||
| Storage | SSD (M.2) 128GB x1 | |||
| Operator display | 15.6-inch LCD
16:9, Full HD (1,920 x 1,080) | |||
| Touch panel | P-CAP (projected capacitive) | |||
| I/O basic | USB-A x4
Powered USB (24V) x1, (12V) x3 RS232C (COM, RJ45) x2 LAN(RJ45) x1 For drawer I/F x1 For 2nd display (HDMI) x1 USB-C x1 (for 2nd LCD) (For C300/Cs300, some ports are used for integrated printer and camera scanner) | |||
| LAN | 10 BASE-T/100 BASE-TX/1000 BASE-T | |||
| Power supply | AC power brick (100-240V) | |||
| Cooling | Fan | |||
| Color | White / Black | Two-tone | ||
| Dimensions | 369 (W) x 258 (D) x 294 (H) mm
(LCD tilt 31°) | 369 (W) x 265 (D) x 382 (H) mm
(LCD tilt 0°) | ||
| Weight | Approximately 4 kgs | Approximately 11 kgs(C series)
/ 15kgs (Cs series) | ||
| 1 station thermal printer
(Integrated) | - | Paper width: 58 mm (default) and 80 mm,
Printing speed: Max. 350 mm/sec. | ||
| Camera scanner
(Integrated on Cs series) | - | Cs series
JAN/EAN-13/8, UPC-A/E, NW-7, CODE39, CODE128, ITF, GS1 DataBar QR code | ||
| Peripherals
(Options) | 2nd LCD | 15.6-inch LCD
16:9, Full HD (1,920 x 1,080) Touch panel: P-CAP (projected capacitive) | ||
| Customer display | ANK (20 digits x 2 lines) or Graphic (16 digits x 3 lines) | |||
| 1 station thermal printer | Paper width: 58 mm and 80 mm,
Printing speed: 300 mm/sec. | - | ||
| Keyboard | 88 keys with/without key cylinder and key set
Option: MSR (ISO 1/2/3) | |||
| MSR on LCD | ISO 1/2/3 | |||
| Touch scanner | CCD touch scanner
JAN/EAN-13/8, UPC-A/E, NW-7, CODE39, CODE128, ITF, GS1 DataBar Readable barcode width: Up to 65 mm (including left and right margin) | |||
| Cash drawer | Standard type | 5 bill compartments, 6 coin compartments with media slot | ||
| Compact type | 3 bill compartments, 6 coin compartments with media slot | |||
- Windows is a trademark or registered trademark of Microsoft Corporation in the United States and/or other countries. Intel is a trademark or registered trademark of Intel Corporation or its subsidiaries in the United States and other countries.
- QR Code is registered trademark of DENSO WAVE INCORPORATED.
- All brand names and product names are trademarks or registered trademarks of their respective companies.
- Product specifications are subject to change without notice. All data is based on internal testing, and results may vary with the conditions.
TeamPoS8000 Series Peripherals
2nd LCD
15.6 inch LCD, remote type

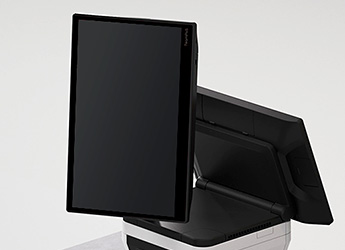

2nd LCD
15.6 inch LCD for C series

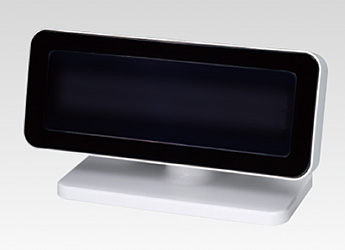

Customer display
Customer display, remote type
Printer
1 station thermal printer
Keyboard
Touch scanner
MSR on LCD
Cash drawer (Compact type)
Coin: 6
Bill: 3
Media slot
Cash drawer (Standard type)
Coin: 6
Bill: 5
Media slot
