UHF RFID Garment Tag Fujitsu WT-A533G/WT-A531G

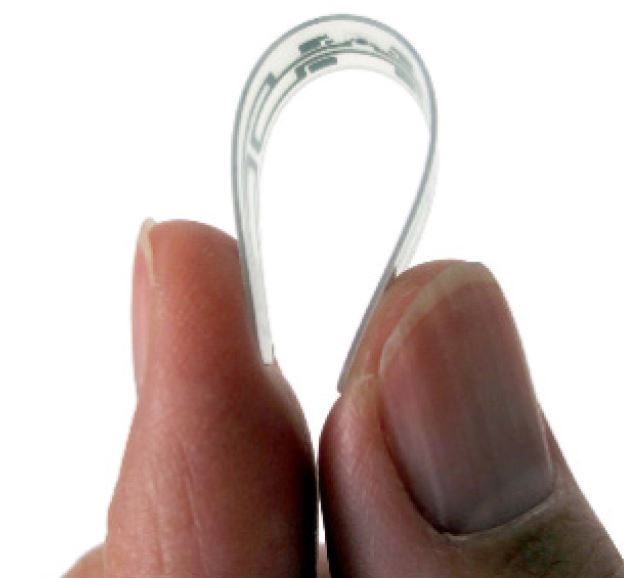

Fujitsu’s latest UHF RFID garment tag is only 0.6mm thick and virtually transparent. It can be easily attached to garments with heat seal labels and be virtually unnoticeable. The tag is designed for typical garment industrial laundry and dry-cleaning equipment and processes. As with our linen tags, the garment tag uses advanced antenna technology that allows for reading hundreds of items while reducing mis-reads of nearby tags.
Advantages of UHF Technology
Speed - UHF efficiency increases tag read performance to read hundreds of tags in a single pass.
Accuracy - Perform inventory management accurately and easily by reading multiple tags at once with very low error rates.
ROI - Installation of UHF technology will provide cost-effective garment management by reducing labor costs associated with barcode or high frequency RFID tags. Garment and Uniform suppliers will see improved asset tracking and reduced loss, while improving workflow and efficiency.
Target Applications
Uniforms, Workwear, Shirts, Slacks, Shoes and Accessories for hospital/healthcare, manufacturing and transportation industry, food and beverage, casinos and hotel, amusement and entertainment, as well as the growing fashion rental markets.
- Smaller form factor at just 0.6mm thick
- Virtually transparent when attached to garments
- Designed for easy attachment with heat seal labels
- Adhesive layer simplifies installation processes
- Advanced antenna design for exceptional read rates
- Cost effective for easy adoption
- High performance reads hundreds of tags simultaneously
Specifications | ||
---|---|---|
RFID Standard | ISO/IEC 18000-63 (EPC Gen2) | |
Regulations | RoHS | Conforms to RoHS regulations |
China RoHS | Conforms to Administrative Measure on the Control of Pollution Caused by Electronic Information Products | |
MRI Safety Information | MR Conditional (Static magnetic field of 1.5-T and 3-T) | |
Size & Weight | 55 (W) x 9 (D) x 0.6 (H) mm, 0.4g | |
Tag Type | Passive | |
EPC Number Area | WT-A533G | 128bit/ unlocked (The first 96bit are pre-written by Fujitsu)*1 |
WT-A531G | 128bit/ permanently locked (The first 96bit are pre-written by Fujitsu)*1 | |
User Memory | NONE | |
Reading Range (Air) | 902-928 MHz | 4W eirp 190cm (Typical); 2W erp 170cm (Typical) |
865.6-867.6 MHz | 2W erp 100cm (Typical) | |
Reading Range (Heat seal) | 902-928 MHz | 4W eirp 230cm (Typical); 2W erp 200cm (Typical) |
865.6-867.6 MHz | 2W erp 130cm (Typical) | |
Tagging | Heat sealing, seam insertion, pouch | |
Estimated Lifetime | 100 washing cycles/dry cleaning or 3 years from shipping date without usage, whichever comes first*2 | |
Washing Method | Laundry, Standard Detergent, Softener, Bleach (Oxygen/Chlorine), Alkali*3 | |
Dry cleaning (PERC and petroleum based solvents)*4 | ||
Heat Resistance | Drying | 85ºC (Up to 60 min.) or 120 ºC (Up to 20 min.) |
Ironing | 200ºC (Up to 10 sec. with press cloth) | |
Temperature/Humidity | Operating | -20 to 50ºC, 10 to 95% RH |
Storage | -40 to 55ºC, 8 to 95% RH |
All data are results performed in our test condition according to Japan Industrial Standard JIS L 0217 - 102, 301, 401, 402. Your test result may vary.
*1: Last 32 bits are not specified. Modifying EPC area is not covered by product warranty.
*2: Verified with independent testing - nominal industrial laundry conditions
*3: Conditions for washing: Conventional washers/dryers excluding water extraction press
*4: Conditions for dry cleaning: Up to 10 minutes/cycle for washing, and 30 minutes/cycle up to 60ºC for drying
