This product is no longer available.

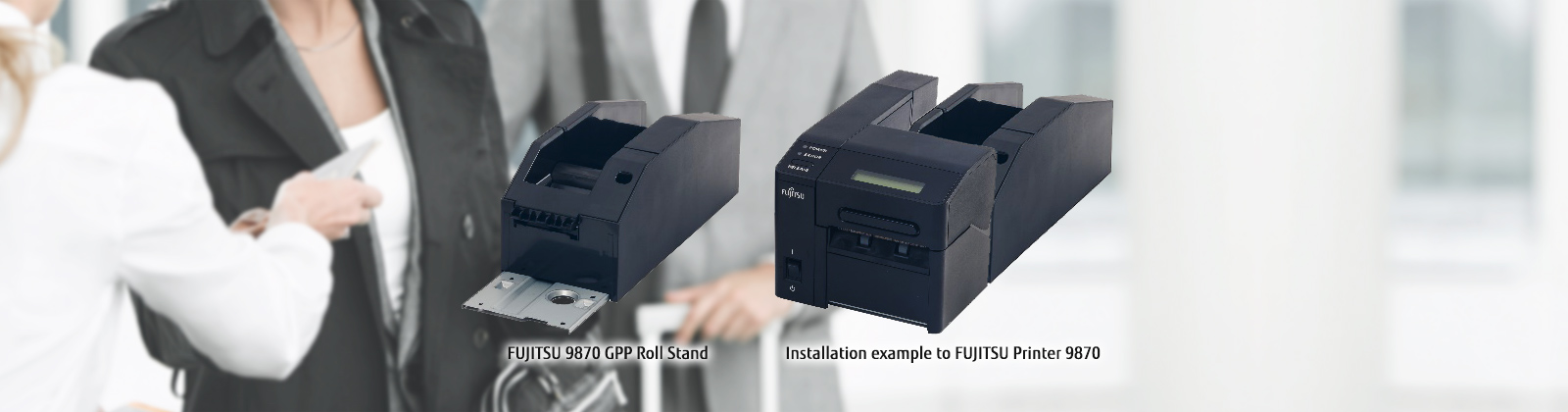

Fujitsu Printer 9870 GPP Roll Stand
Retrofitted option for Fujitsu Printer 9870 to support RFID baggage tag
Supporting to RFID operations for the future
Features
World class performance, reliability, easily & flexibility
- Fujitsu’s mechanical components expertise implemented
- Read ratio is more than 99.99%
Innovated compact design
- Fujitsu Printer 9870 GPP Roll Stand
: W 109.2 – H 103.9 – D 340 (mm) / 0.9Kg
[W 4.3 – H 4.1 – D 13.4 (inch) / 1.98 lb] - Fujitsu Printer 9870 + Fujitsu Printer 9870 GPP Roll Stand
: W 150 – H 131.5 – D 387.4 (mm) / 2.8Kg
[W 5.9 – H 5.2 – D 15.2 (inch) / 6.2 lb]
User friendly
- Retrofitted option for Fujitsu Printer 9870
- Assistance for cost-effective investment with flexibility
- Single action to set Baggage tag roll
- Support 2 type of RFID Baggage tag roll (Face wound out and Face wound in)
Versatile Interface
- Fully AEA 2012
- Certified to;
- ARINC iMuse / vMuse / cMUSE
- Amadeus Airport IT Americas EASE
- TravelSky New APP / Angel NEW APP
*Updated sequentially
Specifications
| Items | Specifications |
|---|---|
| Support Radio | UHF=Ultra High Frequency |
| Certificate of Radio Frequency | TELEC (Japan), SRRC (China), FCC (USA)
* Update sequentially |
| MTBF
(Mean Time Between Failure) AFR (Annualized Failure Rate) | 440,000 Hours
Less than 0.01% |
| Read Ratio | More than 9,999/10,000 for Baggage Tag (99.99%) * Due to our test |
| Environment Installed | 150 VA maximu at operation, 10 VA maximum at standby (Print duty 9%)
Less than 0.1 W at standby with Fujitsu Printer 9870 At operation : 5 - 35℃ / 10 - 80%RH Alarm buzzer, 0 - 5,000m altitude At storage : -20 - 60℃ / 8 - 90%RH |
| Easy Maintenance | The computer tool for diagnostic and test function
Statistics data for transactions by log file Error message on LCD of Fujitsu Printer 9870 (Limited to LCD specifications) |
| Conformable Standards | Fully AEA2012
IATA Resolution 740, 1740e, 1740c and 1773a Assist IATA Resolution 753 |
| Data Interface | Certified by Travelsky NewAPP Angel/NewAPP AngelCue, ARINC iMUSE / vMUSE / cMUSE
Amadeus Airport IT Americas EASE * Update sequentially |
| Physical Data | Fujitsu Printer 9870 GPP Roll Stand
: W 109.2 – H 103.9 – D 340 (mm) / 0.9Kg [W 4.3 – H 4.1 – D 13.4 (inch) / 1.98 lb] Fujitsu Printer 9870 + Fujitsu Printer 9870 GPP Roll Stand : W 150 – H 131.5 – D 387.4 (mm) / 2.8Kg [W 5.9 – H 5.2 – D 15.2 (inch) / 6.2 lb] |
| Connectivity | Specialized connector to only Fujitsu Printer 9870 |
| Power Supply | Supplied from Fujitsu Printer 9870 |
* Product specifications are subject to change without notice. All data is based on internal testing, and results may vary with the conditions.
* All brand names and product names are trademarks or registered trademarks of their respective companies.
