FUJITSU Workstation CELSIUS

Powerful tools to speed up your design and creative workflows

CELSIUS workstations from Fujitsu support creativity, simulation, calculation and visualization at the highest professional level.

With end-to-end capabilities from design and engineering to production, CELSIUS workstations have gained a great reputation for offering ingenious thermal management and cooling as well as reaching world-leading benchmarks. All mobile, desktop and rack workstations are optimized for use with a host of leading applications such as Autodesk, Dassault Systèmes, Siemens PLM or PTC.

FUJITSU CELSIUS workstations are designed for those using demanding professional applications. Performance, reliability, expandability, serviceability and security are at the heart of these machines. These devices are built for power users who want to do things faster, wait less and achieve more in less time. Equipped with the latest NVIDIA® Quadro® GPUs, Intel® Xeon® and CoreTM i CPUs, massive memory and storage, FUJITSU CELSIUS workstations offer the highest levels of performance, visualization and data integrity.

Outstanding Performance

Graphics capability is most crucial for workstations. FUJITSU CELSIUS workstations come with the most advanced graphics cards from AMD and NVIDIA. They offer the latest and highest-specification CPUs, including a range of Intel® Xeon® and CoreTM i processors. For the most demanding multi-threaded processes, such as CPU ray-trace rendering, some workstations even have two CPUs. Our workstations support up to 2,933 MHz DDR4 memory. With massive storage capability and high-speed performance, FUJITSU Workstations enable super-fast rendering and near-real-time visualization.

Maximum Reliability

FUJITSU CELSIUS workstations use top-quality components and features such as advanced tri-channel thermal management for reliability and whisper-quiet operation. These devices also feature server-grade features, such as ECC memory to protect against crashes, and enterprise-class storage designed to handle multiple read / write cycles of colossal datasets. CELSIUS workstations are built for 24/7 operations with reliable high-endurance and business critical drives. Reliability goes beyond hardware – ISV certifications from leading ISVs mean our workstations are compatible and optimized for stability when running professional software applications.

Unrivalled Expandability

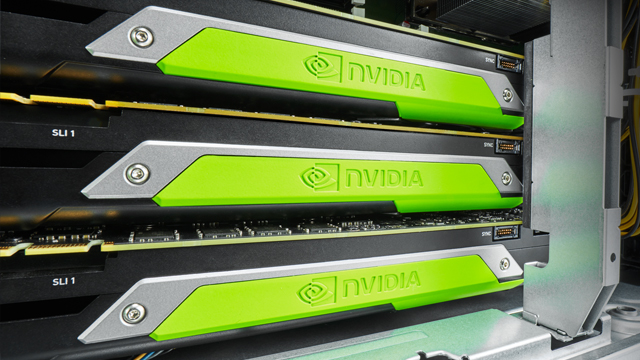

Workstations are built for expandability with some models able to take three ultra-high-end NVIDIA® Quadro® graphics cards, two Intel® Xeon® processors, up to 1 TB of DDR4 memory and multiple storage devices. With maximum component selection (processors, graphics cards and hard drives), multiple expansion bays, front access storage and tool-less design, CELSIUS workstations by Fujitsu offer virtually unmatched expandability.

Enterprise-Grade Security

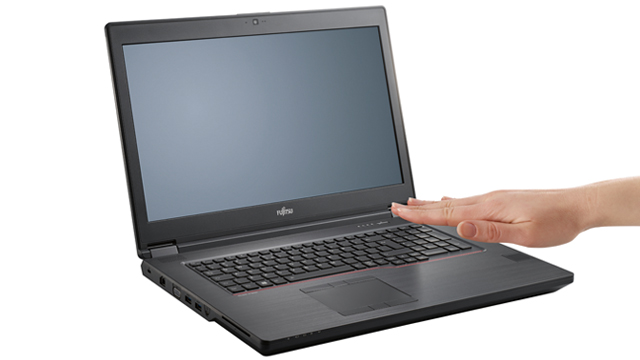

Our workstations offer extremely robust security features. Advanced security features, such as PalmSecure™, EraseDisk, SmartCard, Trusted Platform Module (TPM 2.0) ensure enterprise data security and peace of mind. Fujitsu mobile workstations have embedded PalmSecure™ (optional) – state-of-the-art, highly secure authentication system using biometric technology that authenticates users through vein pattern recognition. With CELSIUS, you can be more confident about the safety of your precious creative and design data.

Virtual Reality Software Development

“I needed a computer that was able to keep up with me; I do a lot of simulations and modeling and I need to run them all in real time. With FUJITSU CELSIUS Workstations, we have got a deal - I do the high-level thinking and it does the math."

- Juraj Hudák, VR designer


LinkedInTwitterFacebook

Find the right workstation

3  Products

Filters

(0)

Operating System

Processor

Graphics

Mass storage

Memory

Type

PCIe slots

Certificates

FUJITSU Workstation CELSIUS H7510

  • Windows 10 Pro for Workstations
  • True workstation performance: 10th Gen Intel® Core™ or Intel® Xeon® processors; up to NVIDIA® Quadro RTX™ 3000 graphics card
  • Improved memory and storage: Up to 128GB DDR4 memory, up to 4TB M.2 PCIe NVMe SSD storage
  • The world's most secure 15.6-inch mobile workstation with PalmSecure™ - Fujitsu's palm vein authentication technology
  • Full connectivity options (1x VGA, 1x HDMI) and mechanical port replicator

Read More

FUJITSU Workstation CELSIUS C780

  • Windows 10 Pro for Workstations
  • Full workstation graphics power out of the datacenter
  • Ideal for CAx, M&E, visualization or HPC applications
  • Support of up to two high-end graphic cards (single width) or one ulta-high-end graphic card (double width)
  • Secure remote access solution with the FUTRO L Thin Client

Read More

Station de travail FUJITSU CELSIUS R970

  • Windows 10 Pro for Workstations
  • Processeurs Intel® Xeon® Scalable jusqu'à la 2e génération
  • Station de travail double processeur, mémoire jusqu’à 1 To
  • Jusqu’à trois cartes graphiques 3D très haut de gamme
  • Solution idéale pour les applications extrêmement exigeantes à plusieurs threads qui font un usage intensif de la mémoire

Read More
×
FUJITSU Workstation CELSIUS H7510 FUJITSU Workstation CELSIUS C780 Station de travail FUJITSU CELSIUS R970
Operating system Windows 10 Pro
Windows 10 Pro for Workstations
Windows 10 Pro High End
 Windows 10 Pro for Workstations
Windows 10 Pro
 -
Chipset Intel® QM480 or WM490 (depending on CPU)
 Intel® C246
 Intel® C624
Processor Intel® Core™ i5-10400H processor, 2.60 GHz, up to 4.6 GHz
Intel® Core™ i7-10875H processor, 2.30 GHz, up to 5.1 GHz
Intel® Core™ i7-10850H processor, 2.70 GHz, up to 5.1 GHz
Intel® Core™ i9-10885H processor, 2.40 GHz, up to 5.3 GHz
Intel® Xeon® processor W-10885M, 2.4 GHz, up to 5.3 GHz
Intel® Xeon® processor W-10855M, 2.80 GHz, up to 5.1 GHz
 Intel® Xeon® processor E-2224G, 8 MB, 3.50 GHz, up to 4.7 GHz
Intel® Xeon® processor E-2224, 8 MB, 3.40 GHz, up to 4.6 GHz
Intel® Xeon® processor E-2234, 8 MB, 3.60 GHz, up to 4.8 GHz
Intel® Xeon® processor E-2236, 12 MB, 3.40 GHz, up to 4.8 GHz
Intel® Xeon® processor E-2244G, 8 MB, 3.80 GHz, up to 4.8 GHz
Intel® Xeon® processor E-2246G, 12 MB, 3.60 GHz, up to 4.8 GHz
Intel® Xeon® processor E-2274G, 8 MB, 4.00 GHz, up to 4.9 GHz
Intel® Xeon® processor E-2276G, 12 MB, 3.80 GHz, up to 4.9 GHz
Intel® Xeon® processor E-2278G, 16 MB, 3.40 GHz, up to 5.0 GHz
Intel® Xeon® processor E-2286G, 12 MB, 4.00 GHz, up to 4.9 GHz
Intel® Xeon® processor E-2288G, 16 MB, 3.70 GHz, up to 5.0 GHz
Intel® Core™ i9-9900 processor, 16 GB, 3.10 GHz, up to 5.0 GHz
Intel® Core™ i9-9900K processor, 16 GB, 3.60 GHz, up to 5.0 GHz
Intel® Core™ i7-9700K processor, 12 MB, 3.60 GHz, up to 4.9 GHz
Intel® Core™ i5-9500 processor, 9 MB, 3.00 GHz, up to 4.4 GHz
Intel® Core™ i3-9100 processor, 6 MB, 3.60 GHz, up to 4.2 GHz
 -
Supported capacity RAM (max.) 128 GB, 4 Memory slot(s) SO DIMMBased on Intel® design, systems built with four DIMM slots run at 2400 MT/s.
 128 GB, 4 Memory slot(s) DIMM (DDR4) ECC/non-ECC, Dual channel support, For dual channel performance, 2 memory modules have to be ordered. Capacity per channel has to be the same. 2666 MHz may be clocked down to 2400 MHz depending on processor and memory configuration
 -
Hard disk drive HDD SATA III, 5,400 rpm, 1000 GB
PCIe-SSD, NVMe, 1024 GB Highend, M.2 module
PCIe-SSD, NVMe, 2048 GB Highend, M.2 module
PCIe-SSD, NVMe, 256 GB Highend, M.2 module
HDD SATA III, 5,400 rpm, 500 GB
SSD SATA III, 512 GB, M.2 module, SED
PCIe-SSD, NVMe, 512 GB Highend, M.2 module
PCIe-SSD, NVMe, 512 GB Highend, M.2 module, SED
 - -
Interfaces 1x x DC-in
1 x Audio: line-in / line-out
2x digital array microphones x Internal microphones
1x (type A) power off charge x USB 3.1 Gen1 (USB 3.0) total
2 x USB Type-C
1x x VGA
1 x HDMI
1× x Ethernet (RJ-45)
1x x SmartCard slot
1 x SIM card slot
 2 x USB 2.0 total
2x 2.0 x USB front
1x 3.0 x USB internal
3x 3.0 x USB rear
1 x Serial (RS-232, optional via slot bracket)
1 (IRMC) x VGA
2 x Ethernet (RJ-45)
 1 x Audio : entrée (arrière)
1 x Audio : sortie (arrière)
1 x Audio : entrée
1 x Audio : sortie
1 x Haut-parleurs internes
9 x Total USB 2.0
2 ports USB 2.0 ; 2 ports USB 3.1 (Gen1) ; en option : 1 port USB 3.1 Type C (Gen2) via une carte complémentaire et un adaptateur en façade pour baie x USB en façade
3, dont 1 de type A x USB interne
6 x USB à l'arrière
2 x Ethernet (RJ-45)
1 (en option) x eSATA
Display 39.6 cm (15.6-inch), LED backlit, (Full HD), Anti-glare IPS display, 700 typ., 400 cd/m²
 - -
Graphics brand name NVIDIA® Quadro RTX™ 3000
NVIDIA® Quadro® T2000
NVIDIA® Quadro® T1000
NVIDIA® Quadro® P620
 - -
Camera Built-in webcam (Full HD) with Status LED
 - -
Weight from 2.7 kg - Actual weight may vary depending on configuration
from 5.95 lbs
 approx. 13 kg
approx. 28.7 lbs
 -
Dimensions (W x D x H) 380.0 x 258.0 x 31.9 mm
14.96 x 10.16 x 1.26 inch
 - -
Runtime battery up to 12 hours (depending on configuration)
 - -
Audio codec Realtek ALC255 with MaxxAudio
 - -
Audio features Stereo speakers, 2 digital microphones
 - -
3G/4G (optional) Sierra Wireless EM7421 (Cat. 7)
 - -
LAN 10/100/1,000 MBit/s Intel® I219LM
 - -
Warranty 3 years (depending on country)
 - -
Graphics features - Ultra-high-end 3D: NVIDIA® Quadro® GV100, 32 GB, PCIe x16, 4 x DisplayPort
Ultra-high-end 3D: NVIDIA® Quadro® RTX 8000, 48 GB, PCIe x16, 4 x DisplayPort, 1 x Virtual Link
Ultra-high-end 3D: NVIDIA® Quadro® RTX 6000, 24 GB, PCIe x16, 4 x DisplayPort, 1 x Virtual Link
Ultra-high-end 3D: NVIDIA® Quadro® P6000, 24 GB, PCIe x16, 1 x Dual Link DVI-D, 4 x DisplayPort
Ultra-high-end 3D: NVIDIA® Quadro® RTX 5000, 16 GB, PCIe x16, 4 x DisplayPort, 1 x Virtual Link
High-end 3D: NVIDIA® Quadro® RTX 4000, 8 GB, PCIe x16, 3 x DisplayPort, 1 x Virtual Link
High-end 3D: NVIDIA® Quadro® P4000, 8 GB, PCIe x16, 4 x DisplayPort
Midrange 3D: NVIDIA® Quadro® P2200, 5 GB, PCIe x16, 4 x DisplayPort
Entry 3D: NVIDIA® T1000, 4 GB, PCIe x16, 4 x miniDP
Entry 3D: NVIDIA® Quadro® P1000, 4 GB, PCIe x16, 4 x miniDP
Entry 3D: AMD Radeon™ Pro WX 2100, 2 GB, 320 stream processors, PCIe x16, 1 x DisplayPort, 2 x miniDP
Entry 3D: NVIDIA® T600, 4 GB, PCIe x16, 4 x miniDP
Entry 3D: NVIDIA® Quadro® P620, 2 GB, PCIe x16, 4 x miniDP
Entry 3D: NVIDIA® T400, 2 GB, PCIe x16, 3 x miniDP
Entry 3D: NVIDIA® Quadro® P400 , 2 GB, PCIe x16, 3 x miniDP
Remote Graphics: CELSIUS RemoteAccess Dual Card, PCIe x1, 2 x miniDP, PCoIP
Remote Graphics: CELSIUS RemoteAccess Quad Card, PCIe x1, 4 x miniDP, PCoIP
Others: DP to DVI-D (single link) Adapter Cable
Others: MiniDP to DP Adapter Cable
 -
Produit - - CELSIUS R970
Système d'exploitation - - Windows 10 Pro for Workstations
Processeur - - Processeur Intel® Xeon® Silver 4215R, 3.20 GHz, jusqu'à 4,0 GHz
Processeur Intel® Xeon® Silver 4214R, 2.40 GHz, jusqu'à 3,5 GHz
Processeur Intel® Xeon® Silver 4210R, 2.40 GHz, jusqu'à 3,2 GHz
Processeur Intel® Xeon® Silver 4208, 2.10 GHz, jusqu'à 3,2 GHz
Processeur Intel® Xeon® Platinum 8276, 2.20 GHz, jusqu'à 4,0 GHz
Processeur Intel® Xeon® Gold 6244, 3.60 GHz, jusqu'à 4,4 GHz
Processeur Intel® Xeon® Gold 6240R, 2.40 GHz, jusqu'à 4,0 GHz
Processeur Intel® Xeon® Gold 6240, 2.60 GHz, jusqu'à 3,9 GHz
Processeur Intel® Xeon® Gold 6226R, 2.90 GHz, jusqu'à 3,9 GHz
Processeur Intel® Xeon® Gold 5222, 3.80 GHz, jusqu'à 3,7 GHz
Processeur Intel® Xeon® Gold 5220R, 2.20 GHz, jusqu'à 4,0 GHz
Processeur Intel® Xeon® Gold 5220, 2.20 GHz, jusqu'à 3,9 GHz
Processeur Intel® Xeon® Gold 5218R, 2.10 GHz, jusqu'à 4,0 GHz
Processeur Intel® Xeon® Gold 5217, 3.00 GHz, jusqu'à 3,7 GHz
Capacité maximale de mémoire RAM prise en charge - - 1024 Go, 16 Emplacement(s) mémoire DIMM (DDR4) ECC, 6 canaux de mémoire, dont 2 canaux prenant en charge 2 DIMM par canal, Pour des performances optimales sur les 6 canaux, un minimum de 6 modules de mémoire doivent être commandés et la capacité par canal doit être la même,
La mémoire DDR4 de 2 666 MHz peut être ralentie à 2 400 ou 2 133 selon le processeur,, Prise en charge jusqu'à 1 To de mémoire principale (disponible sur demande), Cela nécessite l'utilisation du processeur double avec certains processeurs et modules de mémoire DDR4 de 128 Go,
1024 Go, 16 Emplacement(s) mémoire DIMM (DDR4) ECC, 6 canaux de mémoire, dont 2 canaux prenant en charge 2 DIMM par canal, Pour des performances optimales sur les 6 canaux, un minimum de 6 modules de mémoire doivent être commandés et la capacité par canal doit être la même, La mémoire DDR4 de 2 933MHz peut être ralentie à 2 666, 2 400 ou 2 133 selon le processeur,, Prise en charge jusqu'à 2 To de mémoire principale (disponible sur demande), Cela nécessite l'utilisation du processeur double avec certains processeurs et modules de mémoire DDR4 de 128 Go,
Fonctionnalités de la carte graphique - - Ultra-high-end 3D: NVIDIA® Quadro® GV100, 32 Go, PCIe x16, 4 x DisplayPort
Ultra-high-end 3D: NVIDIA® Quadro® RTX 8000, 48 Go, PCIe x16, 4 x DisplayPort, 1 x Virtual Link
Ultra-high-end 3D: NVIDIA® Quadro® RTX 6000, 24 Go, PCIe x16, 4 x DisplayPort, 1 x Virtual Link
Ultra-high-end 3D: NVIDIA® Quadro® RTX 5000, 16 Go, PCIe x16, 4 x DisplayPort, 1 x Virtual Link
High-end 3D: NVIDIA® Quadro® RTX 4000, 8 Go, PCIe x16, 3 x DisplayPort, 1 x Virtual Link
Midrange 3D: NVIDIA® Quadro® P2200, 5 Go, PCIe x16, 4 x DisplayPort
Entry 3D: NVIDIA® T1000, 4 Go, PCIe x16, 4 x miniDP
Entry 3D: NVIDIA® Quadro® P1000, 4 Go, PCIe x16, 4 x miniDP
Entry 3D: AMD Radeon™ Pro WX 2100, 2 Go, 320 processeurs de flux, PCIe x16, 1 x DisplayPort, 2 x miniDP
Entry 3D: NVIDIA® T600, 4 Go, PCIe x16, 4 x miniDP
Entry 3D: NVIDIA® Quadro® P620, 2 Go, PCIe x16, 4 x miniDP
Entry 3D: NVIDIA® T400, 2 Go, PCIe x16, 3 x miniDP
Entry 3D: NVIDIA® Quadro® P400 , 2 Go, PCIe x16, 3 x miniDP
Remote Graphics: Double carte CELSIUS RemoteAccess, PCIe x1, 2 x miniDP, PCoIP
Remote Graphics: Quadruple carte CELSIUS RemoteAccess, PCIe x1, 4 x miniDP, PCoIP
Others: Câble d'adaptation DP à DVI-D (liaison unique)
Others: Câble d'adaptation MiniDP à DP
Codec audio - - Realtek ALC671
Poids - - environ 20 kg
environ 44,8 lbs
×

FUJITSU CELSIUS Workstation stories





"CELSIUS workstations made the photogrammetry possible for this project. We accelerated our work time per episode by about 30% and reduced animation production time by almost six months.”



"A typical Desktop computer would run for a number of days, while the CELSIUS R970 workstation gets the job down within hours.”



“We were able to quickly and easily turn the CAD project into interactive, real-time experience. Using mobile CELSIUS H980 workstation even allowed us to bring the VR to the green fields, which were yet to become a house."

Extraordinary Performance

Extraordinary Performance

Extremely Reliable

Extremely Reliable

Highly Expandable

Highly Expandable

Faster, Efficient

Faster, Efficient
