Features & Benefits
Features | Benefits |
---|---|
Safe operation
|
|
Universal use - Independence
|
|
Scalability provided
|
|
Flexible connection
|
|
NOTE: this is an archived page and the content is likely to be out of date.
Features | Benefits |
---|---|
Safe operation
|
|
Universal use - Independence
|
|
Scalability provided
|
|
Flexible connection
|
|
Active power (max. configuration) | 42 W |
---|---|
Weight | ca. 1.5 kg |

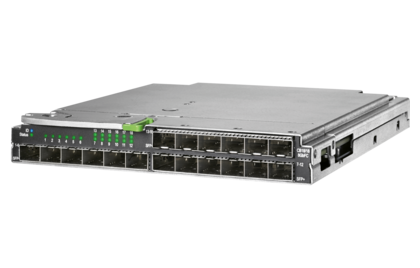

Connection type | SAN Connection Blade 8 Gbit/s Fibre Channel Pass Through Blade |
Supported system units | PRIMERGY BX400 S1, PRIMERGY BX900 S1, PRIMERGY BX900 S2 |
Max. number per system unit | 3 in PRIMERGY BX400 S1, 4 in PRIMERGY BX900 S1/S2 |
Supported Server Blades | all PRIMERGY BX9xx and BX25xx Server Blades |
Supported Mezzanine Cards | PRIMERGY BX FC Mezz Card 8 Gbit/s 2 port (MC-FC82E) |
Down-link ports | 18 x 8 Gbit/s FC |
Up-link ports | 18 x Universal (SFP, SFP+) full-duplex, auto-sensing |
Recommended Service | X - 24x7 Onsite Service with 4h Onsite Response Time |
