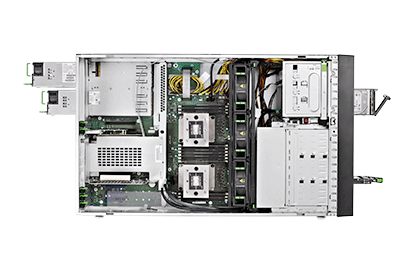

FUJITSU Server PRIMERGY TX2550 M4

The FUJITSU Server PRIMERGY TX2550 M4 is a new dual socket tower server designed for delivering excellent workload versatility for businesses, expandability with high cost-effectiveness. It’s Intel® Xeon® Processor Scalable Family CPUs plus up to 768GB DDR4 memory, are ideal for most CPU/memory driven workloads. Up to 32 storage drives, advanced RAID and high-throughput networking options drive collaborative/IT infrastructure and high-data transfer workloads. Up to 8 expansion slots enable future growth while high efficiency, redundant power supplies enhance reliability and advance savings. The iRMC S5 delivers optimal administration across the lifecycle.
  • Microsoft Windows Server 2016

Features & Benefits

Features Benefits
Power packed performance across workloads
  • Intel® Xeon® Processor Scalable family CPUs with up to 26 cores relying on Intel® UltraPath Interconnect for an increased data rate between the CPUs. Up to 768 GB DDR4 memory with 2,666 MHz (12 DIMM slots), NV-DIMM coming mid-2018
  • Highly expandable and flexible storage configurations: Up to 32x hot plug 2.5“ HDD/SSD including 8xPCIe SSD, or up to 12x hot plug 3.5” HDD/SSD + 2x non-hp 2.5” HDD/SSD and up to 3x 1.6” drive bays for ODD or backup. Advanced RAID controllers (RAID 0,1,1E,10,5,50,6,60) with up to 2GB cache for enhanced data protection and reliability beyond embedded basic RAID capability
  • Onboard LAN for basic requirements, DynamicLoM via OCP for extended requirements. Additional high throughput networking cards (25/10Gb) also available

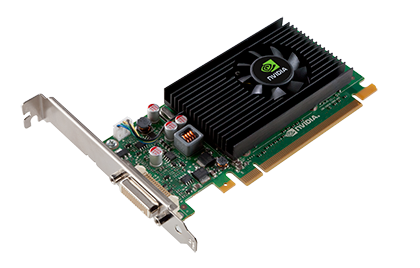

  • Up to 1x GFX card support

  • Enhanced Dual-socket compute and high bandwidth DDR4 memory - optimal for demanding enterprise and SME requirements. These can include Business processing, demanding enterprise applications and virtualised workloads
  • Ideal for securely managing extremely large datasets and flexible enough to be matched to a range of storage centric requirements such as IT infrastructure or collaboration workloads. Drives and RAID controllers can be tailored to specific business needs and budgets
  • Range of Ethernet configurations depending on your business need and budget. Combination of Basic capabilities via onboard LAN, plus higher performance, optional DynamicLoM via OCP offers excellent flexibility and cost effective growth capability. High throughput cards enable growth for the highest data rate requirements
  • Improves capability for Graphics intensive apps; get more from your display infrastructure
Designed for growth
  • 8 Expansion slots (in maximal optional configuration; 7x PCIe and 1xPCI-32)
  • Rack Form factor available from the factory and as an upgrade option

  • Flexible expandability for the integration of existing and new storage controllers, networking cards, GFX card capability. Add capabilities per your business needs
  • Invest in a system designed for scalability to match your business growth
Go green, with cost savings and reliability improvements
  • Power supply units with 96% energy efficiency
  • Fujitsu’s Cool-safe® Advanced Thermal Design for higher ambient temperatures in the data center

  • High efficiency redundant power supplies for energy cost savings and enhanced reliability
  • Operate your equipment without having to invest in expensive cooling equipment

Technical details

ChipsetIntel® C624
Mainboard typeD3386
Product TypeDual Socket Tower Server
ProcessorIntel® Xeon® Platinum/Gold Processor Scalable Family (Codename: Skylake)
1 - 2
Memory4 GB - 768 GB, DIMM (DDR4)
Memory protectionAdvanced ECC, SDDC
Drives (optional)DVD-ROM, half height, SATA I
DVD Super Multi, half height, SATA I
LTO5HH Ultrium, 140 MB/s, 1,500 GB, SAS 6Gb/s
DVD supermulti, ultraslim, SATA I
Blu-ray Disc™ Triple Writer, ultraslim, SATA I

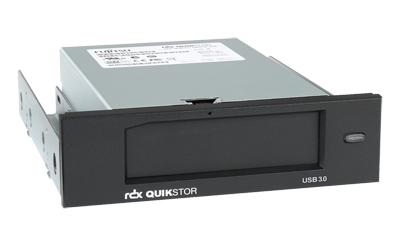

RDX Drive, 100 MB/s, 320 GB, 500 GB, 1 TB, 2 TB, USB 3.0

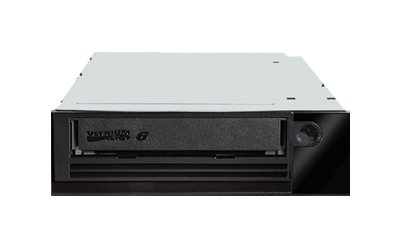

LTO6HH Ultrium, 160 MB/s, 2,500 GB, SAS 6Gb/s
LTO7HH Ultrium, 300 MB/s, 2,500 GB, SAS 6Gb/s
PCI-Express 3.0 x85 x Full height Note: 2 of the slots become available via optional riser card. Refer to configurator for details
PCI-Express 3.0 x163 x Full height Note: 2 of the slots become available with second CPU. Refer to configurator for details. One x16 PCIe slot is available with the first CPU
PCI-slots1 x PCI 32Bit, available via optional riser card. Refer to configurator for details

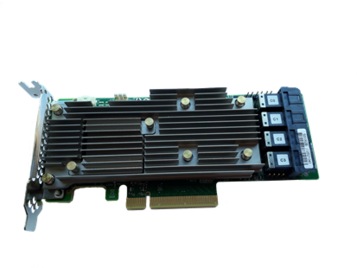

Slot Notesin SAS configuration 1x PCI-Express occupied by modular RAID controller
Accessible drive bays3 x 5.25/1.6-inch
Optional accessible drives3x 1.6x5.25" bays for an optical and/or backup drives
All possible options described in relevant system configurator.
Storage drive bays3.5-inch or 2.5-inch hot-plug SAS/SATA
4 x 3.5-inch hot-plug SAS/SATA
8 x 3.5-inch hot-plug SAS/SATA
8 x 2.5-inch hot-plug SAS/SATA
16 x 2.5-inch hot-plug SAS/SATA
24 x 2.5-inch hot-plug SAS/SATA
optional expandable up to 8 storage drives
optional expandable up to 12 storage drives
not expandable
optional expandable up to 24 storage drives
optional expandable up to 32 storage drives
Storage drive typeHDD SATA, 6 Gb/s, 10 TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, business critical
HDD SATA, 6 Gb/s, 8 TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, business critical
HDD SATA, 6 Gb/s, 1 TB, 7,200 rpm, 512e, hot-plug, 2.5-inch, business critical
HDD SATA, 6 Gb/s, 2 TB, 7,200 rpm, 512e, hot-plug, 2.5-inch, business critical
HDD SATA, 6 Gb/s, 1 TB, 7,200 rpm, 512n, hot-plug, 2.5-inch, business critical
HDD SATA, 6 Gb/s, 2 TB, 7,200 rpm, 512n, hot-plug, 2.5-inch, business critical
HDD SATA, 6 Gb/s, 1 TB, 7,200 rpm, 512n, non hot plug, 2.5-inch, business critical
Dual microSD 64GB Enterprise
HDD SAS, 12 Gb/s, 300 GB, 15,000 rpm, 512n, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 450 GB, 15,000 rpm, 512n, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 600 GB, 15,000 rpm, 512n, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 900 GB, 15,000 rpm, 512n, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 300 GB, 15,000 rpm, hot-plug, 3.5-inch, enterprise
HDD SAS, 12 Gb/s, 450 GB, 15,000 rpm, hot-plug, 3.5-inch, enterprise
HDD SAS, 12 Gb/s, 600 GB, 15,000 rpm, hot-plug, 3.5-inch, enterprise
HDD SAS, 12 Gb/s, 900 GB, 15,000 rpm, hot-plug, 3.5-inch, enterprise
HDD SAS, 12 Gb/s, 1.2 TB, 10,000 rpm, 512e, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 1.8 TB, 10,000 rpm, 512e, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 600 GB, 10,000 rpm, 512e, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 900 GB, 10,000 rpm, 512e, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 1.2 TB, 10,000 rpm, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 300 GB, 10,000 rpm, 512n, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 600 GB, 10,000 rpm, 512n, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 900 GB, 10,000 rpm, 512n, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 1.2 TB, 10,000 rpm, 512n, hot-plug, 3.5-inch, enterprise
HDD SAS, 12 Gb/s, 300 GB, 10,000 rpm, 512n, hot-plug, 3.5-inch, enterprise
HDD SAS, 12 Gb/s, 600 GB, 10,000 rpm, 512n, hot-plug, 3.5-inch, enterprise
HDD SAS, 12 Gb/s, 1.8 TB, 10,000 rpm, 512e, hot-plug, 3.5-inch, enterprise
HDD SAS, 12 Gb/s, 10 TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, business critical
HDD SAS, 12 Gb/s, 8 TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, business critical
HDD SAS, 12 Gb/s, 1 TB, 7,200 rpm, 512e, hot-plug, 2.5-inch, business critical
HDD SAS, 12 Gb/s, 2 TB , 7,200 rpm, 512e, hot-plug, 2.5-inch, business critical
HDD SAS, 12 Gb/s, 1.2 TB , 10,000 rpm, 512n, hot-plug, 2.5-inch, enterprise, SED
HDD SAS, 12 Gb/s, 300 GB, 10,000 rpm, 512n, hot-plug, 2.5-inch, enterprise, SED
HDD SAS, 12 Gb/s, 600 GB , 10,000 rpm, 512n, hot-plug, 2.5-inch, enterprise, SED
HDD SAS, 12 Gb/s, 1.8 TB, 10,000 rpm, 512e, hot-plug, 2.5-inch, enterprise, SED
HDD SAS, 12 Gb/s, 6 TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, enterprise, SED
SSD SATA, 6 Gb/s, 1.92 TB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3 DWPD (drive writes per day for 5 years)
SSD SATA, 6 Gb/s, 960 GB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3 DWPD (drive writes per day for 5 years)
SSD SATA, 6 Gb/s, 1.92 TB, Mixed-use, hot-plug, 3.5-inch, enterprise, 3 DWPD (drive writes per day for 5 years)
SSD SATA, 6 Gb/s, 960 GB, Mixed-use, hot-plug, 3.5-inch, enterprise, 3 DWPD (drive writes per day for 5 years)
HDD SAS, 12 Gb/s, 1 TB, 7,200 rpm, 512n, hot-plug, 2.5-inch, business critical
HDD SAS, 12 Gb/s, 2 TB, 7,200 rpm, 512n, hot-plug, 2.5-inch, business critical
SSD SAS, 12 Gb/s, 1.6 TB, Write-Intensive, hot-plug, 2.5-inch, enterprise, 10 DWPD (Drive Writes Per Day for 5 years)
SSD SAS, 12 Gb/s, 400 GB, Write-Intensive, hot-plug, 2.5-inch, enterprise, 10 DWPD (Drive Writes Per Day for 5 years)
SSD SAS, 12 Gb/s, 800 GB, Write-Intensive, hot-plug, 2.5-inch, enterprise, 10 DWPD (Drive Writes Per Day for 5 years)
SSD SAS, 12 Gb/s, 1.6 TB, Write-Intensive, hot-plug, 2.5-inch, enterprise, 10 DWPD (Drive Writes Per Day for 5 years), SED
SSD SAS, 12 Gb/s, 400 GB, Write-Intensive, hot-plug, 2.5-inch, enterprise, 10 DWPD (Drive Writes Per Day for 5 years), SED
SSD SAS, 12 Gb/s, 800 GB, Write-Intensive, hot-plug, 2.5-inch, enterprise, 10 DWPD (Drive Writes Per Day for 5 years), SED
HDD SAS, 12 Gb/s, 10 TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, enterprise, SED
HDD SAS, 12 Gb/s, 1 TB, 7,200 rpm, hot-plug, 3.5-inch, business critical
HDD SAS, 12 Gb/s, 2 TB, 7,200 rpm, hot-plug, 3.5-inch, business critical
HDD SAS, 12 Gb/s, 4 TB, 7,200 rpm, hot-plug, 3.5-inch, business critical
SSD SATA, 6 Gb/s, 1.2 TB, Read-Intensive, hot-plug, 3.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5 years)
SSD SATA, 6 Gb/s, 1.6 TB, Read-Intensive, hot-plug, 3.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5 years)
SSD SATA, 6 Gb/s, 240 GB, Read-Intensive, hot-plug, 3.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5 years)
SSD SATA, 6 Gb/s, 480 GB, Read-Intensive, hot-plug, 3.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5 years)
SSD SATA, 6 Gb/s, 800 GB, Read-Intensive, hot-plug, 3.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5 years)
SSD SATA, 6 Gb/s, 960 GB, Read-Intensive, hot-plug, 3.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5 years)
SSD SATA, 6 Gb/s, 1.2 TB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5 years)
SSD SATA, 6 Gb/s, 1.6 TB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5 years)
SSD SATA, 6 Gb/s, 240 GB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5 years)
SSD SATA, 6 Gb/s, 480 GB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5 years)
SSD SATA, 6 Gb/s, 800 GB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5 years)
SSD SATA, 6 Gb/s, 960 GB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5 years)
SSD SATA, 6 Gb/s, 240 GB, Read-Intensive, non hot plug, 2.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5 years)
HDD SAS, 12 Gb/s, 2 TB , 7,200 rpm, 512e, hot-plug, 3.5-inch, business critical
HDD SAS, 12 Gb/s, 4 TB , 7,200 rpm, 512e, hot-plug, 3.5-inch, business critical
HDD SAS, 12 Gb/s, 6 TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, business critical
HDD SATA, 6 Gb/s, 1 TB, 7,200 rpm, 512n, hot-plug, 3.5-inch, business critical
HDD SATA, 6 Gb/s, 2 TB, 7,200 rpm, 512n, hot-plug, 3.5-inch, business critical
HDD SATA, 6 Gb/s, 4 TB, 7,200 rpm, 512n, hot-plug, 3.5-inch, business critical
HDD SATA, 6 Gb/s, 6 TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, business critical
HDD SAS, 12 Gb/s, 300 GB, 10,000 rpm, non hot plug, 2.5-inch, enterprise
PCIe-SSD SFF, 1 TB, Read-Intensive, hot-plug, 2.5-inch, Flash drive, 1 DWPD (Drive Writes Per Day for 5 years)
PCIe-SSD SFF, 2 TB, Read-Intensive, hot-plug, 2.5-inch, Flash drive, 0.6 DWPD (Drive Writes Per Day for 5 years)
PCIe-SSD SFF, 4 TB, Read-Intensive, hot-plug, 2.5-inch, Flash drive, 0.6 DWPD (Drive Writes Per Day for 5 years)
PCIe-SSD SFF, 500 GB, Read-Intensive, hot-plug, 2.5-inch, Flash drive, 0.7 DWPD (Drive Writes Per Day for 5 years)
PCIe-SSD AIC, 2 TB, Mixed-use, HHHL, Flash drive, 3.0 DWPD (Drive Writes Per Day for 5 years)
PCIe-SSD AIC, 4 TB, Mixed-use, HHHL, Flash drive, 3.1 DWPD (Drive Writes Per Day for 5 years)
SSD M.2 SATA, 6 Gb/s, 150 GB, non hot plug, enterprise
SSD M.2 SATA, 6 Gb/s, 150 GB, non hot plug, enterprise, 1.5 DWPD (Drive Writes Per Day for 5 years)
SSD SAS, 12 Gb/s, 1.6 TB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3 DWPD (Drive Writes Per Day for 5 years)
SSD SAS, 12 Gb/s, 3.2 TB, Mixed-use, hot-plug, 2.5-inch, enterprise, 2.3 DWPD (Drive Writes Per Day for 5 years)
SSD SAS, 12 Gb/s, 400 GB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3 DWPD (Drive Writes Per Day for 5 years)
SSD SAS, 12 Gb/s, 800 GB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3 DWPD (Drive Writes Per Day for 5 years)
SSD SAS, 12 Gb/s, 1.92 TB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5 years)
SSD SAS, 12 Gb/s, 3.84 TB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5 years)
SSD SAS, 12 Gb/s, 480 GB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5 years)
SSD SAS, 12 Gb/s, 7.68 TB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 0.9 DWPD (Drive Writes Per Day for 5 years)
SSD SAS, 12 Gb/s, 960 GB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5 years)
SSD SATA, 6 Gb/s, 240 GB, Mixed-use, hot-plug, 3.5-inch, enterprise, 3.6 DWPD (Drive Writes Per Day for 5 years)
SSD SATA, 6 Gb/s, 480 GB, Mixed-use, hot-plug, 3.5-inch, enterprise, 3.6 DWPD (Drive Writes Per Day for 5 years)
SSD SATA, 6 Gb/s, 240 GB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3.6 DWPD (Drive Writes Per Day for 5 years)
SSD SATA, 6 Gb/s, 480 GB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3.6 DWPD (Drive Writes Per Day for 5 years)
I/O controller onboardIntel® C624, 6-port SATA (4 x for internal hard disks, 2 x for accessible drives)
All hardware storage controller options are described under Components
2 x 1 Gbit/s Ethernet (RJ45)
IPMI 2.0 compatible, Integrated Remote Management Controller (iRMC S5, 1,024 MB attached memory incl. graphics controller)
Trusted Platform Module (TPM)optional TPM
Power supply configuration1x non hot-plug power supply or 2x hot-plug power supply for redundancy
Active power (max. configuration)748 W
WeightUp to 35.5 kg
Rack (W x D x H)483 (Bezel); 448 mm (body) x 721 x 177 mm
Floor-stand (W x D x H)177 x 777 x 456 mm
Server ManagementServer Management
StandardServerView Suite - Deploy
ServerView Installation Manager
ServerView Scripting Toolkit, ServerView Suite - Control
ServerView Operations Manager incl. PDA and ASR & R
ServerView Agents and CIM Providers
ServerView Agentless Management
ServerView System Monitor
SVOM - Event Manager
ServerView RAID Manager
SVOM - Threshold Manager
Power Monitor (monitoring the Power Consumption)
Power Management (iRMC)
Storage Management (server) with SVOM/SV-RAID, ServerView Suite - Maintain
Remote Management (iRMC S5)
Update Management (BIOS, Firmware, Windows Drives and SV Agents)
Performance Measurement
Asset Management
Online Diagnostics, ServerView Suite - Integrate
Integration packs for Microsoft System Center, VMware vCenter, VMware vRealize, Nagios, and HP SIM
OptionServerView Suite (Maintain), ServerView eLCM, iRMC Advanced Pack incl. Advanced Video Redirection (AVR), video capturing and Virtual Media, ServerView Suite (Dynamise), Resource Orchestrator- Cloud edition, Resource Orchestrator- virtual edition
Special featuresAffordable dual processor performance, solid expandability and optional redundancy features, ideal for Enterprises, SMEs and branch offices
Warranty period3 years
Warranty typeOnsite warranty Warranty conditions tbd
Service Lifecycle5 years after end of product life
Service Weblinkhttp://www.fujitsu.com/fts/products/product-support-services/

Components

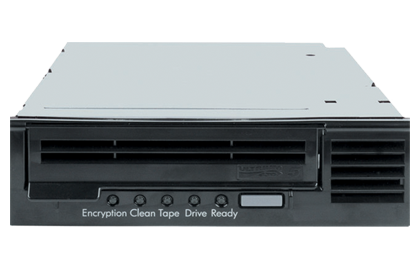

PRIMERGY LTO-5 HH Ultrium
For the first time, the fifth generation of the Linear Tape Open (LTO-5) tape drive offers uncompressed storage capacity of 1.5 TB per tape and a transfer rate of up to 280 MB/s. With enabled compression up to 3000 GB can be backed up on a single drive.
PRIMERGY RDX USB3.0
The PRIMERGY RDX (Removable Disk) drive provides professional data backup which everyone can afford. This drive is a new method to backup, archive and transport data. The PRIMERGY RDX drive combines the best features of hard disks and tape drive technology.
PRIMERGY LTO-6 HH Ultrium
For the first time, the sixth generation of the Linear Tape Open (LTO-6) tape drive offers uncompressed storage capacity of 2.5 TB per tape and a transfer rate of up to 160 MB/s. With enabled compression up to 6250 GB can be backed up on a single drive with up to 400 MB/s transfer rate.
PSAS CP400i
The PSAS CP400i, eight port SAS/SATA host bus adapter provides increased connectivity and maximum performance for high-end servers and applications within internal and external storage. Performance is based on the LSI SAS3008 IO controller, integrating the latest enhancements in SAS and PCI Express 3.0 technology.
PRIMERGY LTO-7 HH Ultrium
For the first time, the seventh generation of the Linear Tape Open (LTO-7) tape drive offers uncompressed storage capacity of 6.0 TB per tape and a transfer rate of up to 300 MB/s. With enabled compression up to 15.0 TB can be backed up on a single drive with up to 600 MB/s transfer rate.

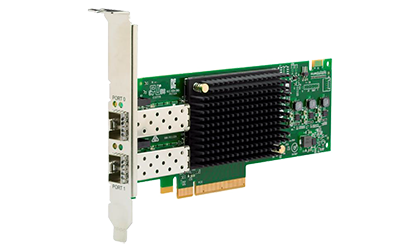

PFC EP Emulex LPe32000 / LPe32002 Fibre Channel Adapters
The Emulex Gen 6 32 Gb Fibre Channel (FC) Host Bus Adapters (HBA) by Broadcom for PRIMERGY and PRIMEQUEST server systems are optimal Fibre Channel HBAs for virtualized, cloud and mission critical deployments. The PFC EP Emulex Gen 6 Fibre Channel HBAs LPe32000/32002 by Broadcom take performance to a new level with PCIe 3.0 support, data integrity capabilities and cloud scale reliability, and ease of use. Organizations looking to improve performance, protect against data corruption, and simplify operations of FC SANs in cloud or high performance environments can benefit from deploying the PFC EP LPe32000/32002.

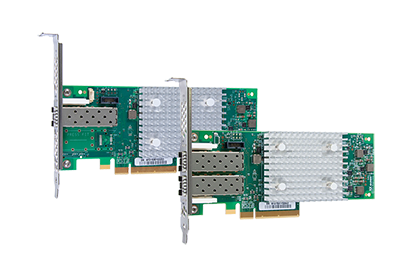

PFC QLE2690 / QLE2692 Fibre Channel Adapters
QLE2690 single port / QLE2692 dual port 16 Gbit PCIe 3.0 Host Bus AdaptersThe enhanced Gen5 16 Gb/s Fibre Channel Host Bus Adapters (HBA) QLE2690 and QLE2692 for the PRIMERGY & PRIMEQUEST servers are ideal for virtualized environments and transaction intensive applications. The adapters support the latest PCIe 3.0 standard for lower cooling and power costs. In addition, QLogic StorFusion technology delivers streamlined provisioning, guaranteed quality of service (QoS), and improved resiliency while addressing the needs of IT organizations that require reliability, integrated management, and guaranteed network performance.

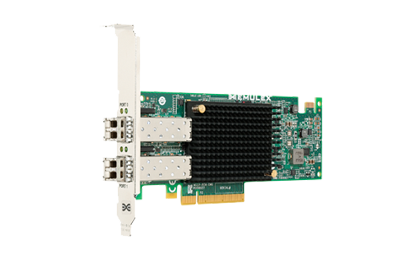

PFC EP Emulex LPe31000 / LPe31002 Fibre Channel Adapters
The Emulex Gen 6 16 Gb Fibre Channel (FC) Host Bus Adapters (HBA) by Broadcom for PRIMERGY and PRIMEQUEST server systems are optimal Fibre Channel HBAs for virtualized, cloud and mission critical deployments. The PFC EP Emulex Gen 6 Fibre Channel HBAs LPe31000/31002 by Broadcom take performance to a new level with PCIe 3.0 support, data integrity capabilities and cloud scale reliability, and ease of use. Organizations looking to improve performance, protect against data corruption, and simplify operations of FC SANs in cloud or high performance environments can benefit from deploying the PFC EP LPe31000/31002.

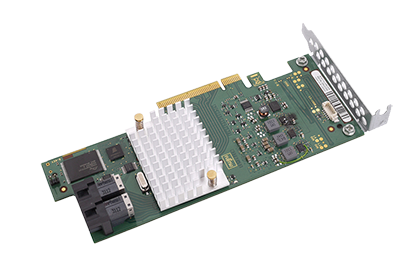

PRAID CP400i - 8 port 12Gb/s SAS, 6Gb/s SATA
The Fujitsu PRAID CP400i SAS/SATA controller card based on the LSI SAS3008 allows latest RAID technology at affordable prices with low power consumption. The PRAID CP400i MegaRAID entry controller card offer users a straight-forward solution that includes essential RAID levels and uncomplicated configuration options.
PRAID EP540i
The Fujitsu RAID Controller PRAID EP540i with 4GB cache and16x12Gbit/s SAS ports improves performance for storage intensive workloads such as databases and sets new speed and data security standards for internal storage drives. The new PRAID EP540i supports up to 16 SAS/SATA drives, up to 4 NVMe PCIe drives or a mixture of SAS/SATA and NVMe drives. NVMe is an interface with lower overhead, lower latency and drastically increased bandwidth and IOP's. The RAID stack is based on the Broadcom MegaRAID® and offers high data throughput, a comprehensive fault tolerance function and user-friendly management options. Moreover, the Controller management is integrated seamlessly into the Fujitsu server management concept. All controller functions are supported by the Fujitsu ServerView RAID Manager. The PRAID EP540i is designed for 3, 6 and 12Gbit/s SAS as well as for 3 and 6Gbit/s SATA drives. Regardless of the drive speed, it delivers significant performance improvements in both read and write applications.

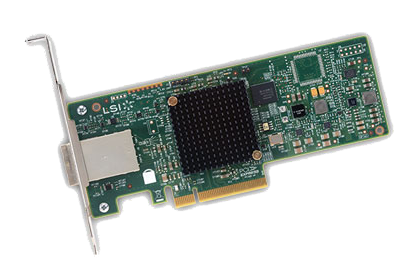

PSAS CP400e
The PSAS CP400e, eight port SAS/SATA host bus adapter provides increased connectivity and maximum performance for high-end servers and applications within internal and external storage. Performance is based on the LSI SAS9300 IO controller, integrating the latest enhancements in SAS and PCI Express 3.0 technology.

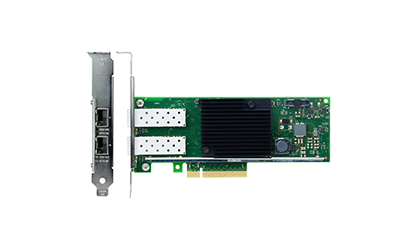

PLAN EP Intel® X710-DA2 2x10GbE SFP+
The Fujitsu PLAN EP Intel X710-DA2 SFP+ Server Adapter is the most flexible and scalable Ethernet adapter for the current demanding data center environments.
The X710 adapter family addresses the demanding needs of the next-generation agile data center by providing unmatched features for both server and network virtualization, flexibility for LAN and SAN networks and proven, reliable performance.

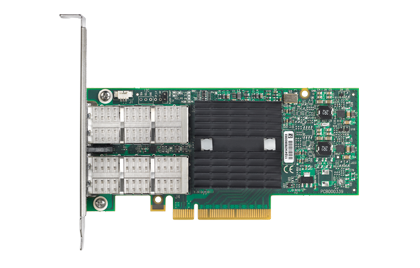

InfiniBand HCA 56 Gb 1/2 port FDR
PRIMERGY Controller IB HCA 56Gb 2-port-FDR (top)The InfiniBand HCA 56 Gb/s single/dual port adapter cards with Virtual Protocol Interconnect (VPI) and Ethernet connectivity provide the highest performing and most flexible interconnect solution for Enterprise Data Centers, High-Performance Computing, and Embedded environments.

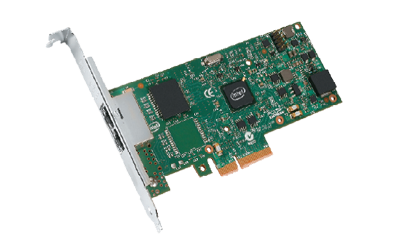

PLAN CP 2x1Gbit Cu Intel® I350-T2
PLAN CP 2x1Gbit Cu Intel I350-T2Trust the network communication of the new Ethernet LAN adapter. The new Intel® I350-T2 Ethernet LAN Adapter, based on the latest Intel® 1GbE chip technology, offers two Gigabit Ethernet ports for 10/100/1000BaseT.

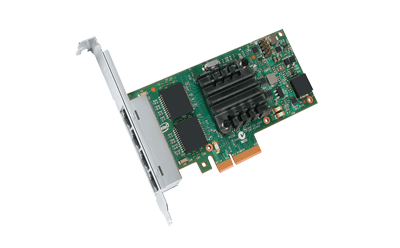

PLAN CP 4x1Gbit Cu Intel® I350-T4
PLAN-CP4x1Gbit-Cu-Intel-I350-T4Trust the network communication of the new Ethernet LAN adapter. The new Intel I350-T4 Ethernet LAN Adapter, based on the latest Intel® 1GbE chip technology, offers four Gigabit Ethernet ports for 10/100/1000BaseT.
Converged Network Adapter (CNA)
Emulex OCe14102
As a member of the CNA 14000 family, the OCe14102 uses a 10Gbit/s DCB (Converged Enhanced Ethernet) infrastructure for networking and storage, reducing capital expense (CapEx) for adapters, switches and cables, and operational expense (OpEx) for power, cooling and IT administration. The OCe14102 adapter increases data center IT agility and scalability, as well as optimation of the server hardware utilization by scaling high density virtualization.
Network Adapter Emulex OCe14102
The Fujitsu Network Adapter "Emulex OCe14102" is from the fourth generation of the Emulex OneConnect® product line OCe14000. The OCe14000 family of Ethernet network adapters provides high performance 10Gb Ethernet (10GbE) connectivity delivering multiple benefits for the enterprise cloud, including increasing data center IT agility and scalability through the deployment of a secure multi-tenant cloud. This optimizes server hardware utilization by scaling high density virtualization as well as delivering user-controlled bandwidth partitioning across workloads and management services.

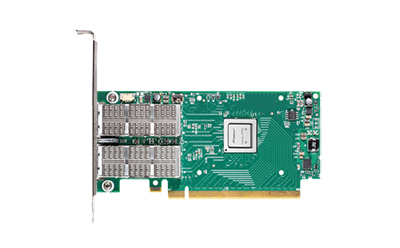

InfiniBand HCA 100 Gb 1/2 port EDR
The InfiniBand Host Channel Adapters (HCA) with Extended Data Rate (EDR) provide an industry leading high-speed, power efficient and easy manageable interconnect solution for High-Performance Computing (HPC), Enterprise Data Center (EDC), Web 2.0, Cloud Computing and embedded environments with 100 Gb/s connectivity on each port.

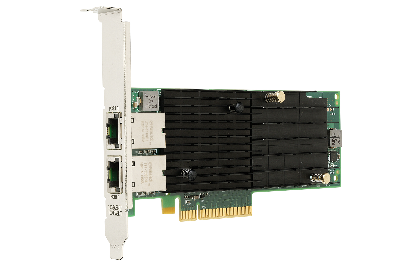

Network Adapter EmulexOCe14102-NT
As a member of the OCe14000 network adapter family the “Fujitsu OCe14102-NT” offers a high performance networking solution, which perfectly fits for virtualization, enterprise cloud and datacenter tasks. The difference - in contrast to the Emulex OCe14102 adapter - is the use of the RJ45 connector type. This connector is compatible with CAT6/6A/7/7A twisted pair cabling standards for a maximum 10Gb strong Ethernet connectivity at very low costs. The NIC only adapter OCe14102-NT focusses on cloud functions; it can thus not handle the storage off-load functions (iSCSI and FCoE) of a Converged Network Adapter.
PRIMERGY PGRA CP NVIDIA® NVS™ 315 1GB VGA PCIe x16
The NVIDIA® NVS™ 315 graphic card delivers exceptional flexibility and compatibility that lets you get the most from your existing display infrastructure. Drive all your DisplayPort, DVI, and VGA displays, regardless of display connectivity or chassis size. Gather insights faster from an expanded workspace of multiple high-resolution displays and get three times more graphics cores than previous-generation NVS solutions for significantly improved visualization. Plus, take advantage of 1 GB of on-board frame buffer memory to interact with more visually compelling content on larger, high-resolution displays.

Documents

Data sheet: PRIMERGY TX2550 M4

Videoflash: PRIMERGY TX2550 M4

Enterprise Product Facts

Server, Solution & Storage Family Guide

Brochure: Value Proposition of FUJITSU Server PRIMERGY

Video: Value Proposition of FUJITSU Server PRIMERGY

x86 Servers released OS

PRIMERGY Illustrated Spares

Manuals

Case Studies

  • South Africa , Industry: IT Industry
    PRIMEFLEX for SAP HANA boosts enterprise application hosting strategy of iSphere Technologies

    iSphere wanted to offer SAP HANA® as a hosted service but considered it too expensive to deploy and maintain. It needed to find a flexible, cost-effective platform that could deliver high SAP HANA performance to its local SME customer base.Tags: Integrated Systems

  • Oman , Industry: Healthcare
    Oman’s Raysut Cement Company succeeds its wider digital transformation and automates business critical workflows with SAP S/4HANA running on Integrated System PRIMEFLEX for SAP HANA

    RCC chose Fujitsu to upgrade to SAP S/4HANA, doubling performance speeds, increasing productivity, improving visibility, automating workflows and adding mobility.Tags: Data Center , ETERNUS CS Virtual Tape Sol., SAP HANA

  • Germany , Industry: Manufacturing
    A data center refit with Fujitsu ETERNUS and PRIMERGY storage and server gives Stechert reliability and flexibility

    Refitting the data center, renovating the SAP infrastructure, redesigning the data center concept and increasing availability to cope with future expansion.Tags: Data Center , SAP Solutions

  • Italy , Industry: Education
    Università Cattolica Del Sacro Cuore Outsources Infrastructure Management

    Five campuses, 12 faculties, over 40,000 students and 4,000 teaching staff. This summarizes the numbers involved at Università Cattolica del Sacro Cuore, the largest non-state university in Europe.Tags: IT infrastructure

  • Germany , Industry: Financial Services
    LKC Uses Fujitsu Storage ETERNUS and PRIMERGY Servers

    LKC is made up of a network of eleven partner offices (mostly in Bavaria and Berlin) with a total of 250 employees and headquarters in Gruenwald near Munich. LKC helps clients of all sizes – including foundations and municipalities – with all auditing, tax advice and legal matters. In particular, LKC also offers auditing and advisory services relating to IT risk management, IT system checks and process assessment.Tags: IT infrastructure , Storage Solutions, Virtualisation

    • Prev
    • Next

More Case Studies

Support Packs

Support Pack OptionsX - Globally available in major business areas:
9x5, Next Business Day Onsite Response Time
9x5, 4h Onsite Response Time (depending on country)
24x7, 4h Onsite Response Time (depending on country)
Recommended ServiceX - 24x7 Onsite Service with 4h Onsite Response Time

Documents

Hardware Maintenance & Software Support Offerings at a Glance

Product Support Services

Top of Pagetop fo page

Contact Us

Contact us placardBottom
