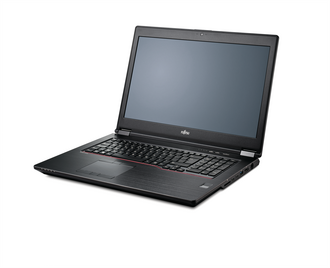

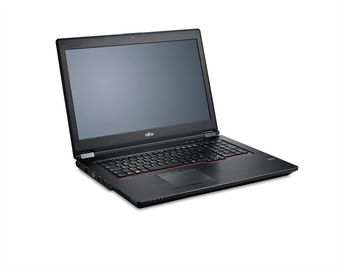

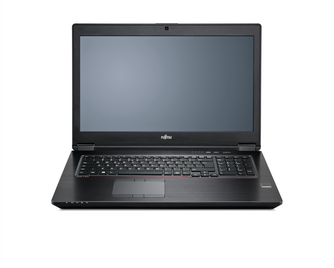

FUJITSU Workstation CELSIUS H970

Ever wished your laptop could go the distance, even into the future? The FUJITSU CELSIUS H970 mobile workstation pushes the limits in terms of graphics capabilities, storage and connectivity. Do your post-productions in the field, create astounding designs and visualize them in a fully immersive, real-time VR environment.
  • Intel Xeon logo - Workstations (except Mobile WS)

Features & Benefits

Features Benefits
Windows
  • Windows 10

  • Easy integration into customers’ existing infrastructure
No limits - desktop workstation replacement at your fingertips
  • Choose between Intel® Core™ processors or powerful Intel® Xeon® processor E3-1500M family supporting ECC memory
  • Support of Windows 10 Pro
  • 17.3-inch (43.9 cm) full HD LED anti-glare display
  • Up to 64 GB DDR4 memory (4 SODIMM slots)
  • Dual M.2 SSDs PCIe NVMe technology support quick loading of your applications
  • Integrated Intel graphics for maximum energy efficiency when working on office applications paired with the latest NVIDIA® Quadro® Pascal technology for blazing performance (up to 2048 CUDA cores)
  • Thunderbolt 3 port replicator
  • Made in Germany

  • Enjoy the best out of two worlds: workstation performance and notebook portability - at your desk or on the go
Stop searching for an adapter
  • 2x Thunderbolt™ 3: USB Type-C™ connector offering more speed (40 GBit/s), more protocols and charging capabilities (power delivery of 15W)
  • Full monitor connectivity: 2x DisplayPort via USB Type-C™, 1x full-size DisplayPort and 1x VGA
  • Up to 9 hours of battery life

  • A hyper-connected world there is no need to compromise, regardless of whether you are at the customer site, at an event, in a meeting or in the office
We are (VR) ready
  • Powered by the NVIDIA® Quadro® P4000 and P5000 VR-ready graphics cards
  • Ideal for mobile VR showcases at the customer site or at an event

  • Architects, engineers and designers can now showcase their work in a real-time, fully immersive VR environment
Easy serviceability
  • Removable battery and service door at the bottom

  • Faster access to all components and easy upgrade of your system

Technical details

ProductCELSIUS H970
Operating systemWindows 10
ChipsetIntel® QM175 or CM238 (depending on CPU)
ProcessorIntel® Core™ i5-i5-7440HQ processor
Intel® Core™ i7-i7-7820HQ processor
Intel® Xeon® processor E3-1505M v6
Intel® Xeon® processor E3-1535M v6
Supported capacity RAM (max.)64 GB, 4 Memory slot(s) SO DIMM (DDR4, 2133 MHz)
Hard disk driveHDD SATA III, 5,400 rpm, 1 TB
PCIe-SSD, 256 GB
HDD SATA III, 5,400 rpm, 500 GB
PCIe-SSD, 1024 GB, SED
PCIe-SSD, 256 GB, SED
PCIe-SSD, 512 GB, SED
SSD SATA III, 256 GB, M.2 module
SSD SATA III, 1024 GB, M.2 module, SED
SSD SATA III, 256 GB, M.2 module, SED
SSD SATA III, 512 GB, M.2 module, SED
Interfaces1 x DC-in
1 x Audio: line-out
2 digital array microphones x Internal microphones
3 x USB 3.1 Gen1 (USB 3.0) total
2 (USB 3.1 Gen2 (10 Gbps), Thunderbolt 3 (20/40Gbps), Power Delivery (15W), DP 1.2) x USB Type-C
1 x VGA
1 x DisplayPort
1 x Ethernet (RJ-45)
1 x SmartCard slot
1 x SIM card slot
Graphics brand nameNVIDIA® Quadro® P3000
NVIDIA® Quadro® P4000
NVIDIA® Quadro® P5000
Graphics featuresNVIDIA® Quadro® P3000: 1280 CUDA Cores
NVIDIA® Quadro® P4000: 1792 CUDA Cores
NVIDIA® Quadro® P5000: 2048 CUDA Cores
CameraBuilt-in webcam, 2.0 megapixel
WeightActual weight may vary depending on configuration
Dimensions (W x D x H)418.0 x 288.0 x 30.0 mm w/o rubber mm
16.46 x 11.34 x 1.18 inch w/o rubber inch
Runtime batteryup to 9 hours
Audio codecRealtek ALC255
Audio featuresStereo speakers, 2 digital microphones
3G/4G (optional)Sierra Wireless EM7305
LAN10/100/1,000 MBit/s Intel® I219LM
Warranty3 years (depending on country)
Warranty typeCollect & Return Service / Bring-in Service (depending on country)

Documents

Data Sheet - FUJITSU Workstation CELSIUS H970

Positioning Card - FUJITSU Workstation CELSIUS

ISV Overview - FUJITSU Workstation CELSIUS

Brochure - FUJITSU Workstation CELSIUS

Certificates

Hardware Maintenance & Software Support Offerings at a Glance
