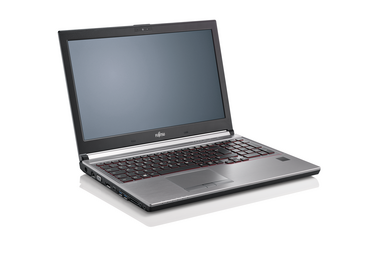

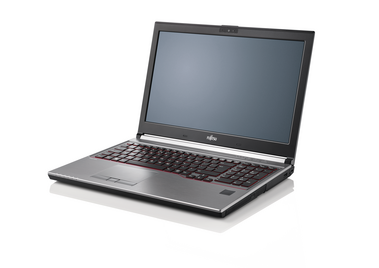

FUJITSU Workstation CELSIUS H760

Features & Benefits

Features	Benefits
Windows Windows 10 Pro Windows 7 Professional (available through downgrade rights from Windows 10 Pro)	Easy integration into customers’ existing infrastructure
True Workstation Performance On-the-Go Choose between Intel^® Core™ processors or powerful Intel^® Xeon processor ^® E3-1500M family supporting ECC memory Support of Windows 10 Pro and Linux^® UHD/4k and Full HD LED anti-glare displays Up to 64 GB DDR4 2133 MHz memory (ECC optional) M.2 SSDs PCIe NVMe technology supports quick loading of core applications	When true workstation performance meets the elegant style of a laptop
Full connectivity and worry-free docking experience USB Type-C™ connector offering more speed (40 Gbps), more protocols (including Thunderbolt 3) and charging capabilities (power delivery of 15W) Full monitor connectivity support: 1x VGA and1x DisplayPort (full size) 1 port replicator shared across 8 mobile devices: Notebooks, Ultrabook™, 2 in 1 and mobile workstations	No compromise in terms of port connectivities, regardless of whether you are away, in a meeting or at your desk
Maximum Security Optional PalmSecure™, a leading-edge highly secure authentication system using biometric technology that authenticates users through vein pattern recognition Optional fingerprint sensor Integrated SmartCard reader TPM 2.0 and Advanced Theft Protection	Data security and peace of mind
Long Lifecycle Minimum lifecycle of 24 months

Technical details

Product	CELSIUS H760
Operating system	Windows 10 Pro Windows 7 Professional (available through downgrade rights from Windows 10 Pro)
Chipset	Intel^® QM170 or CM236 (depending on CPU)
Processor	Intel^® Core™ i5-6440HQ processor, 6 MB, 2.6 GHz, up to 3.5 GHz Intel^® Core™ i7-6820HQ processor, 8 MB, 2.7 GHz, up to 3.6 GHz Intel^® Core™ i7-6920HQ processor, 8 MB, 2.9 GHz, up to 3.8 GHz Intel^® Xeon^® processor E3-1505M v5, 8 MB, 2.8 GHz, up to 3.7 GHz Intel^® Xeon^® processor E3-1535M v5, 8 MB, 2.9 GHz, up to 3.8 GHz
Supported capacity RAM (max.)	64 GB, 4 Memory slot(s) SO DIMM (DDR4, 2133 MHz)
Hard disk drive	HDD SATA III, 5,400 rpm, 1000 GB HDD SATA II, 5,400 rpm, 500 GB HDD SATA III, 5,400 rpm, 500 GB SSD SATA III, 256 GB SSD SATA III FDE, 256 GB SSD SATA III FDE, 512 GB
Interfaces	1 x DC-in 1 x Audio: line-in / microphone 1 x Audio: line-out 2 digital array microphones x Internal microphones 1 x USB 2.0 total 2 x USB 3.1 Gen1 (USB 3.0) total 1 x VGA 1 x DisplayPort 1 x Ethernet (RJ-45) 1 x SmartCard slot 1 x SIM card slot
Display	39.6 cm (15.6-inch),IPS LED backlit,(Full HD),Anti-glare display,magnesium,1,920 x 1,080 pixel,min. 700:1,typ. 300 cd/m², 85/85/85 39.6 cm (15.6-inch),IPS LED backlit,(UHD/4K),Anti-glare display,magnesium,3,840 x 2,160 pixel,min. 700:1,typ. 300 cd/m², 85/85/85
Graphics brand name	NVIDIA^® Quadro^® M600M NVIDIA^® Quadro^® M1000M NVIDIA^® Quadro^® M2000M
Graphics features	NVIDIA^® Quadro^® M600M: 384 CUDA Cores NVIDIA^® Quadro^® M1000M: 512 CUDA Cores NVIDIA^® Quadro^® M2000M: 640 CUDA Cores
Weight	2.75 kg - Actual weight may vary depending on configuration 6.1 lbs
Dimensions (W x D x H)	380.0 x 257.0 x 24.8-31.9 mm w/o bump / with rubber feet 35.0 mm 14.96 x 10.12 x 0.98-1.26 inch w/o bump / with rubber feet 1.38 inch
Runtime battery	up to 14 hours
Audio codec	Realtek ALC255 with MaxxAudio
Audio features	Stereo speakers, 2 digital microphones
3G/4G (optional)	Sierra Wireless AirPrime^® EM7305 LTE/HSPA+ (LTE/UMTS module)
WLAN (optional)	Intel^® Dual Band Wireless-AC8260 11ac with integrated Bluetooth 4.2 vPro
LAN	10/100/1,000 MBit/s Intel^® I219LM
Modular drive options	Weight saver DVD Super Multi Blu-ray Disc™ Triple Writer 2nd battery
Warranty	3 years (depending on country)
Warranty type	Bring-in Service / Collect & Return Service (depending on country)

Accessories

FUJITSU Accessory Port Replicator for LIFEBOOK T7, E5, E7 Series and CELSIUS H730, H760
	Flexibility, expandability, desktop replacement, investment protection – to name just a few benefits of Fujitsu docking options.
FUJITSU Accessory Second Battery for Modular Bay
	Modern business demands that busy professionals be ready to meet customers, make presentations, and work wherever is necessary to get the job done. With a Second Battery for your Fujitsu LIFEBOOK you will be more flexible than ever. Installation is effortless. Just slide the Second Battery into your Fujitsu LIFEBOOK’s modular bay.
Prestige Trolley 17
	The FUJITSU Prestige Trolley 17 protects and transports notebooks with up to 17 inch screens, along with clothes and toiletries. It is the perfect companion in a city environment or for overnight stays with four spacious compartments. Smooth running wheels and a telescopic handle ensure convenience, while the central section protects your notebook with shock-absorbing foam.
FUJITSU Display P27-8 TS Pro
	If you’re a pixel, colour and performance-hungry professional using demanding applications, the FUJITSU P27-8 TS Pro Display is the perfect choice. The display provides outstanding picture performance thanks to cutting-edge panel technology and 3.7 Mio pixels. It also boasts unique and innovative features such as our patent-applied Presence Sensor technology and USB support during standby.
FUJITSU Display B34-9 UE
	The FUJITSU Display B34-9 UE is an ultrawide curved display with 3440 x 1440 resolution with a thin bezel housing. The monitor has a 1900R curvature and a wide viewing angle that delivers consistent picture quality, DisplayView™ software and a range of connectivity options ideal for medium- and large-sized businesses.
