FUJITSU Software Infrastructure Manager (ISM)

FUJITSU Software Infrastructure Manager (ISM)

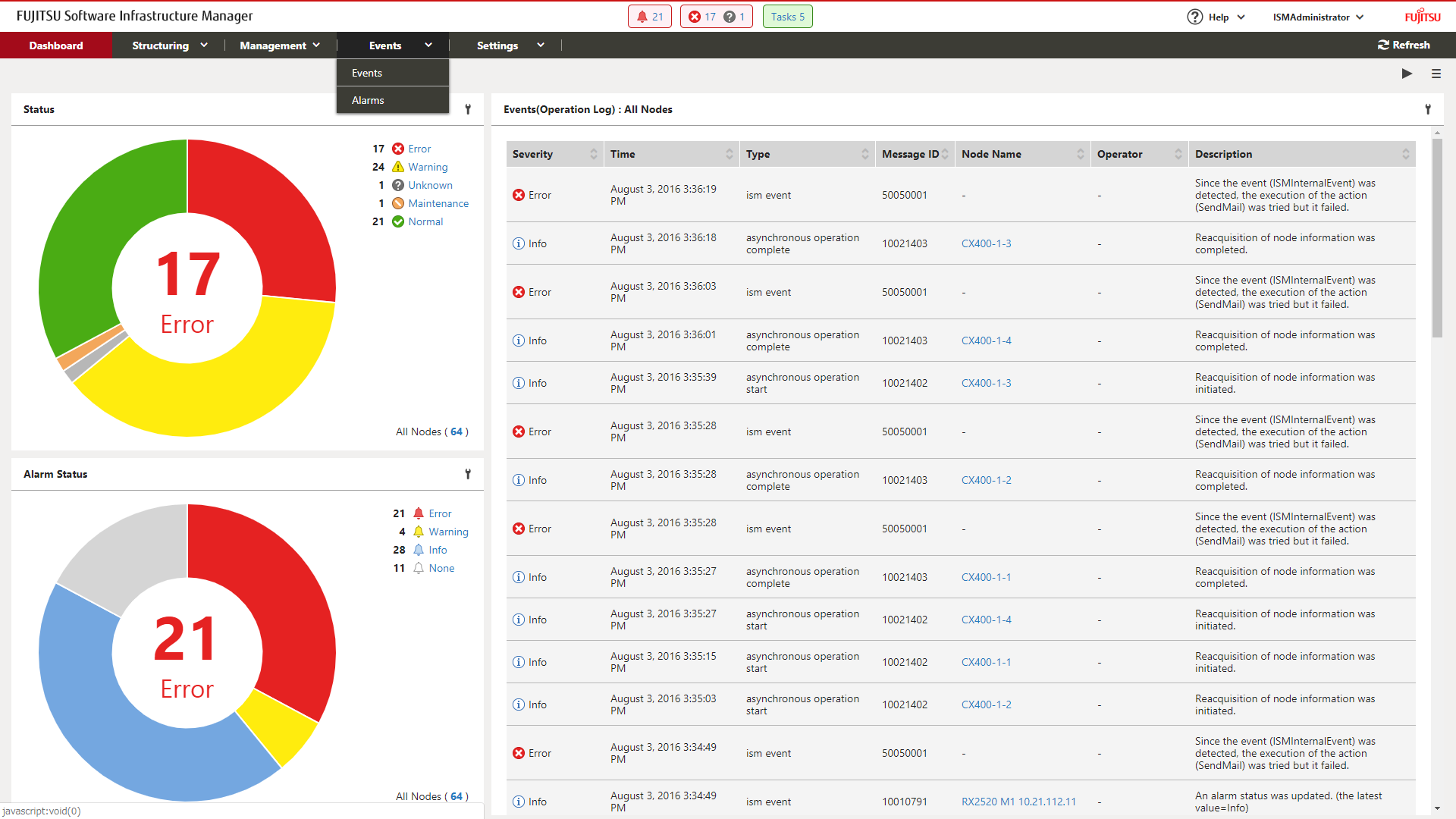

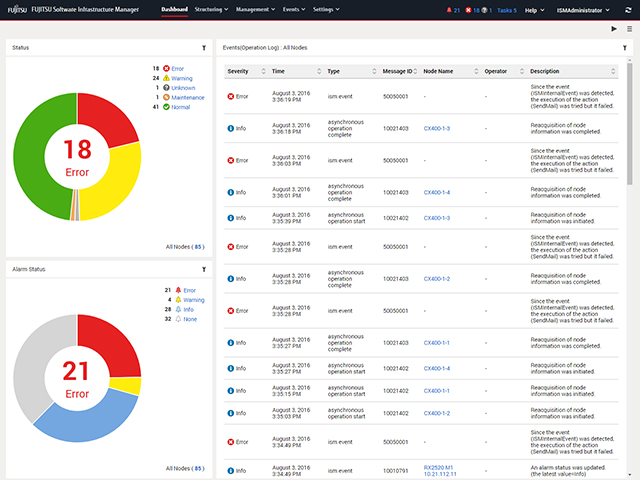

To avoid losing sight of business needs and to be able to act easily, Fujitsu offers an ideal solution with the FUJITSU Infrastructure Management (ISM) software. ISM simplifies the IT operations and consistent management across over server, storage, and networking. The single, customizable, and intuitive dashboard provides a real time view and insights. Get a realistic 3D-View of the devices to control temperature, hardware failure statuses, power consumption and have a visual image of the device. The configurable alarm management ensures a holistic view to the health state of the entire infrastructure and efficient notification options in case of system failures. Also, ISM displays the firmware versions of all types of firmware and of all components in single view and provides single procedure to update all types of firmware in a single process. Benefit from reduced costs, fast response times and ease of use through Fujitsu's Infrastructure Manager for their data center.

ImgPlaceholder ImgPlaceholder ImgPlaceholder ImgPlaceholder
IT Operations
Agility
Operational Efficiency
Designed for the Future

Reduced efforts for data center monitoring and management as well as increased compliance and consistency due to centralization and automation.

Always having the latest data center status available to support agile decisions. Centralized real-time control over local or distributed data center infrastructure help to identify bottlenecks and system errors. Keep the infrastructure up and running with the latest software versions. Acceleration of the node setup process by automated identification of any new devices added to the network as well as identification of changes in the infrastructure.

Reduced administration effort by increased automation and enhanced infrastructure availability while ensuring the desired level of security. Save time and costs by having one single point of control and administration in heterogeneous environments. Increase your speed in troubleshooting and optimise your IT infrastructure management with ISM.

ISM provides the speed and scale to manage all, from SMBs to large-sized data centers. Due to a wide range of features, ISM supports the principles of modern data centers.

  • ImgPlaceholder
    IT Operations
    Reduced efforts for data center monitoring and management as well as increased compliance and consistency due to centralization and automation.
  • ImgPlaceholder
    Agility
    Always having the latest data center status available to support agile decisions. Centralized real-time control over local or distributed data center infrastructure help to identify bottlenecks and system errors. Keep the infrastructure up and running with the latest software versions. Acceleration of the node setup process by automated identification of any new devices added to the network as well as identification of changes in the infrastructure.
  • ImgPlaceholder
    Operational Efficiency
    Reduced administration effort by increased automation and enhanced infrastructure availability while ensuring the desired level of security. Save time and costs by having one single point of control and administration in heterogeneous environments. Increase your speed in troubleshooting and optimise your IT infrastructure management with ISM.
  • ImgPlaceholder
    Designed for the Future
    ISM provides the speed and scale to manage all, from SMBs to large-sized data centers. Due to a wide range of features, ISM supports the principles of modern data centers.

Produkt Video

Tech Specs

Profile management Enables template-based deployment with configuration for hardware components, which includes administrator passwords, SNMP, NTP settings, RAID groups, and volumes saved as a profile, copied and applied as a batch to drive automated installation. This helps ensuring compliance, consistency and increased productivity.
Mass OS installation Easy, swift configuration and unattended installation of operating systems on a scale of devices; create and execute scripts, which set several configurations in the final phase of the installation sequence.
Node management Discover and register nodes within your network. Manage and visualize rack locations on data center floors and node positions within the racks.
Health status monitoring Track and monitor the health status of the entire data center infrastructure. Visualized by configuring rack location on the floor or data center, enabling nodes to be managed intuitively and efficiently. Reduce monitoring costs by consolidating all error reports to one server, sending these to the system log.
Event management Monitor user operations based on events (SNMP traps) sent from data center IT infrastructure devices registered on ISM. Track parameters such as intake air temperature, CPU utilization and power consumption for each node to ensure it is within defined limits.
Execute actionable insights ISM provides flexibility to run external scripts to execute appropriate actions to ensure system availability, reduce network load, etc.
Threshold manager Provide accurate warnings about utilization limits of node resources being reached, thus helping to easily identify current performance issues and to ensure constant service delivery.
Power capping and monitoring functions Power capping function for single devices or groups of devices; performance of automatic power consumption control by setting the upper limit value of power consumption and setting the priority of power capping.
Inventory management Collect information on monitored nodes such as serial number and firmware version. With advanced search, additional information from the managed inventory is available. The gathered inventory information can be exported by using CSV format.
Multi-tenancy Assign user access rights to each user or each node based on usage, and associate user groups with node groups. Restrict the infrastructure that can be monitored user-wise based on company policy to ensure security and meet customer SLAs. Users have direct and quick access to iRMC with a Single Sign-On from ISM.
Anomaly Detection This function is available with the ISM V2.7.0 officially. ISM will therefore not only collect the data as a threshold-monitoring tool, it will also detect unusual trends by a special algorithm. A new tab will be added on the event view, and a message is displayed when an unusual trend is detected. In addition, the user will receive a recommended solution for solving the unusual trend.
Analytic Collect and analyze data to pinpoint the root cause of system outages and performance issues with the converged data center registered to ISM. Customizable design layout helps to highlight priorities and make quick and proactive decisions.
Auto discovery Speed up the node setup process by automatically identifying any new PRIMERGY or PRIMEQUEST server or PSWITCH added to the network.
Configure virtual MAC / WWN Virtualize LAN, SAN network, fibre channel and IO parameters to eliminate the layer of complexity in current network architectures through virtualization of physical network addresses and clear separation of server management from LAN and SAN management.
Resource pooling of MAC and WWN Support resource pool function of virtual MAC and WWN address. User can define address range and assign an ID when a new profile is created. Deleted profiles will be released and further re-assigned.
Network map Obtain a consolidated view of the network topology displaying network connections between multiple nodes of both physical and virtual environments automatically. Track of possible network congestion and detect network failures in advance.
Virtual network analysis Provide of virtual network packet analysis with insights into performance of virtual network ports by port number and VMs. Customers can identify network performance bottlenecks and proactively ensure business continuity.
Firmware baseline management Confirm the firmware versions of each node on the ISM GUI and execute firmware update to multiple nodes simultaneously. Increase infrastructure availability by ensuring systems run on the latest firmware and avoid omission of update by managing firmware of each node batch wise. Schedule firmware updates in advance to run during non-peak hours and have hassle-free updates without interfering with business operations. Reduce user operations in preparing firmware data by downloading firmware from “global flash”, or downloading e.g., update DVD into ISM.
Repository management Manage repository of update modules imported from update DVD.
Performance monitoring Long-term monitoring of server, storage and network resources; utilization analysis for specific components; help to detect resource bottlenecks and to guarantee service levels.
Archive management Device system logs and OS event logs collected from the managed node automatically in scheduled time for further check and analysis.
Logging and auditing Recording of user events including resources accessed by users, destination, source addresses, time stamp and user login information.
Integration Packs ISM integrates with the following management systems: Microsoft Windows Admin Center, Microsoft SCOM, Microsoft SCVMM, VMware vCenter, VMware vRealize Operations Manager, VMware vRealize Orchestrator, Ansible, OpenStack
Note: OpenStack integration is limited to monitoring of the OpenStack environment on ISM.
RESTful API Manage node status and inventory information using REST API. Use programmable APIs or customized scripts to run operations and integrate into the existing management system.

Infrastructure Manager Download


Device centric monitoring and management with the ISM Essential edition:
  • A quick start to efficient infrastructure management with converged monitoring and management capabilities free-of-charge
  • Easy upgrade path to ISM Advanced edition

Versatile multi node management with the ISM Advanced edition:
  • Fully featured version of ISM that provides comprehensive infrastructure management across multiple data centers
  • Licensed software with enterprise grade support
