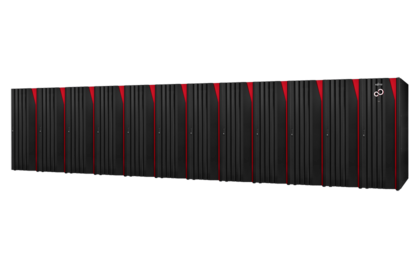

FUJITSU Storage ETERNUS DX8900 S3
The Fujitsu Storage ETERNUS DX8900 S3 systems are purpose-built for large enterprises and ideal for the data management of business-critical core applications and the consolidation of biggest data centers. The Quad Star Architecture with 2 to 24 controllers provides storage capacity with up to 4608 disk drives and performance of more than 4 million IOPS.
Technical details
Type | High-end disk storage system for large enterprises
|
---|
Random access performance | 4M IOPS
|
---|
Host Interfaces | Fibre Channel (16 Gbit/s) iSCSI (10 Gbit/s, 1 Gbit/s) FCoE (10 Gbit/s)
|
---|
Maximum Disk Drives | 4,608 SSD, SAS and Nearline SAS in a mixed configuration (3.5" / 2.5")
|
---|
Maximum Storage Capacity | 70,779 TB
|
---|
No. of host interfaces | 384 (FC), 192 (iSCSI/FCoE)
|
---|
Max. no. of hosts | 8,192
|
---|
Supported RAID levels | 0, 1, 1+0, 5, 5+0, 6
|
---|
Drive interface | Serial Attached SCSI (12 Gbit/s)
|
---|
Thin Provisioning | Yes
|
---|
Automated Storage Tiering | Yes
|
---|
Remote Copy functionality | Synchronous and asynchronous
|
---|
For further information, please see
ETERNUS DX8900 S3 data sheet
ETERNUS DX Comparison Chart
