Overview

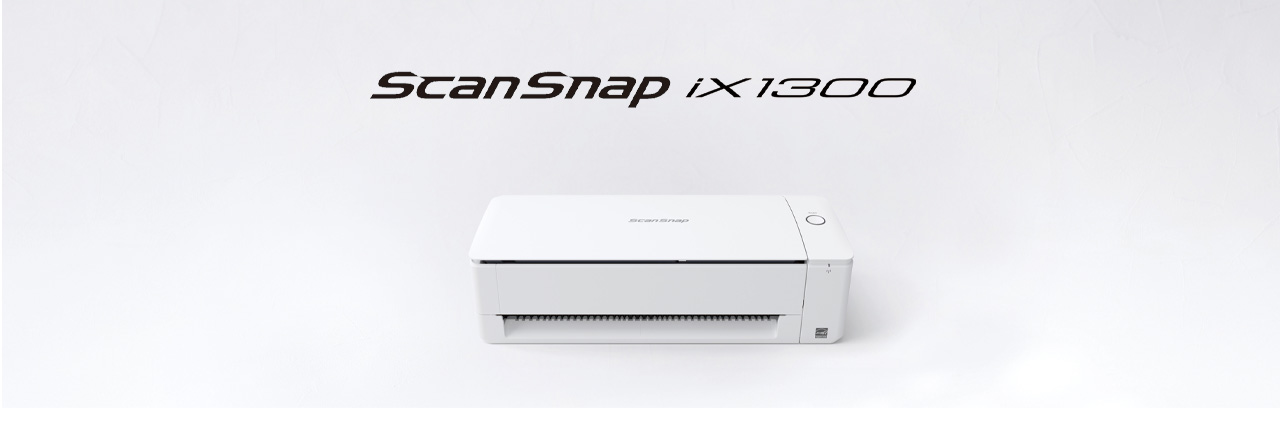

Small scanner, big impact ... Fits into your life, on any desk
The modern way of working can be full of surprises, and we can all find ourselves working in tight spaces and new places.
The smart and ultra-compact iX1300 is designed to fit into any office desk or home office setup, helping you stay productive wherever life takes you.
Simple, Practical and Efficient
The iX1300's innovative feed path creates a tiny operational footprint that makes it our smallest desktop scanner yet. Instant Wi-Fi connectivity and PC-free scanning to cloud services using ScanSnap Cloud are all part of a smarter way to work.
The iX1300 is packed with time-saving features to boost efficiency; with no wait time to warm up, you are ready to go in seconds. Plus, the Return Path capability means you can instantly scan individual sheets without even opening the cover. And a 20-sheet feeder and impressive 30 double-sided pages per minute speed let you finish scanning in no time at all.
The intuitive ScanSnap Home software (included) helps you easily convert the papers you have, into the digital files you need. Giving you greater control over your admin so you can focus on what matters most.
There’s plenty of personal productivity packed into our most practical scanner yet, ensuring the iX1300 makes paper work for you and your business.
>Features
Practical productivity

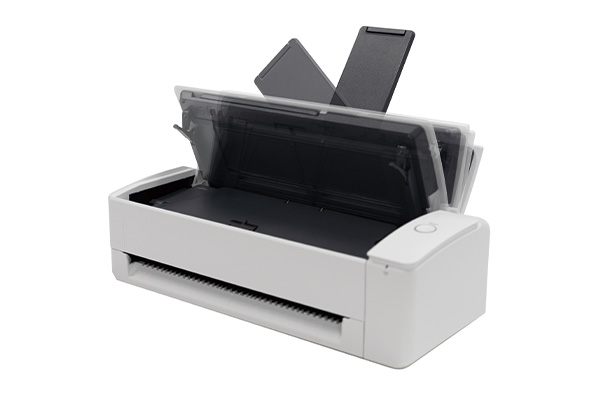

Return path scanning
With ScanSnap you don’t need to know IT – just how to press a button. And, with the iX1300, you don’t even need to open the cover.

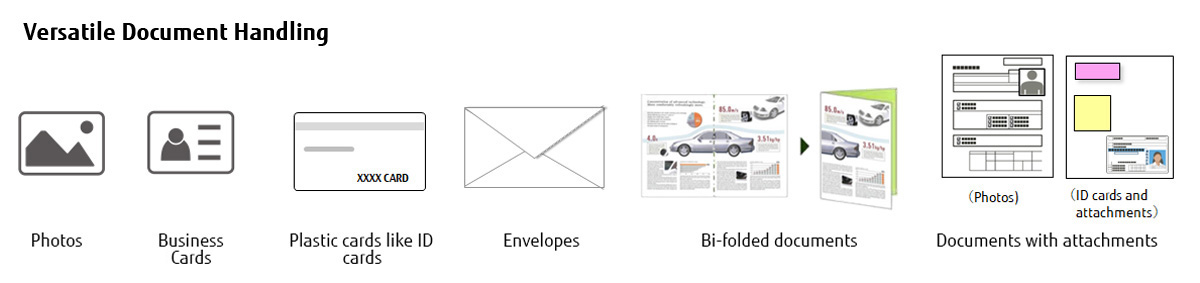

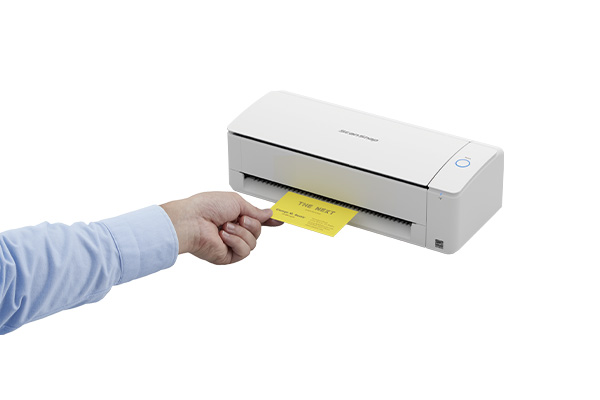

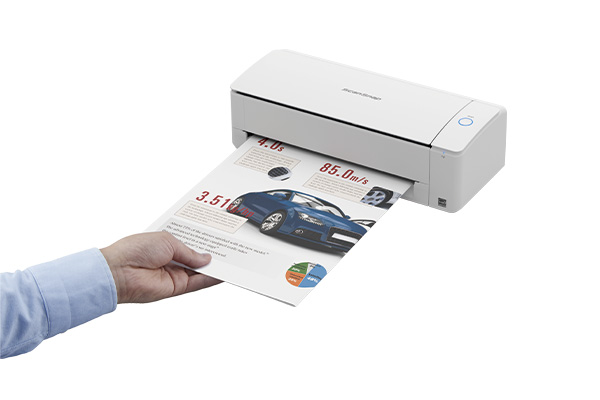

The return path scanning mechanism means you can instantly scan both sides of individual sheets or booklets up to 2mm thick simply by feeding them in and pressing the Scan button.

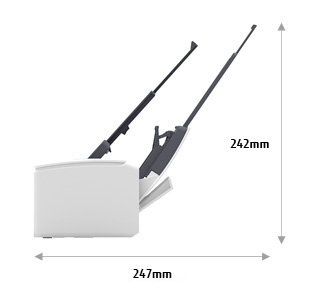

U-turn feed path

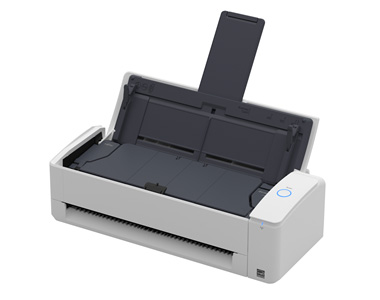

The iX1300 is our most compact desktop scanner. The extremely small operational footprint is thanks to the innovative U-turn feed path which means there is no rush to move things out of the way to extend a paper tray when you need to scan multiple sheets – saving you time, and space.

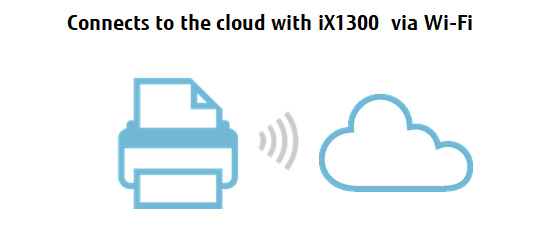

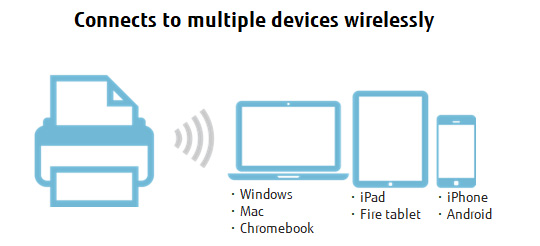

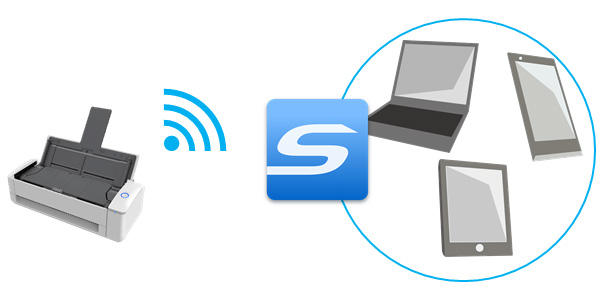

Wi-Fi connectivity
Instant Wi-Fi connectivity and PC-free scanning let you quickly set the iX1300 up, and scan directly to your preferred cloud services or our mobile app. Or you can still scan directly to PC.
Standard, editable output files
Boost productivity with the iX1300’s ability to save your documents in a range of formats including PDF and searchable PDF, editable MS Word, Excel and PowerPoint files, or JPEG. A practical feature that provides flexibility when working with your digital files.
Boost Efficiency

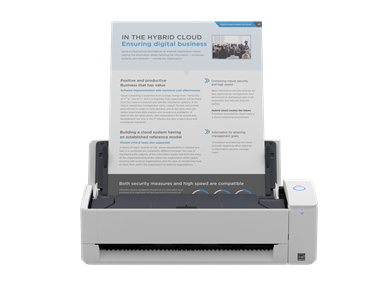

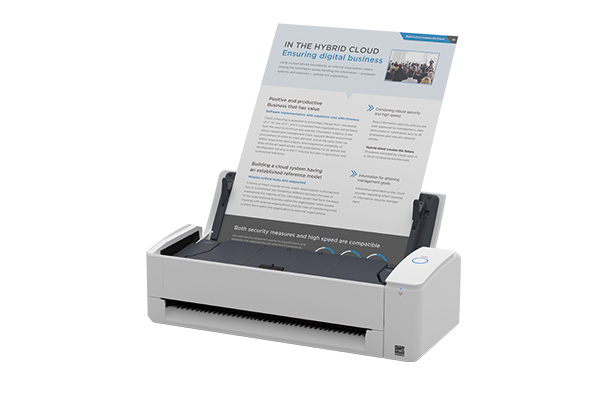

Quickly scan multiple sheets
Being efficient is a top priority in the modern world and the iX1300 delivers.
An impressive scanning speed of 30 double-sided pages per minute and an Automatic Document Feeder that holds up to 20 sheets means you can reliably scan whatever you like in no time at all - quickly getting you back to the more important things in your life.
Custom file tagging
With custom file tagging you can add your own tags to scanned document files with minimal fuss – making it easier and faster for you to search for, find and retrieve them at a later date.

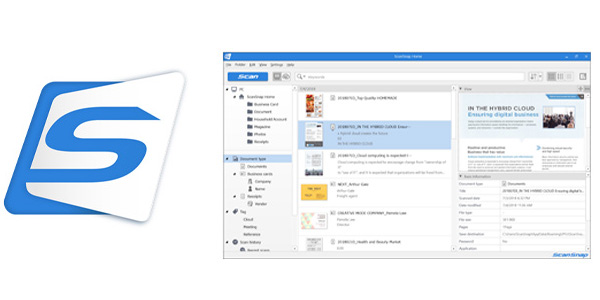

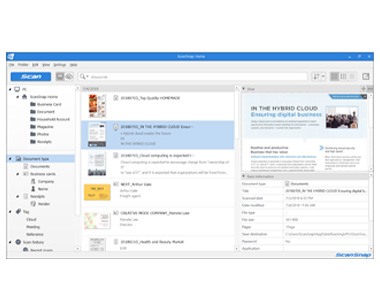

Intuitive ScanSnap Home software
The intuitive ScanSnap Home software (included) helps quickly and easily convert the papers you have into the digital files you need, giving you greater control, and helping you focus on what matters most.
From automatic classification according to document type, image optimisation and final file distribution, to assisting you to manage and edit scanned data from documents, receipts, business cards, photos, and more, ScanSnap Home takes the stress out of organising and finding what you need.
User Experience
Simple setup
With the iX1300, there are no complex settings or TWAIN protocols to deal with. Easy setup via Wi-Fi or from mobile creates a simple, user-friendly setup experience.
No warm up time
When you’ve got something to scan you don’t want to be left waiting around wasting time.
In addition to the one-touch scanning experience ScanSnap users are used to, the iX1300 doesn’t need any time to warm up and has a streamlined scanning process that allows you to go from start to scan in just two or three steps.
Specifications
| Product Name | ScanSnap iX1300 (White / Black) | ||
|---|---|---|---|
| Scanner Type | ADF (Automatic Document Feeder) / Manual Feeder, Duplex | ||
| Scanning Speed*1 (A4 portrait) | U-turn Scan (ADF) | Auto mode*2 | Simplex / Duplex: 30 ppm |
| Normal mode | Simplex / Duplex: 30 ppm (Color / Grayscale: 150 dpi, Monochrome: 300 dpi) | ||
| Better mode | Simplex / Duplex: 30 ppm (Color / Grayscale: 200 dpi, Monochrome: 400 dpi) | ||
| Best mode | Simplex / Duplex: 30 ppm (Color / Grayscale: 300 dpi, Monochrome: 600 dpi) | ||
| Excellent mode*3*4 | Simplex / Duplex: 9 ppm (Color / Grayscale: 600 dpi, Monochrome: 1,200 dpi) | ||
| Return Scan (Manual Feeder) | Auto mode*2 | 5 seconds (Color / Grayscale: 150 dpi, Monochrome: 300 dpi) | |
| Normal mode | 5 seconds (Color / Grayscale: 150 dpi, Monochrome: 300 dpi) | ||
| Better mode | 5 seconds (Color / Grayscale: 200 dpi, Monochrome: 400 dpi) | ||
| Best mode | 5 seconds (Color / Grayscale: 300 dpi, Monochrome: 600 dpi) | ||
| Excellent mode*3*4 | 14 seconds (Color / Grayscale: 600 dpi, Monochrome: 1,200 dpi) | ||
| Scanning Color Mode | Color, Grayscale, Monochrome, Automatic (Color / Grayscale / Monochrome*3 detection) | ||
| Image Sensor | CIS x 2 (Front x 1, Back x 1) | ||
| Light Source | 3 color LED (Red / Green / Blue) | ||
| Optical Resolution | 600 dpi | ||
| Document Size | U-turn Scan (ADF) | Minimum: 50.8 x 50.8 mm (2 x 2 in.) Maximum: 216 x 355.6 mm (8.5 x 14 in.) |
|
| Return Scan (Manual Feeder) | Minimum: 50.8 x 50.8 mm (2 x 2 in.)*6 Maximum: 216 x 355.6 mm (8.5 x 14 in.) |
||
| With Photo Carrier Sheet (Option)*3*5 | Minimum: 25.4 x 25.4 mm (1 x 1 in.) Maximum: 127 x 178 mm (5.0 x 7.0 in.) |
||
| With Carrier Sheet (Option)*3*5 | Minimum: 25.4 x 25.4 mm (1 x 1 in.) Maximum: 297 x 431.8 mm (11.69 x 17 in.) |
||
| With Booklet Carrier Sheet (Option)*3*5 | Minimum: 25.4 x 25.4 mm (1 x 1 in.) Maximum: 150 x 195 mm (5.9 x 7.67 in.) |
||
| Long Paper Scanning*7 | PC | 3,000 mm (863 mm in 32-bit)*8 | |
| Smart Device / Cloud | Duplex: 863 mm Simplex: 1,117 mm |
||
| Paper Weight (Thickness) | U-turn Scan (ADF) | 40 to 128 g/m² (11 to 34 lb) A8 size or less: 128 to 209 g/m² (34 to 56 lb) A6 size or less: 40 to 209 g/m² (11 to 56 lb) |
|
| Return Scan (Manual Feeder) | Paper: 20 to 413 g/m² (5.4 to 110 lb) Booklets: 2 mm (0.08 in.) or less*3 Cards: 1.4 mm (0.06 in.) or less*9 (Includes embossed cards) |
||
| ADF Capacity*10 | 20 sheets (A4, 80 g/m² or 20 lb) | ||
| Multifeed Detection | Length detection | ||
| Interface | USB | USB 3.2 Gen1x1 / USB 2.0 / USB 1.1 (Connector Type: Type-B)*11 | |
| Wi-Fi | IEEE802.11a/b/g/n/ac Frequency band: 2.4 GHz / 5 GHz*12 |
||
| Wi-Fi Interface | Connection Mode | Access Point Connect Mode (Infrastructure mode)*13 Direct Connect Mode (Ad-hoc mode)*14 |
|
| Security | WEP (64bit / 128bit), WPA (TKIP / AES), WPA2 (AES), WPA-PSK (TKIP / AES), WPA2-PSK (AES) | ||
| Easy Installation | WPS2.0 | ||
| Rated Power (EIRP) (North America) | 2.4 GHz: 11b: +23.5dBm / 11g: +22.0dBm / 11n/ac: +22.0dBm (20 / 40MHz) 5 GHz*12: 11a: +15.5dBm / 11n/ac: +16.5dBm (20MHz) |
||
| Rated Power (EIRP) (Others) | 2.4 GHz: 11b: +19.0dBm / 11g: +20.5dBm / 11n/ac: +20.5dBm (20 / 40MHz) 5 GHz*12: 11a: +15.5dBm / 11n/ac: +16.5dBm (20MHz) |
||
| Power Requirements | AC 100 to 240 V, 50 / 60 Hz | ||
| Power Consumption | Operating Mode | 17 W or less | |
| Sleep Mode | USB connected: 1.7 W or less Wi-Fi connected: 2.0 W or less |
||
| Standby Mode | 0.3 W or less | ||
| Operating Environment | Temperature | 5 to 35 °C (41 to 95 °F) | |
| Relative Humidity | 20 to 80% (Non-condensing) | ||
| Environmental Compliance | ENERGY STAR® / RoHS | ||
| Dimensions (W x D x H)*15 | 296 x 114 x 87 mm (11.7 x 4.5 x 3.3 in.) | ||
| Weight | 2.0 kg (4.4 lb) | ||
| Driver | ScanSnap specific driver Windows®: Does not support TWAIN / ISIS® macOS: Does not support TWAIN |
||
| Software*16 | ScanSnap Home (All-in-one document management software/driver) ScanSnap Manager (Conventional driver) ABBYY FineReader for ScanSnap™ |
||
| Included Items | Safety Precautions, AC Cable, AC Adapter, USB Cable | ||
- Actual scanning speeds are affected by data transmission and software processing times.
- Scans will be performed in 300 dpi (Color/Grayscale) or 600 dpi (Monochrome) if shorter sides are less than 105 mm, and in 200 dpi (Color/Grayscale) or 400 dpi (Monochrome) if shorter sides exceed 105 mm.
- Feature is unavailable when using ScanSnap Connect Application.
- Feature is unavailable when using ScanSnap Cloud.
- Carrier sheet scanning is only supported when scanning documents in Return Scan (Manual Feeder).
- A3, B4, 11 x 17 in. document sizes are required to be folded in half.
- Long page scanning (Color/Grayscale: 200 dpi, Monochrome: 400 dpi) is only supported when scanning documents in U-turn Scan (ADF). When using ScanSnap Connect Application and ScanSnap Cloud, scans are performed in Color/Grayscale: 200 dpi, Monochrome: 400 dpi.
- Scanning in "Excellent mode" is supported with documents of up to 360 mm.
- Compliant with Type ISO7810 ID-1.
- Maximum capacity varies, depending upon paper weight.
- Some computers do not recognize the ScanSnap when it is connected to a USB 3.2 Gen1/3.0 port. In this case, please use a USB 2.0 cable.
- Availability of 5 GHz Wi-Fi may vary depending on region.
- Access Point Connect Mode requires a Wi-Fi access point or router.
- 5 GHz Wi-Fi is not available with Direct Connect Mode.
- Excluding the stacker and other external attachments.
- Installation and updates require Internet availability. Software/driver updates to the latest versions are recommended.
System Requirements for PC
| Compatible Operating Systems | Windows | ||
|---|---|---|---|
| 10*1*2 / 8.1*2 (32-bit / 64-bit) |
7 (32-bit / 64-bit) |
||
| Driver / Applications*3 | ScanSnap Home*4 | Supported | Supported |
| ScanSnap Manager*5 | Supported | Supported | |
| ABBYY FineReader for ScanSnap™ | Supported | Supported | |
| Hardware Requirements*6 | CPU*7 | Intel® Celeron 1.8 GHz (2 core) or higher (Recommended: Intel® Core™ i5 2.5 GHz or higher) | |
| Memory Capacity*7 | 2 GB or more (Recommended: 4 GB or more) | ||
| Display Resolution | 1,024 × 768 pixels or more | ||
| Disk Capacity*8*9 | 3.8 GB or more of free hard disk space | ||
- ScanSnap scanners do not run with Windows® 10 ARM-based PCs such as Surface® Pro X (Microsoft®).
- Operate Windows in desktop mode.
- Operating systems listed in this table are the only ones supported. Please refer to the ScanSnap Support site for the latest information.
- ScanSnap Home Installation requires a computer and Internet. Activation is also necessary for software use. Please visit the ScanSnap Support site for download information.
- ScanSnap Manager V7.2 and later is required.
- The ScanSnap device may not work if the connected computer does not meet these requirements.
- Scanning speeds may drop if the recommended CPU, memory capacity and USB 1.1 requirements are not met.
- Indicated disk capacity requirements apply when downloading ScanSnap Home.
- .NET Framework 4.8 or later must be installed. If it is not installed, it is installed with ScanSnap Home. Up to 4.5 GB of disk space is required for the installation.
*The system requirements may change depending on the support policies of the above system and third-party software.
System Requirements for Mac
| Compatible Operating Systems | macOS v.11.0 or later | macOS v.10.13 or later | |
|---|---|---|---|
| Driver / Applications*1 |
ScanSnap Home*2 | Supported | Supported |
| ScanSnap Manager*3 | Supported | Supported | |
| ABBYY FineReader for ScanSnap™ | Supported | Supported | |
| Hardware Requirements*4 |
CPU*5*6 | Intel® Core™ i5 1.4 GHz or higher (Recommended: Intel® Core™ i5 2.5 GHz or higher) | |
| Memory Capacity*6 | 2 GB or more (Recommended: 8 GB or more) | ||
| Display Resolution | 1,024 x 768 pixels or more | ||
| Disk Capacity | 2.0 GB or more of free hard disk space | ||
- Operating systems listed in this table are the only ones supported. Please refer to the ScanSnap Support site for the latest information.
- ScanSnap Home Installation requires a computer and Internet. Activation is also necessary for software use. Please visit the ScanSnap Support site for download information.
- ScanSnap Manager V7.2 and later is required.
- The ScanSnap device may not work if the connected computer does not meet these requirements.
- The ScanSnap device also operates with Apple Silicon-based Mac computers. Please refer to the ScanSnap Support site for the latest information.
- Scanning speeds may drop if the recommended CPU, memory capacity and USB 1.1 requirements are not met.
*The system requirements may change depending on the support policies of the above system and third-party software.
System Requirements for iOS / iPadOS / Android™ / Fire Tablet / Chromebook (ScanSnap Connect Application)
Please refer to ScanSnap Connect Application specifications page.
|
F1 Scanner Cleaning Wipes (24 Pack)Pack of 24 F1 Cleaning Wipes for Fujitsu scanners. Scanner Cleaning wipes Impregnated with manufacturer approved F1 cleaning fluid. Suitable to clean glass, plastics, rubbers and metals in Fujitsu Document scanners. SKU: CON-CLE-W24 |
 |
Consumable Kit: 3656-200KIncludes 1x Pick Roller and 1x Brake Roller. Estimated Life: Up to 200K scans. SKU: CON-3656-200K |
 |
Carrier Sheets (5 Pack)Transparent sleeves for scanning A3, small or damaged documents. Enables damaged documents and receipts to be scanned as well as A3 with image stitching function. SKU: PA03360-0013 |
 |
Photo Carrier Sheets (3 Pack)Transparent sleeves for scanning photographs and postcards. Provides better protection for photographs and postcards when scanning them. SKU: PA03770-0015 |
 |
ScanSnap Home (1 User License)Enables 1 additional user to use the ScanSnap. 1 license required for each additional user beyond the 4 user licenses included with the product. Windows/macOS users. SKU: PA03951-0651 |
 |

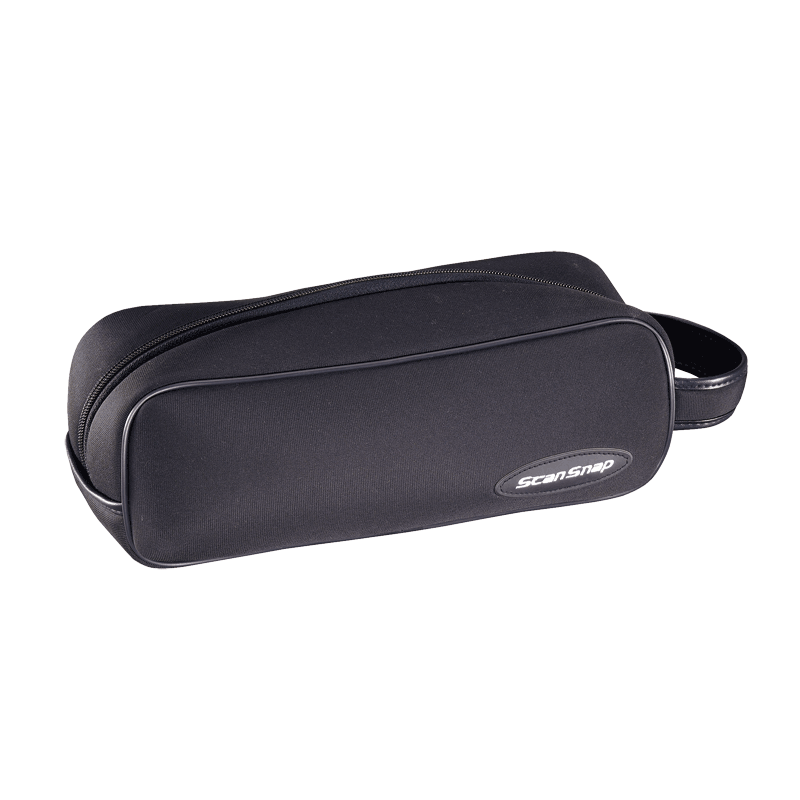

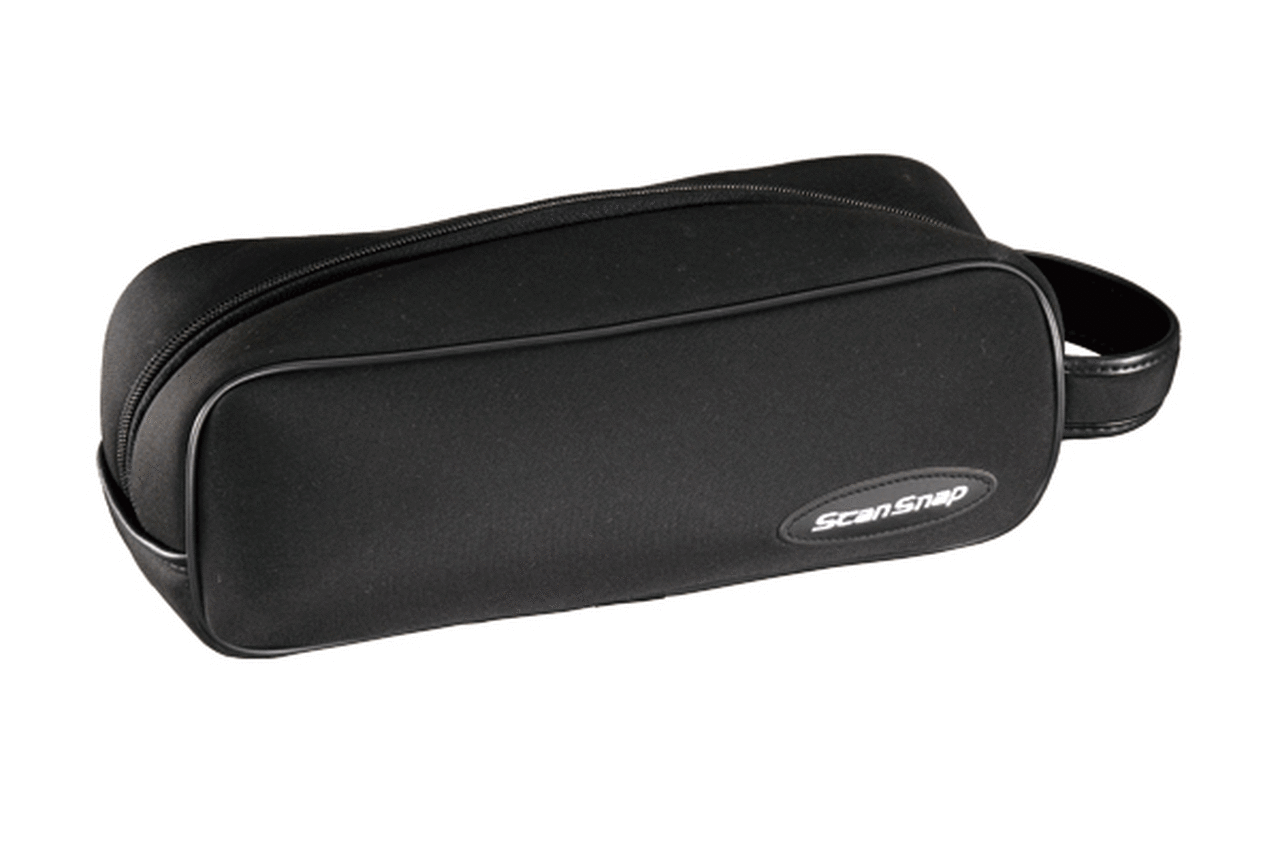

ScanSnap Type 6 Carry BagProtects the scanner from dust and scratches. For iX1300. SKU: PA03805-0002 |
|
