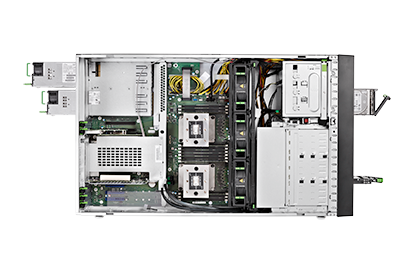

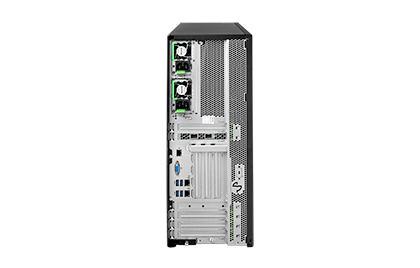

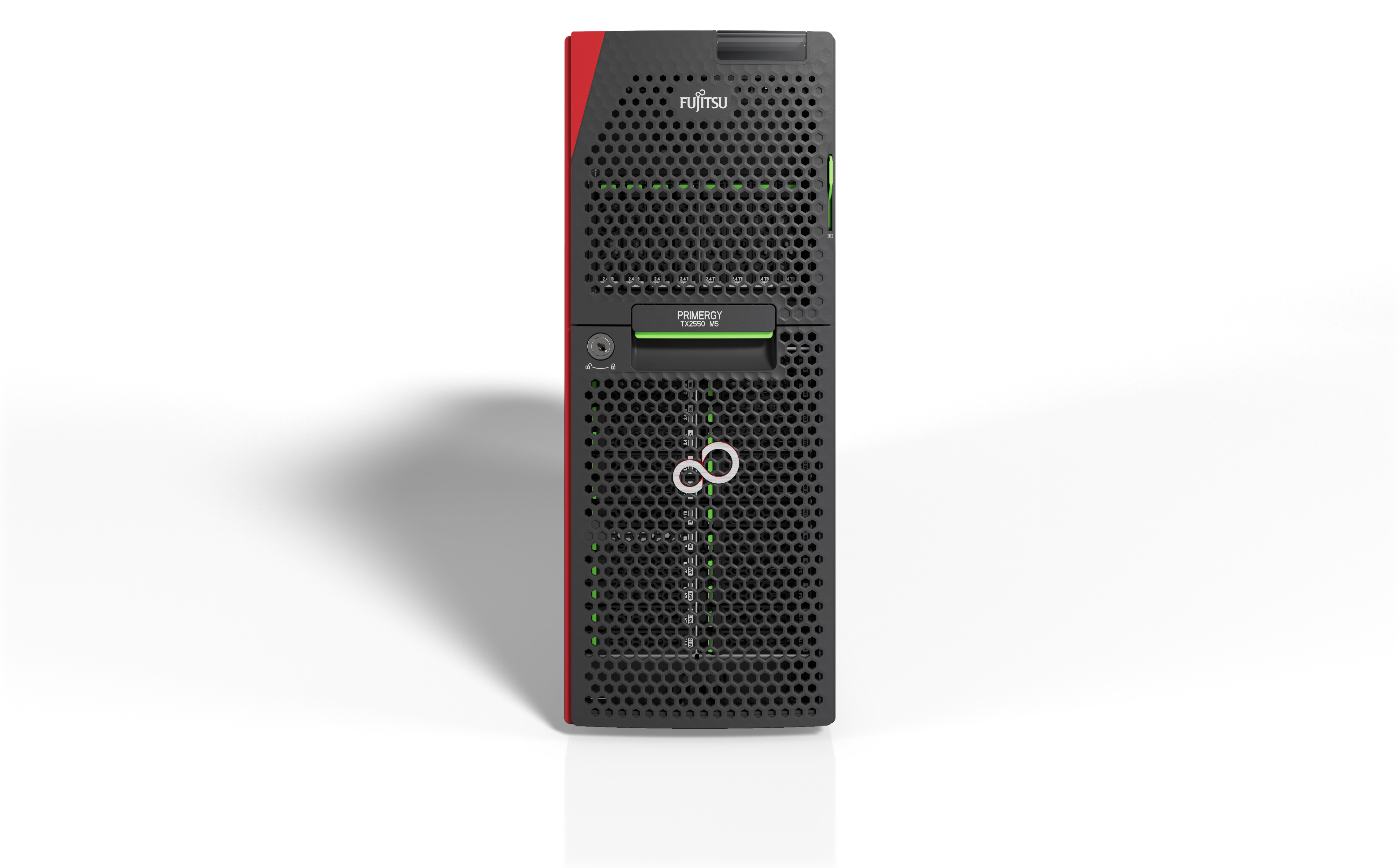

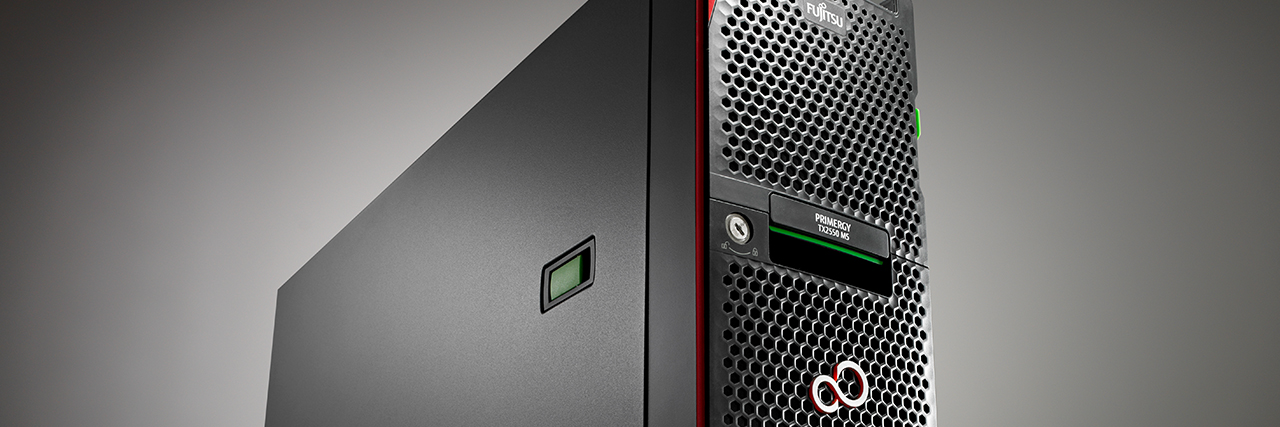

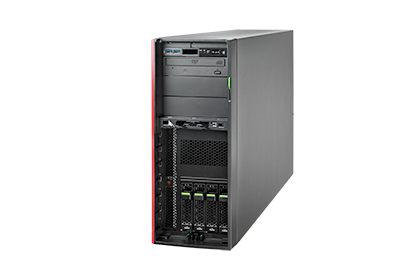

FUJITSU Server PRIMERGY TX2550 M5

Power packed performance with the latest Intel^® Xeon^® Scalable Processor Family, and up to 1.5 TB GB DDR4 plus Intel^® Optane™ DC persistent memory
Well suited for demanding business applications, virtualization solutions, demanding storage deployment scenarios
Top level expandability - 32x drives, significant range of advanced options, OS plus rack-ready configurations and rack kit
Top availability levels - high efficiency hot-plug power supplies and other redundancy features
Advanced server management software suite with Fujitsu software ISM and iRMC S5 for ease of use across the lifecycle

Saiba mais


Power packed performance across workloads	Highly expandable and flexible design	Designed to be upgrade ready and efficient	Server and infrastructure management at your fingertips
Enhanced Dual-socket compute plus high bandwidth DDR4 and Intel^® Optane™ DC persistent memory - optimal for demanding enterprise and SME requirements. Intel^® Optane™ DC persistent memory is an innovative memory technology which delivers a unique combination of affordable large capacity and non-volatile persistence. It revolutionizes the data center memory-storage hierarchy of the past and brings massive data sets closer to the CPU for faster time to insight. As such, the TX2550 M5 is capable of handling a range of diverse tasks: Demanding Industry and Analytics apps, Business processing and enterprise applications as well as virtualized workloads.	Storage suitable for securely managing extremely large datasets and flexible enough to be matched to a range of storage centric requirements such as IT infrastructure or collaboration workloads. Drives and RAID controllers can be tailored to specific business needs and budgets. Powerful and cost-effective networking options are available depending on your business need and budget. Combination of Basic capabilities via onboard LAN, plus higher performance, optional DynamicLoM via OCP offers excellent flexibility and cost effective growth capability. High throughput cards enable growth for the highest data rate requirements.	Versatile PCIe slots offer flexible expandability for the integration of existing and new storage controllers, networking cards, Graphics capability. Add capabilities per your business needs. Rack upgrade kit allows you to invest in a system designed for scalability to match your business growth. Graphics card improves performance for Graphics intensive apps; get more from your display infrastructure. High efficiency redundant power supplies deliver energy cost savings and enhanced reliability, while the Cool-safe^® Advanced Thermal Design allows you to operate your equipment without having to invest in expensive cooling equipment.	The onboard iRMC S5, is optimized for both data centers and SMEs who can rely on the latest generation server management. M.2 devices are perfect for hassle-free hypervisor /operating system start-up, while TPM 2.0 provides ease of mind for administrators with the latest hardware and Software driven security features. ISM helps improve data center productivity with converged infrastructure management. Converged data center management provides organizations centralized control over the entire infrastructure that includes servers, storage, networking, cloud management software as well as power and cooling using a single user interface.

Power packed performance across workloads
Enhanced Dual-socket compute plus high bandwidth DDR4 and Intel^® Optane™ DC persistent memory - optimal for demanding enterprise and SME requirements. Intel^® Optane™ DC persistent memory is an innovative memory technology which delivers a unique combination of affordable large capacity and non-volatile persistence. It revolutionizes the data center memory-storage hierarchy of the past and brings massive data sets closer to the CPU for faster time to insight. As such, the TX2550 M5 is capable of handling a range of diverse tasks: Demanding Industry and Analytics apps, Business processing and enterprise applications as well as virtualized workloads.
Highly expandable and flexible design
Storage suitable for securely managing extremely large datasets and flexible enough to be matched to a range of storage centric requirements such as IT infrastructure or collaboration workloads. Drives and RAID controllers can be tailored to specific business needs and budgets. Powerful and cost-effective networking options are available depending on your business need and budget. Combination of Basic capabilities via onboard LAN, plus higher performance, optional DynamicLoM via OCP offers excellent flexibility and cost effective growth capability. High throughput cards enable growth for the highest data rate requirements.
Designed to be upgrade ready and efficient
Versatile PCIe slots offer flexible expandability for the integration of existing and new storage controllers, networking cards, Graphics capability. Add capabilities per your business needs. Rack upgrade kit allows you to invest in a system designed for scalability to match your business growth. Graphics card improves performance for Graphics intensive apps; get more from your display infrastructure. High efficiency redundant power supplies deliver energy cost savings and enhanced reliability, while the Cool-safe^® Advanced Thermal Design allows you to operate your equipment without having to invest in expensive cooling equipment.
Server and infrastructure management at your fingertips
The onboard iRMC S5, is optimized for both data centers and SMEs who can rely on the latest generation server management. M.2 devices are perfect for hassle-free hypervisor /operating system start-up, while TPM 2.0 provides ease of mind for administrators with the latest hardware and Software driven security features. ISM helps improve data center productivity with converged infrastructure management. Converged data center management provides organizations centralized control over the entire infrastructure that includes servers, storage, networking, cloud management software as well as power and cooling using a single user interface.

Product Video

Tech Specs

Chipset	Intel^® C624
Mainboard type	D3386-B
Product Type	Dual Socket Tower Server
Processor	Intel^® Xeon^® Bronze 3xxx processor, Intel^® Xeon^® Silver 4xxx processor, Intel^® Xeon^® Gold 5xxx processor, Intel^® Xeon^® Gold 6xxx processor
Memory	8 GB - 1.5 TB, DIMM (DDR4 / DDR-T for non-volatile memory modules)
Memory slots	12 (6 DIMMs per CPU, 6 channels with one DIMM per channel)
Memory protection	Advanced ECC, SDDC
Drives (optional)	DVD-ROM, half height, SATA I DVD Super Multi, half height, SATA I DVD supermulti, ultraslim, SATA I Blu-ray Disc™ Triple Writer, ultraslim, SATA I RDX Drive, 100 MB/s, 320 GB, 500 GB, 1 TB, 2 TB, USB 3.0 LTO6HH Ultrium, 160 MB/s, 2,500 GB, SAS 6Gb/s LTO7HH Ultrium, 300 MB/s, 2,500 GB, SAS 6Gb/s LTO7HH Ultrium, 300 MB/s, SAS 6Gb/s
PCI-Express 3.0 x8	5 x Full height Note: 2 of the slots become available via optional riser card. Refer to configurator for details
PCI-Express 3.0 x16	3 x Full height Note: One x16 PCIe slot is available with the first CPU, can be occupied by the optional Riser card. Second CPU adds two more x16 PCIe slots. Refer to configurator for details.
PCI-slots	1 x PCI 32Bit, available via optional riser card. Refer to configurator for details
Accessible drive bays	3 x 5.25/1.6-inch
Optional accessible drives	3x 1.6x5.25" bays for an optical and/or backup drives All possible options described in relevant system configurator.
Storage drive bays	3.5-inch or 2.5-inch hot-plug SAS/SATA 4 x 3.5-inch hot-plug SAS/SATA 8 x 3.5-inch hot-plug SAS/SATA 8 x 2.5-inch hot-plug SAS/SATA 16 x 2.5-inch hot-plug SAS/SATA 24 x 2.5-inch hot-plug SAS/SATA optional expandable up to 8 storage drives optional expandable up to 12 storage drives not expandable optional expandable up to 24 storage drives optional expandable up to 32 storage drives
LAN Controller	2 x 1 Gbit/s onboard
Remote Management	IPMI 2.0 compatible, Integrated Remote Management Controller (iRMC S5, 512 MB attached memory incl. graphics controller)
USB ports	7 x USB 3.0 (2x front, 4 x rear, 1x internal (type A)
Graphics	1 x VGA
Management LAN (RJ45)	1 x dedicated management LAN port for iRMC S5 (10/100/1000 Mbit/s), Management LAN traffic can be switched to shared onboard LAN port
Trusted Platform Module (TPM)	optional TPM
Power supply configuration	1x non hot-plug power supply or 2x hot-plug power supply for redundancy
Active power (max. configuration)	748 W
Weight	Up to 35.5 kg
Rack (W x D x H)	483 (Bezel); 448 mm (body) x 736 x 177 mm
Floor-stand (W x D x H)	177 x 777 x 456 mm
DC Infrastructure Management	Infrastructure Manager (ISM) Essential Advanced
Server Management	Infrastructure Manager (ISM) Essential Advanced, ServerView Suite
Operating system	http://docs.ts.fujitsu.com/dl.aspx?id=d4ebd846-aa0c-478b-8f58-4cfbf3230473
Warranty period	3 years
Warranty type	Onsite warranty Warranty conditions tbd
Service Lifecycle	5 years after end of product life
Service Weblink	http://www.fujitsu.com/fts/products/product-support-services/

Support Pack Options

Globally available in major business areas:
9x5, Next Business Day Onsite Response Time
9x5, 4h Onsite Response Time (depending on country)
24x7, 4h Onsite Response Time (depending on country)

Recommended Service

24x7 Onsite Service with 4h Onsite Response Time

Support Pack Options	Globally available in major business areas: 9x5, Next Business Day Onsite Response Time 9x5, 4h Onsite Response Time (depending on country) 24x7, 4h Onsite Response Time (depending on country)
Recommended Service	24x7 Onsite Service with 4h Onsite Response Time

Read full specs

Resources

Datasheets

Technical Details

Brochures & Flyers

Videos

Whitepaper

Support Packs

Components

	FUJITSU PRAID CP400i - 8 port 12Gb/s SAS, 6Gb/s SATA The Fujitsu PRAID CP400i SAS/SATA controller card based on the LSI SAS3008 allows latest RAID technology at affordable prices with low power consumption. The PRAID CP400i MegaRAID entry controller card offer users a straight-forward solution that includes essential RAID levels and uncomplicated configuration options.
	FUJITSU PRAID EP520i The Fujitsu RAID Controller PRAID EP520i with 2GB cache and 8x12Gbit/s SAS ports improves performance for storage intensive workloads such as databases and sets new speed and data security standards for internal storage drives. The new PRAID EP520i supports up to 8 SAS/SATA drives or up to 2 NVMe drives. NVMe is an interface with lower overhead, lower latency and drastically increased bandwidth and IOP's. The NVMe drive support will be available at a later date, but the SAS and SATA drives will benefit from the improved performance and higher cache size.The RAID stack is based on the Broadcom MegaRAID^® and offers high data throughput, a comprehensive fault tolerance function and user-friendly management options.
	FUJITSU PRAID EP540i The Fujitsu RAID Controller PRAID EP540i with 4GB cache and16x12Gbit/s SAS ports improves performance for storage intensive workloads such as databases and sets new speed and data security standards for internal storage drives. The new PRAID EP540i supports up to 16 SAS/SATA drives, up to 4 NVMe PCIe drives or a mixture of SAS/SATA and NVMe drives. NVMe is an interface with lower overhead, lower latency and drastically increased bandwidth and IOP's. The RAID stack is based on the Broadcom MegaRAID^® and offers high data throughput, a comprehensive fault tolerance function and user-friendly management options. Moreover, the Controller management is integrated seamlessly into the Fujitsu server management concept. All controller functions are supported by the Fujitsu ServerView RAID Manager. The PRAID EP540i is designed for 3, 6 and 12Gbit/s SAS as well as for 3 and 6Gbit/s SATA drives. Regardless of the drive speed, it delivers significant performance improvements in both read and write applications.
	Fujitsu PSAS CP400i The PSAS CP400i, eight port SAS/SATA host bus adapter provides increased connectivity and maximum performance for high-end servers and applications within internal and external storage. Performance is based on the LSI SAS3008 IO controller, integrating the latest enhancements in SAS and PCI Express 3.0 technology.
	Fujitsu PSAS CP400e The PSAS CP400e, eight port SAS/SATA host bus adapter provides increased connectivity and maximum performance for high-end servers and applications within internal and external storage. Performance is based on the LSI SAS9300 IO controller, integrating the latest enhancements in SAS and PCI Express 3.0 technology.
	FUJITSU PACC EP QAT8970 The Fujitsu PLAN EP Intel X710-DA2 SFP+ Server Adapter is the most flexible and scalable Ethernet adapter for the current demanding data center environments. The X710 adapter family addresses the demanding needs of the next-generation agile data center by providing unmatched features for both server and network virtualization, flexibility for LAN and SAN networks and proven, reliable performance.

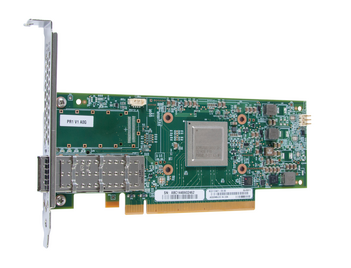

	FUJITSU PLAN EP MCX4-LX 25GbE SFP28 The FUJITSU PLAN EP MCX4-LX 25GbE is based on Mellanox’s ConnectX^®-4 Lx EN (Dual port) Network Interface Card. ConnectX-4 Lx EN Network Controller with 10/25Gb/s Ethernet connectivity addresses virtualized infrastructure challenges, delivering best-in-class and highest performance to various demanding markets and applications. Providing true hardware-based I/O isolation with unmatched scalability and efficiency, achieving the most cost-effective and flexible solution for Web 2.0, Cloud, data analytics, database, and storage platforms. 25Gb Ethernet (25GbE) enables network bandwidth to be cost-effectively scaled in support of next-generation server and storage solutions residing in Cloud and Web-scale data center environments. The 25GbE results in a single switch lane connection similar to existing 10GbE technology—but it delivers 2.5 times greater bandwidth. Compared to 40GbE solutions, 25GbE technology provides superior switch port density by requiring just a single switch lane compared to the 40GbE with four lanes. FUJITSU PLAN EP MCX4-LX 25GbE Dual-Port 10/25GbE Network Interface Cards deliver advanced Ethernet solutions designed for FUJITSU Server PRIMERGY and PRIMEQUEST systems with Microsoft Windows Server 2016 and 2012 R2, Red Hat Enterprise Linux 7, SuSE Linux Enterprise Server 12, VMware ESXi 6.5. Designed for SUSE Linux Enterprise Server 12 SP2 operating system supporting use cases such as SAP HANA^®, and for Microsoft Windows Server 2016 operating system supporting use cases such as Storage Spaces Direct certified with Premium and Standard SDDC (Software Defined Data Center) qualifiers.
	FUJITSU PLAN EP QL41212 25/10GbE SFP28 The Fujitsu PLAN EP QL41212 is based on Cavium's QLogic^® FastLinQ™ QL41212HLCU Dual Port RDMA Network Interface Adapter. This intelligent Ethernet adapter uses QLogic’s eights generation technology to deliver true 10/25Gb per second (10/25Gbps) Ethernet performance per port. Integrated, advanced networking eliminates I/O bottlenecks and conserves CPU cycles. 25Gb Ethernet (25GbE) enables network bandwidth to be cost-effectively scaled in support of next-generation server and storage solutions residing in cloud and web-scale data center environments. The 25GbE results in a single-lane connection similar to existing 10GbE technology—but it delivers 2.5 times greater bandwidth.
	FUJITSU PLAN EP QL45611 100Gb QSFP28 The FUJITSU PLAN EP QL45611 100GbE is based on Marvell's^® FastLinQ™ QL45611 HLCU (Single port) Network Interface Card. QL45611 Network Controller with 100Gb/s Ethernet connectivity addresses virtualized infrastructure challenges, delivering high performance to various demanding markets and applications. Providing true hardware-based I/O isolation with unmatched scalability and efficiency, achieving the most cost-effective and flexible solution for Web 2.0, Cloud, data analytics, database, and storage platforms. 100Gb Ethernet (100GbE) enables network bandwidth to be cost-effectively scaled in support of next-generation server and storage solutions residing in Cloud and Web-scale data center environments. FUJITSU PLAN EP QL45611 100GbE Network Interface Cards deliver advanced Ethernet solutions designed for FUJITSU Server PRIMERGY and PRIMEQUEST systems with Microsoft Windows Server 2016, Red Hat Enterprise Linux 7, SuSE Linux Enterprise Server 12, VMware ESXi 6.5.
	FUJITSU PLAN CP 2x1Gbit Cu Intel^® I350-T2 Trust the network communication of the new Ethernet LAN adapter. The new Intel^® I350-T2 Ethernet LAN Adapter, based on the latest Intel^® 1GbE chip technology, offers two Gigabit Ethernet ports for 10/100/1000BaseT.
