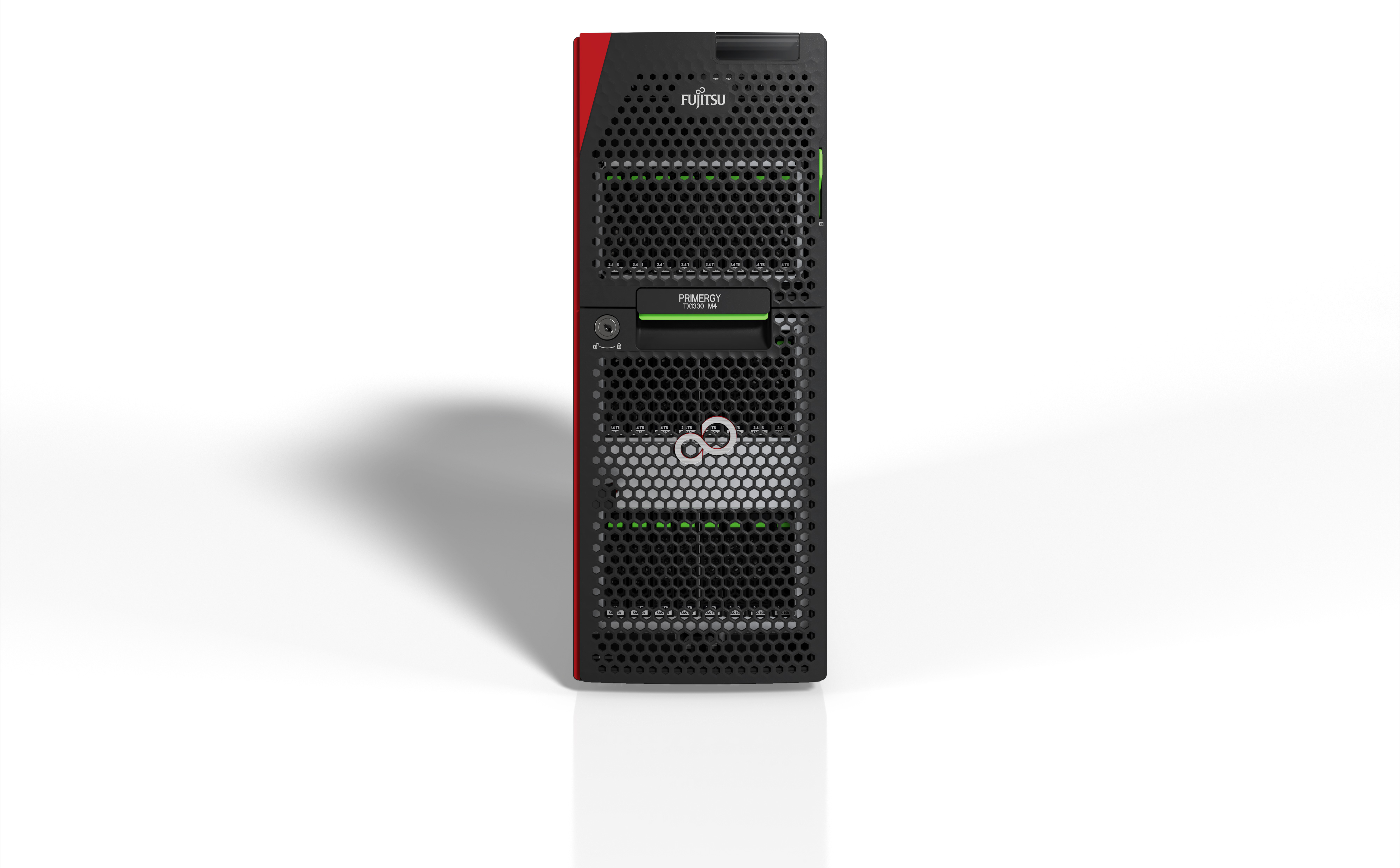

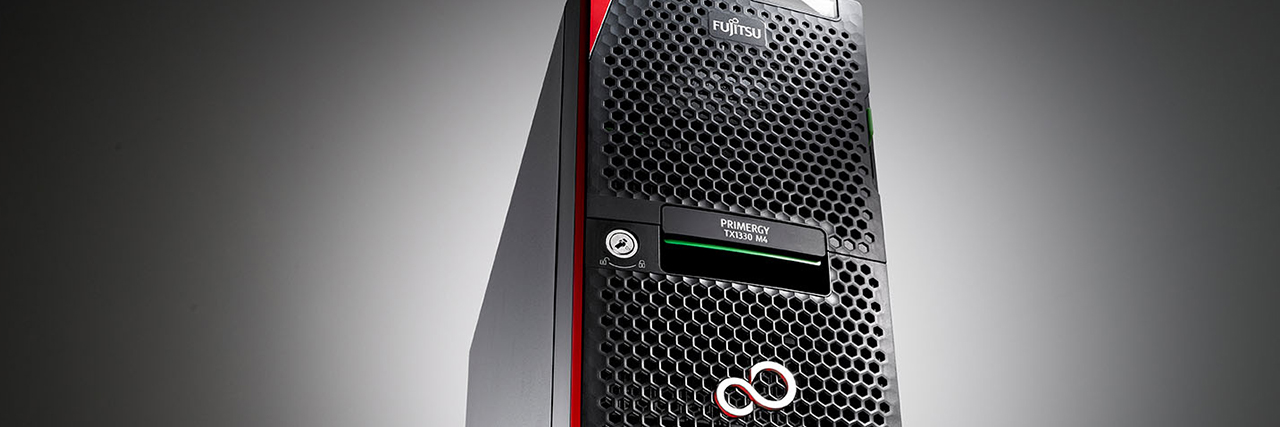

FUJITSU Server PRIMERGY TX1330 M4

Fields the latest Intel^® Xeon^® E-2200/ E-2100 product family processors plus 2,666 MT/s 128GB DDR4 RAM
Ideal for standard small & medium business workloads (infrastructure, collaborative, industry apps) plus storage demanding deployments
High capacity, secure storage - 24x drives with a range of configurations
Future ready today - 4x PCI Gen3 slots, a range of advanced upgrade, OS options and rack upgrade kit
Enhanced reliability by design including redundant power supplies, plus the latest management software including iRMC S5, Fujitsu software ISM

Saiba mais


Advanced technology for workload-versatile performance	Future ready plus capabilities for enhanced utilization	Designed for expanding usage scenarios and efficiency	Full server management features and easy serviceability
The server compute and memory can be optimized for most appropriately sized standard workloads across industries with the Intel^® Xeon^® E-2200 processors offering the highest performance in the toolbox. The workloads can range from appropriately sized, individual to virtualized multi-app environments including workloads such as file/print, email, ERP/CRM, messaging, centralized data storage and industry specific applications. The new higher core count, faster processors and doubled memory capacity make these servers suitable for more powerful applications than their previous generation. In terms of storage and networking, NVMe drives offer ultra-fast storage for low-latency applications, while the server’s huge storage capacity offers secure, cost-effective capability to consolidate and manage large datasets, combined with growth potential. Redundant LAN offers reliable data connectivity out of the box. Advanced options such as 10/25 GbE or Fiber Channel networking cards offer high data transfer for demanding environments, e.g. virtualized environments or centralized storage.	PCI expansion slots permit timely, cost-effective upgrades in line with your business growth. Upgrade the server with a graphics card, or Fujitsu RAID controllers for reliable data storage or advanced networking options for seamless data transmission. Similarly, a rack kit provides investment protection; as their business grows, customers can deploy multiple PRIMERGY TX1330 M4 servers in a rack. For effective boot options choose from amongst cost-effective and reliable mirrored SATA modules or deploy high-speed NVMe devices, while Dual microSD modules support mirrored VMware ESXi boot. Technology update with new high data rate USB is good for latest generation peripheral devices.	Good for the environment, and your business – the high efficiency, redundant power supplies offer enhanced reliability and lower energy expenditure. The Battery Backup Unit protects your valuable investment by supporting safe power down and expanded server operation time in case of power loss. The air flow and Cool-safe ^® Advanced Thermal Design technology allow for an expanded range of operation (5 °C to 45 °C) and also reduce noise emissions, making the server suitable for deployment in public areas.	Reduce your IT administrator’s burden by simplifying server management via a comprehensive software suite which can include the iRMC S5 and the Fujitsu ServerView suite, which includes tools for installation and deployment, permanent status monitoring and control. The new ISM Essential offers converged infrastructure monitoring and server management free of cost. Enhanced serviceability allows easy, fast and comfortable access to critical components.

Advanced technology for workload-versatile performance
The server compute and memory can be optimized for most appropriately sized standard workloads across industries with the Intel^® Xeon^® E-2200 processors offering the highest performance in the toolbox. The workloads can range from appropriately sized, individual to virtualized multi-app environments including workloads such as file/print, email, ERP/CRM, messaging, centralized data storage and industry specific applications. The new higher core count, faster processors and doubled memory capacity make these servers suitable for more powerful applications than their previous generation. In terms of storage and networking, NVMe drives offer ultra-fast storage for low-latency applications, while the server’s huge storage capacity offers secure, cost-effective capability to consolidate and manage large datasets, combined with growth potential. Redundant LAN offers reliable data connectivity out of the box. Advanced options such as 10/25 GbE or Fiber Channel networking cards offer high data transfer for demanding environments, e.g. virtualized environments or centralized storage.
Future ready plus capabilities for enhanced utilization
PCI expansion slots permit timely, cost-effective upgrades in line with your business growth. Upgrade the server with a graphics card, or Fujitsu RAID controllers for reliable data storage or advanced networking options for seamless data transmission. Similarly, a rack kit provides investment protection; as their business grows, customers can deploy multiple PRIMERGY TX1330 M4 servers in a rack. For effective boot options choose from amongst cost-effective and reliable mirrored SATA modules or deploy high-speed NVMe devices, while Dual microSD modules support mirrored VMware ESXi boot. Technology update with new high data rate USB is good for latest generation peripheral devices.
Designed for expanding usage scenarios and efficiency
Good for the environment, and your business – the high efficiency, redundant power supplies offer enhanced reliability and lower energy expenditure. The Battery Backup Unit protects your valuable investment by supporting safe power down and expanded server operation time in case of power loss. The air flow and Cool-safe ^® Advanced Thermal Design technology allow for an expanded range of operation (5 °C to 45 °C) and also reduce noise emissions, making the server suitable for deployment in public areas.
Full server management features and easy serviceability

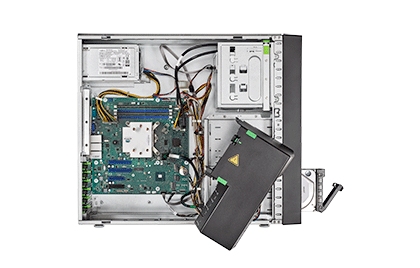

Reduce your IT administrator’s burden by simplifying server management via a comprehensive software suite which can include the iRMC S5 and the Fujitsu ServerView suite, which includes tools for installation and deployment, permanent status monitoring and control. The new ISM Essential offers converged infrastructure monitoring and server management free of cost. Enhanced serviceability allows easy, fast and comfortable access to critical components.

Product Video

Tech Specs

Chipset	Intel^® C246
Mainboard type	D3673
Product Type	Mono Socket Tower Server
Processor	Intel^® Xeon^® E-2200 processor family, Intel^® Xeon^® E-2100 processor family, Intel^® Pentium^® processor, Intel^® Core™ i3 processor
Memory	4 GB - 128 GB, DIMM (DDR4)
Memory slots	4
Memory protection	ECC
Drives (optional)	DVD-ROM, half height, SATA I DVD Super Multi, half height, SATA I DVD supermulti, ultraslim, SATA I Blu-ray Disc™ Triple Writer, ultraslim, SATA I RDX Drive, 100 MB/s, 320 GB, 500 GB, 1 TB, 2 TB, USB 3.0 LTO6HH Ultrium, 160 MB/s, 2,500 GB, SAS 6Gb/s LTO7HH Ultrium, 300 MB/s, 2,500 GB, SAS 6Gb/s LTO7HH Ultrium, 300 MB/s, SAS 6Gb/s
PCI-Express 3.0 x4	1 x Full height, up to 168 mm length
PCI-Express 3.0 x8	2 x Full height, up to 240 mm length notched
Accessible drive bays	3 x 5.25/1.6-inch 3 x 5.25/1.6-inch for 1 x backup drive + 1 x ODD Accessible drive bays are not available in case of max. storage drive configuration
Optional accessible drives	all possible options described in relevant system configurator
Storage drive bays	3.5-inch or 2.5-inch hot-plug SAS/SATA Max. 4x 3.5-inch or 8x 2.5-inch Max. 12x 3.5-inch or 24x 2.5-inch
LAN Controller	Intel^® i210 onboard 2 x 10/100/1000 Mbit/s Ethernet
Remote Management	Integrated Remote Management Controller (iRMC S5, 512 MB attached memory incl. graphics controller), IPMI 2.0 compatible
USB ports	4 (2x internal, 2x external front, USB 3.0 is now known as USB 3.1 Gen 1). Server also has 2x external rear USB 3.1 Gen 2 ports
Graphics	1 analog graphics interface derived from iRMC (up to 1600x1200 or 1920x1080 at 16bpp)
Management LAN (RJ45)	1 x dedicated management LAN port for iRMC S5 (10/100/1000 Mbit/s), Management LAN traffic can be switched to shared onboard Gbit LAN port
Trusted Platform Module (TPM)	TPM 2.0 module (option)
Power supply configuration	1 x standard, 1 x hot-plug, 2 x hot-plug redundant, 1 x hot-plug + 1 x Fujitsu FJBU internal battery backup unit (depending on Model)
Active power (max. configuration)	231 W
Weight	Rack: 13 kg - 25 kg; Tower: 15kg - 28 kg

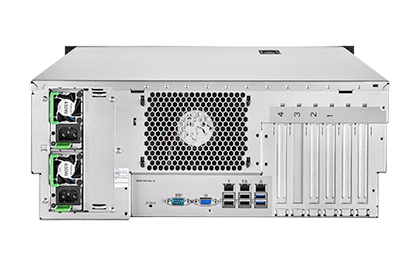

Rack (W x D x H)	483 x 495 x 175 mm

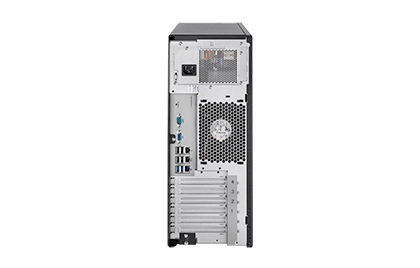

Floor-stand (W x D x H)	177 x 560 x 455 mm
Mounting Depth Rack	543 mm
DC Infrastructure Management	Infrastructure Manager (ISM) Essential Advanced
Server Management	Infrastructure Manager (ISM) Essential Advanced, ServerView Suite
Operating system	http://docs.ts.fujitsu.com/dl.aspx?id=d4ebd846-aa0c-478b-8f58-4cfbf3230473
Warranty period	1 year
Warranty type	Onsite warranty
Service Lifecycle	5 years after end of product life
Service Weblink	http://www.fujitsu.com/fts/services

Support Pack Options

Globally available in major business areas:
9x5, Next Business Day Onsite Response Time
9x5, 4h Onsite Response Time (depending on country)
24x7, 4h Onsite Response Time (depending on country)

Recommended Service

24x7, Onsite Response Time: 4h - For locations outside of EMEA please contact your local Fujitsu partner.

Support Pack Options	Globally available in major business areas: 9x5, Next Business Day Onsite Response Time 9x5, 4h Onsite Response Time (depending on country) 24x7, 4h Onsite Response Time (depending on country)
Recommended Service	24x7, Onsite Response Time: 4h - For locations outside of EMEA please contact your local Fujitsu partner.

Read full specs

Resources

Datasheets

Technical Details

Brochures & Flyers

Videos

Whitepaper

Support Packs

Components

	FUJITSU PRAID CP400i - 8 port 12Gb/s SAS, 6Gb/s SATA The Fujitsu PRAID CP400i SAS/SATA controller card based on the LSI SAS3008 allows latest RAID technology at affordable prices with low power consumption. The PRAID CP400i MegaRAID entry controller card offer users a straight-forward solution that includes essential RAID levels and uncomplicated configuration options.
	FUJITSU PRAID EP520i The Fujitsu RAID Controller PRAID EP520i with 2GB cache and 8x12Gbit/s SAS ports improves performance for storage intensive workloads such as databases and sets new speed and data security standards for internal storage drives. The new PRAID EP520i supports up to 8 SAS/SATA drives or up to 2 NVMe drives. NVMe is an interface with lower overhead, lower latency and drastically increased bandwidth and IOP's. The NVMe drive support will be available at a later date, but the SAS and SATA drives will benefit from the improved performance and higher cache size.The RAID stack is based on the Broadcom MegaRAID^® and offers high data throughput, a comprehensive fault tolerance function and user-friendly management options.
	FUJITSU PRAID EP540i The Fujitsu RAID Controller PRAID EP540i with 4GB cache and16x12Gbit/s SAS ports improves performance for storage intensive workloads such as databases and sets new speed and data security standards for internal storage drives. The new PRAID EP540i supports up to 16 SAS/SATA drives, up to 4 NVMe PCIe drives or a mixture of SAS/SATA and NVMe drives. NVMe is an interface with lower overhead, lower latency and drastically increased bandwidth and IOP's. The RAID stack is based on the Broadcom MegaRAID^® and offers high data throughput, a comprehensive fault tolerance function and user-friendly management options. Moreover, the Controller management is integrated seamlessly into the Fujitsu server management concept. All controller functions are supported by the Fujitsu ServerView RAID Manager. The PRAID EP540i is designed for 3, 6 and 12Gbit/s SAS as well as for 3 and 6Gbit/s SATA drives. Regardless of the drive speed, it delivers significant performance improvements in both read and write applications.
	Fujitsu PSAS CP400i The PSAS CP400i, eight port SAS/SATA host bus adapter provides increased connectivity and maximum performance for high-end servers and applications within internal and external storage. Performance is based on the LSI SAS3008 IO controller, integrating the latest enhancements in SAS and PCI Express 3.0 technology.
	FUJITSU PACC EP QAT8970 The Fujitsu PLAN EP Intel X710-DA2 SFP+ Server Adapter is the most flexible and scalable Ethernet adapter for the current demanding data center environments. The X710 adapter family addresses the demanding needs of the next-generation agile data center by providing unmatched features for both server and network virtualization, flexibility for LAN and SAN networks and proven, reliable performance.
	FUJITSU PLAN EP MCX4-LX 25GbE SFP28 The FUJITSU PLAN EP MCX4-LX 25GbE is based on Mellanox’s ConnectX^®-4 Lx EN (Dual port) Network Interface Card. ConnectX-4 Lx EN Network Controller with 10/25Gb/s Ethernet connectivity addresses virtualized infrastructure challenges, delivering best-in-class and highest performance to various demanding markets and applications. Providing true hardware-based I/O isolation with unmatched scalability and efficiency, achieving the most cost-effective and flexible solution for Web 2.0, Cloud, data analytics, database, and storage platforms. 25Gb Ethernet (25GbE) enables network bandwidth to be cost-effectively scaled in support of next-generation server and storage solutions residing in Cloud and Web-scale data center environments. The 25GbE results in a single switch lane connection similar to existing 10GbE technology—but it delivers 2.5 times greater bandwidth. Compared to 40GbE solutions, 25GbE technology provides superior switch port density by requiring just a single switch lane compared to the 40GbE with four lanes. FUJITSU PLAN EP MCX4-LX 25GbE Dual-Port 10/25GbE Network Interface Cards deliver advanced Ethernet solutions designed for FUJITSU Server PRIMERGY and PRIMEQUEST systems with Microsoft Windows Server 2016 and 2012 R2, Red Hat Enterprise Linux 7, SuSE Linux Enterprise Server 12, VMware ESXi 6.5. Designed for SUSE Linux Enterprise Server 12 SP2 operating system supporting use cases such as SAP HANA^®, and for Microsoft Windows Server 2016 operating system supporting use cases such as Storage Spaces Direct certified with Premium and Standard SDDC (Software Defined Data Center) qualifiers.
	FUJITSU PLAN EP QL41212 25/10GbE SFP28 The Fujitsu PLAN EP QL41212 is based on Cavium's QLogic^® FastLinQ™ QL41212HLCU Dual Port RDMA Network Interface Adapter. This intelligent Ethernet adapter uses QLogic’s eights generation technology to deliver true 10/25Gb per second (10/25Gbps) Ethernet performance per port. Integrated, advanced networking eliminates I/O bottlenecks and conserves CPU cycles. 25Gb Ethernet (25GbE) enables network bandwidth to be cost-effectively scaled in support of next-generation server and storage solutions residing in cloud and web-scale data center environments. The 25GbE results in a single-lane connection similar to existing 10GbE technology—but it delivers 2.5 times greater bandwidth.
	FUJITSU PLAN CP 2x1Gbit Cu Intel^® I350-T2 Trust the network communication of the new Ethernet LAN adapter. The new Intel^® I350-T2 Ethernet LAN Adapter, based on the latest Intel^® 1GbE chip technology, offers two Gigabit Ethernet ports for 10/100/1000BaseT.
	FUJITSU PLAN CP 4x1Gbit Cu Intel^® I350-T4 Trust the network communication of the new Ethernet LAN adapter. The new Intel I350-T4 Ethernet LAN Adapter, based on the latest Intel^® 1GbE chip technology, offers four Gigabit Ethernet ports for 10/100/1000BaseT.
	FUJITSU PFC QLE2740 / QLE2742 Fibre Channel Adapters The Gen6 32 Gb/s Fibre Channel Host Bus Adapters (HBA) QLE2740 and QLE2742 for the PRIMERGY & PRIMEQUEST servers are ideal for virtualized environments and transaction intensive applications. The adapters support the latest PCIe 3.0 standard for lower cooling and power costs. In addition, QLogic StorFusion technology delivers streamlined provisioning, guaranteed quality of service (QoS), and improved resiliency while addressing the needs of IT organizations that require reliability, integrated management, and guaranteed network performance.
