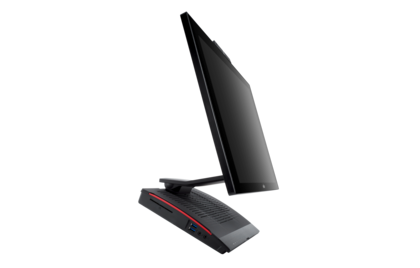

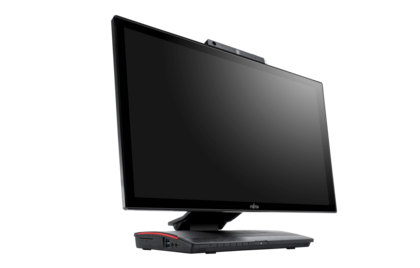

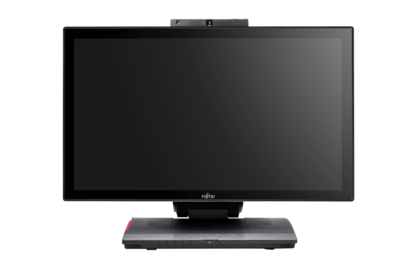

FUJITSU Thin Client FUTRO X923-T

The smart FUJITSU FUTRO X923-T with all the advantages of a thin client is your choice for highly secure server-based computing and desktop virtualisation. With its modern design, your work environment will take on a neat, sophisticated look. Benefit from innovative features for advanced communication, energy savings plus a user-friendly multi-position 58.4 cm (23-inch) touch display. Significant TCO savings are achieved with sophisticated management options.

Features & Benefits

Features	Benefits
Windows FUJITSU devices generally available with Microsoft´s latest OEM operating system - licensed and preinstalled	Easy integration into customers’ existing infrastructure
Stunning uniform design One design for a heterogeneous IT landscape	Smooth migration from Fat Client to Thin Client computing
Ergonomics Height-adjustable touch-display in accordance with ergonomic guidelines like EN ISO 9241or German BGI 650	Enables highly ergonomic working position, increasing user satisfaction and productivity
Manageability Comprehensive Enterprise manageability solution	Easy administration while significantly reducing the total cost of ownership
Future proof technology Innovative features like Power-over-Ethernet and automated log-in	Be prepared for the future today
Advanced communications Optional Multimedia module and integrated communication functions support UC&C environments	Highest productivity and user satisfaction in a human-centric office environment

Technical details

Product	FUTRO X923-T
Operating system	Windows^® Embedded Standard eLux™ RP – Embedded Linux
Resolution (native)	1,920 x 1,080 pixel
Viewing angle (h/v) - typical	178°/178° CR10:1
Brightness - typical	250 cd/m
Functions	eLux™ RP 4 or 5 – Embedded Linux eLux™ RP 5: BaseOS eLux™ RP, V5.1.0-1 ICA client, V13.3.0.1-6 VMware^® Horizon View Client, V5.7.1.1-1 (optional) FreeRDP, V1.1.0.2-6 Adobe^® Flash Player 11 for Linux, V11.2.202.548-1 Mozilla Firefox^® Browser, V38.3.0-1 VPN System, V5.1-1 BIOS tools for remote BIOS updates via Scout Enterprise, V3.1-2 Updates and all available software packages for eLux™ RP 5 can be downloaded from www.myelux.com eLux RP 5 requires at least 4GB storage eLux™ RP 4: BaseOS eLux™ RP, V4.9.0-1 ICA client, V13.1.4.1-4 VMware^® Horizon View Client, V5.6.1.1-4 (optional) FreeRDP, V1.1.0.2-3 RDPConnect, V3.2.0-1 Adobe^® Flash Player 11 for Linux, V11.2.202.468-1 Mozilla Firefox^® Browser, V38.0.1-2 VPN System, V4.5-1 ThinPrint^® client, V7.0.41-2 BIOS tools for remote BIOS updates via Scout Enterprise, V2.3-1 Updates and all available software packages for eLux™ RP 4 can be downloaded from www.myelux.com
Mainboard	D3333 (proprietary )
Processor	AMD G-Series GX-415GA, 2 MB, 1.50 GHz 512 KB, 1.2 GHz
Supported capacity RAM (max.)	8 GB
Hard disk drive	mSATA, 2 GB, Flash drive (SLC technology) mSATA, 4 GB, Flash drive (SLC technology) mSATA, 8 GB, Flash drive (MLC technology) mSATA, 8 GB, Flash drive (SLC technology) mSATA, 16 GB, Flash drive (MLC technology) mSATA, 32 GB, Flash drive (MLC technology) mSATA, 64 GB, Flash drive (MLC technology)
Interfaces	2 x USB 3.0 total 5 x USB 2.0 total 2 x USB left side 1 (9 pin header) x USB internal 1 (via DVI to VGA adapter) x VGA 1 x Ethernet (RJ-45) 1 DVI-I (integrated VGA can be used with DVI-VGA adapter) x DVI 1 x Mouse / Keyboard (PS/2)
Graphics	AMD Radeon™ HD 8330E (in combination with AMD G-Series GX-415GA), up to 2 GB, BIOS default 256 MB DirectX^® 11.1, Open CL^® 1.2, OpenGL^® 4.1
Audio type	Realtek ALC663
Communication	10/100/1,000 MBit/s Realtek RTL 8111E
Weight	8.0 kg
Dimensions (W x D x H)	533 x 224 x 419 mm
Special features	Touch display adjustable to a fully flat working position, Presence Sensor, Power-over-Ethernet, Integrated power supply unit, Made in Germany
Warranty period	2 years (depending on country)
Warranty type	Bring-in Service (for countries within region EMEIA, for all other countries depending on local regulations)
