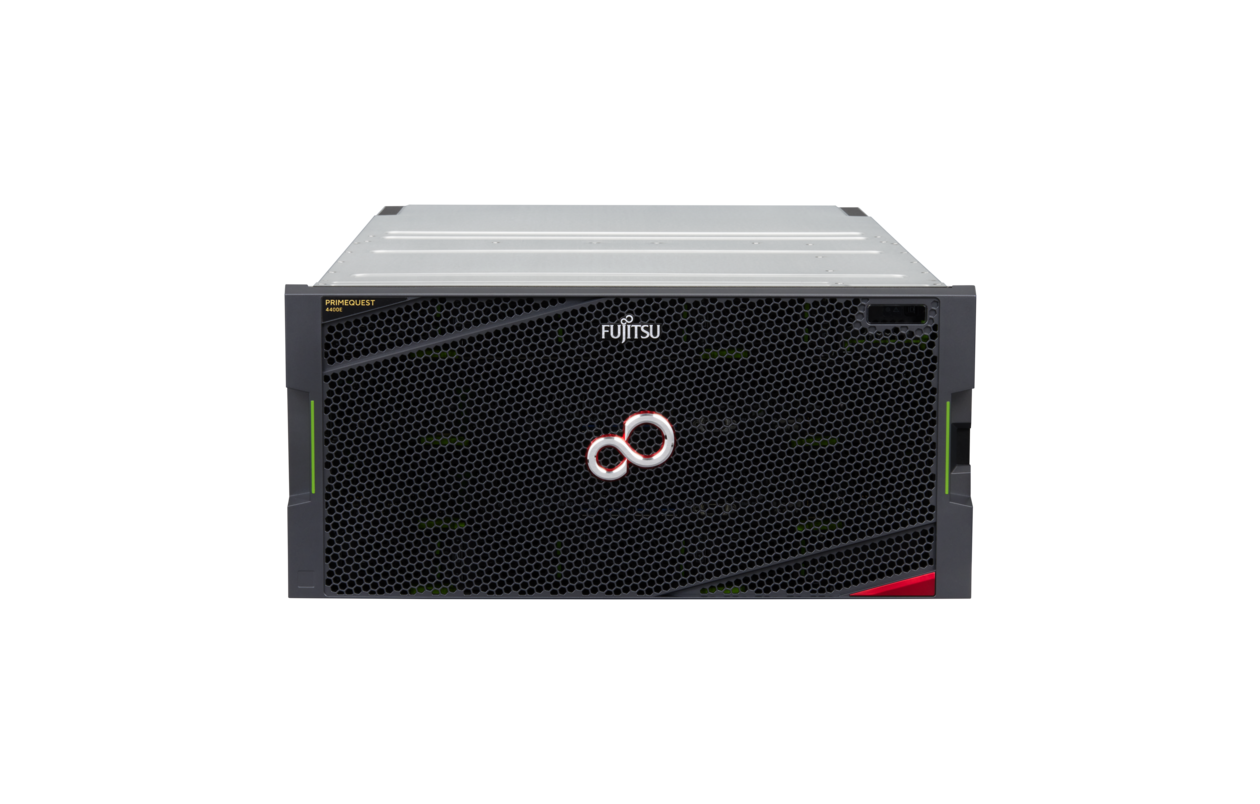

Fujitsu PRIMEQUEST -palvelin

Fujitsu PRIMEQUEST -palvelimissa yhdistyvät Intel® Xeon® -prosessorien teho sekä Microsoft Windows- ja Linux-käyttöjärjestelmien tekniset ominaisuudet. Lisäksi palvelimissa toteutuu saavutettavuus ja luotettavuus. Nämä x86-arkkitehtuurin palvelimet tarjoavat täysin uudenlaista käyttötehoa liiketoiminnan kannalta kriittisiin toimintoihin avointen standardien avulla.

Vertaa ja löydä tarpeisiisi sopivin palvelin

2 Products

Filters

(0)

Form Factor

Height Units

Processor Quantity

Processor Type

Memory Slots

max. Memory Capacity

max. Storage Drive Bays

PCIe slots

×

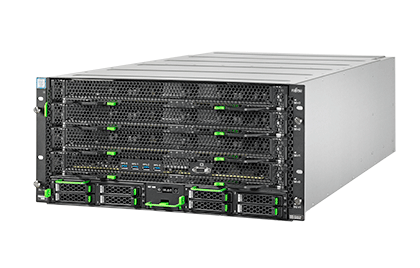

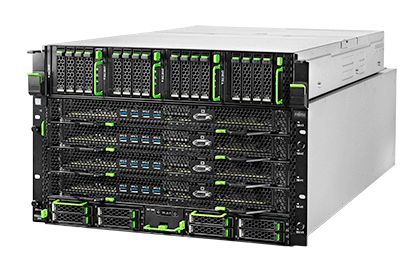

FUJITSU Server PRIMEQUEST 3800B2 FUJITSU Server PRIMEQUEST 3800E2
Chipset Intel® C621
Intel® C621
Mainboard type up to 4 x System boards
up to 4 x System boards
Product Type Octo Socket Rack Server
Octo Socket Rack Server
Processor Intel® Xeon® Platinum 8xxx processor
Intel® Xeon® Gold 6xxx processor, Intel® Xeon® Platinum 8xxx processor
Memory 64 GB - 36 TB, DIMM (DDR4 / DDR-T for non-volatile memory modules)
32 GB - 36 TB, DIMM (DDR4 / DDR-T for non-volatile memory modules)
Memory protection ECC, Advanced ECC, Memory Mirroring support, Address Range Memory Mirroring support, Rank sparing memory support, Memory Scrubbing, SDDC+1, ADDDC-MR
ECC, Advanced ECC, Memory Mirroring support, Address Range Memory Mirroring support, Rank sparing memory support, Memory Scrubbing, SDDC+1, ADDDC-MR
PCI-Express 3.0 x8 8 x Low profile
12 x Low profile (3slots / IOU, Max. 4 IOUs / Chassis)
PCI-Express 3.0 x16 8 x Low profile (PCI hot-plug is available in 4 out of 8 slots)
4 x Low profile (1slot / IOU, Max. 4 IOUs / Chassis)
Storage drive bays 8 x 2.5-inch hot-plug
8x 2.5” HDD/SSD´s
2.5-inch hot-plug SAS
Max. 24 x 2.5-inch
I/O controller onboard Intel® i210 onboard
10/100/1000 Mbit/s Ethernet
Integrated Remote Management Controller (iRMC S5, 512 MB attached memory incl. graphics controller)
Intel® X540-AT2
2 x 10 Gbit/s Ethernet
PQ3000 Management Board (MMB)
Power supply configuration Up to 4 hot-plug power supplies.
Up to 4 hot-plug power supplies.
Minimum 2 power supplies, redundancy as option.
Active power (max. configuration) 4,810 W
5,940 W
Weight Up to 80 kg
Up to 110 kg
Rack (W x D x H) 482 x 820 x 219 mm
445 x 820 x 308 mm
Server Management Infrastructure and Server Management
Infrastructure and Server Management
DC Infrastructure Management Infrastructure Manager (ISM)
Essential
Advanced
Infrastructure Manager (ISM)
Essential
Advanced, ServerView Suite
Infrastructure Manager (ISM)
Essential
Advanced
Infrastructure Manager (ISM)
Essential
Advanced, ServerView Suite
Warranty period 3 years (depending on country)
3 years (depending on country)
Warranty type Onsite Service
Onsite Service
Service Lifecycle 5 years after end of product life
5 years after end of product life
Service Weblink www.fujitsu.com/support
www.fujitsu.com/support
×
