The sustainable data center standard without compromise

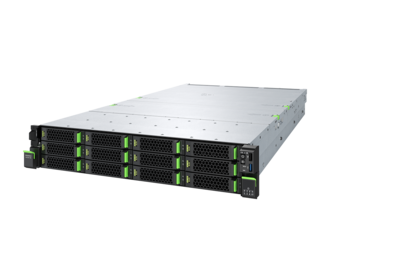

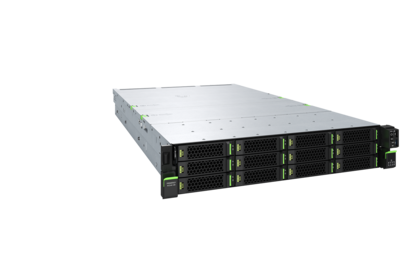

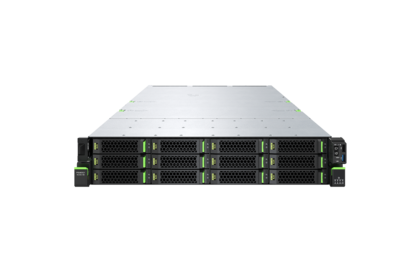

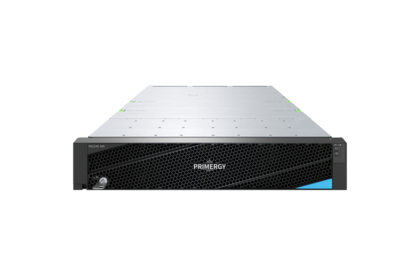

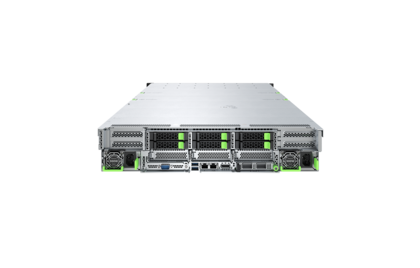

PRIMERGY RX2540 M8

PRIMERGY Server RX4770 M8

PRIMERGY RX2540 M8

PRIMERGY RX2540 M8

  • Dual-socket x86 server that delivers new levels of performance and sustainability without compromise, in an optimized 2U chassis
  • Ideal for collaboration, AI applications, business processing, graphics rendering or in-memory databases
  • Boost performance with Intel® Xeon® 6 Processors with P-cores (up to 86 P-cores per CPU)
  • Maximize in-memory performance with 32 DIMM modules (up to 8TB DDR5 @6,400 or 8,000 MT/s)
  • Scale to meet demands with 12x 3.5” or up to 24x 2.5” storage device sand support for 2x GPU cards

More Details
ImgPlaceholder ImgPlaceholder ImgPlaceholder ImgPlaceholder
Reliable scalability and performance
Accelerate IT transformation
Extensive expandability
Focus on environmental sustainability

2U, dual-socket platform that provides scalability and performance to adapt to a variety of applications. Drive demanding workloads by Intel® Xeon® 6 Processors with P-cores, supporting up to 86 P-cores per CPU.

Transform your data center for modern operations and drive demanding workloads with 32 DIMM modules (up to 8TB). With DDR5 DIMM or MRDIMM memory for fast throughput and high-capacity memory for memory-intensive workloads.

Maximize storage performance with 12x 3.5" or up to 24x 2.5" storage devices and ensure application performance scales to meet demands. Up to 8x PCIe 5.0 slots, OCP v3 adapters, and support for 2x M.2 hot plug modules also ensure enough growth opportunities.

Reduce power consumption and operational costs with hot-plug 80+ Titanium PSUs and optimized cooling. EPEAT Climate+ status ensure alignment with environmental regulations, enabling customers to move to more sustainable data centers without compromising performance.
  • ImgPlaceholder
    Reliable scalability and performance
    2U, dual-socket platform that provides scalability and performance to adapt to a variety of applications. Drive demanding workloads by Intel® Xeon® 6 Processors with P-cores, supporting up to 86 P-cores per CPU.
  • ImgPlaceholder
    Accelerate IT transformation
    Transform your data center for modern operations and drive demanding workloads with 32 DIMM modules (up to 8TB). With DDR5 DIMM or MRDIMM memory for fast throughput and high-capacity memory for memory-intensive workloads.
  • ImgPlaceholder
    Extensive expandability
    Maximize storage performance with 12x 3.5" or up to 24x 2.5" storage devices and ensure application performance scales to meet demands. Up to 8x PCIe 5.0 slots, OCP v3 adapters, and support for 2x M.2 hot plug modules also ensure enough growth opportunities.
  • ImgPlaceholder
    Focus on environmental sustainability
    Reduce power consumption and operational costs with hot-plug 80+ Titanium PSUs and optimized cooling. EPEAT Climate+ status ensure alignment with environmental regulations, enabling customers to move to more sustainable data centers without compromising performance.

Tech Specs

Mainboard type D4135
Product Type Dual Socket Rack Server
Processor Intel® Xeon® 6500P processors, Intel® Xeon® 6700P processors
Memory 16 GB - 8 TB, DIMM (DDR5)
Memory slots 32 (16 DIMMs per CPU, 8 channels with 2 slots per channel)
Memory protection ECC, Memory Scrubbing, SDDC, ADDDC (Adaptive Double DRAM Device Correction), Memory Mirroring support
Drives (optional) LTO7HH Ultrium, 300 MB/s
DVD supermulti, ultraslim, SATA I
LTO7HH Ultrium, 300 MB/s, SAS 6Gb/s
Accessible drive bays 1 x 5.25/9.5mm for DVD-RW/Blu-ray
Optional accessible drives 2x hot-plug PCIe M.2 option
ODD 5.25" possible
ODD 5.25" NOT possible
Not for 12x 3.5-inch, 24x 2.5-inch base unit. All possible options described in relevant system configurator.
Storage drive bays up to 8x 2.5-inch, 16x 2.5-inch, 24x 2.5-inch, 12x 3.5-inch base units
8 x 2.5-inch hot-plug SAS/SATA/PCIe
12 x 3.5-inch hot-plug SAS/SATA
16 x 2.5-inch hot-plug SAS/SATA/PCIe
24 x 2.5-inch hot-plug SAS/SATA
24 x 2.5-inch hot-plug SAS/SATA/PCIe
LAN Controller 1 x 1 Gbit/s onboard, Dynamic LoM via OCP slot; OCPv3 compliant, Optional OCP adaptors:, 4 x 1 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s Ethernet (RJ45), 4 x 10 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s SFP+, 4 x 10 Gbit/s SFP+, 2 x 25 Gbit/s SFP28, 4 x 25 Gbit/s SFP28, 2x 100 Gbit/s QSFP28
Remote Management Integrated Remote Management Controller (iRMC S6, 1024 MB attached memory incl. graphics controller)
USB ports 5 x USB 3.0 (1x front, 2x rear, 2x internal)
Graphics 2 x DP (thereof 1x front optional - not for base unit with 12x 3.5” and 24x 2.5” drives)
Management LAN (RJ45) 1 x dedicated management LAN port for iRMC S6 (10/100/1000 Mbit/s)
Trusted Platform Module (TPM) Infineon / TPM 2.0 module, FIPS; TCG compliant (option)
Power supply configuration 1 x hot-plug power supply or 2 x hot-plug power supply for redundancy
Active power (max. configuration) 4,584 W
Weight max. 35.6 kg
Rack (W x D x H) 482 mm (Bezel) / 435 mm (Body) x 770 x 87 mm
Mounting Depth Rack 779 mm
DC Infrastructure Management Infrastructure Manager (ISM)
Essential Edition
Advanced Edition
Server Management ServerView Agentless Service (SVAS), ServerView ESXi CIM Provider, ServerView Installation Manager (SVIM), ServerView Update Manager Express (UME)
Operating system http://docs.ts.fujitsu.com/dl.aspx?id=d4ebd846-aa0c-478b-8f58-4cfbf3230473
Manufacturer warranty period 2 years
Manufacturer warranty type Onsite warranty
Service Lifecycle at least 5 years after shipment, for details see https://support.ts.fujitsu.com/
Service Weblink http://www.fujitsu.com/emeia/products/product-support-services/
Service Weblink http://www.fujitsu.com/emeia/products/product-support-services/
Recommended Service 24x7 Onsite Service with 4h Onsite Response Time
Recommended Service 24x7 Onsite Service with 4h Onsite Response Time

Read full specs

Press

More Content

Components

PFC QLE2690 / QLE2692 Fibre Channel Adapters

The enhanced Gen5 16 Gb/s Fibre Channel Host Bus Adapters (HBA) QLE2690 and QLE2692 for the PRIMERGY & PRIMEQUEST servers are ideal for virtualized environments and transaction intensive applications. The adapters support the latest PCIe 3.0 standard for lower cooling and power costs. In addition, QLogic StorFusion technology delivers streamlined provisioning, guaranteed quality of service (QoS), and improved resiliency while addressing the needs of IT organizations that require reliability, integrated management, and guaranteed network performance.

PFC EP Emulex LPe31000 / LPe31002 Fibre Channel Adapters

The Emulex Gen 6 16 Gb Fibre Channel (FC) Host Bus Adapters (HBA) by Broadcom for PRIMERGY and PRIMEQUEST server systems are optimal Fibre Channel HBAs for virtualized, cloud and mission critical deployments. The PFC EP Emulex Gen 6 Fibre Channel HBAs LPe31000/31002 by Broadcom take performance to a new level with PCIe 3.0 support, data integrity capabilities and cloud scale reliability, and ease of use. Organizations looking to improve performance, protect against data corruption, and simplify operations of FC SANs in cloud or high performance environments can benefit from deploying the PFC EP LPe31000/31002.
