Encryption Key Management via the Tape Library

LTO Ultrium 4 and later LTO tape cartridges support AES(*Note 1) (256bit) encryption capability (*Note 2). This secures data even in cases of media theft or loss; by preventing unauthorised reading of the data contents.

The ETERNUS Tape Library encryption key management option provides this increased data security simply by use of Ultrium 4 and later tape drive technology and the setting of a single "master key" for each tape library.

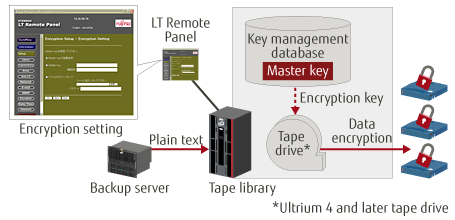

Once data is ordered for backup by the backup server, the tape library automatically creates an encryption key and provides it to the target tape cartridge. Importantly, as the data can be encrypted and preserved in plain text, users don't need to be conscious of the fact that the data they are using is encrypted.

*Note 1: Encryption technology standard set by the U.S. National Institute of Standards and technology (NIST).
*Note 2: Ultrium 4 and later tape cartridges can be encrypted.

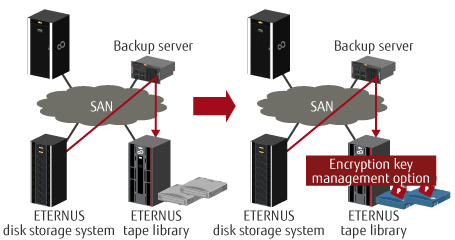

This option enables enhanced data security without change to existing operations.

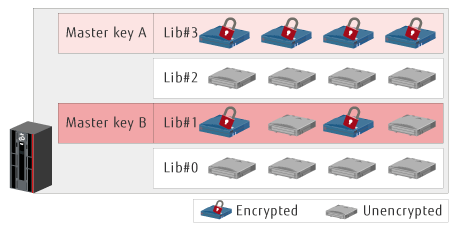

This option can also be used with configurations consisting of LT270 and LT250 Tape Libraries. Master keys are provided to each logical library. When using LT270 S2, Encrypted/Unencrypted can be selected for each tape cartridge and each logical library.

Keys and encrypted tape cartridges can be shared as they are compatible across following ETERNUS LT series tape libraries - ETERNUS LT260, LT270 S2, LT270, LT250, LT230, LT220 -. This enables data to be shared between data centers and used for migration purposes.

Products Requirements

Supported Tape Libraries	ETERNUS LT260, LT270 S2 ETERNUS LT220, ETERNUS LT230 ETERNUS LT250, ETERNUS LT270

Note: Products/features/support content introduced on this page may be modified without notice.
