Information security by Data Encryption
Following legislation, including personal information protection laws, America's Sarbanes Oxley act and Japan's Financial Instruments and Exchange Law, the security of enterprise information has gained greater significance. Good corporate social responsibility requires that access to stored data is restricted to authorised users and any unauthorised or accidental access to sensitive information is blocked.

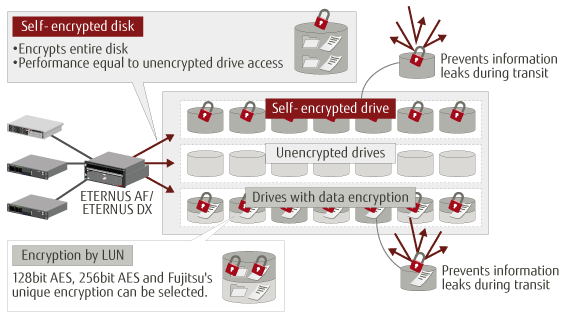

ETERNUS disk storage systems use high levels of encryption to prevent unauthorised data access. This includes firmware encryption (by LUN) as standard, world-standard 128bit AES (Advanced Encryption Standard) technology, 256bit AES(*Note 1) and the support of Fujitsu's unique encryption with high-process performance.
ETERNUS also supports Self Encrypting Drives (SED). Here the disk drive uses hardware encryption instead of firmware. This enables data encryption without performance loss as no load is placed on the system by firmware operation.
*Note 1: Please contact to your sales representative regarding compliant firmware version.
Required authentication keys are provided for the key management group in which SED are registered. Authentication keys generated and stored by a key management server are provided for a required device as necessary.
Secure uniform management can achieve authentication key management and reduce risk of important data leakage.
The auto generation/rotation functions of authentication keys and backup function of those key information achieve authentication key lifecycle management and reduce operations management costs.
(Note: Key management server requires ETERNUS SF KM.)
Product Requirements
| Supported Storage | Disk Storage Systems | Encryption by firmware | ETERNUS DX60 S3
ETERNUS DX100 S3/DX200 S3 ETERNUS DX500 S3/DX600 S3 ETERNUS DX8700 S3/DX8900 S3 ETERNUS DX8700 S3/DX8900 S3 ETERNUS DX60/DX60 S2(*Note 2) ETERNUS DX80(*Note 2)/DX80 S2 ETERNUS DX90(*Note 2)/DX90 S2 ETERNUS DX400/DX400 S2 series ETERNUS DX8000 series/DX8700 S2 ETERNUS4000, ETERNUS8000 |
|---|---|---|---|
| All-Flash Arrays | ETERNUS DX200F | ||
| Disk Storage Systems | Encryption by SED | ETERNUS DX100 S3/DX200 S3
ETERNUS DX500 S3/DX600 S3 ETERNUS DX8700 S3/DX8900 S3 ETERNUS DX80 S2/DX90 S2 ETERNUS DX400 S2 series ETERNUS DX8700 S2 |
|
| Supported Servers | GlobalServer and Mission Critical IA/UNIX/Industry Standard Server | ||
*Note 2: ETERNUS DX60/DX60 S2/DX80/DX90 support only Fujitsu Unique Encryption.
