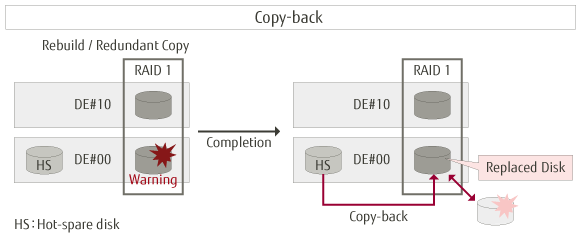

After the failed dis kas been replaced with a new disk, data on the hot-spare disk is retrieved (copied back) to the new disk. The copy-back function restores the RAID group while maintaining redundancy after the rebuild has been performed for the hot-spare in the RAID group.

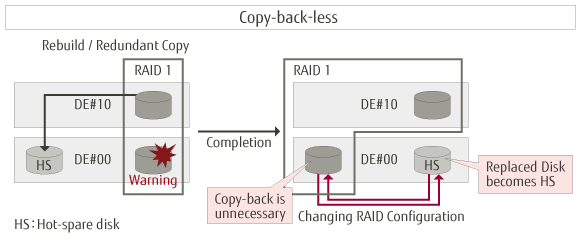

Copy-back-less function is a feature which builds hot-spare disks into a RAID configuration after the completion of rebuild or redundant copy and the internal RAID configuration of the failed disk is changed to hot-spare disk. Immediately after maintenance and replacement, it can start working as a hot-spare disk. This feature means that the copy-back process is no longer required.
Note: Copy-back-less function is featured by ETERNUS DX S3 series and ETERNUS DX200F only.
Working time for replacement of disk | Time until HS becomes available | |
---|---|---|
Copy-back | Max 8.5 hours
(Rebuild + Replacing Disk + Copyback) |
8.5 hours
(Rebuild + Replacing Disk + Copyback) |
Copy-back-less | Max 4.5 hours
(Rebuild + Replacing Disk) |
4.5 hours
(Rebuild + Replacing Disk) |
The administrator can choose between copy-back and copy-back-less operation via the GUI. (Only for ETERNUS DX S3 series and ETERNUS DX200F.)
Supported Storage | Disk Storage Systems | ETERNUS DX60 S3
ETERNUS DX100 S3/DX200 S3 ETERNUS DX500 S3/DX600 S3 ETERNUS DX8700 S3/DX8900 S3 ETERNUS DX60/DX60 S2 ETRENUS DX80/DX80 S2 ETERNUS DX90/DX90 S2 ETERNUS DX400/DX400 S2 series ETERNUS DX8000 series/DX8700 S2 ETERNUS2000/ETERNUS4000/ETERNUS8000 |
---|---|---|
All-Flash Arrays | ETERNUS DX200F |
