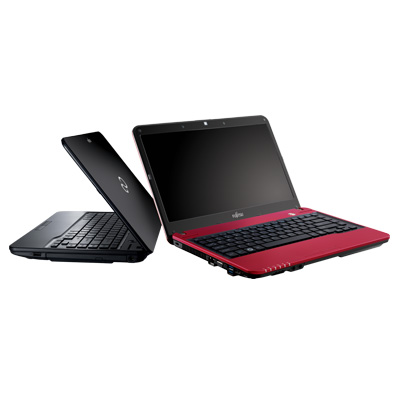

LIFEBOOK LH522

Overview

The new Fujitsu LIFEBOOK LH522 is a compact, all-powerful mobile notebook with intelligent features created for everyday practicality and some unforeseen challenges.

Core i3
  • The new Fujitsu LIFEBOOK LH522 is a compact, all-powerful mobile notebook with intelligent features created for everyday practicality and some unforeseen challenges.
  • Long lasting battery 6-cell Lithium ion Battery for longer battery life up to 5hrs 30min.
  • Enhanced Security features with BIOS Lock Smart HDD.
  • Communication anywhere with Digital Microphone, Dual Stereo Speakers, HDMI, Built-in Wi-Fi, Bluetooth.

Detailed Specs

Specifications
Platform AMD® Dual-Core E2-1800 APU (1.70GHz)
AMD® A68M FCH
Operating System1 Windows 7 Professional
Windows 7 Home Premium
Windows 7 Home Basic
Windows 8
Display2 High Definition SuperFine LCD
14-inch (16:9) SuperFine HD 200nits backlit LED, 1366 x 768 pixels
Graphics AMD® Radeon™ HD 7340 Graphics AMD® Radeon™ HD 7430M Graphics and 1GB of dedicated video memory
Built-in Bay Device1 Dual Layer DVD Super Multi Writer3
2GB / 4GB 1600MHz4
Memory Max. Memory Supported - 2 x 8GB DDR3 1600MHz4, Dual Channel
Hard Disk 320GB/ 500GB / 750GB (5,400rpm)
Battery 6-cell 4400mAh battery up to 5hrs 30min5 6-cell 4400mAh battery up to 4hrs 40min5
Weight Approx. 2.1Kg
Detailed Specifications
Hard Disk Drive SATA-300 5400rpm / 7200rpm, S.M.A.R.T support, Two Partitions - 50/50
High Definition (HD) Audio Realtek® ALC269 HD Audio Codec with Dual Built-in DTS Boost™ adopted Stereo Speakers
HD Audio-in: External Mic-in, Digital Built-in Microphone
HD Audio-out: Headphone-out
Communication 720p HD camera, Bluetooth® 4.0, 10/100/1000 Mbps7 Ethernet and WLAN 802.11BGN Wireless Network Connection
User Interface Spill-resistant Keyboard8
Intelligent Touch Pad with configurable vertical and horizontal scroll functions
Card Slots SD/SDHC/SDXC
Memory Stick® / Memory Stick® PRO
Connector Interface USB 3.0 x 2, USB 2.0 x 2 (Anytime USB Charge x 1), VGA (external display), RJ45 (LAN), HDMI-out, HDA-in, HDA-out, Power Adapter DC-in
Quick Launch Panel One programmable application launch button
Security9 BIOS Lock, Hard Disk Lock, Anti-theft Lock Slot, TPM1
Dimensions 335mm (W) x 240mm (D) x 33.9mm (H) (without rubber foot)
Colours Matt Black / Matt Red
Bundled Accessories
AC Adapter Input AC 100~240V, Output DC 19V 65W Input AC 100~240V, Output DC 19V 80W
Bundled Softwares Adobe® AIR®, Adobe® Reader®, Cyberlink PowerDirector™, CyberLink PowerDVD™, CyberLink YouCam™, DTS Boost ™, Fujitsu Anytime USB Charge Utility, Fujitsu FaceSense Utility, Fujitsu MyRecovery, Fujitsu Power Saving Utility, Fujitsu Support Center, Fujitsu UpdateNavi10, Hotkey Utility, LCD Colour Profile, Microsoft® Silverlight®, Microsoft® Office Starter11: reduced-functionality Word and Excel® only, with advertising. No PowerPoint® or Outlook®, Mobility Center Extension Utility, Norton™ Internet Security 60 days trial, Oracle® Java, Quick Start Utility, Roxio® Creator LJ, Windows Live® Essentials (Windows Live® Messenger, Windows Live® Photo Gallery, Windows Live® Mail, Windows Live® Writer, Windows Live® Mesh, Windows Live® Movie Maker)

The above information shows the general technical specifications of the product and does not represent actual configuration that would be sold in your region. For specific configurations and their availability, please check with your local distributors.



Disclaimer

1. Please check actual bundling with country local distributor.



2. It is natural for all thin-film transistor (TFT) liquid crystal displays (LCD) to show a small number of missing or discoloured dots. These are commonly known as non-conforming pixels. This is a technology limitation of TFT LCD and does not represent a defect. Fujitsu warranty does not cover limitations in technology such as non-conforming pixels.



3. Supports DVD multi formats such as DVD-RAM, DL DVD±R, DVD±RW, DVD±R, CD-RW, DVD-ROM, CD-R and CD-ROM.



4. The actual memory speed depends on the processor specifications. AMD E2-1800 support a maximum memory speed up to 1333MHz only.



5. Results obtained from BAPCo® MobileMark® 2007 (Productivity Workload) performed on systems with maximum battery life settings under laboratory testing environment. Actual battery life will vary based on screen brightness, sound volume settings, running applications, connected peripherals, power management settings, battery conditioning, and other customer preferences in the real life situation. Built-in bay device or hard drive usage may also have a significant impact on battery life. Note: Battery life 5hrs 30min and 4hrs 40min is based on AMD Processor E2-1800.



6. This refers to Windows® 7 hard disk drives C:\ and D:\ . 50/50 refer to approximate 50% allocation of user accessible hard disk storage to C:\ and D:\ drives respectively. For Windows® 7 hard disk drives, 16GB will be reserved for internal recovery.



7. This term does not represent actual data rate and simply indicates compliance with IEEE 802.3, IEEE 802.3u and IEEE 802.3ab standards. Actual maximum data rate depends on network configurations, cable conditions as well as connected devices.



8. Spill-resistant keyboard does not imply the system is water-proof. If liquid is spilt onto the keyboard, power off the system immediately and turn the notebook upside down to drain off the liquid.



9. BIOS Lock needs a supervisor/user password to access BIOS setup. BIOS settings can be configured to prompt for password at all bootup sequences. Access to BIOS setup is needed to configure Hard Disk Lock. Hard Disk Lock requires an access key to retrieve data on the hard disk. This is a Data Confidentiality security feature. Anti-theft Lock Slot allows the use of a lock to physically secure the LIFEBOOK. Full security unlock sequence - Bootup Lock (BIOS Lock), Hard Disk Lock.

NOTE: Loss of password requires the LIFEBOOK to be returned to Japan factory for system refresh. Cost of shipment and lost data will be borne by the customer. Backup your user's profile before changing HDD. If HDD Lock prompt is enabled, only the HDD Password can be used to boot up the unit. Loss of password means the HDD content cannot be retrieved. It is the customer's responsibility to ensure the safe keeping of the password for retrieval of data from the locked HDD.



10. UpdateNavi is a Fujitsu Proprietary application that updates LIFEBOOK drivers by connecting automatically to Fujitsu’s server. This will help update your LIFEBOOK with the latest software drivers and utilities to ensure compatibility between hardware and software, maintaining smooth operation anytime, anywhere.



11. This PC is preloaded with reduced-functionality versions of Word and Excel® that include advertising. Purchase an Office 2010 Product Key to activate full-featured Office software on this PC.

windows7,vision
                            HDMI_black



Specifications reflected above are engineering and hardware specifications. They do not represent actual usage or operating dimensions, sizes, performances and weights as these are dependent on factors such as operating temperature, type of operating system and application used, connected devices and accessories as well as hardware configurations of the notebook. Please check the compatibility of 3rd party accessories before purchase. Ambient temperature: 5° to 35°C / 41 to 95°F (operating), -15° to 60°C / 5 to 140°F (non-operating). Relative humidity: 20% to 85% RH (operating), 8% to 85% RH (non-operating). Please note that GB = billion bytes. 1GB is equivalent to 1,073,741,824 bytes.

Features and Benefits

lh522_features_03
Be at ease with the effective Spill-resistant Keyboard that works as a buffer to prevent liquid from reaching the device's motherboard.
lh522_features_05
Get faster speed data transfer and better connectivity with the 2 X 3.0 USB and 2 X 2.0 USB ports. Charge external devices whenever, with the Anytime USB Charge even when the laptop is switched off.
lh522_features_06
The new Face Sense Utility, a Fujitsu proprietary software that enables the built-in HD camera to detect user presence and intelligently pauses or stops application or activities on the LIFEBOOK LH522 when users are away from laptop.
lh522_features_07
Equipped with the New AMD® Brazos 2.0 Platform Dual core E2-1800 and integrated HD 7340 APU, enjoy high definition video playback and excellent graphics on this efficient processor.
lh522_features_08
With the DTS Boost™ Sound Enhancement, enjoy beautiful sounds on the LIFEBOOK LH522.

Accessories

LH522-acc-img_01_01 USB PORT REPLICATOR
The elegant docking station connects to your laptop easily, giving you extra ports for multiple device use.
LH522-acc-img_01_03 FUJITSU FLASH CARDS
Agile and reliable, these Flash Cards are capable of storing from 4GB up to 8GB of memory, depending on your preference.
LH522-acc-img_01_04 MOUSE
Ergonomically designed to fit comfortably in your palm to bring you effortless navigation.
LH522-acc-img_01_05 USB 3.0 HDD (500GB & 1TB)
The ultimate in security and portability for your files.
LH522-acc-img_01_06 LATEST 23.6” FHD LED MONITOR
Enjoy an ultimate viewing experience with crisp images on a larger screen.
LH522-acc-img_01_07 MINI ROUTER
Connect anywhere in the world with the slim and ultra-lightweight mini router that runs with a speed of up to 150Mbps.
LH522-acc-img_01_08 FUJITSU FLASH DRIVE (8GB - 64GB)
Possessing an ultra fast interface that is compatible to both USB 2.0 and 3.0, this pen like device has a transfer rate of up to 5GB per second.
