FUJITSU PRIMERGY RX1330 M3伺服器

FUJITSU PRIMERGY RX1330 M3 伺服器是入門款的單路機架型伺服器，為符合各種需求而設計，僅需小小的預算，卻有大大的擴充選項。RX1330 M3可安裝高達64 GB RAM、具備3個PCIe插槽，以及多達10個硬式磁碟槽。
  • Intel®/sup Xeonsup® processor
  • Microsoft Windows Server 2016
特色 優勢
  • 高能效
  • Fujitsu ServerViewTM 伺服器管理軟體以及內建的遠端管理功能 (iRMC S4) 實現了集中化的管理
  • Cool-safe® Advanced Thermal Design 允許在更高環境溫度下的營運
  • 能源成本的顯著下降
  • 完備且簡化的管理降低了標準管理任務的時間
  • 每上升一度可節省約5-6%的空調能源成本
  • Intel Xeon E3-1200 v6 處理器以及其高達 64 GB DDR4的RAM，具備多達3個PCIe插槽，以及10個儲存磁碟槽可自由選擇最多達4個3.5吋或是最多達10個2.5吋儲存磁碟槽的配置
  • 具成本優勢、適合檔案、基礎建設以及通訊應用的平台
  • 具備符合個別需求的彈性
  • 龐大的儲存量，能滿足大量需要儲存空間的應用程序或服務
  • 可選擇Intel Xeon E3 v5, Core i3, Celeron 或 Pentium 處理器
  • 模組化的RAID控制器
  • 備援風扇
  • 熱插拔及備援的電源供應器，具備80 PLUS 白金及能源效率(94 %)
  • 全高型PCIe插槽
  • 在可用預算內完美符合效能需求
  • 在可用預算內達到備援需求
主機板類型 D3375
晶片組 Intel® C236
產品類型 單路機架式伺服器
處理器 1 x Intel® Pentium® 處理器
Intel®CoreTM i3 處理器
Intel® Xeon®E3-1200v6 處理器產品系列
Intel® Celeron® 處理器
記憶體 4 GB - 64 GB, DIMM (DDR4)
記憶體保護 ECC
選配光碟機 Blu-ray DiscTM Triple Writer, (6x BD-RW, 8x DVD, 24x CD), ultraslim, SATA I
DVD Super Multi ultra slim , (8x DVD; 24x CD), ultraslim, SATA I
PCI-Express 3.0 x4 1 x 半高
PCI-Express 3.0 x8 2 x 半高型 175mm; PCIe第一個插槽專供RAID模組使用
插槽說明 可選配1 x 全高型 PCIe Gen3 x8卡，以取代1x PCIe Gen2 x4 以及 1x PCIe Gen3 x8
儲存磁碟槽 4/8 x 2.5吋熱插拔SAS/SATA 或是 4x 3.5吋熱插拔SAS/SATA 或 10 x 2.5吋熱插拔SAS/SATA
可用磁碟槽 1 x 5.25/0.4吋供 CD-RW/DVD使用
10x 2.5吋硬碟基座有下述限制: 無 CD-RW/DVD, 前端僅有1x USB 2.0, 前端無VGA
儲存磁碟 HDD SATA, 6 Gb/s, 500 GB, 7,200 rpm, 512e, hot-plug, 3.5-inch, economic
HDD SATA, 6 Gb/s, 10 TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, business critical
HDD SATA, 6 Gb/s, 8 TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, business critical
HDD SATA, 6 Gb/s, 7,200 rpm, 512e, hot-plug, 3.5-inch, economic
HDD SATA, 6 Gb/s, 6 TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, business critical
HDD SATA, 6 Gb/s, 4 TB, 7,200 rpm, 512n, hot-plug, 3.5-inch, business critical
HDD SATA, 6 Gb/s, 2 TB, 7,200 rpm, 512n, hot-plug, 3.5-inch, business critical
HDD SATA, 6 Gb/s, 2 TB, 7,200 rpm, 512n, hot-plug, 2.5-inch, business critical
HDD SATA, 6 Gb/s, 2 TB, 7,200 rpm, 512e, hot-plug, 2.5-inch, business critical
HDD SATA, 6 Gb/s, 1 TB, 7,200 rpm, 512n, hot-plug, 3.5-inch, business critical
HDD SATA, 6 Gb/s, 1 TB, 7,200 rpm, 512n, hot-plug, 2.5-inch, business critical
HDD SATA, 6 Gb/s, 1 TB, 7,200 rpm, 512e, hot-plug, 2.5-inch, business critical
HDD SAS, 12 Gb/s, 900 GB, 10,000 rpm, 512n, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 900 GB, 10,000 rpm, 512e, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 600 GB, 15,000 rpm, hot-plug, 3.5-inch, enterprise
HDD SAS, 12 Gb/s, 600 GB, 15,000 rpm, 512n, hot-plug, 2.5-inch, enterprise, SED
HDD SAS, 12 Gb/s, 600 GB, 15,000 rpm, 512n, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 600 GB, 10,000 rpm, 512n, hot-plug, 3.5-inch, enterprise
HDD SAS, 12 Gb/s, 600 GB, 10,000 rpm, 512n, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 600 GB, 10,000 rpm, 512e, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 600 GB , 10,000 rpm, 512n, hot-plug, 2.5-inch, enterprise, SED
HDD SAS, 12 Gb/s, 450 GB, 15,000 rpm, hot-plug, 3.5-inch, enterprise
HDD SAS, 12 Gb/s, 450 GB, 15,000 rpm, 512n, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 300 GB, 15,000 rpm, hot-plug, 3.5-inch, enterprise
HDD SAS, 12 Gb/s, 300 GB, 15,000 rpm, 512n, hot-plug, 2.5-inch, enterprise, SED
HDD SAS, 12 Gb/s, 300 GB, 15,000 rpm, 512n, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 300 GB, 10,000 rpm, 512n, hot-plug, 3.5-inch, enterprise
HDD SAS, 12 Gb/s, 300 GB, 10,000 rpm, 512n, hot-plug, 2.5-inch, enterprise, SED
HDD SAS, 12 Gb/s, 300 GB, 10,000 rpm, 512n, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 10 TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, enterprise, SED
HDD SAS, 12 Gb/s, 10 TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, business critical
HDD SAS, 12 Gb/s, 8 TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, business critical
HDD SAS, 12 Gb/s, 6 TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, enterprise, SED
HDD SAS, 12 Gb/s, 6 TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, business critical
HDD SAS, 12 Gb/s, 4 TB , 7,200 rpm, 512e, hot-plug, 3.5-inch, business critical
HDD SAS, 12 Gb/s, 2 TB , 7,200 rpm, 512e, hot-plug, 3.5-inch, business critical
HDD SAS, 12 Gb/s, 2 TB , 7,200 rpm, 512e, hot-plug, 2.5-inch, business critical
HDD SAS, 12 Gb/s, 1.8 TB, 10,000 rpm, 512e, hot-plug, 3.5-inch, enterprise
HDD SAS, 12 Gb/s, 1.8 TB, 10,000 rpm, 512e, hot-plug, 2.5-inch, enterprise, SED
HDD SAS, 12 Gb/s, 1.8 TB, 10,000 rpm, 512e, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 1.2 TB, 10,000 rpm, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 1.2 TB, 10,000 rpm, 512n, hot-plug, 3.5-inch, enterprise
HDD SAS, 12 Gb/s, 1.2 TB, 10,000 rpm, 512e, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 1.2 TB , 10,000 rpm, 512n, hot-plug, 2.5-inch, enterprise, SED
HDD SAS, 12 Gb/s, 1 TB, 7,200 rpm, 512e, hot-plug, 2.5-inch, business critical
固態硬碟 SSD SATA, 6 Gb/s, 960 GB, Read-Intensive, hot-plug, 3.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5years)
SSD SATA, 6 Gb/s, 960 GB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5years)
SSD SATA, 6 Gb/s, 960 GB, Mixed-use, hot-plug, 3.5-inch, enterprise, 3 DWPD (drive writes per day for 5years)
SSD SATA, 6 Gb/s, 960 GB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3 DWPD (drive writes per day for 5years)
SSD SATA, 6 Gb/s, 800 GB, Read-Intensive, hot-plug, 3.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5years)
SSD SATA, 6 Gb/s, 800 GB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5years)
SSD SATA, 6 Gb/s, 480 GB, Read-Intensive, hot-plug, 3.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5years)
SSD SATA, 6 Gb/s, 480 GB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5years)
SSD SATA, 6 Gb/s, 480 GB, Mixed-use, hot-plug, 3.5-inch, enterprise, 3 DWPD (drive writes per day for 5years)
SSD SATA, 6 Gb/s, 480 GB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3 DWPD (drive writes per day for 5years)
SSD SATA, 6 Gb/s, 240 GB, Read-Intensive, hot-plug, 3.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5years)
SSD SATA, 6 Gb/s, 240 GB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5years)
SSD SATA, 6 Gb/s, 240 GB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3 DWPD (drive writes per day for 5years)
SSD SATA, 6 Gb/s, 240 GB, hot-plug, 3.5-inch, enterprise, 3 DWPD (drive writes per day for 5 years)
SSD SATA, 6 Gb/s, 1.92 TB, Mixed-use, hot-plug, 3.5-inch, enterprise, 3 DWPD (drive writes per day for 5years)
SSD SATA, 6 Gb/s, 1.92 TB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3 DWPD (drive writes per day for 5years)
SSD SATA, 6 Gb/s, 1.6 TB, Read-Intensive, hot-plug, 3.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5years)
SSD SATA, 6 Gb/s, 1.6 TB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5years)
SSD SATA, 6 Gb/s, 1.2 TB, Read-Intensive, hot-plug, 3.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5years)
SSD SATA, 6 Gb/s, 1.2 TB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5years)
內建I/O控制器
內建 RAID 0/1 或 RAID 5/6 控制器 (選配)
額外的 RAID 控制器選項請件組件-RAID控制器
Intel® C236, 1 個供可用磁碟槽或SATA DOM使用的連接埠
4 個供內部連接埠供SATA硬碟使用，在Windows 與 Linux下皆支援 RAID 0, 1, 10
內建Intel® i210, 2 x 10/100/1000 Mbit/s 乙太網 (TCP/IP 加速), iSCSI, 支援PXE-Boot 以及 WoL
整合遠端管理控制器 (iRMC S4, 附帶256 MB記憶體, 包含圖型控制器)
相容於IPMI 2.0
可信任平台模組 (TPM) Infineon / TPM 1.2 或 TPM 2.0 模組; TCG compliant (選配)
標準電源供應 300 W (92% 效率)
熱插拔電源輸出 450W (94% 效率)
電源供應配置 1x 標準電源供應 或 1x 熱插拔電源供應 或 2x 熱插拔備援電源供應
有效功率(最大配置) 152W
重量 最多 13 kg
機架尺寸(寬x深x高) 482.6 mm (檔板) / 435.4 mm (機身) x 572 x 42.8 mm
伺服器管理 ServerView Suite
標準 ServerView Suite (Deploy)
ServerView Installation Manager
ServerView Scripting Toolkit
ServerView Suite (Control)
ServerView Operations Manager (incl. PDA and ASR & R)
ServerView Agents and CIM provider
ServerView Agentless Management
ServerView System Monitor
SVOM- Event Manager
ServerView RAID Manager
SVOM- Threshold Manager
Power Monitor (monitoring the Power Consumption)
Power Management (iRMC)
Storage Management (server) with SVOM/SV-RAID
ServerView Suite (Maintain)
iRMC S4 (Remote Mangement)
System Update Manager (BIOS, Firmware, Windows Drives and SV Agents)
Performance management (SVOM)
Asset Management
Primecollect
Customer Self Service
Online Diagnostics
ServerView Suite (Integrate)
ServerView Integration packs for MS System Center, VMware vCenter, VMware vRealize, Nagios, and HP SIM
選配 ServerView Suite (Maintain)
ServerView eLCM
iRMC Advanced Pack incl. Advanced Video Redirection (AVR), video capturing and Virtual Media
ServerView Suite (Dynamize)
ServerView Virtual IO Manager (SVIOM)
Resource Orchestrator- Cloud edition
Resource Orchestrator- virtual edition
標準保固 1 年
服務級別 現場服務
服務生命週期 停產後五年
服務相關連結 http://www.fujitsu.com/fts/services/support
PRAID EP400i / EP420i
151484_tcm21-1025957 8埠的PRAID EP400i為伺服器內部儲存的速度、數據安全等領域樹立了新的標準。憑藉每秒每埠高達12Gbit的資料傳輸，PRIMEGY RAID控制器模組產品系列也隨最新的技術而擴展。
Intel® CT Desktop LAN Adapter
95721_tcm21-26543 Intel Gigabit CT Desktop Adapter使用自動偵測速率的功能以確保轉接卡能在最高的可用網路速度下運作(10, 100, or 1000 Mbps)，並藉由其專用的PCIe I/O保持完整頻寬，提供您可信賴的連接性。
PRIMERGY 10Gb Modular LAN Adapter
W-DK26407_tcm21-26566 新的Fujitsu乙太網D2755伺服器轉接卡是當今苛刻的數據中心環境下最靈活且可擴展的乙太網轉接卡。新的Fujitsu乙太網D2755伺服器轉接卡解決了下一代數據中心的嚴格需求，提供無與倫比的功能，為虛擬化、LAN和SAN網路的彈性提供經驗證且可靠的性能。
X540-T2 2x 10GBase-T LAN Adapter
126337_tcm21-304905 X540-T2主機轉接卡使用Intel最新的乙太網芯片，它為主機板內建網卡(LOM) 採用單芯片解決方案，可為最新的伺服器平台提供10GbE的乙太網路。 10GBase-T使得轉換到10GbE更加簡單，可被部署於資料中心的任何地方。
PLAN CP 2x1Gbit Cu Intelup>® I350-T2
143344_tcm21-697741 你可以信任新的乙太網LAN轉接卡的網路通信!新的Intelup>®I350-T2乙太網LAN轉接卡，基於Intel® 的1GbE網卡Powerville芯片，提供了兩個10/100/1000BaseT 乙太網端口。
PLAN CP 4x1Gbit Cu Intel® I350-T4
143345_tcm21-702544 你可以信任新的乙太網LAN轉接卡的網路通信!新的Intel® I350-T4乙太網LAN轉接卡，基於Intel® 的1GbE網卡Powerville芯片，提供了四個10/100/1000BaseT 乙太網端口。

產品型錄: PRIMERGY RX1330 M3 (英文)

產品型錄: PRIMERGY RX1330 M3 (中文) (585 KB)

PRIMERGY RX1330 M3 系統組態說明書

x86伺服器支援作業系統一覽

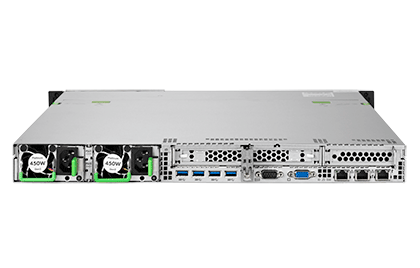

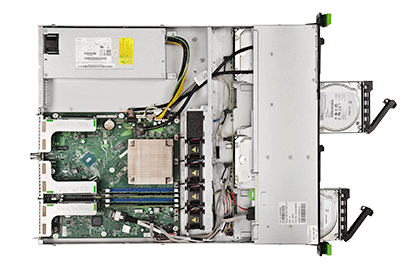

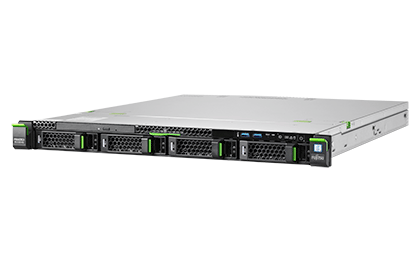

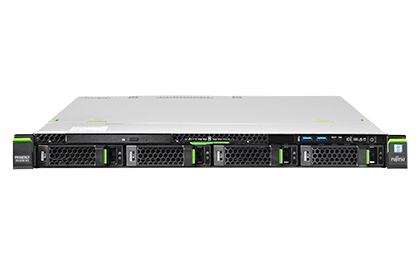

產品圖片

企業型產品型錄

DM :PRIMERGY 伺服器組合

富士通產品使用的電池

服務方案 全球主要商業區域皆適用
9x5, 隔日回應(NBD)
9x5, 4小時到場回應
24x7, 4小時到場回應
建議方案 24x7, 4小時到場回應
