100G QSFP28 Transceiver

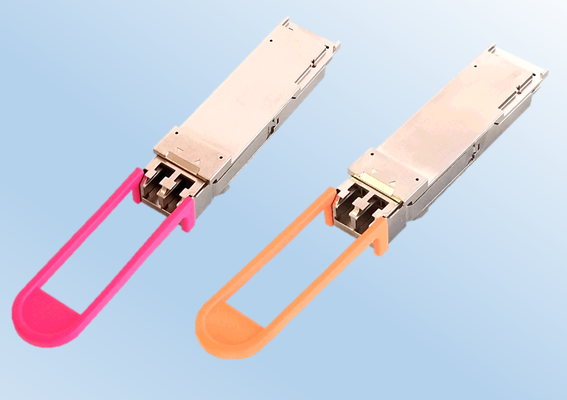

A photo of 100G QSFP28 Transceivers
100G QSFP28 Transceiver

Description

QSFP28-ER4L

  • Reach 40km w/ FEC, 30km w/o FEC
  • Comply with 100GBASE-ER4 IEEE 802.3ba
  • Comply with ITU-T 4L1-9C1F
  • Interoperable with existing CFP/CFP2 ER4
  • High Sensitivity APD ROSA

QSFP28-4WDM40 I-Temp

  • Reach 40km w/ FEC
  • Comply with 4WDM40 MSA
  • Low power consumption : 5W max

Product Line-up

Product Line-up
Part Number Application

Data Rate
[Gbps]

 Wavelength [nm] Distance [km]

Max Power
Consumption [W]

 Tc [ºC]
FIM37801/112 100GBASE-4WDM40
MSA		 103.1

L0: 1294.53 to 1296.59
L1: 1299.02 to 1301.09
L2: 1303.54 to 1305.63
L3: 1308.09 to 1310.19

 40
(*2)		 4.8 0 to 70
FIM37801/162 100GBASE-ER4L 103.1/111.8 40/30
(*3)		 4.7 0 to 70
FIM37801/172 103.1 40/30
(*1)		 4.7 0 to 70
FIM37811/112 100GBASE-4WDM40
MSA		 103.1 40
(*2)		 5 -40 to 85
FIM37000/172(*4) 100GBASE-ZR4
TxOMA+2.5dBm		 103.1 80
(*5)		 5.5 0 to 70
FIM37000/173(*4) 100GBASE-ZR4
TxOMA+3.5dBm		 103.1 5.5
FIM39800/172(*4) 100GBASE-ER1 106.25 L: 1308.09 to 1310.19 40
(*6)		 4.5 0 to 70
FIM39910/172(*4) 100GBASE-ER1-Bidi 106.25 L: 1308.09 to 1310.19 30
(*6)		 4.5 -40 to 85
FIM39920/172(*4) L: 1303.54 to 1305.63
FIM39710/172(*4) 100GBASE-LR1-Bidi 106.25 L: 1308.09 to 1310.19 20
(*6)		 4.5 -40 to 85
FIM39720/172(*4) L: 1294.53 to 1296.56

(*1) 30km interoperability w/ existing ER4 (w/o FEC), 40km w/ host card's RS (528, 514) FEC
(*2) 40km w/ host card’s RS(528, 514) FEC
(*3)103.1 Gbps: 30km interoperability w/ exlsting ER4 (w/o FEC), 40km w/ host card's RS(528,514) FEC
111.8Gbps: 30km w/ host card's RS(528,514) FEC
(*4)Under development
(*5)80km w/ host card's RS(528,514) FEC
(*6)with KP1 FEC inside Module
