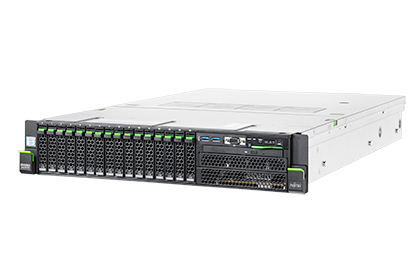

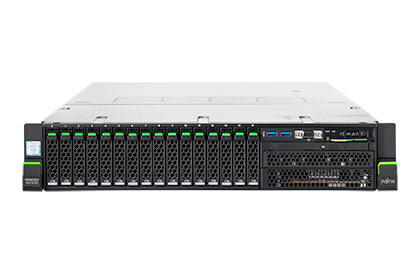

FUJITSU Server PRIMERGY RX4770 M5

FUJITSU Server PRIMERGY RX4770 M5

Power for the backend of digitalization
Fulfils the requirements of solutions operating ‘in-memory’ such as SAP HANA
Ideal for server consolidation, databases, business processing, and data-intensive applications
High density 2U form factor with up to enormous 15 TB memory
Extended RAS-features for fail-safe operation

Lue lisää


INNOVATION MEETS PERFORMANCE	ENHANCED FEATURES FOR ENHANCED COMPUTING	REVOLUTIONIZING MEMORY AND STORAGE	INFRASTRUCTURE MANAGEMENT
Ready for the future and data growth scenarios with the performance of two processors – marking the standard of tomorrow with an increase in computing power. New SKUs of the 2nd generation Intel^® Xeon^® Scalable processors deliver additional customer value with increased performance and industry leading frequency for the most demanding workloads.	Business-critical RAS features lower the risk for unplanned IT downtimes. The systems’ enhanced set of features adds even more reliability, availability, and serviceability that customers need to run business-critical applications.	Optimize, store, and move larger, more complicated data sets with Intel^® Optane™ technology. This revolutionary innovation bridges critical gaps in the storage and memory hierarchy delivering persistent memory, large memory pools, fast caching and fast storage.	Converged data center management that provides organizations centralized control over the entire infrastructure that includes servers, storage, networking, cloud management software as well as power and cooling using a single user interface.

INNOVATION MEETS PERFORMANCE
Ready for the future and data growth scenarios with the performance of two processors – marking the standard of tomorrow with an increase in computing power. New SKUs of the 2nd generation Intel^® Xeon^® Scalable processors deliver additional customer value with increased performance and industry leading frequency for the most demanding workloads.
ENHANCED FEATURES FOR ENHANCED COMPUTING
Business-critical RAS features lower the risk for unplanned IT downtimes. The systems’ enhanced set of features adds even more reliability, availability, and serviceability that customers need to run business-critical applications.
REVOLUTIONIZING MEMORY AND STORAGE
Optimize, store, and move larger, more complicated data sets with Intel^® Optane™ technology. This revolutionary innovation bridges critical gaps in the storage and memory hierarchy delivering persistent memory, large memory pools, fast caching and fast storage.
INFRASTRUCTURE MANAGEMENT
Converged data center management that provides organizations centralized control over the entire infrastructure that includes servers, storage, networking, cloud management software as well as power and cooling using a single user interface.

Product Video

Tech Specs

Chipset	Intel^® C624
Mainboard type	D3753
Product Type	Quad Socket Rack Server
Processor	Intel^® Xeon^® Gold 5xxx processor, Intel^® Xeon^® Gold 6xxx processor, Intel^® Xeon^® Platinum 8xxx processor 2 or 4 4
Memory	16 GB - 15 TB, DIMM (DDR4 / DDR-T for non-volatile memory modules)
Memory slots	48 (12 DIMMs per CPU, 6 channels with 2 slots per channel)
Memory protection	Advanced ECC, Memory Scrubbing, SDDC, Memory Mirroring support, Rank sparing memory support
Drives (optional)	DVD supermulti, ultraslim, SATA I
PCI-Express 3.0 x16	8 x whereas 4x full height and 4x low profile with up to 167mm length
Optional accessible drives	1 x 5.25/9.5mm for DVD-RW/Blu-ray All possible options described in relevant system configurator.
Storage drive bays	2.5-inch hot-plug SAS/SATA/PCIe 2 x M.2 slot whereas slot 1 supports 80mm or 110mm and slot 2 supports 42mm or 80mm 16 x 2.5-inch hot-plug SAS/SATA/PCIe 8 x 2.5-inch hot-plug SAS/SATA/PCIe
LAN Controller	DynamicLoM based on Intel^® C624 (Intel^® X722) Optional DynamicLoM OCP adaptors:, 2 x 10 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s SFP+, 4 x 1 Gbit/s Ethernet (RJ45), 4 x 10 Gbit/s SFP+
Remote Management	Integrated Remote Management Controller (iRMC S5, 512 MB attached memory incl. graphics controller), IPMI 2.0 compatible
USB ports	5 x USB 3.0 (2x front, 2x rear, 1x internal)
Graphics	2 x VGA (1 x front, 1 x rear)
Management LAN (RJ45)	1 x dedicated management LAN port for iRMC S5 (10/100/1000 Mbit/s), Management LAN traffic can be switched to shared onboard LAN controller port, speed and connector is related to installed interface card.
Trusted Platform Module (TPM)	Infineon / TPM 1.2 or TPM 2.0 module; TCG compliant (option)
Power supply configuration	2 hot-plug power supplies (standard), single power supply configuration possible
Active power (max. configuration)	2,335 W
Weight	max. 29.7 kg
Rack (W x D x H)	482.6 mm (Bezel) / 434.8 mm (Body) x 724.8 x 86.9 mm
Mounting Depth Rack	741.3 mm
DC Infrastructure Management	Infrastructure Manager (ISM) Essential Advanced
Server Management	Infrastructure Manager (ISM) Essential Advanced, ServerView Suite
Operating system	http://docs.ts.fujitsu.com/dl.aspx?id=d4ebd846-aa0c-478b-8f58-4cfbf3230473
Warranty period	3 years
Warranty type	Onsite warranty
Service Lifecycle	5 years after end of product life
Service Weblink	http://www.fujitsu.com/emeia/products/product-support-services/

Support Pack Options

Globally available in major business areas:
9x5, Next Business Day Onsite Response Time
9x5, 4h Onsite Response Time (depending on country)
24x7, 4h Onsite Response Time (depending on country)

Recommended Service

24x7, Onsite Response Time: 4h - For locations outside of EMEA please contact your local Fujitsu partner.

Support Pack Options	Globally available in major business areas: 9x5, Next Business Day Onsite Response Time 9x5, 4h Onsite Response Time (depending on country) 24x7, 4h Onsite Response Time (depending on country)
Recommended Service	24x7, Onsite Response Time: 4h - For locations outside of EMEA please contact your local Fujitsu partner.

Read full specs

Resources

Datasheets

Technical Details

Brochures & Flyers

Videos

Whitepaper

Support Packs

Components

	FUJITSU PRAID CP400i - 8 port 12Gb/s SAS, 6Gb/s SATA The Fujitsu PRAID CP400i SAS/SATA controller card based on the LSI SAS3008 allows latest RAID technology at affordable prices with low power consumption. The PRAID CP400i MegaRAID entry controller card offer users a straight-forward solution that includes essential RAID levels and uncomplicated configuration options.
	FUJITSU PRAID EP540i The Fujitsu RAID Controller PRAID EP540i with 4GB cache and16x12Gbit/s SAS ports improves performance for storage intensive workloads such as databases and sets new speed and data security standards for internal storage drives. The new PRAID EP540i supports up to 16 SAS/SATA drives, up to 4 NVMe PCIe drives or a mixture of SAS/SATA and NVMe drives. NVMe is an interface with lower overhead, lower latency and drastically increased bandwidth and IOP's. The RAID stack is based on the Broadcom MegaRAID^® and offers high data throughput, a comprehensive fault tolerance function and user-friendly management options. Moreover, the Controller management is integrated seamlessly into the Fujitsu server management concept. All controller functions are supported by the Fujitsu ServerView RAID Manager. The PRAID EP540i is designed for 3, 6 and 12Gbit/s SAS as well as for 3 and 6Gbit/s SATA drives. Regardless of the drive speed, it delivers significant performance improvements in both read and write applications.
	Fujitsu PSAS CP400i The PSAS CP400i, eight port SAS/SATA host bus adapter provides increased connectivity and maximum performance for high-end servers and applications within internal and external storage. Performance is based on the LSI SAS3008 IO controller, integrating the latest enhancements in SAS and PCI Express 3.0 technology.
	Fujitsu PSAS CP400e The PSAS CP400e, eight port SAS/SATA host bus adapter provides increased connectivity and maximum performance for high-end servers and applications within internal and external storage. Performance is based on the LSI SAS9300 IO controller, integrating the latest enhancements in SAS and PCI Express 3.0 technology.
	FUJITSU PACC EP QAT8970 The Fujitsu PLAN EP Intel X710-DA2 SFP+ Server Adapter is the most flexible and scalable Ethernet adapter for the current demanding data center environments. The X710 adapter family addresses the demanding needs of the next-generation agile data center by providing unmatched features for both server and network virtualization, flexibility for LAN and SAN networks and proven, reliable performance.
	Intel^® X550-T2 2x 10GBase-T LAN Adapter 10 GbE for the Broad Market. The Intel Ethernet Network Adapter X550-T2 is the newest innovation in Intel's leadership to drive 10 GbE into the broad server market. This adapter hosts Intel's latest silicon, the Intel Ethernet X550 controller, a low-cost single chip 10GBASE-T solution for today's server platforms.
	FUJITSU PLAN EP MCX4-LX 25GbE SFP28 The FUJITSU PLAN EP MCX4-LX 25GbE is based on Mellanox’s ConnectX^®-4 Lx EN (Dual port) Network Interface Card. ConnectX-4 Lx EN Network Controller with 10/25Gb/s Ethernet connectivity addresses virtualized infrastructure challenges, delivering best-in-class and highest performance to various demanding markets and applications. Providing true hardware-based I/O isolation with unmatched scalability and efficiency, achieving the most cost-effective and flexible solution for Web 2.0, Cloud, data analytics, database, and storage platforms. 25Gb Ethernet (25GbE) enables network bandwidth to be cost-effectively scaled in support of next-generation server and storage solutions residing in Cloud and Web-scale data center environments. The 25GbE results in a single switch lane connection similar to existing 10GbE technology—but it delivers 2.5 times greater bandwidth. Compared to 40GbE solutions, 25GbE technology provides superior switch port density by requiring just a single switch lane compared to the 40GbE with four lanes. FUJITSU PLAN EP MCX4-LX 25GbE Dual-Port 10/25GbE Network Interface Cards deliver advanced Ethernet solutions designed for FUJITSU Server PRIMERGY and PRIMEQUEST systems with Microsoft Windows Server 2016 and 2012 R2, Red Hat Enterprise Linux 7, SuSE Linux Enterprise Server 12, VMware ESXi 6.5. Designed for SUSE Linux Enterprise Server 12 SP2 operating system supporting use cases such as SAP HANA^®, and for Microsoft Windows Server 2016 operating system supporting use cases such as Storage Spaces Direct certified with Premium and Standard SDDC (Software Defined Data Center) qualifiers.
	FUJITSU PLAN EP QL41212 25/10GbE SFP28 The Fujitsu PLAN EP QL41212 is based on Cavium's QLogic^® FastLinQ™ QL41212HLCU Dual Port RDMA Network Interface Adapter. This intelligent Ethernet adapter uses QLogic’s eights generation technology to deliver true 10/25Gb per second (10/25Gbps) Ethernet performance per port. Integrated, advanced networking eliminates I/O bottlenecks and conserves CPU cycles. 25Gb Ethernet (25GbE) enables network bandwidth to be cost-effectively scaled in support of next-generation server and storage solutions residing in cloud and web-scale data center environments. The 25GbE results in a single-lane connection similar to existing 10GbE technology—but it delivers 2.5 times greater bandwidth.
	FUJITSU PLAN EP QL45611 100Gb QSFP28 The FUJITSU PLAN EP QL45611 100GbE is based on Marvell's^® FastLinQ™ QL45611 HLCU (Single port) Network Interface Card. QL45611 Network Controller with 100Gb/s Ethernet connectivity addresses virtualized infrastructure challenges, delivering high performance to various demanding markets and applications. Providing true hardware-based I/O isolation with unmatched scalability and efficiency, achieving the most cost-effective and flexible solution for Web 2.0, Cloud, data analytics, database, and storage platforms. 100Gb Ethernet (100GbE) enables network bandwidth to be cost-effectively scaled in support of next-generation server and storage solutions residing in Cloud and Web-scale data center environments. FUJITSU PLAN EP QL45611 100GbE Network Interface Cards deliver advanced Ethernet solutions designed for FUJITSU Server PRIMERGY and PRIMEQUEST systems with Microsoft Windows Server 2016, Red Hat Enterprise Linux 7, SuSE Linux Enterprise Server 12, VMware ESXi 6.5.

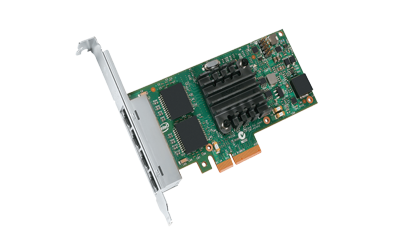

	FUJITSU PLAN CP 4x1Gbit Cu Intel^® I350-T4 Trust the network communication of the new Ethernet LAN adapter. The new Intel I350-T4 Ethernet LAN Adapter, based on the latest Intel^® 1GbE chip technology, offers four Gigabit Ethernet ports for 10/100/1000BaseT.
