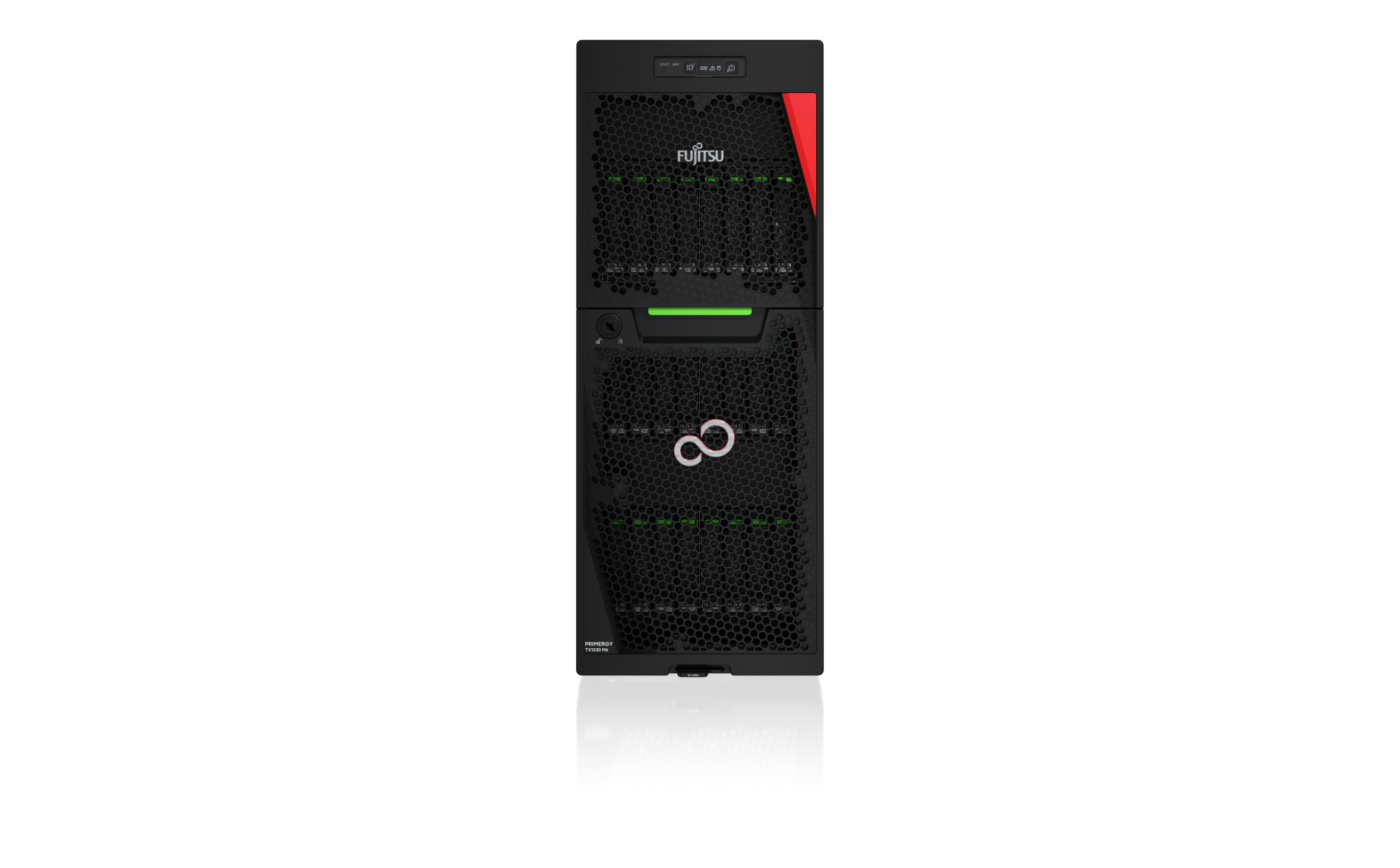

PRIMERGY TX1330 M6

Highly expandable new-generation server for typical SME business requirements

PRIMERGY TX1330 M6

PRIMERGY Server TX1330m5

PRIMERGY TX1330 M6

PRIMERGY TX1330 M6

  • Powerful processing with Intel® Xeon® E-2400 processor, delivering exceptional performance for demanding workloads
  • Expandable memory with support for up to 128GB DDR5 memory, users can seamlessly multitask and handle data-intensive applications with ease
  • The server accommodates up to 24 2.5-inch hot-plug storage devices, ensuring ample space for data storage and backup
  • Future ready - 4x PCIe 5.0/4.0 (2x 5.0) slots, a range of advanced options, OS choices and a rack upgrade kit
  • Advanced management features with iRMC S6 and the Fujitsu Infrastructure Management Suite, users benefit from efficient remote server management and centralized infrastructure oversight

ImgPlaceholder ImgPlaceholder ImgPlaceholder ImgPlaceholder
Powerful Processing
Expandable Memory
Versatile Storage Options
High Availability

By harnessing the powerful processing capabilities of the TX1330 M6, businesses can tackle complex tasks with ease, such as data analysis, virtualization, and database management. This results in faster decision-making, improved efficiency, and enhanced competitiveness in the market. Moreover, employees experience smoother operation and reduced wait times, leading to increased productivity and job satisfaction.

With the TX1330 M6's support for up to 128GB DDR5 memory, businesses can run memory-intensive applications seamlessly, ensuring optimal performance and responsiveness. Employees can multitask efficiently without experiencing slowdowns, leading to faster completion of tasks and improved workflow efficiency. Additionally, the expandable memory capacity future-proofs the server, allowing businesses to accommodate growing workloads and data requirements with ease.

The TX1330 M6's versatile storage configurations provide businesses with the flexibility to store and access large volumes of data efficiently. Whether it's hosting critical business applications, storing multimedia content, or managing backups, the server's extensive storage options ensure data accessibility and reliability. This enables businesses to maintain continuity of operations, comply with data retention policies, and support evolving storage needs without compromising performance or scalability.

With redundant power supplies and fans, the TX1330 M6 ensures high availability and reliability, minimizing the risk of unplanned downtime and associated costs. Businesses can rely on continuous access to critical applications and data, maintaining productivity and customer satisfaction. The server's robust design provides peace of mind, allowing businesses to focus on their core activities without worrying about hardware failures or service disruptions, ultimately enhancing business continuity and resilience.

  • ImgPlaceholder
    Powerful Processing
    By harnessing the powerful processing capabilities of the TX1330 M6, businesses can tackle complex tasks with ease, such as data analysis, virtualization, and database management. This results in faster decision-making, improved efficiency, and enhanced competitiveness in the market. Moreover, employees experience smoother operation and reduced wait times, leading to increased productivity and job satisfaction.
  • ImgPlaceholder
    Expandable Memory
    With the TX1330 M6's support for up to 128GB DDR5 memory, businesses can run memory-intensive applications seamlessly, ensuring optimal performance and responsiveness. Employees can multitask efficiently without experiencing slowdowns, leading to faster completion of tasks and improved workflow efficiency. Additionally, the expandable memory capacity future-proofs the server, allowing businesses to accommodate growing workloads and data requirements with ease.
  • ImgPlaceholder
    Versatile Storage Options
    The TX1330 M6's versatile storage configurations provide businesses with the flexibility to store and access large volumes of data efficiently. Whether it's hosting critical business applications, storing multimedia content, or managing backups, the server's extensive storage options ensure data accessibility and reliability. This enables businesses to maintain continuity of operations, comply with data retention policies, and support evolving storage needs without compromising performance or scalability.
  • ImgPlaceholder
    High Availability
    With redundant power supplies and fans, the TX1330 M6 ensures high availability and reliability, minimizing the risk of unplanned downtime and associated costs. Businesses can rely on continuous access to critical applications and data, maintaining productivity and customer satisfaction. The server's robust design provides peace of mind, allowing businesses to focus on their core activities without worrying about hardware failures or service disruptions, ultimately enhancing business continuity and resilience.

Product Video

Tech Specs

Chipset Intel® C266
Mainboard type D4132
Processor Intel® Xeon® E-2400 processor family, Intel® Pentium® processor
Memory 16 GB - 128 GB, UDIMM (DDR5)
Memory slots 4
Memory protection ECC
Drives (optional) CD-RW / DVD Combo, ultraslim, SATA III
DVD-ROM, ultraslim, SATA III
LTO7HH Ultrium, 300 MB/s
DVD supermulti, ultraslim, SATA I
Blu-ray Disc™ Triple Writer, ultraslim, SATA I
LTO7HH Ultrium, 300 MB/s, 2,500 GB, SAS 6Gb/s
LTO7HH Ultrium, 300 MB/s, SAS 6Gb/s
Accessible drive bays 3 x 5.25/1.6-inch
Accessible drive bays are not available in case of max. storage drive configuration
3 x 5.25/1.6-inch for 1 x backup drive + 1 x ODD
Optional accessible drives all possible options described in relevant system configurator
Storage drive bays 3.5-inch or 2.5-inch hot-plug SAS/SATA
Max. 12x 3.5-inch or 24x 2.5-inch
Max. 4x 3.5-inch or 8x 2.5-inch
LAN Controller Intel® i210 onboard
2 x 1 Gbit/s Ethernet (RJ45)
Remote Management Integrated Remote Management Controller (iRMC S6, 1024 MB attached memory incl. graphics controller)
USB ports 9 (Front: 1x USB 3.2 Gen2x2(20 Gbps) Type C, 1x USB 3.2 Gen1x1(5 Gbps) / Rear:, 6x USB 3.2 Gen1x1(5 Gbps) /
Internal: 1x USB 3.2 Gen1x1(5 Gbps))
Graphics 1 x VGA (15-pin)
Management LAN (RJ45) 1 x dedicated management LAN port for iRMC S6 (10/100/1000 Mbit/s), Management LAN traffic can be switched to shared onboard Gbit LAN port
Trusted Platform Module (TPM) TPM 2.0 module (option)
Power supply configuration 1 x standard, 1 x hot-plug, 2 x hot-plug redundant (depending on Model)
Active power (max. configuration) 507 W
Weight Floor system: max.28.8 kg
Rack system: max. 25.8 kg [31.3 kg(including RMK/CMA)]
Rack (W x D x H) 484 mm (Bezel) / 448 mm (Body) x 505 (including protrusion: 543) x 175 mm
Floor-stand (W x D x H) 178 x 534 (including protrusion: 548) x 448 (with feet: 457) mm
DC Infrastructure Management Infrastructure Manager (ISM)
Essential Edition
Advanced Edition
Server Management Infrastructure Manager (ISM), ServerView Agentless Service (SVAS), ServerView ESXi CIM Provider, ServerView Installation Manager (SVIM), ServerView embedded Lifecycle Management (eLCM)
Lifecycle management
Operating system http://docs.ts.fujitsu.com/dl.aspx?id=d4ebd846-aa0c-478b-8f58-4cfbf3230473
Manufacturer warranty period 1 year
Manufacturer warranty type Onsite warranty
Service Lifecycle at least 5 years after shipment, for details see https://support.ts.fujitsu.com/
Service Weblink http://www.fujitsu.com/fts/products/product-support-services/
Service Weblink http://www.fujitsu.com/fts/products/product-support-services/
Recommended Service 24x7 Onsite Service with 4h Onsite Response Time
Recommended Service 24x7 Onsite Service with 4h Onsite Response Time

Components

Fujitsu PRAID EP520i

The Fujitsu RAID Controller PRAID EP520i with 2GB cache and 8x12Gbit/s SAS ports improves performance for storage intensive workloads such as databases and sets new speed and data security standards for internal storage drives. The new PRAID EP520i supports up to 8 SAS/SATA drives or up to 2 NVMe drives. NVMe is an interface with lower overhead, lower latency and drastically increased bandwidth and IOP's. The NVMe drive support will be available at a later date, but the SAS and SATA drives will benefit from the improved performance and higher cache size.The RAID stack is based on the Broadcom MegaRAID® and offers high data throughput, a comprehensive fault tolerance function and user-friendly management options.

Fujitsu PFC QLE2690 / QLE2692 Fibre Channel Adapters

The enhanced Gen5 16 Gb/s Fibre Channel Host Bus Adapters (HBA) QLE2690 and QLE2692 for the PRIMERGY & PRIMEQUEST servers are ideal for virtualized environments and transaction intensive applications. The adapters support the latest PCIe 3.0 standard for lower cooling and power costs. In addition, QLogic StorFusion technology delivers streamlined provisioning, guaranteed quality of service (QoS), and improved resiliency while addressing the needs of IT organizations that require reliability, integrated management, and guaranteed network performance.

FUJITSU PFC EP Emulex LPe31000 / LPe31002 Fibre Channel Adapters

The Emulex Gen 6 16 Gb Fibre Channel (FC) Host Bus Adapters (HBA) by Broadcom for PRIMERGY and PRIMEQUEST server systems are optimal Fibre Channel HBAs for virtualized, cloud and mission critical deployments. The PFC EP Emulex Gen 6 Fibre Channel HBAs LPe31000/31002 by Broadcom take performance to a new level with PCIe 3.0 support, data integrity capabilities and cloud scale reliability, and ease of use. Organizations looking to improve performance, protect against data corruption, and simplify operations of FC SANs in cloud or high performance environments can benefit from deploying the PFC EP LPe31000/31002.
