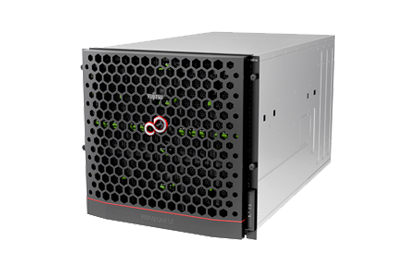

FUJITSU Server PRIMEQUEST 2800E Mission Critical

Keyboard shortcuts for the player:
  • F: Fullscreen
  • Esc: Exit fullscreen
  • ↑: Volume up
  • ↓: Volume down
  • ←: 5 sec. back
  • →: 5 sec. forward
  • Space: Play/Pause
  • S: Subtitle On/Off
Fujitsu’s PRIMEQUEST 2800E unite the economic and flexibility benefits of x86 industry standards with mission-critical uptime features. Featuring eight of the Intel® Xeon® processor E7-8800 v2 product family which deliver up to 120 cores and 12TB memory, the PRIMEQUEST provides unprecedented performance and memory capacity for demanding solutions. Mission critical features also enable outstanding platform reliability with innnovative error prevention and self-healing capabilities.
  • Intel®/sup Xeonsup® processor
  • 3Star Icon - Green IT

Features & Benefits

Features Benefits
Combines x86 industry standard with mission-critical features
Eliminate costs related to the UNIX world
New levels of energy efficiency
Unity of x86 efficiency and flexibility with mission-critical availability
Lower license fees and software maintenance costs for Oracle databases
Different partitioning available: From software partitioning to completely isolated physical partitioning
Up to four physical partitions: Failures of one partition do not influence other partitions
Active reserved system board for fast automatic recovery of services, in many cases without downtime
Flexible I/O ensures availability of PCIe devices
Almost everything is redundant
Online maintenance
Flexible platform to best meet individual requirements
Business continuity ensured even if there is a failure in one of the partitions
Its built-in error prevention/correction and self-healing capabilities result in outstanding platform reliability
All serviceable system modules can be accessed from the front or rear of the system without any cabling hassle. Moreover, Dynamic Reconfiguration enables online maintenance without the need for restarts or planned downtimes
8x Intel® Xeon® processor E7-8800 v2 product family with up to 120 cores
192 DIMM slots enable a configuration of up to 12TB memory
´Glue-less‘ design, no external QPI cables
Many I/O expansion options for up to 56 PCIe slots
Dynamic Reconfiguration enables changes in the configuration of resources and system boards without stopping the application
Unprecedented performance and memory capacity for demanding corporate databases, in-memory solutions and mission-critical applications
I/O throughput ensured
Efficient usage of available resources and simplified resource management without any need for restarts

Technical details

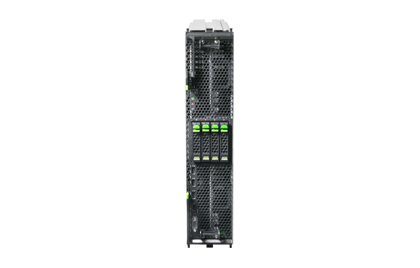

Mainboard typeup to 4 x Systemboard
Product TypeOcto Socket Rack Server
ProcessorIntel® Xeon® processor E7-8800v2 product family
Memory16 GB - 12 TB, DIMM (DDR3) LV
Memory protectionECC, Memory Mirroring support, Advanced ECC, DDDC (Double Device Data Correction), SDDC
Storage drive bays2.5-inch hot-plug SAS
Max. 24 x 2.5-inch
Storage drivesPCIe-SSD, 785 GB, MLC, Flash drive, 7.7 DWPD (drive writes per day)
PCIe-SSD, 1.2 TB, MLC, Flash drive, 7.7 DWPD (drive writes per day)
PCIe-SSD, 365 GB, MLC, Flash drive, 6 DWPD (drive writes per day)
SSD SAS, 12 Gb/s, 200 GB, Mainstream Endurance, hot-plug, 2.5-inch, enterprise
SSD SAS, 12 Gb/s, 400 GB, Mainstream Endurance, hot-plug, 2.5-inch, enterprise
SSD SAS, 12 Gb/s, 800 GB, Mainstream Endurance, hot-plug, 2.5-inch, enterprise
SSD SAS, 12 Gb/s, 1.6 TB, Mainstream Endurance, hot-plug, 2.5-inch, enterprise
HDD SAS, 6 Gb/s, 300 GB, 15,000 rpm, hot-plug, 2.5-inch, enterprise
HDD SAS, 6 Gb/s, 300 GB, 10,000 rpm, hot-plug, 2.5-inch, enterprise
HDD SAS, 6 Gb/s, 600 GB, 10,000 rpm, hot-plug, 2.5-inch, enterprise
HDD SAS, 6 Gb/s, 900 GB, 10,000 rpm, hot-plug, 2.5-inch, enterprise
HDD SAS, 6 Gb/s, 1.2 TB, 10,000 rpm, hot-plug, 2.5-inch, enterprise
I/O controller onboardRAID 0/1 or RAID 5/6 controller integrated in System board and/or Disk Unit (option)
options are described under Components RAID controller
(4 x 10/100/1000 Mbit/s Ethernet), 10GBase-SR SFP+ optical module, 2 x 10 Gbit/s Ethernet

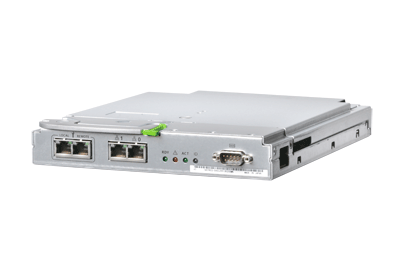

PQ2000 Management Board (MMB)
Power supply configurationUp to 6 hot plug power supplies.
Base unit equipped with 0 power supplies, redundancy as option.
Active power (max. configuration)6,110 W
WeightUp to 150 kg
Rack (W x D x H)445 x 782 x 438 mm
Server ManagementServer Management
StandardServerView Suite - Maintain
Remote Management (iRMC)
Update Management (BIOS, Firmware, Windows Drives and SV Agents)
Performance Measurement
Asset Management
Online Diagnostics, ServerView Suite - Integrate
Integration packs e.g. for Microsoft System Center, VMware vCenter, Nagios, HP SIM and others, Deployment Solutions and others, ServerView Suite - Deploy
SV Installation Manager, ServerView Suite - Control
Operations Manager incl. PDA and ASR & R
(Prefailure and Analysis; Automatic Server Recovery and Restart)
Agents and CIM Providers
System Monitor
RAID Manager
Capacity Management
Power Management
Storage Support
Standard Warranty3 years
Service LevelOnsite Service (depending on country)
Service Lifecycle5 years after end of product life
Service Weblinkwww.fujitsu.com/support

Components

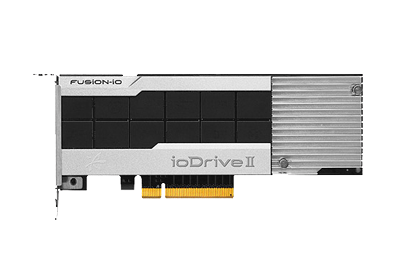

ioDrive®2 Solid-State Storage devices
The ioDrive®2 storage devices from Fusion-io® is an advanced storage device that uses solid state technology directly on the PCIe bus, by using PCIe form factor.This new solid state technology provides high read and write data rates and accelerates application performance.
LPe1250 Fibre Channel card
Streamlined installation and management, unrivaled scalability, and industry-leading virtualization support make the single-channel LPe1250 Fibre Channel host bus adapter (HBA) an ideal solution for mixed-OS SAN environments. With powerful management capabilities and broad platform support, it delivers maximum performance in the broadest range of applications and environments.
LPe12002 Fibre Channel card
Streamlined installation and management, unrivaled scalability, and industry-leading virtualization support make the single-channel Emulex LightPulse LPe12000 and dual-channel LPe12002 Fibre Channel host bus adapters (HBA) ideal solutions for enterprise, mixed-OS and virtual server environments.
LPe16000 / LPe16002 Fibre Channel cards
The new 16 Gb/s Fibre Channel Host Bus Adapters (HBA) for the PRIMERGY servers are optimal Fibre Channel HBAs for virtualized, cloud and mission critical deployments. The Fibre Channel HBA LPe16000/16002 take performance to a new level with PCIe 3.0 support, data integrity capabilities, cloud scale reliability, and ease of use. Organizations looking to improve performance, protect against data corruption, and simplify operations of FC SANs in cloud or high performance environments can benefit from deploying the LPe16000/16002.
RAID Controller SAS 6Gbit/s 1GB (D3116C)
The 8 port Fujitsu RAID Controller SAS 6Gbit/s 1GB (D3116C) sets new standards in the fields of speed and data security for internal server memories. With a data transfer of up to 6Gbit/s per port the PRIMEGY Modular RAID Controller family is extended to included the latest technology.
InfiniBand HCA 40 Gb 1/2 port QDR enhanced
PRIMERGY Controller IB HCA 56Gb 2-port-FDR (top)The InfiniBand HCA 40 Gb/s single/dual port adapter cards with Virtual Protocol Interconnect (VPI) and Ethernet connectivity provide the highest performing and most flexible interconnect solution for Enterprise Data Centers, High-Performance Computing, and Embedded environments.
InfiniBand HCA 56 Gb 1/2 port FDR
PRIMERGY Controller IB HCA 56Gb 2-port-FDR (top)The InfiniBand HCA 56 Gb/s single/dual port adapter cards with Virtual Protocol Interconnect (VPI) and Ethernet connectivity provide the highest performing and most flexible interconnect solution for Enterprise Data Centers, High-Performance Computing, and Embedded environments.
X540-T2 2x 10GBase-T LAN Adapter
The X540-T2 adapter hosts Intel’s latest Ethernet silicon, which uses a single chip solution for "LAN on Motherboard" (LOM) to deliver 10 Gigabit Ethernet (10 GbE) on the latest server platforms. 10GBase-T simplifies the transition to 10 GbE and it can be deployed anywhere in your data center.
PRIMERGY 10Gb Modular LAN Adapter
PRIMERGY Ethernet Controller D2755 2 port 10Gbit  1The new Fujitsu Ethernet D2755 Server Adapter is the most flexible and scalable Ethernet adapter for today’s demanding data center environments. The Fujitsu Ethernet D2755 Server Adapter addresses the demanding needs of the next-generation data center by providing unmatched features for virtualization, flexibility for LAN and SAN networking, and proven, reliable performance.
