FUJITSU Workstation CELSIUS H780

FUJITSU CELSIUS H780 combines ultimate security with future technologies. While creatives and innovators are working on increasingly huge datasets, this machine will not weigh them down when showcasing designs in virtual reality at events or at the customer site.

  • Intel_Core_i7_processor

Features and Benefits

Features Benefits
Windows
  • Windows 10 Pro for Workstations
  • Windows 10 Pro. Fujitsu recommends
    Windows 10 Pro.

  • Easy integration into customers’ existing infrastructure
Need For Speed
  • 8th generation Intel® Core™ i7 processor
  • UHD/4k and Full HD LED anti-glare displays
  • Up to 64 GB DDR4 2400 MHz memory
  • M.2 SSDs PCIe NVMe technology supports quick loading of core applications
  • Made in Japan

  • When true workstation performance meets the elegant style of a laptop
Full connectivity and worry-free docking experience
  • 2x USB Type-C™ connector offering speed (40 Gbps), protocols (including Thunderbolt™ 3) and charging capabilities (power delivery of 15W)
  • Full monitor connectivity support: 1x VGA and1x HDMI
  • Choice of port replicators with mechanical or Thunderbolt™ 3 connector

  • No compromise in terms of port connectivities, regardless of whether you are away, in a meeting or at your desk
Mobility Meets Security
  • Optional PalmSecure™, a leading-edge highly secure authentication system using biometric technology that authenticates users through vein pattern recognition
  • Integrated SmartCard reader
  • TPM 2.0 and Advanced Theft Protection

  • Data security and peace of mind
We are (VR) ready
  • Powered by the NVIDIA® Quadro® P3200 VR-ready graphics card
  • Ideal for mobile VR showcases at the customer site or at an event
  • Easy connectivity of the head-mount display to the HDMI port

  • Architects, engineers and designers can now showcase their work in a real-time, fully immersive VR environment

Technical Details

Product CELSIUS H780
Operating system Windows 10 Pro for Workstations
Windows 10 Pro. Fujitsu recommends Windows 10 Pro.
Chipset Intel® QM370
Processor Intel Core i7-8850H, 9MB, 2.6 GHz, up to 4.3 GHz, Hexa Cores
Supported capacity RAM (max.) 64 GB, 4 Memory slot(s) SO DIMM (DDR4, 2400 MHz)
Graphics NVIDIA® Quadro® P3200, 6 GB GDDR5: 1792 CUDA Cores, VR Ready
NVIDIA® Quadro® P1000, 4 GB GDDR5: 512 CUDA Cores
Hard disk drive SSD PCIe, NVMe, 512 GB / 1024 GB, M.2, SED / OPAL 2.0
SSD SATA, 256 GB / 512 GB, M.2, SED / OPAL 2.0
HDD SATA, 500 GB / 1000 GB, 5,400 rpm
Display 15.6” FHD (1920 x 1080), WVA, Anti-glare, 300cd/m2
15.6” UHD (3840 x 2160), WVA, Anti-glare, 300cd/m2

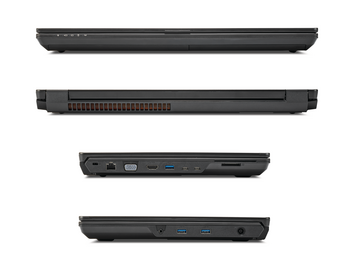

Interfaces 1 x Audio: line-in / line-out
1 x USB 3.1 Gen 1 (with charging function)
2 x USB 3.1 Gen 2
2 x Thunderbolt™ 3 (Up to 40GB/s data transfer speed)
1 x VGA
1 x HDMI
1 x Ethernet (RJ-45)
1 x SmartCard slot
Keyboard 105 keys, 18.4mm pitch, 1.7mm stroke, touch stick
Security Optional integrated palm vein sensor
Optional integrated fingerprint sensor
Kensington Lock support
TPM 2.0
Integrated smartcard reader
User and supervisor BIOS password
Fujitsu AuthConductor™ Client Basic (Secure authentication solution)
Camera Built-in webcam (Full HD) with Status LED
Weight from 2.7 kg - Actual weight may vary depending on configuration
Dimensions (W x D x H) 380.0 x 258.0 x 31.9 mm
Runtime battery Up to 12 hours 50 minutes
Audio codec Realtek ALC255 with MaxxAudio
Audio features Stereo speakers, 2 digital microphones
LAN 10/100/1,000 MBit/s Intel® I219LM

Accessories

Thunderbolt™ 3 Port Replicator
h780accessories01 Flexibility, expandability, desktop replacement, investment protection 2x USB 2.0, 2x USB 3.1 Gen 1 (USB 3.0), 2 x DisplayPort, DVI, VGA, RJ-45
Display P27-8 TS UHD
h780accessories02 The FUJITSU Display P27-8 TS UHD has a 3840 x 2160 Ultra HD resolution ships with a thin bezel housing ideal for multi-monitor use scenarios. The monitor has a 178°/178° wide viewing angle that delivers consistent picture quality, a 100% sRGB color space, ECO function, DisplayView™ IT Suite manageability software and a range of connectivity options ideal for medium- and large-sized businesses.
Fujitsu Prestige Top Case 15
h780accessories03 Prestige Top Case 15 protects notebooks with up to 15.6-inch screens. A padded top-loading notebook compartment made of shock-absorbing foam ensures additional protection. Its front pouch is ideal for storing of power adaptors, office supplies or personal items. It is the perfect business case in a practical design.
