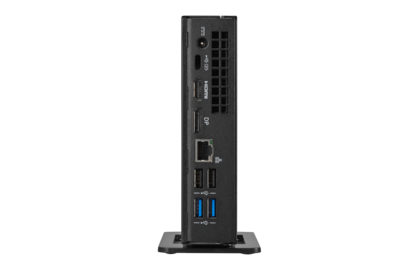

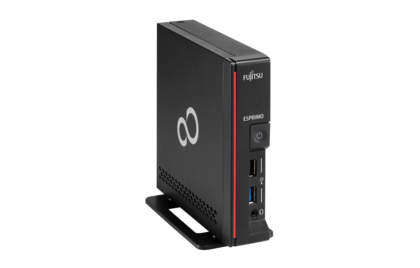

FUJITSU Desktop ESPRIMO G558
The FUJITSU ESPRIMO G558 offers advanced desktop PC functionality in an ultra-compact, space-saving design. With the latest 8th Gen Intel® Core™ processors, PCI Express® SSD, USB Type-C interface and dual-display support, the ESPRIMO G558 provides the performance to meet your daily office needs. Its small size and wide range of interfaces make this PC a great choice for space-constrained workplaces.
Technical Details
| Product | ESPRIMO G558
|
|---|---|
| Operating system | Windows 10 Pro. Fujitsu recommends Windows 10 Pro.
Windows 10 Home |
| Mainboard | D3654 (proprietary )
|
| Chipset | Intel® H310
|
| Processor | Intel® Core™ i7-8700T processor, 12 MB, 2.40 GHz, up to 4.0 GHz
Intel® Core™ i5-8500T processor, 9 MB, 2.10 GHz, up to 3.5 GHz Intel® Core™ i5-9400T processor, 9 MB, 1.80 GHz, up to 3.4 GHz Intel® Core™ i5-8400T processor, 9 MB, 1.70 GHz, up to 3.3 GHz Intel® Core™ i3-8100T processor, 6 MB, 3.10 GHz Intel® Core™ i5-9500T processor, 9 MB, 2.20 GHz, up to 3.7 GHz Intel® Core™ i5-8500 processor, 9 MB, 3.00 GHz Intel® Core™ i5-8400 processor, 9 MB, 2.80 GHz Intel® Core™ i3-9100 processor, 6 MB, 3.60 GHz, up to 4.2 GHz Intel® Core™ i3-8100 processor, 6 MB, 3.60 GHz Intel® Pentium® processor G5400T processor, 4 MB, 3.10 GHz Intel® Pentium® Gold G5400 processor, 4 MB, 3.70 GHz Intel® Celeron® processor G4930, 2 MB, 3.20 GHz Intel® Celeron® processor G4900, 2 MB, 3.10 GHz |
| Supported capacity RAM (max.) | 32 GB, 2 Memory slot(s) DIMM (DDR4), Dual channel support, For dual channel performance, 2 memory modules have to be ordered. Capacity per channel has to be the same. 2666 MHz may be clocked down to 2400 MHz depending on processor and memory configuration
|
| Serial ATA total | 1
|
| thereof SATA III | Serial ATA III (6 Gbit), NCQ, AHCI
|
| Hard disk drive | HDD SATA II, 5,400 rpm, 1,000 GB, 2.5-inch
HDD SATA III, 5,400 rpm, 500 GB, 2.5-inch HDD SATA III, 7,200 rpm, 500 GB, 2.5-inch SSD PCIe, 256 GB M.2 NVMe module SSD PCIe, 256 GB M.2 NVMe module, SED SSD PCIe, 512 GB M.2 NVMe module SSD PCIe, 512 GB M.2 NVMe module, SED SSD PCIe, 1024 GB M.2 NVMe module SSD PCIe, 1024 GB M.2 NVMe module, SED SSD SATA III, 64 GB, 2.5-inch SSD SATA III, 128 GB, 2.5-inch SSD SATA III, 256 GB, 2.5-inch SSD SATA III, 512 GB, 2.5-inch SSD SATA III, 1024 GB, 2.5-inch |
| Interfaces | 1 x Front audio: headphone
3 (4 optional) x USB 3.1 Gen1 (USB 3.0) total 3 x USB 2.0 total 1x USB 2.0; 1x USB 3.0 x USB front 2x USB 2.0, 2x USB 3.0, optional 1x USB 3.0 Type-C x USB rear 1 x Ethernet (RJ-45) 1 x Kensington Lock support 1 x DisplayPort 1 x HDMI |
| Graphics | Intel® UHD Graphics 610, Intel® UHD Graphics 630, Up to half size of total system memory
|
| Audio type | Realtek ALC671
|
| Communication | 10/100/1,000 MBit/s Realtek RTL8111G
1 (optional with Bluetooth together) x Integrated WLAN |
| Weight | 0.8 kg
1.76 lbs |
| Dimensions (W x D x H) | 146.9 x 164.5 x 36 mm
5.78 x 6.48 x 1.42 inch |
| Power efficiency note | power supply efficiency at 115/230V: 88% average efficiency
|
| Special features | Extremely space-saving design, EraseDisk functionality, Low Power Active Mode, Made in Germany, SmartCard reader (external), Space saving design, Ultra-compact housing
|
| Warranty period | 1 year (for countries in EMEIA)
|
| Warranty type | Bring-In / Onsite Service (for countries within region EMEIA, for all other countries depending on local regulations)
|
Accessories

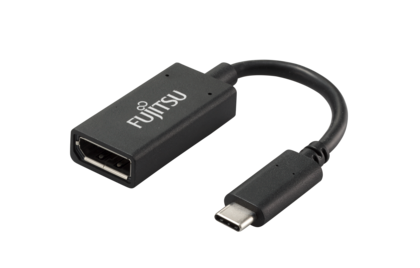

| USB Type-C to DisplayPort Adapter | |
|---|---|
 |
The FUJITSU USB Type-C to DP Adapter offers a fast and easy way to connect a DisplayPort-display to your mobile system, or desktop PC, using the USB Type-C port via plug-and-play functionality
|

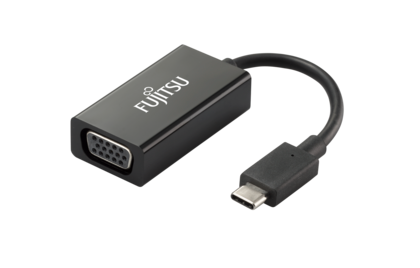

| USB Type-C to VGA Adapter | |
 |
The FUJITSU USB Type-C to VGA Adapter offers a fast and easy way to connect an analog VGA-display or projector to your mobile system, or desktop PC, using the USB Type-C port via plug-and-play functionality
|

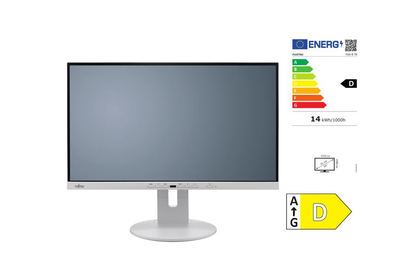

| FUJITSU Display P24-9 TE | |
 |
The FUJITSU Display P24-9 TE is a widescreen, ultra-thin bezel display that combines future workplace concepts with advanced ergonomics. The monitor has an intelligent USB Type C hub ideal for a AiO-type use in addition to one cable connectivity for notebooks used by an on-the-move flexible workforce that needs shared workspaces.
|
| Keyboard KB950 Phone | |
 |
The KB950 Phone is a modern and slim line USB keyboard with integrated Skype for business features. This extremely reliable, high-speed input device is the perfect way to manage incoming and outgoing calls, even when the system is locked. Three additional keys make it easy to accept and end calls and mute your microphone during a call. Easy number dialing is assured with the numpad. The integrated 61 x 12 mm display shows the time and date, the user status and shows incoming call data in the form of the calling number and caller ID.
|
| Wireless Mouse Touch WI910 | |
 |
The Fujitsu Wireless Mouse Touch WI910 has a special touch sensitive surface that recognizes when your hand touches the mouse even before you move it. This provides nearly instantaneous wake-up from the intelligent energy saving sleep mode. Unbeatable responsiveness combines with features like switchable resolution, and three programmable buttons for a unique user experience.
|
