FUJITSU Desktop ESPRIMO D738

Features and Benefits

Features	Benefits
Windows Windows 10 Pro. Fujitsu recommends Windows 10 Pro. Windows 10 Home	Easy integration into customers’ existing infrastructure
Ultimate usability ON/OFF switch, I/Os in front for easy access control and use of the system (audio, USB Type C, optional SD card reader, SmartCard reader and ODD)	Benefit from a wide range of features which ease your workaday life
Quiet system Innovative hardware design with optimized cooling concept ensures silent operations	Pleasant working environment due to an extremely quiet system
Always Available Office PC - stay connected and save power Innovative Low Power Active Mode and energy-efficient integrated power supply	Be ready for instant communication and a significantly reduced energy bill
Advanced system management Intel^® Standard manageability technology (ISM) optional and DeskView manageability suite	Simple system administration for complex IT infrastructures
Low carbon footprint Low power active function and energy-efficient power supply; less cables due to onboard LED/on/off switch, USB and audio connectors; less raw material used in printed circuit board (PCB) - reduction of up to 20% in PCB when compared to a 10 liter system	Another example of Fujitsu's commitment to environmental protection and sustainability

Technical Details

Product	ESPRIMO D738
Operating system	Windows 10 Pro. Fujitsu recommends Windows 10 Pro. Windows 10 Home
Operating system notes	Certified for SUSE Enterprise Desktop, Windows 10 Support: After the end of the product life FUJITSU will continue to test and support all upcoming Window 10 releases for a period of maximum 5 years – depending on the available extension of hardware services through FUJITSU Warranty top ups. For details please see “FUJITSU Service Statement for Windows 10 Semi-Annual-Channel Support” at http://support.ts.fujitsu.com.
Mainboard	D3601 (proprietary )
Chipset	Intel^® Q370
Processor	Intel^® Core™ i7-9700 processor, 12 MB, 3.00 GHz, up to 4.7 GHz Intel^® Core™ i7-8700 processor, 12 MB, 3.20 GHz, up to 4.6 GHz Intel^® Core™ i5-9600 processor, 9 MB, 3.10 GHz, up to 4.6 GHz Intel^® Core™ i5-8600 processor, 9 MB, 3.10 GHz, up to 4.3 GHz Intel^® Core™ i5-9500 processor, 9 MB, 3.00 GHz, up to 4.4 GHz Intel^® Core™ i5-8500 processor, 9 MB, 3.00 GHz, up to 4.1 GHz Intel^® Core™ i5-9400 processor, 9 MB, 2.90 GHz, up to 4.1 GHz Intel^® Core™ i5-8400 processor, 9 MB, 2.80 GHz, up to 4.0 GHz Intel^® Core™ i3-9100 processor, 6 MB, 3.60 GHz, up to 4.2 GHz Intel^® Core™ i3-8100 processor, 6 MB, 3.60 GHz Intel^® Pentium^® Gold G5400 processor, 4 MB, 3.70 GHz Intel^® Celeron^® processor G4930, 2 MB, 3.20 GHz Intel^® Celeron^® processor G4900, 2 MB, 3.10 GHz
Supported capacity RAM (max.)	64 GB, 4 Memory slot(s) DIMM (DDR4), Dual channel support, For dual channel performance, 2 memory modules have to be ordered. Capacity per channel has to be the same. 2666 MHz may be clocked down to 2400 MHz depending on processor and memory configuration
Serial ATA total	5
thereof eSATA	2
thereof SATA III	Serial ATA III (6 Gbit), NCQ, AHCI
Drives (optional)	SD Card reader DVD Super Multi ultra slim (tray), SATA BD Triple Writer SATA ultra slim (tray), SATA
Hard disk drive	HDD SATA II, 5,400 rpm, 500 GB, 2.5-inch HDD SATA III, 7,200 rpm, 1,000 GB, 3.5-inch HDD SATA III, 7,200 rpm, 1,000 GB, 3.5-inch, business critical HDD SATA III, 7,200 rpm, 2,000 GB, 3.5-inch HDD SATA III, 7,200 rpm, 500 GB, 3.5-inch SSD PCIe, 256 GB M.2 NVMe Highend module SSD PCIe, 256 GB M.2 NVMe module SSD PCIe, 256 GB M.2 NVMe module, SED SSD PCIe, 512 GB M.2 NVMe Highend module SSD PCIe, 512 GB M.2 NVMe module SSD PCIe, 512 GB M.2 NVMe module, SED SSD PCIe, 1024 GB M.2 NVMe Highend module SSD PCIe, 1024 GB M.2 NVMe module SSD PCIe, 1024 GB M.2 NVMe module, SED SSD SATA III, 128 GB, 2.5-inch SSD SATA III, 256 GB, 2.5-inch SSD SATA III, 512 GB, 2.5-inch SSD SATA III, 1024 GB, 2.5-inch
Drive bay	1 x 2.5-inch bay 1 x 3.5-inch internal bay 1 x 5.25-inch external bay
Slots	1 x PCI-Express 3.0 x4 (mech. x16) 1 x PCI-Express 3.0 x16

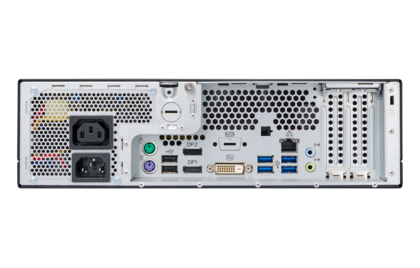

Interfaces	1 x Audio: line-in 1 x Audio: line-out 1 x Front audio: headphone 1 x Front audio: microphone 4 x USB 3.1 Gen1 (USB 3.0) total 6 x USB 2.0 total 2x USB 2.0; 2x USB 3.1 (gen2), 1x USB 3.1 (gen2) Type C x USB front 2x USB 2.0; 4x USB 3.0; optional: additional 1x USB 3.1 Type C (Gen2) via add on card x USB rear 2x USB 2.0 x USB internal optional: via adapter card x VGA 1 x Ethernet (RJ-45) 1 (DVI-D) x DVI 1 (optional) x eSATA 2 x DisplayPort 2 x Mouse / Keyboard (PS/2)
Graphics	Intel^® UHD Graphics 610, Intel^® UHD Graphics 630, Up to half size of total system memory
Audio type	Realtek ALC671
Communication	10/100/1,000 MBit/s Intel^® I219V
Weight	5 kg
Dimensions (W x D x H)	313 x 286 x 89 mm 12.32 x 11.26 x 3.51 inch
Power efficiency note	power supply efficiency at 10% / 20% / 50% / 100% load for 230V: 80% / 85% /88% / 87%; for 115V: 79%/ 84%/ 87%/ 84% power supply efficiency at 10% / 20% / 50% / 100% load for 230V: 87% / 91% / 94% / 93%; for 115V: 86%/ 90%/ 92%/ 90%
Special features	Made in Germany, Low Power Active Mode, EraseDisk functionality, Keyboard power on, Service-friendly cabinet with EasyChange, EasyFix
Warranty period	1 year (for countries in EMEIA)
Warranty type	Bring-In / Onsite Service (for countries within region EMEIA, for all other countries depending on local regulations)
