Overview
How it works
Makes document management a snap

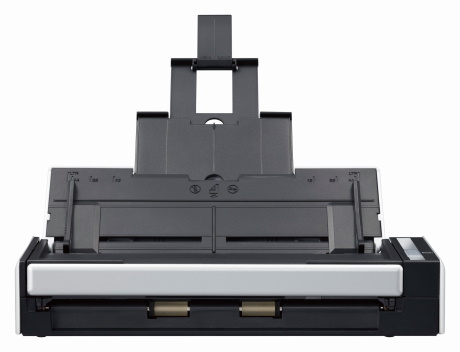

Take document scanning to a whole new level with the ScanSnap S1300i. Whether you're at home digitizing receipts, bank statements or term papers, or at the office capturing mission critical documents for a business trip, ScanSnap takes scanning beyond the desktop and into your world.
-
- One touch scanning
- Scan up to 12 double-sided pages per minute
- Holds up to 10 pages in the automatic document feeder
- USB or AC powered
- Compatible with PC and Mac
- Best experience with ScanSnap Home
- Conventional software ScanSnap Manager also available
Features
Fast Scanning with Portability
The ScanSnap S1300i is the smallest multi-page, duplex capable for scanning on the road or at the desk. Scanned data can be converted to PDF, searchable PDF, JPEG, Word (editable), Excel (editable).
With the compact design, users can just press the Scan button and the 10 page automatic document feeder scans both sides of each page at up to 12 pages per minute.
Automatically join a two page spread
The S1300i is equipped with "Merge" function. This merging functionality can merge two single pages into one-double spread document.
USB Bus Power for Ultimate Portability
The S1300i can be powered by the PC or Mac's USB ports* when an AC power source is not available.
*When using the USB bus power cable, the PC or Mac must have two USB ports; one for power feeding and the other for USB cable connection. AC adapter also provided.
Best experience with ScanSnap Home
ScanSnap Home combines all your favorite functions into one and is the ultimate platform to utilize scanned data in various ways. Easily manage, edit and utilize data from documents, business cards, receipts and photos with the software. You can scan large volumes of various types of documents from color photos to double-sided landscape documents with a host of intelligent automatic image processing functions.
*Data can be transferred to ScanSnap Home from ScanSnap Organizer, ScanSnap Receipt and CardMinder.
Specifications
| Product Name | ScanSnap S1300i | |
|---|---|---|
| Scanner Type | ADF (Automatic Document Feeder), Duplex | |
| Scanning Speed (1)
(A4 portrait / AC adapter) |
Auto mode (2) | Simplex / Duplex: 6 ppm |
| Normal mode | Simplex / Duplex: 12 ppm (Color: 150 dpi, Grayscale: 300 dpi) | |
| Better mode | Simplex / Duplex: 9 ppm (Color: 200 dpi, Grayscale: 400 dpi) | |
| Best mode | Simplex / Duplex: 6 ppm (Color: 300 dpi, Grayscale: 600 dpi) | |
| Excellent mode | Simplex / Duplex: 1 ppm (Color: 600 dpi, Grayscale: 1,200 dpi) | |
| Scanning Speed (1)
(A4 portrait / USB bus power) (3) |
Auto mode (2) | Simplex / Duplex: 2 ppm |
| Normal mode | Simplex / Duplex: 4 ppm (Color: 150 dpi, Grayscale: 300 dpi) | |
| Better mode | Simplex / Duplex: 3 ppm (Color 200 dpi, Grayscale 400 dpi) | |
| Best mode | Simplex / Duplex: 2 ppm (Color: 300 dpi, Grayscale: 600 dpi) | |
| Excellent mode | Simplex / Duplex: 1 ppm (Color: 600 dpi, Grayscale: 1,200 dpi) | |
| Scanning Color Mode | Color, Grayscale, Monochrome, Automatic (Color / Grayscale / Monochrome detection) | |
| Image Sensor | CIS (Color Image Sensor) x 2 | |
| Light Source | 3 color LED (Red / Green / Blue) | |
| Optical Resolution | 600 dpi | |
| Document Size | Normal Scan | Maximum: 216 x 360 mm (8.5 x 14.17 in.)
Minimum: 50.8 x 50.8 mm (2 x 2 in.) |
| Long Paper Scanning (4) | 863 mm (34 in.) | |
| Paper Weight (Thickness) | 64 to 104.7 g/m2 (17 to 28 lb) | |
| ADF Capacity (5) | 10 sheets (A4, 80 g/m2 or 20 lb) | |
| Interface | USB 2.0 / USB 1.1 | |
| Power Requirement | AC Adapter | AC 100 to 240 V, 50 / 60 Hz |
| USB Bus Power | 5 V / 1 A (0.5 A x 2 Port) | |
| Power Consumption | Operating Mode | Power cable connected: 9 W or less
USB bus power connected: 5 W or less |
| Auto Standby (Off) Mode | Power cable connected: Less than 2.6 W
USB bus power connected: Less than 2 W |
|
| Sleep Mode | 0.3 W or less | |
| Operating Environment | Temperature | 5 to 35 °C (41 to 95 °F) |
| Relative humidity | 20 to 80 % (Non-condensing) | |
| Environmental Compliance | ENERGY STAR® / RoHS | |
| Dimensions (W x D x H) (6) | 284 x 99 x 77 mm (11.18 x 3.90 x 3.03 in.) | |
| Weight | 1.4 kg (3.08 lb) | |
| Driver | ScanSnap specific driver Windows®: Does not support TWAIN / ISIS® macOS: Does not support TWAIN |
|
| Software (7) | ScanSnap Home (all-in-one document management software/driver) ScanSnap Manager (Conventional driver) ABBYY FineReader for ScanSnap™ |
|
| Included Items | AC cable, AC adapter, USB bus power cable, USB cable, Safety Precautions | |
- Scanning speeds may vary due to the system environment used.
- Scans will be made in "Best mode" if shorter sides are less than 148 mm (5.8 in.) and in "Better mode" if not.
- Requires simultaneous connection to two active powered USB ports on computer.
- Capable of scanning documents that exceed A4 size in length except for "Excellent Mode".
- Maximum capacity varies depending upon paper weight.
- When chute is closed.
- Installation and updates require Internet availability. Software/driver updates to the latest versions are recommended.
System Requirements for PC
| Compatible Operating Systems (1) | Windows 11 / 10 / 8.1 (32-bit / 64-bit) / 7 (32-bit / 64-bit) | |
|---|---|---|
| Driver / Applications (2) | ScanSnap Home (4) | Supported |
| ScanSnap Manager | Supported | |
| ABBYY FineReader for ScanSnap™ | Supported | |
| Hardware Requirements (3) | CPU (5) | Intel® Celeron 1.8 GHz (2 core) or higher (Recommended: Intel® Core™ i5 2.5 GHz or higher) |
| Memory Capacity (5) | 2 GB or more (Recommended: 4 GB or more) | |
| Display Resolution | 1,024 x 768 pixels or more | |
| Disk Capacity (6) | 3.8 GB or more of free hard disk space | |
- Operate Windows in desktop mode. ScanSnap scanners do not run with Windows® 10 ARM-based PCs such as Surface® Pro X (Microsoft®).
- Operating systems listed in this table are the only ones supported. Please refer to the ScanSnap Support site for the latest support information.
- The ScanSnap device may not work if the connected computer does not meet these requirements.
- Installation requires a computer and Internet. Activation is also necessary for software use. Please visit the ScanSnap Support site for download information.
- Scanning speeds may drop if recommended CPU, memory capacity and USB 1.1 requirements are not met.
- .NET Framework 4.8 or later must be installed. If it is not installed, it is installed with ScanSnap Home. Up to 4.5 GB of disk space is required for the installation.
*The system requirements may change depending on the support policies of the above system and third-party software.
System Requirements for Mac
| Compatible Operating Systems | macOS High Sierra 10.13 or later | |
|---|---|---|
| Driver / Applications (1) | ScanSnap Home (3) | Supported |
| ScanSnap Manager | Supported | |
| ABBYY FineReader for ScanSnap™ | Supported | |
| Hardware Requirements (2) | CPU (4) | Intel® Core™ i5 1.4 GHz or higher (Recommended: Intel® Core™ i5 2.5 GHz or higher) |
| Memory Capacity (4) | 2 GB or more (Recommended: 8 GB or more) | |
| Display Resolution | 1,024 x 768 pixels or more | |
| Disk Capacity | 2.0 GB or more of free hard disk space | |
- Operating systems listed in this table are the only ones supported. Please refer to the ScanSnap Support site for the latest information.
- The ScanSnap device may not work if the connected computer does not meet these requirements.
- Installation requires a computer and Internet. Activation is also necessary for software use. Please visit the ScanSnap Support site for download information.
- Scanning speeds may drop if the recommended CPU, memory capacity and USB 1.1 requirements are not met.
*The system requirements may change depending on the support policies of the above system and third-party software.
Accessories
| S1300i | Part Number | Description |
|---|---|---|
| Service | ||
| S1300i 3 Year Advance Exchange | S1300I-AEPWNBD-3 | Parts, Labor, Shipping |
| Consumables | ||
| Pad Assembly (1) | PA03541-0002 | Lifetime: Every 10,000 sheets or one year |
| Pick Roller (1) | PA03541-0001 | Lifetime: Every 100,000 sheets or one year |
| ScanAid Kit | CG01000-524701 | Fujitsu ScanAid cleaning supplies and consumable kit |
| Options | ||
| ScanSnap Carrying Case | PA03541-0004 | Intended for ScanSnap S1300i and included items |
- These recommended lifetimes are for 80 g/m² (20 lb.) A4 sized documents. Therefore, appropriate replacement lifetimes may vary for other document types.
