Overview
The ScanSnap SV600 Contactless scanner provides a new perspective on document scanning. Easily scan newspapers, magazines, documents or books directly without cutting or damaging them.

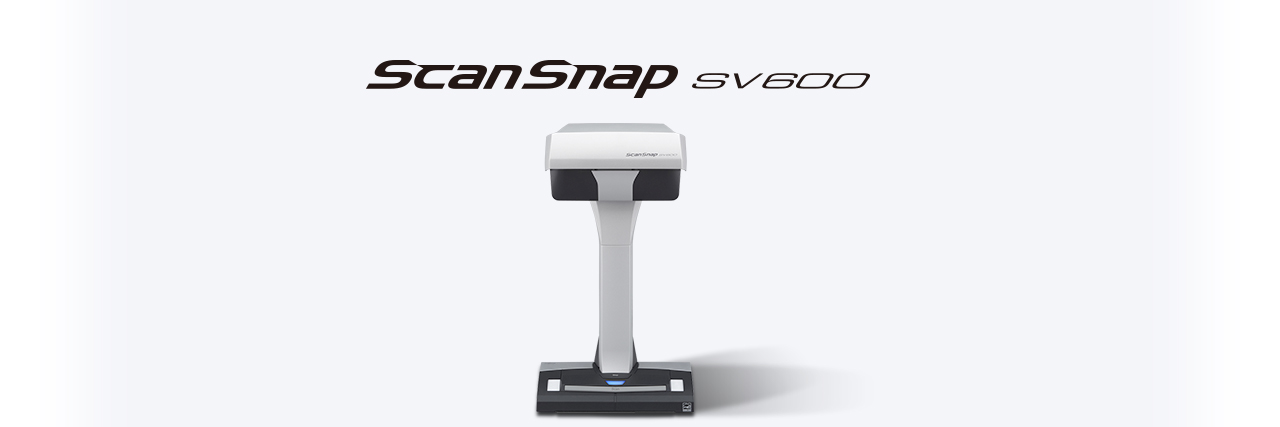

ScanSnap SV600
- One-button overhead scanning technology
- Scans bound material and flat documents
- Scans an A3 size area in less than 3 seconds
- CCD optic with fast LED illumination
- Book curve image-flattening technology

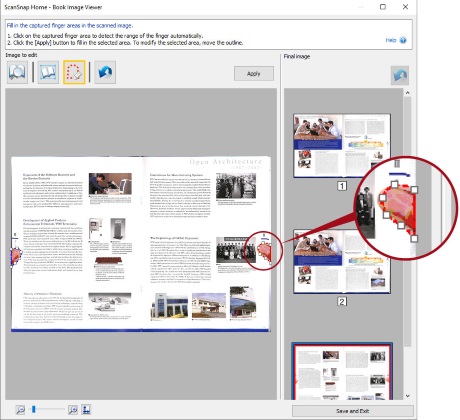

- Erase finger from image function
- Auto crop, de-skew and rotation features
- Auto page-turn detection sensor
- Timed interval scanning mode
- USB 2.0 connectivity
- Searchable PDF, PDF and JPEG creation
- Single scan multiple document cropping function
Features
Redefining what a document scanner can do!
The ScanSnap SV600 makes overhead scanning simple, providing users with limitless possibilities.
Scan:
- Books
- Magazines
- Delicate documents
- Original designs / notes
- Business Cards
- A3-size documents

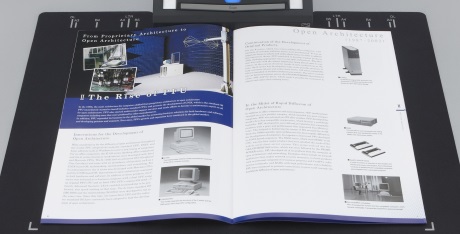

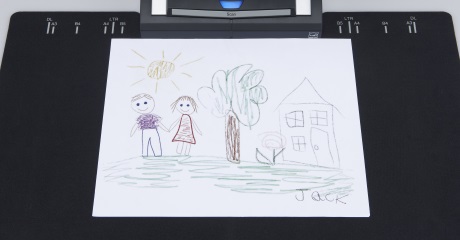

Scan business cards to large A3 size (double-letter) documents
The ScanSnap SV600 breaks free from typical flatbed limitations by scanning
content larger than just letter size. Simply position the document on the A3 scan mat and press scan.

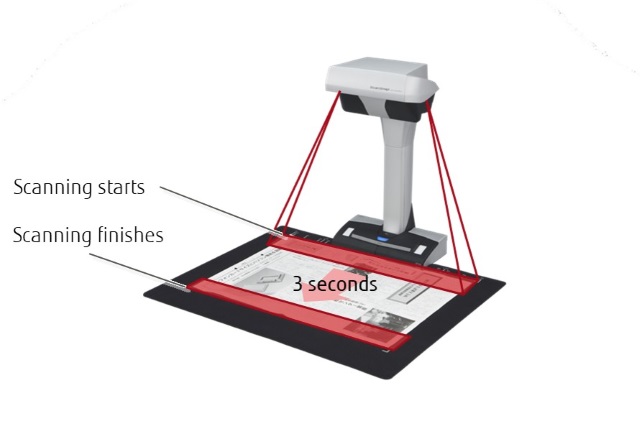

Performance matters
With the touch of the power button, ScanSnap SV600 is ready to scan in just 3 seconds! And with each press of the scan button, a large A3 dimension scan area is captured in less than 3 seconds. Combined with intelligent image correction, great results are just a button push away.

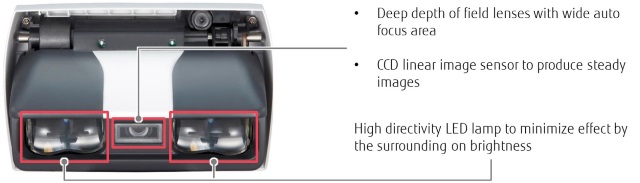

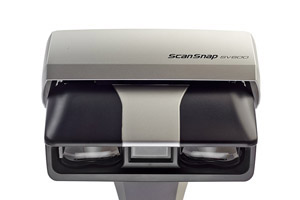

VI Technologies (Versatile Imaging)
Combining high quality CCD optics and advanced LED illumination, ScanSnap SV600 uses advanced capture technologies to maximize field of depth and minimize unevenness page after page.

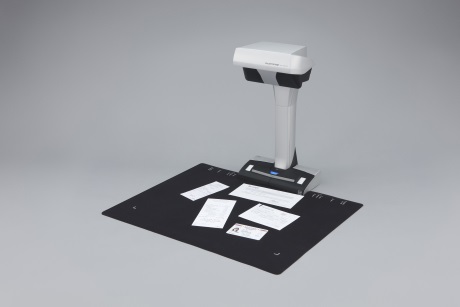

Multiple Document Detection

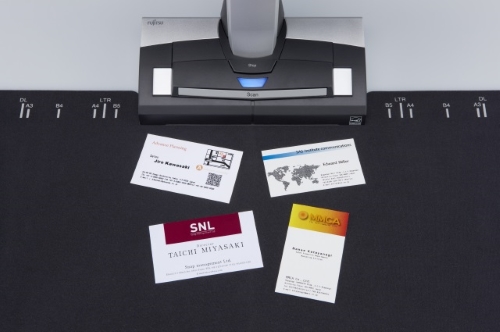

With an advanced cropping and orientation technology built-in, ScanSnap SV600 can scan several business cards, photos, newspaper clippings and other documents at one time.
*Scan up to 10 documents at one time.

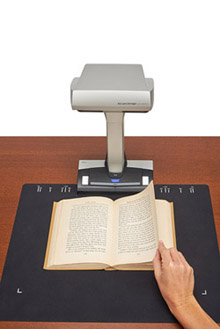

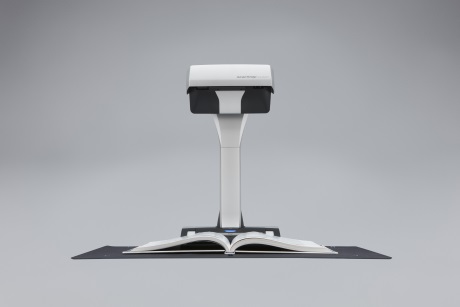

Easily create your own digital books
ScanSnap SV600 is your ultimate partner to scan books or magazines efficiently.
Step 1: Scan with one button!
Place the book on the mat and press the scan button.

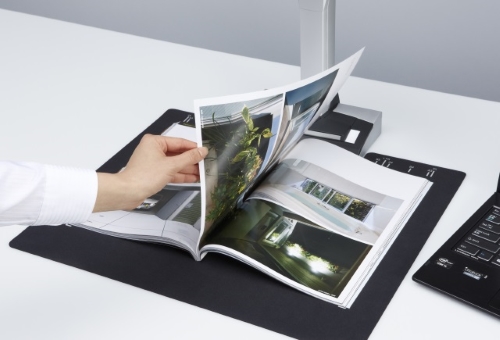

Page Turning Detection
SV600 detects when a page is turned and automatically begins scanning.
Time Mode
Set a fixed time interval and SV600 scans in real time with you.
Step 2: Auto Image Correction
Auto Image Correction
Automatically crops, de-skews and sets the orientation of multiple sheets placed on the mat.

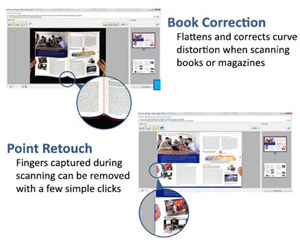

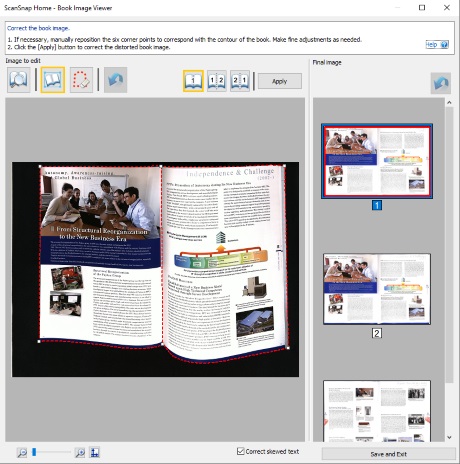

Auto Book Correction
Automatically flattens and corrects the curve distortion of books and magazines.

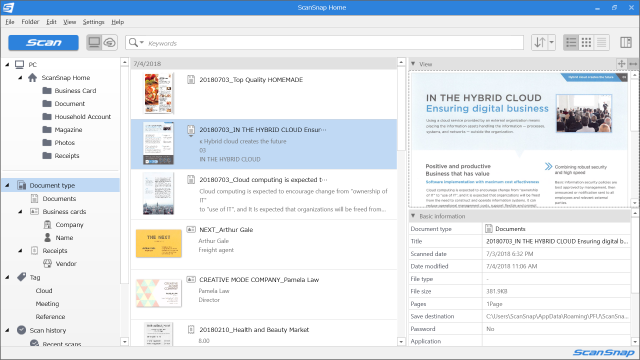

Step 3: Organizing and Viewing
With the included ScanSnap Organizer and CardMinder keeping scanned content organized and accessible is a Snap!

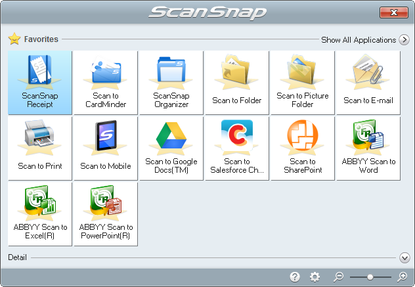

More Scanning Options = More Quick Menu Productivity Space
The ScanSnap Quick Menu for PC and Mac automatically pops up after scanning to provide you a variety of ways to be immediately productive with your scans. It can be easily customized to display just your favorites, present a recommendation, and even display custom profiles
- Scan to Folder: Store PDF scans to a folder
- Scan to Email: Eliminate faxing and share electronic documents over email
- Scan Business Card: Scan business cards and automatically extract contact information
- Scan to Print: Use ScanSnap with your printer to create copies
- Scan to Word (.doc): Scan directly to an editable Word file
- Scan to Excel® (.xls): Scan directly to an editable Excel file
- Scan to PowerPoint® (.ppt): Scan directly to an editable PowerPoint file
- Scan to Picture Folder: Store JPEG scans to a folder.
- Scan to Mobile: link to Android or iOS
- Scan to Cloud: Scan to Evernote, Google Drive, Salesforce CRM, Salesforce Chatter, SugarSync, Dropbox and SharePoint® Online (for Windows®).
ScanSnap Folder*
Scan 'outside-the-box' into virtually any application or cloud service from PC.
*ScanSnap Folder is only available on PC
More Ways to Scan to the cloud
Scan to:
- Evernote
- Dropbox
- Google Drive™
- Salesforce
- SugarSync
- SharePoint® (PC only)
Making ScanSnap Connect Application more convenient
With ScanSnap Sync, whichever device you are on, you can use scanned data from either ScanSnap Organizer or the mobile app ScanSnap Connect Application. ScanSnap Sync automatically synchronizes scanned data between the two. This gives you more flexibility for data management regardless of your location.
* ScanSnap Sync is realized by utilizing a third party cloud service such as Google Drive, OneDrive and Dropbox. For the latest support information of cloud services, please refer to each cloud vendor's website.
Receipt software with multi-currency support
A few simple steps to digitize and manage the information on your receipts
ScanSnap Receipt allows you to easily scan and extract information from your receipts, and export the data for other accounting software. The sophisticated features within ScanSnap Receipt automatically support various languages and currencies.
Specifications
| Product Name | ScanSnap SV600 | ||||||
|---|---|---|---|---|---|---|---|
| General Technical Specifications | |||||||
| Scanner Type | Overhead, Simplex | ||||||
| Scanning Modes | Color, Grayscale, Monochrome, Automatic (Color / Grayscale / Monochrome detection) | ||||||
| Image Sensor | Lens reduction optics / Color CCD x 1 | ||||||
| Light Source | (White LED + Lens illumination) x 2 | ||||||
| Optical Resolution | 285 to 218 dpi (Horizontal scanning)
283 to 152 dpi (Vertical scanning)(1) | ||||||
| Scanning Speed
(A3 landscape)(2) | Auto Mode(3) | 3 seconds / page | |||||
| Normal Mode | 3 seconds / page (Color / Grayscale: 150 dpi, Monochrome: 300 dpi) | ||||||
| Better Mode | 3 seconds / page (Color / Grayscale: 200 dpi, Monochrome: 400 dpi) | ||||||
| Best Mode | 3 seconds / page (Color / Grayscale: 300 dpi, Monochrome: 600 dpi) | ||||||
| Excellent Mode | 3 seconds / page (Color / Grayscale: 600 dpi, Monochrome: 1,200 dpi) | ||||||
| Document Size | Maximum: 432 x 300 mm (17.0 x 11.8 in.)
Minimum: 25.4 x 25.4mm (1 x 1 in.)(4) | ||||||
| Document Thickness | 30 mm (1.18 in.) or less | ||||||
| How to Start Scanning(5) | Normal scan: Press "Scan" button for every page
Timed interval scan (Timed Mode) Page Turning Detection | ||||||
| Interface(6) | USB 2.0 / USB 1.1 (Connector Type: Type-B) | ||||||
| Image Processing Function | Deskew by text on document, Auto paper size detection, Auto image rotation, Auto color detection, Book image correction(7), Multiple document detection(8) | ||||||
| Magnification in Vertical Scanning (length) | ± 1.5 % | ||||||
| Power Requirement | AC 100 to 240 V, 50 / 60 Hz | ||||||
| Power Consumption | Operating Mode | 20 W or less | |||||
| Sleep Mode | 2.6 W or less | ||||||
| Auto Standby (Off) Mode | 0.4 W or less | ||||||
| Operation Environment | Temperature | 5 to 35 °C (41 to 95 °F) | |||||
| Relative Humidity | 20 to 80 % (Non-condensing) | ||||||
| Dimensions (W x D x H) | 210 x 156 x 383 mm (8.27 × 6.14 × 15.08 in.) | ||||||
| Device Weight | 3 kg (6.62 lb) | ||||||
| Environmental compliance | ENERGY STAR® / RoHS | ||||||
| Driver | ScanSnap specific driver
· Windows®: Does not support TWAIN/ISIS® · Mac OS: Does not support TWAIN | ||||||
| Inbox Contents | AC cable, AC adapter, USB cable, Background Pad, Setup DVD-ROM, Nuance® Power PDF Standard / Nuance® PDF Converter for Mac DVD-ROM, Extenders (x 2) | ||||||
- Optical resolution differs due to different scanning single on the same document.
- Scanning speed may vary due to the system environment used. The Time is measured between actual start of scanning and finish scanning.
- Switch between "Better mode" and "Best mode" depends on the length of the document, A4 (portrait, 200 dpi), A6 size or below (300 dpi).
- For documents of thickness over 5 mm, the maximum document size is 400 x 300 mm.
- When performing continuous scanning, time is needed for the scanning head to return to its original position.
- Compatible with USB 3.0 port but connection will run as USB 2.0 speed.
- Automatically correct distortion caused by the curve of an opened book or magazine.
- Automatically crop several documents in one scan.
System Requirements for PC
| Compatible Operating Systems | Windows | ||
|---|---|---|---|
| 10 / 8.1
(32-bit / 64-bit)(1) | 7
(32-bit / 64-bit) | ||
| Driver / Applications(2) | ScanSnap Home(4) | Supported | Supported |
| ABBYY FineReader for ScanSnap™ | Supported | Supported | |
| Nuance® Power PDF Standard(5) | Supported | Supported | |
| Hardware Requirements(3) | CPU(6) | Intel® Corelon 1.8 GHz (2 core) or higher (Recommended: Intel® Core™ i5 2.5 GHz or higher) | |
| Memory Capacity(6) | 2 GB or more (Recommended: 4 GB or more) | ||
| Display Resolution | 1,024 × 768 pixels or more | ||
| Disk Capacity(7) | 3.8 GB or more of the free hard disk space | ||
- Operate Windows in desktop mode.
- Operating systems listed in this table are the only ones supported. Please refer to the ScanSnap Support site for the latest support information.
- The ScanSnap device may not work if the connected computer does not meet these requirements.
- Installation requires a computer and Internet. Activation is also necessary for software use. Please visit the ScanSnap Support site for download information.
- Please refer to the included license certificate to download the software.
- Scanning speeds may drop if recommended CPU, memory capacity and USB 1.1 requirements are not met.
- .NET Framework 4.7 or later must be installed. If it is not installed, it is installed with ScanSnap Home. Up to 4.5 GB of disk space is required for the installation.
*The system requirements may change depending on the duration of support and the support policy of the companies that make the software listed in the table above.
System Requirements for Mac
| Compatible Operating Systems | macOS v10.14 | macOS v10.13 | macOS v.10.12(1) | |
|---|---|---|---|---|
| Driver / Applications(2) | ScanSnap Home(4) | Supported | Supported | Supported |
| ABBYY FineReader for ScanSnap™ | Supported | Supported | Supported | |
| Nuance PDF Converter for Mac(5) | Supported | Supported | Supported | |
| Hardware Requirements(3) | CPU(6) | Intel® Core i5 1.4 GHz or higher (Recommended: Intel® Core™ i5 2.5 GHz or higher) | ||
| Memory Capacity(6) | 2 GB or more (Recommended: 8 GB or more) | |||
| Display Resolution | 1,024 x 768 pixels or more | |||
| Disk Capacity | 2.0 GB or more of the free hard disk space | |||
- macOS v10.12.4 or later is required.
- Operating systems listed in this table are the only ones supported. Please refer to the ScanSnap Support site for the latest information.
- The ScanSnap device may not work if the connected computer does not meet these requirements.
- Installation requires a computer and Internet. Activation is also necessary for software use. Please visit the ScanSnap Support site for download information.
- Please refer to the included license certificate to download the software.
- Scanning speeds may drop if the recommended CPU, memory capacity and USB 1.1 requirements are not met.
*The system requirements may change depending on the duration of support and the support policy of the companies that make the software listed in the table above.
Video
Introduction
for Business
for Home
Warranty & Service Plans
Standard Warranty
1 Year Advance Exchange: Next Business Day
Included in the price of the product
Extended Warranty
3 Year Advance Exchange: Next Business Day
Order by Part Number:
U3-EXTW-DKT
