Overview

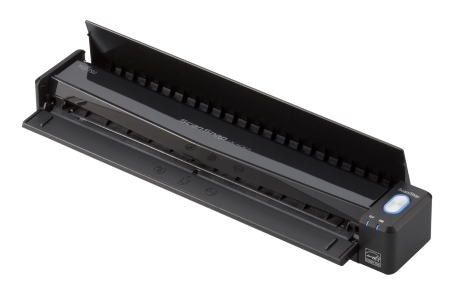

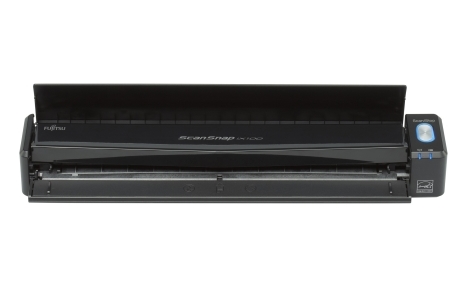

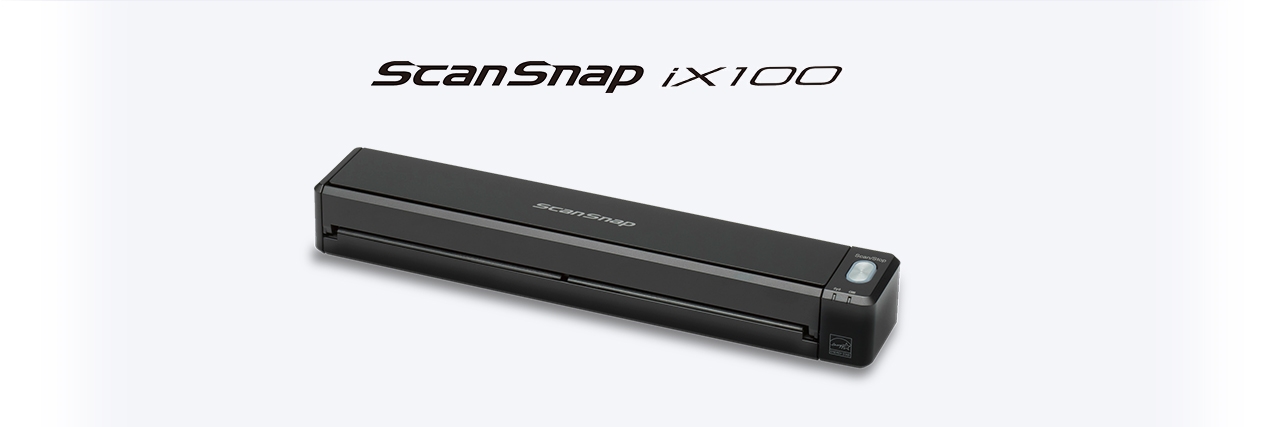

The ScanSnap iX100 - take scanning anywhere
The ScanSnap iX100 is the world's fastest battery powered ScanSnap. Whether scanning receipts, contracts, recipes, or plastic cards, the iX100 takes scanning beyond the desktop and into your mobile world. Completely wireless and weighing only 400 g, the iX100 brings mobility and wireless scanning to your PC or Mac as well as iOS or Android device.
Wi-Fi scanner for your Mac, PC or mobile device
- One button searchable PDF creation
- Scan a colour document in 5.2 seconds
- Battery powered
- Built-in GI microprocessor
- Scan wirelessly to a PC or Mac
- Scan wirelessly to iOS or Android mobile device
- Direct Connect mode for Wi-Fi scanning anywhere
- Dual Scan - scan two small documents at the same time
- Faster searchable PDF creation
- More Quick Menu productivity
- ScanSnap Cloud - takes paper directly to your cloud.
Features
Easily Transform Paper with the Touch of a Button
Achieving organization with the ScanSnap iX100 starts with the touch of a single button and ends with a host of productivity features that keep you ahead of the stack.
Scan to:
- Searchable PDF*
- JPEG
- Word (editable)*
- Excel (editable)*
- Business Cards*
- Mobile
*Available only when scanning to a computer
Compact and Portable
At only 400 g (14.1 ounces), the ScanSnap iX100 provides portability and ease of use at your fingertips.

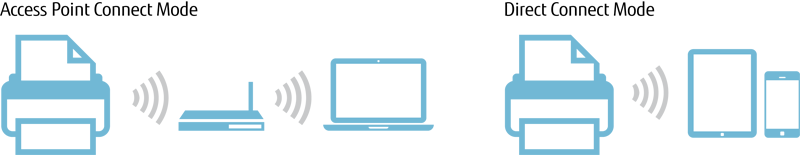

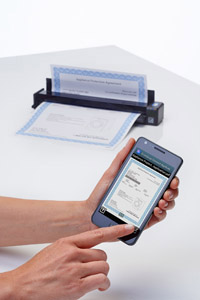

Wi-Fi or USB connectivity
The ScanSnap iX100 can automatically detect your Wi-Fi network at home, in the office or on the go. With Direct Connect mode you can scan wirelessly beyond your network.
*See list of supported devices at http://scansnap.fujitsu.com
**IOS Download
**Android Download
Battery power
Scan up to 260 documents on a full charge and easily recharge using a USB charger.
Quick digitization
Scan 5.2 seconds per page even at 300 dpi in color!
Dual scan
Scan two small sized documents, such as business cards or receipts at the same time.

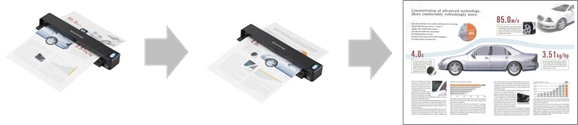

Auto two page stitching
Even charts and diagrams larger than A4 can be scanned. Just fold it in half, scan both sides and the iX100 will automatically stitch it back together.
Built-in "GI" microprocessor
A dual-core CPU mounted "GI" processor performs the intelligent image enhancement responsible for great looking images with dramatically faster results and more sophisticated connectivity.
- Image processing: Automatic corrections and image output
- Supports Wi-Fi: 2.4 GHz, WPS (Wi-Fi Protected Setup) wireless LAN (IEEE802.11b/g/n)
Compatible with PC or Mac
The ScanSnap iX100 works on both Mac and PC operating systems, making flexibility a breeze.
Productivity Software for Mac and PC
CardMinder Business Card Software
Scan, store, and edit business card information and even export data into applications like Address Book, Excel, and SalesForce.

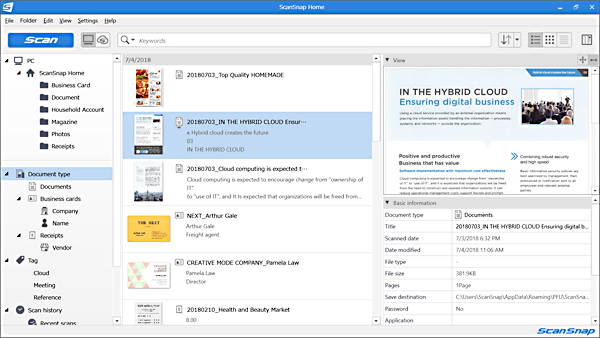

ScanSnap Organizer
View, Manage and edit PDF and Jpg files scanned with ScanSnap on a Windows platform. Organize allows users to convert scanned PDF files into searchable content, embed custom keywords, attach to email or SharePoint and remain productive with paper work long after it is scanned.
ScanSnap Folder*
Scan 'outside-the-box' into virtually any application or cloud service from PC.
*ScanSnap Folder is only available on PC
More ways to scan to the cloud
*Microsoft SharePoint is only available on PC
Scan to:
- Evernote
- Google Drive™
- Salesforce
- SugarSync
- SharePoint (PC only) - "Limited version support"
Making ScanSnap Connect Application more convenient
With ScanSnap Sync, whichever device you are on, you can use scanned data from either ScanSnap Organizer or the mobile app ScanSnap Connect Application. ScanSnap Sync automatically synchronizes scanned data between the two. This gives you more flexibility for data management regardless of your location.
* ScanSnap Sync is realized by utilizing a third party cloud service such as Google Drive, OneDrive and Dropbox. For the latest support information of cloud services, please refer to each cloud vendor's website.

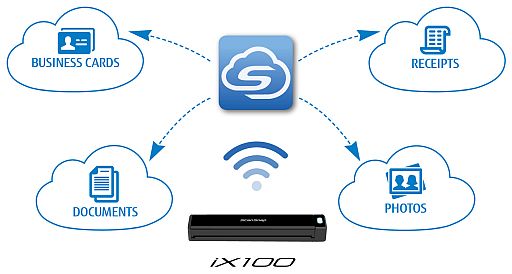

ScanSnap Cloud - takes paper directly to your cloud
Are you a fond user of cloud services like Dropbox, Google Drive, Evernote or alike? Then ScanSnap is your instant on-ramp for documents, business cards, receipts and photos. Simply scan and ScanSnap Cloud will identify the type of content and route it to your preferred cloud service. No PC required.
Receipt software with multi-currency support
A few simple steps to digitize and manage the information on your receipts
ScanSnap Receipt allows you to easily scan and extract information from your receipts, and export the data for other accounting software. The sophisticated features within ScanSnap Receipt automatically support various languages and currencies.
Specifications
| Product Name | ScanSnap iX100 | |
|---|---|---|
| General Technical Specifications | ||
| Scanner Type | Single fed (Straight / U-turn path), CDF (Continuous Document Feeding), Simplex | |
| Scanning Modes | Color, Grayscale, Monochrome, Automatic (Color / Grayscale / Monochrome detection) | |
| Image Sensor | CIS (Contact Image Sensor) x 1 | |
| Light Source | 3 color LED (Red / Green / Blue) | |
| Optical Resolution | 600 dpi | |
| Scanning Speed (A4 portrait)(1) | Auto Mode(2) | 5.2 seconds / page |
| Normal Mode | 5.2 seconds / page | |
| Better Mode | 5.2 seconds / page | |
| Best Mode | 5.2 seconds / page | |
| Excellent Mode | 20.4 seconds / page | |
| Document Size(3) | Normal Mode | Maximum: 216 x 360 mm (8.5 x 14.17 in.)
279.4 x 431.8 mm (11 x 17 in.) with Carrier Sheet Minmum: 25.4 x 25.4 mm (1 x 1 in.) |
| Long Paper Scanning(4) | 863 mm (34 in.) | |
| Paper Weight (thickness) | 52 to 209 g/m2 (14 to 56 lb) (Straight path), 52 to 80 g/m2 (14 to 20 lb) (U-turn path)
Cards: 0.76 mm or less (Non-embossed), 0.76 + 0.48 mm (Embossed) (ISO7810 Conforming) | |
| Paper Setting | Front-side up | |
| Continuous Scanning | 260 sheets (A4, Color, Simples, 300 dpi, Battery operated)(5) | |
| Interface(6) | USB | USB 2.0 / USB 1.1 |
| Wi-Fi | IEEE802.11b / IEEE802.11g / IEEE802.11n
Frequency band(7): 2.4 GHz | |
| Wi-Fi Interface | Connection Mode | Access Point Connect Mode (Infrastructure mode)
Direct Connect Mode (Ad-hoc mode) |
| Communication Distance(8) | 50 m (Recommended: 25 m) | |
| Security | Infrastructure mode: WPA (TKIP / AES), WPA2 (TKIP / AES), WPA-PSK (TKIP / AES), WPA2-PSK (TKIP / AES), WEP (64-bit / 128-bit)
Ad-hoc mode: WPA-PSK (TKIP / AES), WPA2-PSK (TKIP / AES), WEP (64-bit / 128-bit) | |
| Easy Installation | WPS2.0 (Button / PIN code) | |
| Power Source | Li-ion battery (3.7 V / 720 mAh) | |
| Power Requirement | 5 V / 0.5 A | |
| Power Consumption(9) | Operating Mode | 4.7 W or less |
| Sleep Mode | 2.2 W or less | |
| Auto Standby (Off) Mode | Less than 0.5 W | |
| Operation Environment | Temperature | 5 to 35°C (41 to 95°F) |
| Relative Humidity | 20 to 80% (Non-condensing) | |
| Dimensions (W x D x H)(10) | 273 x 47.5 x 36 mm (10.74 x 1.87 x 1.42 in.) | |
| Device Weight | 400 g (0.88 lb) | |
| Driver | ScanSnap specific driver
· Windows®: Does not support TWAIN/ISIS® · Mac OS: Does not support TWAIN | |
| Environmental Compliance | ENERGY STAR® / RoHS | |
| Inbox Contents | Getting started, Set-up DVD-ROM, USB cable | |
- Scanning speeds may vary due to the system environment used. The time is measured between start of document feeding to finish of document output.
- Scans will be made in "Best mode" if shorter sides are less than 148 mm (5.8 in.) and in "Better mode" if not.
- Automatically stitch a two-page spread when scanning a folded A3, B4 or double letter size document one side at a time. The image is automatically stitched only if texts or diagrams cover across the two-page spread.
- Capable of scanning documents that exceed A4 size in length except for 'Excellent mode'.
- The number of sheets that can be scanned when connected to a computer via Wi-Fi with fully charged battery. The number of sheets may vary due to the system environment used, usage method and repeated charging.
- Computer with USB 3.0 will work as USB 2.0 guaranteed only with USB cable provided with product.
- Frequency may vary depending on country.
- Communication distance may vary depending on surrounding environment and the access point to be connected.
- When operating with battery.
- When chute is closed.
System Requirements for PC
| Compatible Operating Systems | Windows | ||
|---|---|---|---|
| 10 / 8.1
(32-bit / 64-bit)(1) | 7
(32-bit / 64-bit) | ||
| Driver / Applications(2) | ScanSnap Home(4) | Supported | Supported |
| ABBYY FineReader for ScanSnap™ | Supported | Supported | |
| Hardware Requirements(3) | CPU(5) | Intel® Corelon 1.8 GHz (2 core) or higher (Recommended: Intel® Core™ i5 2.5 GHz or higher) | |
| Memory Capacity(5) | 2 GB or more (Recommended: 4 GB or more) | ||
| Display Resolution | 1,024 × 768 pixels or more | ||
| Disk Capacity(6) | 3.8 GB or more of the free hard disk space | ||
- Operate Windows in desktop mode.
- Operating systems listed in this table are the only ones supported. Please refer to the ScanSnap Support site for the latest support information.
- The ScanSnap device may not work if the connected computer does not meet these requirements.
- Installation requires a computer and Internet. Activation is also necessary for software use. Please visit the ScanSnap Support site for download information.
- Scanning speeds may drop if recommended CPU, memory capacity and USB 1.1 requirements are not met.
- .NET Framework 4.7 or later must be installed. If it is not installed, it is installed with ScanSnap Home. Up to 4.5 GB of disk space is required for the installation.
*The system requirements may change depending on the duration of support and the support policy of the companies that make the software listed in the table above.
System Requirements for Mac
| Compatible Operating Systems | macOS v10.14 | macOS v10.13 | macOS v.10.12(1) | |
|---|---|---|---|---|
| Driver / Applications(2) | ScanSnap Home(4) | Supported | Supported | Supported |
| ABBYY FineReader for ScanSnap™ | Supported | Supported | Supported | |
| Hardware Requirements(3) | CPU(5) | Intel® Core i5 1.4 GHz or higher (Recommended: Intel® Core™ i5 2.5 GHz or higher) | ||
| Memory Capacity(5) | 2 GB or more (Recommended: 8 GB or more) | |||
| Display Resolution | 1,024 x 768 pixels or more | |||
| Disk Capacity | 2.0 GB or more of the free hard disk space | |||
- macOS v10.12.4 or later is required.
- Operating systems listed in this table are the only ones supported. Please refer to the ScanSnap Support site for the latest information.
- The ScanSnap device may not work if the connected computer does not meet these requirements.
- Installation requires a computer and Internet. Activation is also necessary for software use. Please visit the ScanSnap Support site for download information.
- Scanning speeds may drop if the recommended CPU, memory capacity and USB 1.1 requirements are not met.
*The system requirements may change depending on the duration of support and the support policy of the companies that make the software listed in the table above.
System Requirements for iOS / Android™ / Kindle Fire (ScanSnap Connect Application)
Please refer to ScanSnap Connect Application specifications page.
Consumables & Options
Consumables
Options
| Part | Part number | Remarks |
|---|---|---|
| ScanSnap iX100 Hard Case | PA03688-0001 | Added protection for your scanner, case available as a hard or soft option |
| iX100 Soft Case | PA03688-0011 | |
| ScanSnap Carrier Sheets | PA03360-0013 | Carrier sheets designed for scanning fragile documents, photos and A3 documents, can be also used with ScanSnap iX500, S1500, S1500M, S1100i and S1100 |
Video
Introduction
for Business
for Home
Warranty & Service Plans
Standard Warranty
1 Year Standard Warranty: Advance Exchange - Next Business Day.
Included in the price of the product.
Extended Warranty
3 Year Extended Warranty: Advance Exchange - Next Business Day.
Order by Part Number:
U3-EXTW-MOB
