FUJITSU Image Scanner ScanSnap iX500

ScanSnap Cloud takes paper directly to your cloud ScanSnap button
Buy now

Datasheet

Overview

The ScanSnap iX500 provides PC and Mac users an effective way to greatly reduce paper clutter, storage space, and security risks associated with unmanaged paperwork at home or the office. For even greater accessibility and usefulness, users can now scan wirelessly to a PC or Mac as well as iOS or Android mobile devices.


ix500-open Compact Color Duplex Scanner for Mac or PC

  • One button searchable PDF creation
  • Advanced paper feeding system
  • Blazing 25ppm color scanning
  • 50-sheets Automatic Document Feeder (ADF)
  • Built-in GI microprocessor
  • USB 3.0 (or lower)
  • Scan wirelessly to a PC or Mac
  • Scan wirelessly to iOS or Android mobile devices
  • Comes with Nuance® Power PDF Standard (for Windows) / Nuance® PDF Converter for Mac (for Mac)
  • Faster searchable PDF creation
  • More Quick Menu Productivity
  • ScanSnap Cloud - takes paper directly to your cloud.

Features

Easily Transform Paper with the Touch of a Button

Achieving organization with the ScanSnap iX500 starts with the touch of a single button and ends with a host of productivity features that keep you ahead of the stack.

ix500-close_up_button-20140529g

Scan to:

  • PDF
  • Searchable PDF
  • JPEG
  • Word (editable)
  • Excel (editable)
  • Business Cards
  • Mobile

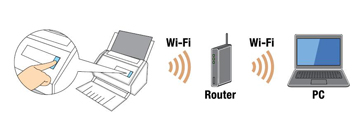

Wi-Fi or USB connectivity to a computer

Break free from USB and place ScanSnap just about anywhere in the room with Wi-Fi connectivity to a PC or Mac*

*May require latest online updates. Requires use of an existing wireless router. Only one computer can be registered for Wi-Fi connection

ix500-pc_wireless-20140529g

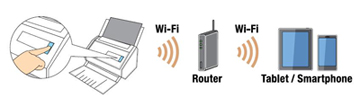

Scan Directly to Mobile Devices

Quickly bypass the computer altogether and scan
a PDF or JPEG file directly to an iOS or Android mobile device or tablet*

* See list of supported devices http://scansnap.fujitsu.com

ix500-mobile_wireless-20140529g


**IOS Download
**Android Download



Fast Double-Sided Scanning

ix500-1500m4-20140529g

Typically, higher quality means lower performance, but the iX500 maintains a double sided scanning speed of up to 25 pages per minute even at 300 dpi in Color!


Built-in "GI" microprocessor

A dual-core CPU-mounted "GI" processor performs the intelligent image enhancement responsible for great looking images with dramatically faster results and more sophisticated connectivity:

  • Image processing: Automatic corrections and image output
  • Supports Wi-Fi:WPS (Wi-Fi Protected Setup) wireless LAN (IEE802.11b/g/n)
  • Supports USB 3.0
ix500-gi-20140529g


Advanced Paper Feeding System

ix500-roller-20140529g

Inheriting the superior paper feeding technology of our professional-grade scanners, iX500 achieves exceptional feeding reliability using "Separation Roller" technology to minimize jams and multi-feeds.



Advanced Paper Detection

ScanSnap iX500 is equipped with an ultrasonic sensor that can be turned on to help operators avoid losing images. What's more, an interactive interface allows users to easily bypass intentional double-feed such as a taped-receipt on an expense report.

ix500-1500m5-20140529g

Accelerated Searchable PDF creation

ix500-searchable_pdf-20140529g

Making PDF files searchable at the point of scanning is a great way to keep them instantly accessible and now you can create a searchable PDF at nearly the same speed as a standard PDF.



Compatible with PC or Mac

The ScanSnap iX500 works on both Mac and PC operating systems, making flexibility a breeze.

ix500-pc_mac-20140529g


More Scanning Options = More Quick Menu Productivity Space

The ScanSnap Quick Menu for PC and Mac automatically pops up after scanning to provide you a variety of ways to be immediately productive with your scans. It can be easily customized to display just your favorites, present a recommendation, and even display custom profiles

QuickMenu

  • Scan to Folder: Store PDF scans to a folder
  • Scan to Email: Eliminate faxing and share electronic documents over email
  • Scan Business Card: Scan business cards and automatically extract contact information
  • Scan to Print: Use ScanSnap with your printer to create copies
  • Scan to Word (.doc): Scan directly to an editable Word file
  • Scan to Excel® (.xls): Scan directly to an editable Excel file
  • Scan to PowerPoint (.ppt): Scan directly to an editable PowerPoint file
  • Scan to Picture Folder: Store JPEG scans to a folder.
  • Scan to Mobile: link to Android or iOS
  • Scan to Cloud: Scan to Evernote, Google Drive, Salesforce CRM, Salesforce Chatter, SugarSync, Dropbox and SharePoint® Online (for Windows®).


Productivity Software for Mac

CardMinder Business Card Software
ScanSnap iX500 can quickly scan business cards, extract the content information, and place it into editable fields that can be exported to Address Book.

ix500-cardminder_mac-20140529g


ABBYY FineReader Express Edition
Quickly converts PDF documents into searchable PDF's with a simple drag and drop functionality of FineReader Express.

ix500-abby_finereader-20140529g



Productivity Software for PC

ScanSnap Organizer
View, manage, and edit PDF and JPEG files scanned with ScanSnap on a Windows platform. Organizer allows users to convert scanned PDF files into searchable content, embed custom keywords, attach to email or SharePoint®, and remain productive with paperwork long after it is scanned.

ScanSnap Organizer

CardMinder Business Card Software
ScanSnap iX500 also quickly scans loads of business cards, extracts the contact information, and places it into editable fields that can be exported to Outlook.

WinCardMinder


ScanSnap Folder*

ScanSnap Folder


ScanSnap Folder converts ScanSnap into a virtual file folder providing direct scanning into virtually any application or cloud service from a PC. Scan 'outside-the-box' into virtually any application or cloud service from PC.

*ScanSnap Folder is only available on PC

x500-ssfolder_gmail-20140529g



More Ways to Scan to the cloud

scantocloud

Scan to:

  • Evernote
  • Dropbox
  • Google Drive™
  • Salesforce
  • SugarSync
  • SharePoint® (PC only)


Making ScanSnap Connect Application more convenient

With ScanSnap Sync, whichever device you are on, you can use scanned data from either ScanSnap Organizer or the mobile app ScanSnap Connect Application. ScanSnap Sync automatically synchronizes scanned data between the two. This gives you more flexibility for data management regardless of your location.

* ScanSnap Sync is realized by utilizing a third party cloud service such as Google Drive, OneDrive and Dropbox. For the latest support information of cloud services, please refer to each cloud vendor's website.

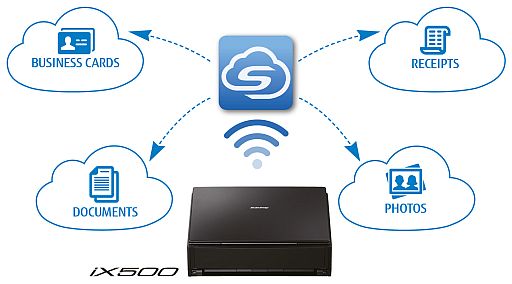

ScanSnap Cloud - takes paper directly to your cloud

Scan Snap Cloud Bringt Papier direkt in Ihre Cloud

Are you a fond user of cloud services like Dropbox, Google Drive, Evernote or alike? Then ScanSnap is your instant on-ramp for documents, business cards, receipts and photos. Simply scan and ScanSnap Cloud will identify the type of content and route it to your preferred cloud service. No PC required.


Receipt software with multi-currency support

ScanSnap-Receipt_new

scansnap-receipt


A few simple steps to digitize and manage the information on your receipts

ScanSnap Receipt allows you to easily scan and extract information from your receipts, and export the data for other accounting software. The sophisticated features within ScanSnap Receipt automatically support various languages and currencies.


Specifications

Product Name ScanSnap iX500
General Technical Specifications
Scanner Type Automatic Document Feeder (ADF), Duplex Scanning
Scanning Modes Color, Grayscale, Monochrome, Automatic (color / grayscale / monochrome detection(3))
Image Sensor Color CIS (Contact Image Sensor) x 2 (front / back)
Light Source 3 Color LED (Red / Green / Blue)
Optical Resolution 600 x 600 dots per inch (dpi)
Scanning Speed (A4 portrait)(1) Auto Mode(2) Simplex or Duplex, 25 pages per minute (ppm)
Normal Mode Color & Grayscale 150 dpi, Monochrome 300 dpi, Simplex/Duplex, 25 ppm
Better Mode Color & Grayscale 200 dpi, Monochrome 400 dpi, Simplex/Duplex, 25 ppm
Best Mode Color & Grayscale 300 dpi, Monochrome 600 dpi, Simplex/Duplex, 25 ppm
Excellent Mode(3) Color & Grayscale 600 dpi, Monochrome 1200 dpi, Simplex/Duplex, 7 ppm
Document Size Normal Mode without Carrier Sheet A4, A5, A6, B5, B6, Business Card, Post Card, Letter, Legal and Custom Size.
Max: 216 mm X 360 mm (8.5 in. X 14.17 in.), Min: 50.8 mm X 50.8 mm (2 in. X 2 in.).
Automatically recognizes document size.
Normal Mode with Carrier Sheet(3) Use of a Carrier Sheet permits the scanning of A3, B4, 279.4 mm X 431.8 mm (11 in. x 17 in.) and photographs as well as the document sizes listed above.
Long Paper Scanning(3)(4) 863mm (34 in.)
Multi-feed Detection Supported (Standard) ultrasonic multi-feed detection sensor
Paper Weight (thickness) 40 g/m2 to 209 g/m2 (11 lb. to 56 lb.)
Paper Chute Capacity(5) Maximum 50 sheets (A4, 80g/m2 or 21 lb. )
Interface USB 3.0 (USB 2.0 / 1.1 Compatible)(6)
Wi-Fi Interface(7) Observed Standards IEEE802.11b / IEEE802.11g / IEEE802.11n
Communication Mode Infrastructure Mode
Frequency(8) 2.412 GHz to 2.462 GHz / 2.412 GHz to 2.472 GHz
Communication Distance Indoors, 50 m (Recommended: indoors, within 25 m)
*May vary depending on surrounding environment and the access point to be connected
Security(9) WPA-PSK (TKIP / AES), WPA2-PSK (TKIP / AES),
WEP (64-bit / 128-bit)
Easy Installation WPS2.0 supported (button / PIN code)
Power Requirement AC Adapter AC 100 V to 240 V, 50 / 60 Hz
Power Consumption / USB Connected Operating Mode 20 W or less
Sleep Mode 1.6 W or less
Auto Standby (Off) Mode less than 0.4 watt
Power Consumption / Wi-Fi Connected Operating Mode 20 W or less
Sleep Mode 2.5 W or less
Auto Standby (Off) Mode less than 0.4 watt
Operation Environment Temperature 5 °C to 35 °C (41 °F to 95 °F)
Relative Humidity 20 % to 80 % (non-condensing)
Dimensions (W x D x H)(10) 292 mm x 159 mm x 168 mm (11.5 in. x 6.2 in. x 6.6 in.)
Device Weight 3.0 kg (6.62 lb.)
Driver Specific driver
· Windows®: Does not support Twain/ISIS®
· Mac OS: Does not support Twain
Environmental Compliance ENERGY STAR® / RoHS
Inbox Contents ScanSnap, AC cable, AC adapter, USB cable (USB 3.0 supported), Safety Precautions, Setup DVD-ROM, ScanSnap Carrier Sheet
  1. Scanning speeds may vary due to the system environment used
  2. Documents measuring 5.8 inches (148 mm) in length or less are scanned in "Best Mode", while other documents are scanned in "Better Mode".
  3. Only Computer connection
  4. ScanSnap iX500 is capable of scanning documents that exceed A4 size in length. ScanSnap iX500 supports the scanning of longer documents in all modes except in “Excellent Mode”
  5. Maximum capacity varies depending upon paper weight.
  6. Some computers do not recognize the ScanSnap when it is connected to a USB 3.0 port. In this case, please use a USB 2.0 port
  7. Mobile devices that can be connected include iPad / iPhone / iPod touch and Android™. Refer to ScanSnap website for details
  8. Values depends on Country
  9. IEEE802.1X Authentication is not supported
  10. Excluding the stacker and other external attachments

System Requirements for PC

Compatible
Operating
Systems		   Windows®
10 / 8.1
(32-bit / 64-bit)(1)		 8
(32-bit / 64-bit)(1)		 7
(32-bit / 64-bit)
SP1 or later		 Vista®
(32-bit / 64-bit)
SP2 or later		 XP
(32-bit)
SP3 or later
Driver
/Applications(2)		 ScanSnap Manager V6.5L60 or later Supported Not supported Supported Not supported Not supported
ScanSnap Manager V6.5L40 Supported Supported Supported Supported Supported
ScanSnap Organizer V5.6L40 or later Supported Not supported Supported Not supported Not supported
ScanSnap Organizer V5.6L20 Supported Supported Supported Supported Supported
ScanSnap Receipt V1.5L41 or later Supported Not supported Supported Not supported Not supported
ScanSnap Receipt V1.5L40 Supported Supported Supported Supported Not supported
CardMinder™ V5.2L40 or later Supported Not supported Supported Not supported Not supported
CardMinder™ V5.2L30 Supported Supported Supported Supported Supported
ABBYY FineReader for ScanSnap™ 5.0 Supported Supported Supported Supported Supported
ABBYY FineReader for ScanSnap™ 5.5 Supported Supported Supported Supported Not supported
Scan to Microsoft® SharePoint® 3.4 / 5.0 Supported Supported Supported Supported Supported
Nuance® Power PDF Standard Supported Supported Supported Not supported Not supported
Hardware Requirements(3) CPU (4) Intel® Core™ i5 2.5 GHz or higher
Memory Capacity(4) 4 GB or more
Display Resolution 1,024 pixels × 768 pixels or higher
800 pixels x 600 pixels or higher
Disk Capacity(5) 5 GB or more of the free hard disk space
DVD ROM Drive Required for installation(6)
USB Port(4)(7) USB 3.0(8) / USB 2.0 / USB 1.1
  1. Operate as a desktop application.
  2. Operating systems listed in this table are the only ones supported. Please refer to the ScanSnap Support site for the latest support information.
  3. The ScanSnap device may not work if the connected computer does not meet these requirements.
  4. Scanning speeds may drop if recommended CPU, memory capacity and USB 1.1 requirements are not met.
  5. Microsoft .NET Framework 3.5 SP1 will be installed (requires 500 MB of disk space) together with ScanSnap Manager, ScanSnap Organizer or CardMinder for systems that do not have .NET Framework 3.5 SP1 installed. When using “Scan to Google Drive” with ScanSnap Manager/ScanSnap Organizer, users also need to install either .NET Framework 4 or in-place updates of .NET Framework 4.
  6. If you have no DVD-ROM drive, please visit the ScanSnap Support site.
  7. ScanSnap operates on both USB 2.0 and USB 3.0 without any difference in performance.
  8. Some computers do not recognize the ScanSnap when it is connected to a USB 3.0 port. In this case, please use a USB 2.0 port.

*System requirements may change depending on the duration of support and the support policy of the companies that make the software listed in the table above.


System Requirements for Mac

Compatible Operating Systems macOS v10.13 macOS v10.12(1) OS X v10.11
v10.10
Driver/Applications (6) ScanSnap Manager for Mac V6.3 Supported Supported Supported
ScanSnap Organizer for Mac V1.2 Supported Supported Supported
ScanSnap Receipt for Mac V1.5 Supported Supported Supported
CardMinder™ for Mac V5.3 Supported Supported Supported
ABBYY FineReader for ScanSnap™ 5.0 Not supported Not supported Supported
ABBYY FineReader for ScanSnap™ 5.5 (7) Supported Supported
ABBYY FineReader Pro for Mac 12 (7) Supported Not supported
ABBYY FineReader Express Edition for Mac 8.3 Not supported Not supported supported
Nuance® PDF Converter for Mac v4 Not supported Not supported Supported
Nuance® PDF Converter for Mac v5 (7) Supported Supported
Hardware Requirements
(7)		 CPU(8) Intel® Core™ i5 2.5 GHz or higher
Memory Capacity(8) 4 GB or more
Display Resolution 1,024 x 768 pixels or higher
Disk Capacity 5 GB or more of the free hard disk space
DVD-ROM Drive Required for Installation(10)
USB Port(8)(10) USB 3.0(11) / USB 2.0 / USB 1.1
  1. macOS v10.12.1 or later is recommended.
  2. OS X v10.9.5 or later is recommended.
  3. OS X v10.8.5 or later is recommended.
  4. Mac OS X v10.7.5 or later is recommended.
  5. Mac OS X v10.6.8 is recommended.
  6. Operating systems listed in this table are the only ones supported. Please refer to the ScanSnap Support site for the latest information.
  7. Please refer to the website of each vendor for the latest support information.
  8. The ScanSnap device may not work if the connected computer does not meet these requirements.
  9. Scanning speeds may drop if the recommended CPU, memory capacity and USB 1.1 requirements are not met.
  10. If you have no DVD-ROM drive, please visit the ScanSnap Support site.
  11. The ScanSnap operates on both USB 2.0 and USB 3.0 without any difference in performance.
  12. Some computers do not recognize the ScanSnap when it is connected to a USB 3.0 port. In this case, please use a USB 2.0 port.

*The System requirements may change depending on the duration of support and the support policy of the companies that make the software listed in the table above.

Consumables & Options

Consumables

Options


Part Part number Remarks
ScanSnap Bag PA03951-0651 Intended for ScanSnap iX500, S1500, S1500M, S510, S510M, S500, S500M
ScanSnap Carrier Sheet PA03360-0013 5 Carrier Sheets for ScanSnap models

Video

Introduction


Warranty & Service Plans

Standard Warranty


iX500 Standard Warranty
Description:
1 Year Advance Exchange: Next Business Day
Included in the price of the product



Extended Warranty


U3 EXTW DKT
Description:
3 Year Advance Exchange: Next Business Day

Order by Part Number:
U3-EXTW-DKT

Top of Pagetop fo page

Products

Services

Features

Corporate

Country Selector

United Kingdom

Change

World Map

Copyright 1995 - 2018 FUJITSU
